APRT-2518G/APRT-2518GS WIRELESS G ROUTER/ SUPER G ROUTER USER MANUAL Version 6.0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. The manufacturer declares that APRT-2518G/APRT-2518GS is limited to channel 1~channel 11 by specified firmware controlled in USA. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. Information to User: The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Page 2 of 45 CONTENT PAGE 1 INTRODUCTION....................................................................................................... 5 THE PRODUCT....................................................................................................................5 PRODUCT FEATURES..........................................................................................................5 2 PACKAGE CONTENTS...........................................................................................6 C ONTENTS OF PACKAGE....................................................................................................6 S YSTEM REQUIREMENTS FOR CONFIGURATION.................................................................6 3 CONNECTIONS.........................................................................................................7 4 LED.............................................................................................................................. 7 5 BASIC IP NETWORKING.......................................................................................8 W IRELESS LAN BASICS.....................................................................................................9 6 GETTING STARTED..............................................................................................11 7 CONFIGURATION WIZARD................................................................................14 8 CONFIGURATION MENU....................................................................................19 S YSTEM SUMMARY > CONFIGURATION...........................................................................19 S YSTEM SUMMARY > ASSOCIATIONS..............................................................................20 S YSTEM SUMMARY > STATISTICS....................................................................................20 S YSTEM SUMMARY > SITE SCAN.....................................................................................20 B ASIC > SNTP SETTING..................................................................................................20 B ASIC > LAN SETTING....................................................................................................21 B ASIC > WAN SETTING..................................................................................................21 B ASIC > MAC CLONE...................................................................................................23 W IRELESS > BASIC SETTING............................................................................................24 W IRELESS > ADVANCE SETTING......................................................................................26 WIRELESS > MAC ADDRESS CONTROL...........................................................................27 DHCP > DHCP S ERVER.................................................................................................27 DHCP > DHCP L IST.......................................................................................................28 P ORT FORWARD > VIRTUAL SERVER...............................................................................28 PORT FORWARD > ICMP FORWARD................................................................................29 P ORT FORWARD > DMZ SETTING...................................................................................29 P ORT FORWARD > UPNP SETTING.…

Text truncated - open the document above for the full version.

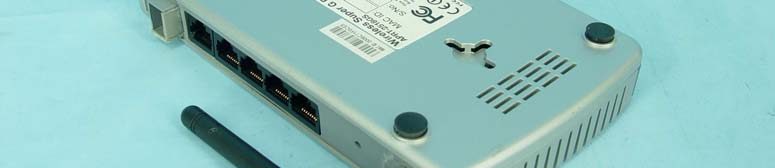

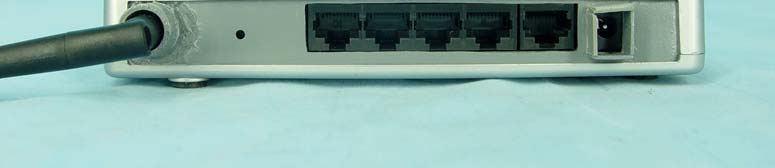

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : PXP000004 Label Location

Page 3 Page 4 Page 5 Page 6

FCC ID: PXP000004 Report No.: RF940923L11 Operational Description This device is a Wireless Super G Router which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by DC 5V and connected with managing equipment through Mini PCI interface. The antenna is Dipole antenna with RSMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: PXP000004 Report No: SA940923L11 1 RF EXPOSURE REPORT REPORT NO.: SA940923L11 MODEL NO.: APRT-2518GS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: RFNet Technologies Pte Ltd. ADDRESS: 801 Lorong 7 Toa Payoh #05-02 Wearnes Technology Building Singapore 319319 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PXP000004 Report No: SA940923L11 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PXP000004 Report No: SA940923L11 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device.. FCC ID: PXP000004 Report No: SA940923L11 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0.79dBi or 1.199499 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241264.8630.0151.0 6243765.6150.0161.0 11246265.1630.0161.0 For OFDM Normal mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.2100.0101.0 6243741.4950.0101.0 11246240.8320.0101.0 For OFDM Turbo mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243740.5510.0101.0

Report No.: RF940923L111Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940923L11 MODEL NO.: APRT-2518GS RECEIVED: Sep. 26, 2005 TESTED: Oct. 06, 2005 ~ Mar. 10, 2006 ISSUED: Mar. 16, 2006 APPLICANT: RFNet Technologies Pte Ltd. ADDRESS: 801 Lorong 7 Toa Payoh #05-02 Wearnes Technology Building Singapore 319319 ISSUED BY :Advance Data Technology Corporation LAB ADDRESS :No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION :No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF940923L112Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................22 4.2.2 TEST INSTRUMENTS................................................................................................23 4.2.3 TEST PROCEDURES ................................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................24 4.2.5 TEST SETUP .............................................................................................................25 4.2.6 EUT OPERATING CONDITIONS ...............................................................................25 4.2.7 TEST RESULTS .........................................................................................................26 4.36dB BANDWIDTH MEASUREMENT .........................................................................35 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................35 4.3.2 TEST INSTRUMENTS................................................................................................35 4.3.3 TEST PROCEDURE...................................................................................................36 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................36 4.3.5 TEST SETUP .............................................................................................................36 4.3.6 EUT OPERATING CONDITIONS ...............................................................................36 4.3.7 TEST RESULTS .........................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................45 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................45 4.4.2 TEST INSTRUMENTS................................................................................................45 4.4.3 TEST PROCEDURES ................................................................................................46 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................46 4.4.5 TEST SETUP .............................................................................................................46 4.4.6 EUT OPERATING CONDITIONS ...............................................................................46 Report No.: RF940923L113Report Format Version 2.0.4 4.4.7 TEST RESULTS .........................................................................................................47 4.5POWER SPECTRAL DENSITY MEASUREMENT ........................................…

Text truncated - open the document above for the full version.

Report No.: RF940923L1173Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF940923L1174Report Format Version 2.0.4 RADIATED EMISSION TEST
