PXTWBS-01WIRELESS BASE STATION GEN1.0

WBS Gen1.0 USER MANUAL WBS Gen 1.0 1 Wireless Base Station: If you need help, WBS calls for help whenever you p ress the EMERGENCY button. It works anywhere, anytime th ere is cellular service. Where to place WBS in your house● On a hard, flat, non-metallic surface. How to use WBS(1) Power Up● Plug WBS’s power adaptor into a electrical outlet th at is NOT controlled by a wall switch. ● Power switch ( at the bottom case of WBS) to “ON” po sition. Power Switch ON WBS Gen1.0 2 (2) Calling for Help● To call for help, you don’t have to do anything exc ept press EMERGENCY button.● Once the button is pressed, one of MobileHelp person al response associate will answer to you. (3) Communicate with MobileHelp Response Center● MobileHelp personal response associate will speak to you through your WBS’s built-in speaker. He/She can hear you through the W BS’s highly sensitive microphone . (4) Received Help ● MobileHelp personal response associate will contact a neighbor, family member or emergency services based on specific need . ● The EMERGENCY and RESET button will light up. ● Indicating that power has been detected by WBS. ● The voice “system ready” also prompts from WBS at th e same time and it is ready to use. WBS Gen1.0 3 FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not c ause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply wit h the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio fr equency energy and, if not installed and used in accordance with the instructions, may c ause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does caus e harmful interference to radio or television reception, which can be determined by tu rning the equipment off and on, the user is encouraged to try to correct the interferen ce by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV tech nician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to opera te the equipment. 4 444 RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exc eed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.This device complies with FCC radiation exposure li mits set forth for an uncontrolled environment. In order to avoid the possibility of e xceeding the FCC radio frequency exposure limits, human proximity to the antenna sha ll not be less than 20cm (8 inches) during normal operation. WBS Gen1.0 4 IC Regulations:This device complies with Industry Canada license-e xempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, inclu ding interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Can ada applicables aux appareils radio exempts de licence. L'exploitation es t autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout bro uillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctio nnement.“ This Class B digital apparatus complies with Canadi an ICES-003. Cet appareil numérique de la classe B est conforme à la no rme NMB-003 du Canada. This Category II radiocommunication device complies with Industry Canada Standard RSS-310. Ce dispositif de radiocommunication de catégorie II res pecte la norme CNR-310 d’Industrie Canada.Under Industry Canada regulations, this radio trans mitter may only operate using an antenna of a type and maximum (or lesser) gain appr oved for the transmitter by Industry Canada. To reduce potential radio interference to o ther users, the antenna type and its gain should be so chosen that the equivalent isotro pically radiated power (e.i.r.p.) is not more than that necessary for successful communicati on. IMPORTANT NOTE:IC Radiation Exposure Statement:This equipment complies with IC RSS-102 radiation e xposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

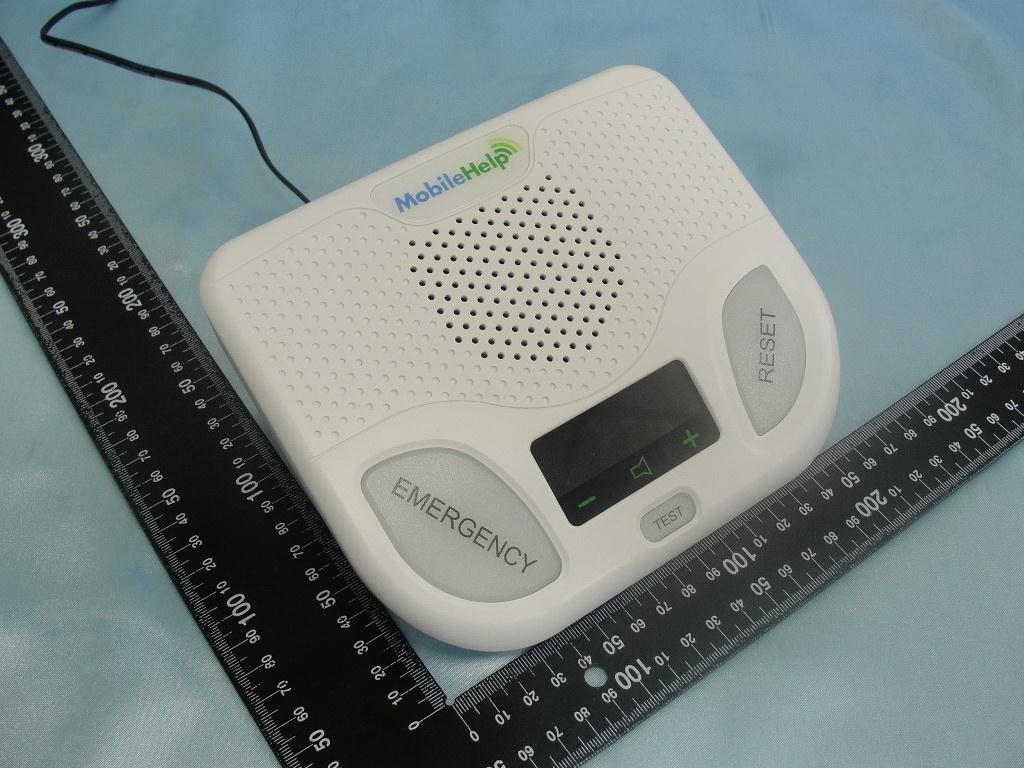

Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 1 of 14 TEL : 886-3-327-3456 Report Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 2 of 14 TEL : 886-3-327-3456 Report Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 3 of 14 TEL : 886-3-327-3456 Report Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 4 of 14 TEL : 886-3-327-3456 Report Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 List of Accessory: Specification of Accessory AC Adapter Brand Name Gee High Model Name GH-053000W Battery Brand Name B&K Model Name 804169N Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 5 of 14 TEL : 886-3-327-3456 Report Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 6 of 14 TEL : 886-3-327-3456 Report Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Adapter Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 7 of 14 TEL : 886-3-327-3456 Report Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Battery

Label Location Bottom of the Device

ABL WB1-02 DAVISCOMMS INTERNAL USE ONLY Page 1 WBS G1.0 Back Label 07 Feb 2013 NOTES: 1 .Model Number is WBS GEN1.0 2.Serial Number follows the Product Serial Number Determination Chart (Doc. 500107Rxx) Example : WB1XPQ2222 Wireless Base Station G1.0 (WB1), no PLL (PLL code not used “X”), Factory Ship Year is 2013 (Year Code “P”). Factory Ship Month is first half month of August (Month Code “Q”), unit sequence code (2222). 65.6mm 27.4mm SERIAL NUMBER BARCODE 39 MobileHelp Made in Malaysia Model Number: WBS GEN1.0 Serial Number: FCC ID: PXTWBS-01 IC: 10876A-WBS01

Photographs of EUT Report No.: 311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Feb. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PXTWBS-01 IC : 10876A-WBS01 EUT Length: 17.8 cm EUT Width: 15.0 cm Antenna Length Width WWAN Antenna <Tx / Rx> 7.0 cm 0.1 cm NFC Antenna <Tx / Rx> 12.8 cm 0.6 cm The shortest distance between the Tx antennas WWAN Antenna <Tx / Rx> to NFC Antenna <Tx / Rx> 3.0 cm 17.2 cm 5.9 cm WWAN Antenna <Tx / Rx> 2.1 cm 1.6 cm 3.4 cm 1.2 cm 13.2 cm NFC Antenna <Tx / Rx>

Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 8 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 3. Internal Photograph of EUT 720510 WWAN NFC Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 9 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 10 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 11 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 12 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 WWAN Antenna Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 13 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 14 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510 NFC Antenna Photographs of EUT Report No.: EP311506 Brand Name: MobileHelp / Model Name: WBS GEN1.0 / Marketing Name: WBS GEN1.0 SPORTON INTERNATIONAL INC. Page Number : 15 of 15 TEL : 886-3-327-3456 Report Issued Date : Feb. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PXTWBS-01 IC : 10876A-WBS01 720510

FCC Test Report Report No. : FR311506 SPORTON INTERNATIONAL INC. Page No. : 1 of 30 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless Base Station Gen1.0 Brand Name : MobileHelp Model No. : WBS GEN1.0 Marketing Name : WBS GEN1.0 FCC ID : PXTWBS-01 Standard : 47 CFR FCC Part 15.231 Operating Band : 433.92 MHz Operation : Manually operated within 5 sec & Periodic transmissions (all transmit time 2 sec) Equipment Class : DSC Applicant : Integrity Tracking LLC, dba MobileHelp 3701 FAU Blvd., Suite 300, Boca Raton FL 33431, USA Manufacturer : Daviscomms (Malaysia) Sdn Bhd Plot 18, Lorong Perusahaan Maju 1, Kawasan, Perusahaan Perai 4, 13600 Perai, Malaysia The product sample received on Jan. 15, 2013 and completely tested on Feb. 27, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR311506 SPORTON INTERNATIONAL INC. Page No. : 2 of 30 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Product Details ....................................................................................................................................... 8 1.3 Accessories ............................................................................................................................................ 8 1.4 Support Equipment ................................................................................................................................. 8 1.5 Testing Applied Standards ..................................................................................................................... 8 1.6 Testing Location Information .................................................................................................................. 8 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 Test Channel Frequencies Configuration ............................................................................................. 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 Emission Bandwidth ............................................................................................................................. 16 3.3 Fundamental Emissions ....................................................................................................................... 18 3.4 Transmitter Radiated Unwanted Emissions ......................................................................................... 20 3.5 Operation Restriction ............................................................................................................................ 26 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 29 APPENDIX A. TEST PHOTOS ....................................................................................................................... A6 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B8 FCC Test Report Report No. : FR311506 SPORTON INTERNATIONAL INC. Page No. : 3 of 30 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.151 MHz 36.42 (Margin 19.52dB) - AV 50.81 (Margin 15.13dB) - QP FCC 15.207 Complied 3.2 15.231(c) Emission Bandwidth 54.80 kHz Fc(70~900MHz): BW ≤ fc x 0.25% Complied 3.3 15.231(b) Fundamental Emissions [dBuV/m at 3m]: 76.76 (Margin 4.07dB) average [dBuV/m at 3m]: average: 80.83 Complied 3.4 15.231(b) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 40.67MHz 27.10 (Margin 12.90dB) - PK FCC 15.231 (b)/(e) or FCC 15.209, whichever limit permits higher field strength. Complied 3.5 15.231(a) Operation Restriction Operated time and silent time are less than limits. Manually operated within 5 sec & Periodic transmissions (all transmit time 2 sec) Complied FCC Test Report Report No. : FR311506 SPORTON INTERNATIONAL INC. Page No. : 4 of 30 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR311506 Rev. 01 Initial issue of report Feb. 27, 2013 FCC Test Report Report No. : FR311506 SPORTON INTERNATION…
