PY305300016RANGEMAX ADSL MODEM WIRELESS ROUTER

Netgear Incorporated

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 07, 2005
Application Purpose: Original Equipment
Date of Application: Dec 07, 2005
Equipment Note: RANGEMAX ADSL MODEM WIRELESS ROUTER
Frequency Range: 2412.00000000 - 2462.00000000
Company: Netgear Incorporated
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

August 2005 BETA August 2005 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Phone 1-888-NETGEAR Reference Manual for the Model DG834PN 108 Mbps RangeMax TM Wireless ADSL Modem Router ii August 2005 © 2005 by NETGEAR, Inc. All rights reserved. August 2004. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Federal Communications Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. EN 55 022 Declaration of Conformance This is to certify that the DG834PN 108 Mbps RangeMax TM Wireless ADSL Modem Router is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). August 2005 iii Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das DG834PN 108 Mbps RangeMax TM Wireless ADSL Modem Router gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the DG834PN 108 Mbps RangeMax TM Wireless ADSL Modem Router has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Customer Support Refer to the Support Information Card that shipped with your DG834PN 108 Mbps RangeMax TM Wireless ADSL Modem Router. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required. Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continue…

Text truncated - open the document above for the full version.

Block Diagram

DG834PN/PNB Block Diagram Power Supply FLASH (4Mx16) 16b MiniPCI Cnnector 802.11 b/g Modules 3.3V 12V 1.8V 2.5V BCM6348 16/32 bit PCI/EBI/Cardbus/PCMCIA ADSL2+ XCVRW /AFE USB1.1 PHYS USB1.1 MAC S y s t e m B u s 10/100 Ethernet MAC 16/32 bit SDRAM Interface 133.3MHz RISC Bus SPI GPIO UART IRQs SDRAM (4Mx16x2) Crystal 64MHz ADSL Line Driver HYBRID Circuit 2:1 RJ11 RX Filter 5V Transformer 10/100Ethernet 10/100Ethernet 10/100Ethernet 10/100Ethernet RJ45 Module BCM5325E 4 Ports Switch PHY MII 16/32b Crystal 25MHz 1.2V

Cover Letter(s)

RF_160, Issue 01 Declaration of Authorization We Name: Netgear Inc. Address: 4500 Great America Parkway ............................................................................ City: Santa Clara California 95054................................................. Country: USA.......................................................... Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No. 28, Lane 78, Xing-Ai Rd., Nei-hu City: Taipei City 114 Country: Taiwan, R. O. C.............. is authorized to apply for Certification of the following product(s): Product description: RANGEMAS ADSL MODEM GATEWAY Type designation: DG834PN Trademark: Netgear........................................ on our behalf. Date: Sep. 19, 2005 City: California Name: Mark Gandler Signature: __________________________

Cover Letter(s)

Request for non-disclosure RF_501_02 Netgear Inc., 4500 Great America Parkway Santa Clara California 95054 USA To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID:PY305300016) Reference number: DG834PN Date: Sep. 19, 2005 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), <name applicant> hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: PY305300016 a. Schematic diagrams b. Block diagram c. Operational description Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Netgear understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Signature: _____________________ Name: Mark Gandler

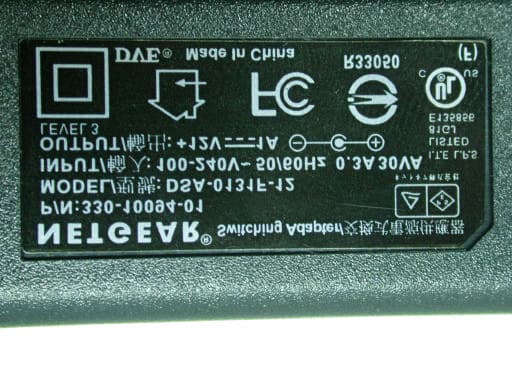

External Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 1 of 13 FCC Test Report: FI05091901-A Appendix A. Photographs of EUT 05091901-A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 2 of 13 FCC Test Report: FI05091901-A DG834PN 05091901A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 3 of 13 FCC Test Report: FI05091901-A DG834PNB Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 4 of 13 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 5 of 13 FCC Test Report: FI05091901-A DG834PN 05091901-A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 6 of 13 FCC Test Report: FI05091901-A DG834PNB Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 7 of 13 FCC Test Report: FI05091901-A 05091901-A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 8 of 13 FCC Test Report: FI05091901-A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 9 of 13 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 10 of 13 FCC Test Report: FI05091901-A DSA0131F-12 05091901-A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 11 of 13 FCC Test Report: FI05091901-A 05091901-A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 12 of 13 FCC Test Report: FI05091901-A ADS18B-W 05091901-A 05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 13 of 13 FCC Test Report: FI05091901-A 05091901-A 05091901-A

ID Label/Location Info

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REVDESCRIPTION OF REVISIONENG APPDDATE NOTE : 1. REFER TO NETGEAR SPEC. 270-10002-01 FOR MATERIAL SPECIFICATIONS AND TOLERANCES. 2. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. INK COLOR IS SHOWN TO THE RIGHT. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LA YERS). 5 01272-10280-011 of 1 PLBL, DG834PN, V1H1M YU 09-06-05M YUINITIAL DOCUMENT CREATION01 Pantone 430C

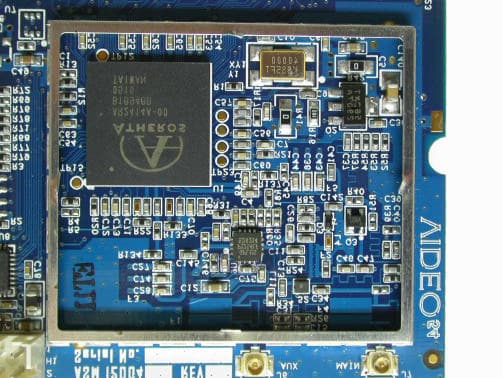

Internal Photos

RF Exposure Info

1.1. Test Result of RF Exposure Evaluation . Product: RANGEMAX ADSL MODEM GATEWAY . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 5.3 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Oct. 21, 2005 Temperature: 25 Humidity: 60 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 20.05 0.068 06 2437 20.43 0.074 11 2462 19.71 0.063 Modulation Standard: IEEE 802.11g Test Date: Oct. 21, 2005 Temperature: 25 Humidity: 60 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 22.31 0.115 06 2437 22.48 0.119 11 2462 21.82 0.103 Modulation Standard: 802.11 Super G Test Date: Oct. 21, 2005 Temperature: 25 Humidity: 60 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 --- --- 06 2437 22.09 0.109 11 2462 --- --- The MPE is calculated as 0.119 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 1 of 112 FCC Test Report: FI05091901-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. † The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Netgear Inc. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment RANGEMAX ADSL MODEM WIRELESS ROUTER Model No. DG834PN/PNB FCC ID PY305300016 Trade Name Netgear Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 2 of 112 FCC Test Report: FI05091901-A Contents 1. Report of Measurements and Examinations.............................................................................5 1.1 List of Measurements and Examinations............................................................................5 2. Test Configuration of Equipment under Test............................................................................6 2.1 Feature of Equipment under Test.......................................................................................6 2.2 RF Specifications..............................................................................................................6 2.3 Test Mode and Test Software.............................................................................................7 2.4 Description of Test System................................................................................................8 2.5 Connection Diagram of Test System..................................................................................9 2.6 General Information of Test.............................................................................................10 2.7 History of this test report.................................................................................................10 3. Antenna Requirements............................................................................................................11 3.1 Standard Applicable.........................................................................................................11 3.2 Antenna Construction and Directional Gain.......................................................................11 4. Test of Conducted Emission...................................................................................................12 4.1 Test Limit.......................................................................................................................12 4.2 Test Procedures.............................................................................................................12 4.3 Typical Test Setup..........................................................................................................13 4.4 Measurement equipment.................................................................................................13 4.5 Test Result and Data.......................................................................................................14 5. Test of Radiated Emission......................................................................................................43 5.1 Test Limit.......................................................................................................................43 5.2 Test Procedures.............................................................................................................44 5.3 Typical Test Setup...........................................................................................................45 5.4 Measurement equipment.................................................................................................45 5.5 Test Result and Data.......................................................................................................46 6. 6dB Bandwidth Measurement Data.........................................................................................91 6.1 Test Limit........................................................................................................................91 6.2 Test Procedures..............................................................................................................91 6.3 Test Setup Layout...........................................................................................................91 6.4 Measurement equipment.................................................................................................91 6.5 Test Result and Data.......................................................................................................91 7. Maximum Peak Output Power.................................................................................................96 7.1 Test Limit........................................................................................................................96 7.2 Test Procedures..............................................................................................................96 7.3 Test Setup Layout...........................................................................................................96 7.4 List of Measuring Equipment Used...................................................................................96 7.5 Test Result and Data.......................................................................................................96 8. Band Edges Measurement.....................................................................................................101 8.1 Test Limit...........................................…

Text truncated - open the document above for the full version.

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 24 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 25 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 26 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 27 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 28 of 112 FCC Test Report: FI05091901-A Test mode 2: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 29 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 30 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 31 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 32 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 33 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 34 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 35 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 36 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 37 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 38 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 39 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 40 of 112 FCC Test Report: FI05091901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 41 of 112 FCC Test Report: FI05091901-A Test engineer: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 42 of 112 FCC Test Report: FI05091901-A 4.5.1 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 43 of 112 FCC Test Report: FI05091901-A 5. Test of Radiated Emission 5.1 Test Limit Radiated emissions from 30 MHz to 25 GHz were measured according to the methods defines in ANSI C63.4-2003. The EUT was placed, 0.8 meter above the ground plane, as shown in section 5.6.3. The interface cables and equipment positions were varied within limits of reasonable applications to determine the positions producing maximum radiated emissions For unintentional device, according to § 15.109(a), except for Class A digital devices, the field strength of radiated emissions from unintentional radiators at a distance of 3 meters shall not exceed the following values: Frequency (MHz) Distance Meters Radiated (μ V / M) Radiated (dB μ V/ M) 30-88 3 100 40.0 88-216 3 150 43.5 216-960 3 200 46.0 Above 960 3 500 54.0 For unintentional device, according to CISPR PUB.22, for Class B digital devices, the general requirement of field strength of radiated emissions from intentional radiators at a distance of 10 meters shall not exceed the above table. Frequency (MHz) Distance Meters Radiated (dB μ V/ M) 30-230 10 30 230-1000 10 37 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 44 of 112 FCC Test Report: FI05091901-A 5.2 Test Procedures 1. The EUT was placed on a rotatable table top 0.8 meter above ground. 2. The EUT was set 3 meters from the interference receiving antenna which was mounted on the top of a variable height antenna tower. 3. The table was rotated 360 degrees to determine the position of the highest radiation. 4. The antenna is a broadband antenna and its height is varied between one meter and four meters above ground to find the maximum value of the field strength both horizontal polarization and vertical polarization of the antenna are set to make the measurement. 5. For each suspected emission the EUT was arranged to its worst case and then tune the antenna tower (from 1 M to 4 M) and turn table (from 0 degree to 360 degrees) to find the maximum reading. 6. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function and specified bandwidth with Maximum Hold Mode. 7. If the emission level of the EUT in peak mode was 3 dB lower than the limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method and reported. 8. For testing above 1GHz, the emission level of the EUT in peak mode was 20dB lower than average limit (that means the emission level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 31, 2005 45 of 112 FCC Test Report: FI05091901-A 5.3 Typical Test Setup 5.4 Measurement equipment Instrument/Ancillary Type Manufacturer Valid Date EMI Receiver 8546A HP 2006/04/13 Spectrum Analyzer FSP40 R&S 2005/12/28 Horn Antenna 3115 EMCO 2006/02/21 Horn Antenna 3116 EMCO 2006/02/21 Bilog Antenna CBL6112B Schaffner 2006/04/12 Amplifier 8447D Agilent 2006/0…
