PY305300021RangeMax Wireless Router

February 2005 Version 1.0 February 2005 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA NETGEAR Wireless Router Setup Manual ii February 2005 © 2005 by NETGEAR, Inc. All rights reserved. February 2005. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The user must maintain at least 20cm distance from this device. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. NOTE:Changes or modifications not expressly approved by NETGEAR, Inc. could void the user's authority to operate this equipment. EN 55 022 Declaration of Conformance This is to certify that the Wireless Router is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. February 2005 iii Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das Wireless Router gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the Wireless Router has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Customer Support Refer to the Support Information Card that shipped with your Wireless Router. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required. February 2005 iv Contentsv February 2005 Contents Chapter 1 About This Guide Audience, Conventions, and Formats ............................................................................1-1 Tips for Printing This Manual ..........................................................................................1-2 Chapter 2 Getting to Know Your NETGEAR Wireless Router Package Contents ..........................................................................................................2-1 The Front Panel .......................................................................................................2-2 The Rear Panel ........................................................................................................2-3 Chapter 3 Connecting the Router to the Internet Prepare to Install Your Wireless Router ..........................................................................3-1 First, Connect the Wireless Router to the Internet .........................................................3-1 Now, Set Up a Computer for Wireless Connectivity .......................................................3-6 Troubleshooting Tips ......................................................................................................3-7 Overview of How to Access the Wireless Router ...........................................................3-8 How to Log On to the Wireless Router After Configuration Settings Have Been Applied ..............................................................3-9 How to Bypass the Configuration Assistant ...........................................................3-10 How to Manually Configure Your Internet Connection ..................................................3-10 Using the Smart Setup Wizard .....................................................................................3-12 NETGEAR Product Registration, Support, a…

Text truncated - open the document above for the full version.

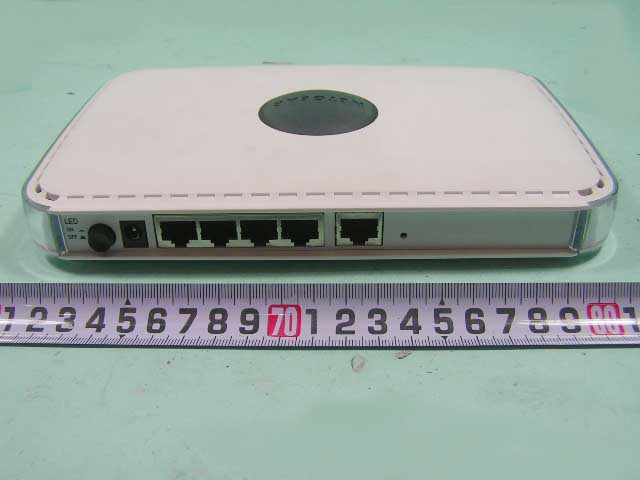

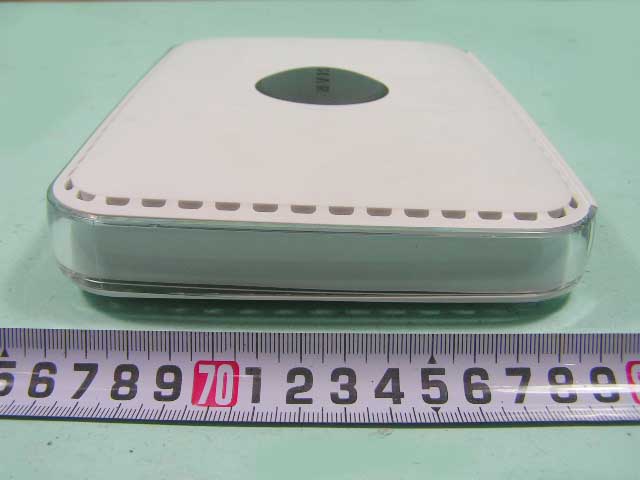

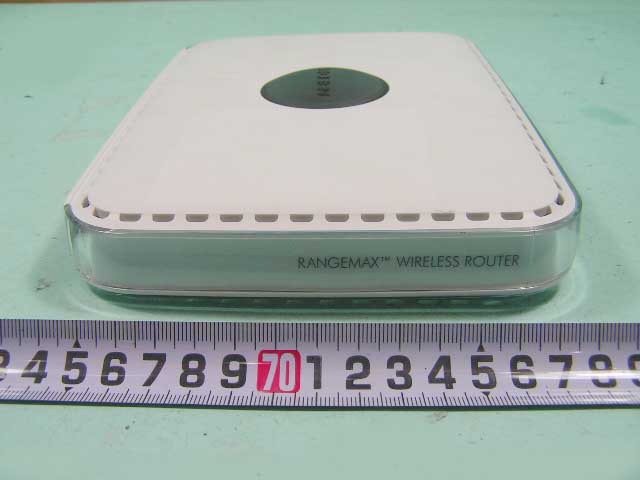

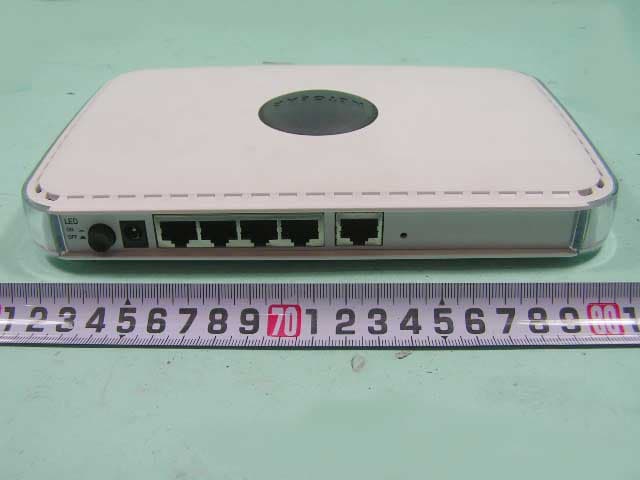

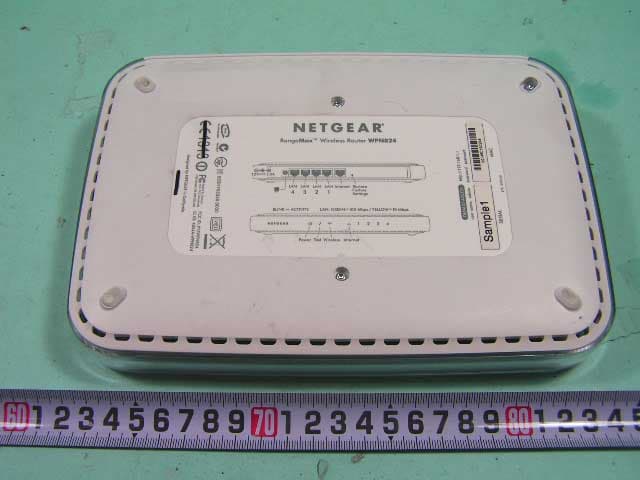

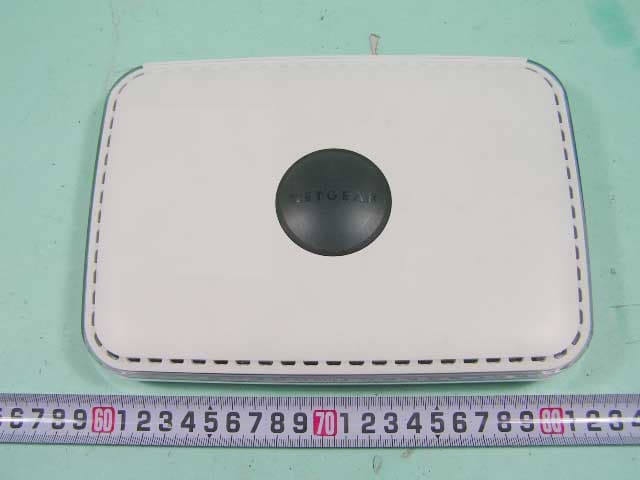

SPORTON International Inc. PAGE NUMBER : A1 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A5 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Oct,27,2005 FAX : 886-2-2696-2255

FCC ID: PY305300021 Description of Operation EUT is a Wireless Router with 11 channels. This device provided twelve kinds of transmitting speed 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is DQPSK, DBPSK, CCK, BPSK, QPSK, 16QAM or 64QAM. The device adapts Direct Sequence Spread Spectrum modulation (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM). The antenna is Printed Antenna, and there is no antenna connector. This Wireless Router is an IEEE 802.11b and IEEE 802.11g Wireless AP. It allows you to establish a wireless network and to link PCs and share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz DSSS or OFDM radio transmission, the Wireless Router transfers data using 64/128/152 bit Wired Equivalent Protection (WEP) algorithm encryption. In addition, its standard compliance ensures that it can communicate with any 802.11b and 802.11g networks. There are 7 printed antennas, but only one of them will be operated while transmitting.

Report No.: 592102 FCC ID: PY305300021 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: 592102 FCC ID: PY305300021 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (mW/cm²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (mW) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (cm) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: 592102 FCC ID: PY305300021 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna 1~7 Max Conducted Power for IEEE 802.11b/ g : 20dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5 3.1623 19.4300 87.7001 0.055201 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 4500 Great America Parkway, Santa Clara, CA 95054, USA FCC ID PY305300021 Manufacturer’s company Hong Fu Jin Precision Industry (Shenzhen) Co., Ltd. Manufacturer Address No. 2, 2nd Donghuan Road ,10th Industrial DistrictLonghua Town, Bao’an, Shenzhen, P.R. China Product Name RangeMax Wireless Router (WPN824v2); RangeMax Wireless Access Point (WPN802v2) Brand Name NETGEAR Model Name WPN824v2, WPN802v2 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C Test Freq. Range 2400 ~ 2483.5MHz Receive Date Sep. 21, 2005 Test Date Oct. 18, 2005 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR592102 FCC ID: PY305300021 Page No. : i of ii Issued Date : Oct. 24, 2005 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................15 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5. Radiated Emissions Measurement ....................................................................................................................................................27 4.6. Band Edge Emissions Measurement .................................................................................................................................................63 4.7. Antenna Requirements .....................................................................................................................................................................68 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 69 6. SPORTON COMPANY PROFILE ........................................................................................................................ 71 6.1. Test Location.....................................................................................................................................................................................71 7. CERTIFICATE OF NVLAP ACCREDITATION ......................................................................................................... 72 APPENDIX A. PHOTOGRAPHS OF EUT ........................................................................................................... A1 ~ A10 APPENDIX B. TEST PHOTOS ............................................................…

Text truncated - open the document above for the full version.

Report No.: FR592102 FCC ID: PY305300021 Page No. : 28 of 72 Issued Date : Oct. 24, 2005 4.5.3. Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Report No.: FR592102 FCC ID: PY305300021 Page No. : 29 of 72 Issued Date : Oct. 24, 2005 4.5.4. Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1m. Distance extrapolation factor = 20 log (specific distanc [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 4.5.5. Test Deviation There are no deviations with the original standard. 4.5.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m Report No.: FR592102 FCC ID: PY305300021 Page No. : 30 of 72 Issued Date : Oct. 24, 2005 4.5.7. Results of Radiated Emissions (9kHz~30MHz) Temperature 20°C Humidity 70% Test Engineer Steven Lu Configurations 802.11g channel 6 Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. Report No.: FR592102 FCC ID: PY305300021 Page No. : 31 of 72 Issued Date : Oct. 24, 2005 4.5.8. Results of Radiated Emissions (30MHz~1GHz) for ANTENNA 6 Temperature 20°C Humidity 70% Test Engineer Steven Lu Configurations 802.11g channel 6 / adapter 1 Horizontal Report No.: FR592102 FCC ID: PY305300021 Page No. : 32 of 72 Issued Date : Oct. 24, 2005 Vertical Report No.: FR592102 FCC ID: PY305300021 Page No. : 33 of 72 Issued Date : Oct. 24, 2005 Temperature 20°C Humidity 70% Test Engineer Steven Lu Configurations 802.11g channel 6 / adapter 2 Horizontal Report No.: FR592102 FCC ID: PY305300021 Page No. : 34 of 72 Issued Date : Oct. 24, 2005 Vertical Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Pol. : V is Vertical Polarization ; H is Horizontal Polarization. Report No.: FR592102 FCC ID: PY305300021 Page No. : 35 of 72 Issued Date : Oct. 24, 2005 4.5.9. Results for Radiated Emissions (1GHz~10 th Harmonic) for ANTENNA 6 Temperature 20°C Humidity 70% Test Engineer Steven Lu Configurations 802.11b channel 1 Horizontal Report No.: FR592102 FCC ID: PY305300021 Page No. : 36 of 72 Issued Date : Oct. 24, 2005 Vertical Report No.: FR592102 FCC ID: PY305300021 Page No. : 37 of 72 Issued Date : Oct. 24, 2005 Temperature 20°C Humidity 70% Test Engineer Steven Lu Configurations 802.11b channel 6 Horizontal Report No.: FR592102 FCC ID: PY305300021 Page No. : 38 of 72 Issued Date : Oct. 24, 2005 Vertical Report No.: FR592102 FCC ID: PY305300021 Page No. : 39 of 72 Issued Date : Oct. 24, 2005 Temperature 20°C Humidity 70% Test Engineer Steven Lu Configurations 802.11b channel 11 Horizontal Report No.: FR592102 FCC ID: PY305300021 Page No. : 40 of 72 Issued Date : Oct. 24, 2005 Vertical Report No.: FR592102 FCC ID: PY305300021 Page No. : 41 of 72 Issued Date : Oct. 24, 2005 Temperature 20°C Humidity 70% Test Engineer Steven Lu Configurations 802.11g channel 1 Horizontal Report No.: FR592102 FCC ID: …

Text truncated - open the document above for the full version.

Report No.: 592102 FCC ID: PY305300021 Page No. : 1 of 3 Appendix B. Test Photos Report No.: 592102 FCC ID: PY305300021 Page No. : 2 of 3 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: 592102 FCC ID: PY305300021 Page No. : 3 of 3 2. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW
