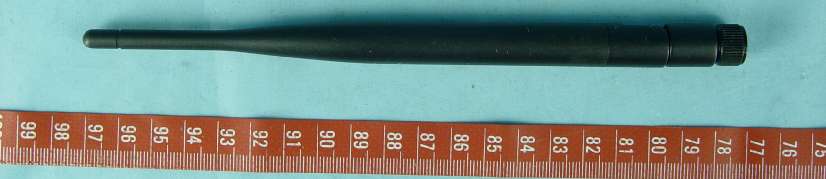

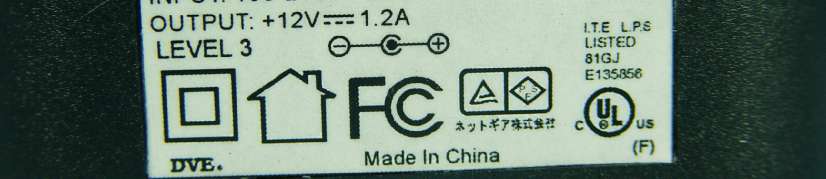

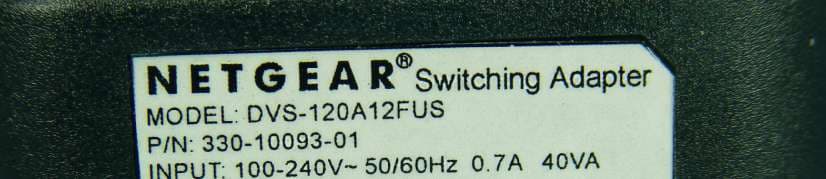

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Antenna 1 Page 4 Antenna 2 Antenna 3

FCC ID : PY306100027 Label Location

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISIONENG APPDDATE 01AW-10019-011 of 1 AW, WG302, V2H1, PLBL M YU 03/08/06M YUINITIAL DOCUMENT CREATION01 Pantone Cool Gray 11C NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. INK COLOR IS SHOWN TO THE RIGHT. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), UNHIDE THE WHITE BOX LAYER AND INCLUDE WHITE BOX ON LABEL. 5

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Antenna 1 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Antenna 2 Page 19 Page 20 Antenna 3

FCC ID: PY306100027 Report No.RF950220L16 Operational Description This device is a 802.11g Prosafe Wireless Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 108Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 108Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter or PoE. For more detailed instruction, please take a look at the user’s manual.

FCC ID: PY306100027 Report No: SA950220L16 1 RF EXPOSURE REPORT REPORT NO.: SA950220L16 MODEL NO.: WG302v2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054, U.S. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PY306100027 Report No: SA950220L16 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PY306100027 Report No: SA950220L16 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PY306100027 Report No: SA950220L16 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -4.64dBi or 0.344(numeric) / -1.69dBi or 0.678(numeric) / 4.59352dBi or 2.879732(numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: TEST MODE 1 For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.8160.0034731.0 6243750.8160.0034731.0 11246250.6990.0034651.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.2860.0035051.0 6243750.1190.0034261.0 11246235.6450.0024361.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243750.9330.0034811.0 FCC ID: PY306100027 Report No: SA950220L16 5 TEST MODE 2 For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.8160.0071.0 6243750.8160.0071.0 11246250.6990.0071.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.2860.0071.0 6243750.1190.0071.0 11246235.6450.0051.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243750.9330.0071.0 FCC ID: PY306100027 Report No: SA950220L16 6 TEST MODE 3 For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.8160.0291.0 6243750.8160.0291.0 11246250.6990.0291.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.2860.0291.0 6243750.1190.0291.0 11246235.6450.0201.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243750.9330.0291.0

Report No.: RF950220L161Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950220L16 MODEL NO.: WG302v2 RECEIVED: Feb. 23, 2006 TESTED: Feb. 23 ~ Mar. 02, 2006 ISSUED: Mar. 09, 2006 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054, U.S. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 126 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950220L162Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ..........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................13 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................13 4TEST TYPES AND RESULTS ....................................................................................14 4.1CONDUCTED EMISSION MEASUREMENT .............................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................14 4.1.2 TEST INSTRUMENTS................................................................................................14 4.1.3 TEST PROCEDURES ................................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................15 4.1.5 TEST SETUP .............................................................................................................16 4.1.6 EUT OPERATING CONDITIONS ...............................................................................16 4.1.7 TEST RESULTS .........................................................................................................17 4.2RADIATED EMISSION MEASUREMENT ..................................................................33 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................33 4.2.2 TEST INSTRUMENTS................................................................................................34 4.2.3 TEST PROCEDURES ................................................................................................35 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................35 4.2.5 TEST SETUP .............................................................................................................36 4.2.6 EUT OPERATING CONDITIONS ...............................................................................36 4.2.7 TEST RESULTS .........................................................................................................37 4.36dB BANDWIDTH MEASUREMENT .........................................................................70 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................70 4.3.2 TEST INSTRUMENTS................................................................................................70 4.3.3 TEST PROCEDURE...................................................................................................71 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................71 4.3.5 TEST SETUP .............................................................................................................71 4.3.6 EUT OPERATING CONDITIONS ...............................................................................71 4.3.7 TEST RESULTS .........................................................................................................72 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................80 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................80 Report No.: RF950220L163Report Format Version 2.0.4 4.4.2 TEST INSTRUMENTS................................................................................................80 4.4.3 TEST PROCEDURES ................................................................................................81 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................81 4.4.5 TEST SETUP .............................................................................................................81 4.4.6 EUT OPERATING CONDITIONS ...............................................................................81 4.4.7 TEST RESULTS .........................................................................................................82 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................83 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..................................83 4.5.…

Text truncated - open the document above for the full version.

Report No.: RF950220L16113Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST TEST MODE 1 Report No.: RF950220L16114Report Format Version 2.0.4 TEST MODE 2 Report No.: RF950220L16115Report Format Version 2.0.4 TEST MODE 3 Report No.: RF950220L16116Report Format Version 2.0.4 TEST MODE 4 Report No.: RF950220L16117Report Format Version 2.0.4 TEST MODE 5 Report No.: RF950220L16118Report Format Version 2.0.4 TEST MODE 6 Report No.: RF950220L16119Report Format Version 2.0.4 RADIATED EMISSION TEST TEST MODE 1 Report No.: RF950220L16120Report Format Version 2.0.4 TEST MODE 2 Report No.: RF950220L16121Report Format Version 2.0.4 TEST MODE 3 Report No.: RF950220L16122Report Format Version 2.0.4 TEST MODE 4 Report No.: RF950220L16123Report Format Version 2.0.4 TEST MODE 5 Report No.: RF950220L16124Report Format Version 2.0.4 TEST MODE 6
