PY306100028802.11a/g Prosafe Wireless Access Point

PN#### 24 Feb 2006 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for the ProSafe™ Dual Band Wireless Access Point WAG302 ii vSECOND DRAFT, 24 Feb 2006 Technical Support Please register to obtain technical support. Please retain your proof of purchase and warranty information. To register your product, get product support or obtain product information and product documentation, go to http://www.NETGEAR.com. If you do not have access to the World Wide Web, you may register your product by filling out the registration card and mailing it to NETGEAR customer service. You will find technical support information at: http://www.NETGEAR.com through the customer service area. If you want to contact technical support by telephone, see the support information card for the correct telephone number for your country. © 2006 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a registered trademark of NETGEAR, INC. Windows is a registered trademark of Microsoft Corporation. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved. Statement of Conditions NOTE:In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. NOTE:Modifications made to the product, unless expressly approved by NETGEAR, could void the user’s authority to operate the equipment. NETGEAR does not assume any liability that may occur due to such condition. FCC Statement Declaration of Conformity We NETGEAR, 4500 Great America Parkway Santa Clara, CA 95054, USA Tel: +1 408 907 8000 declare under our sole responsibility that the product(s) WA G 3 0 2 (Model Designation) 802.11g ProSafe™ Wireless Access Point (Product Name) complies with Part 15 of FCC Rules. vSECOND DRAFT, 24 Feb 2006 iii NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: •Reorient or locate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Placement and Range Guidelines Indoors, computers can connect over 802.11 wireless networks at a maximum range of several hundred feet for 802.11b/ g devices. However, the operating distance or range of your wireless connection can vary significantly, based on the physical placement of the wireless access point. For best results, identify a location for your wireless access point according to these guidelines: •Away from potential sources of interference, such as PCs, large metal surfaces, microwaves, and 2.4 GHz cordless phones. •In an elevated location such as a high shelf that is near the center of the wireless coverage area for all mobile devices. Failure to follow these guidelines can result in significant performance degradation or inability to wirelessly connect to the wireless access point. RF Exposure Warning for North America, and Australia WARNING! To meet FCC and other national safety guidelines for RF exposure, the antennas for this device (see below) must be installed to ensure a minimum separation distance of 20cm (7.9 in.) from persons. Further, the antennas shall not be colocated If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only. We declare that the product is limited in CH1~CH11 by specified firmware controlled in the USA. with other antenna or radio transmitter. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. vSECOND DRAFT, 24 Feb 2006 iv Antenna Statement for North America and Australia In addition to its own antenna, the WAG302 device has been approved for use with the following detachable antennas and antenna cables. Please see the product specifications at http://kbserver.netgear.com/products/WAG302.asp for an updated list of wireless accessories approved to be used with the WAG302. Industry Canada Compliance Statement This Class B Digital apparatus meets all the requirements of …

Text truncated - open the document above for the full version.

4500 GREAT AMERICA PARKWAY SANTA CLARA CA95054 U.S.A. FCC ID: PY306100028 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________________ Mark Gandler/Senior Compliance Engineer NETGEAR, INC. Tel: 408-907-8000 Fax: 408-907-8097 E-mail: [email protected]

4500 GREAT AMERICA PARKWAY SANTA CLARA CA95054 U.S.A. Date: 2006/3/27 AGENCY AUTHORIZATION LETTER We, the undersigned NETGEAR, INC. hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15C and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________ Mark Gandler/Senior Compliance Engineer NETGEAR, INC. Tel: 408-907-8000 Fax: 408-907-8097 E-mail: [email protected]

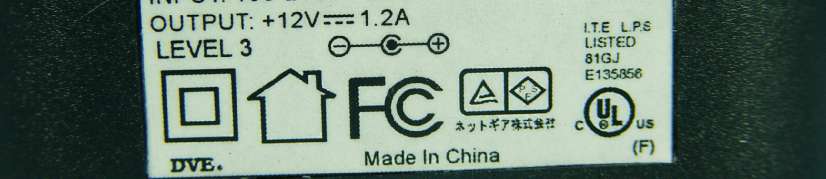

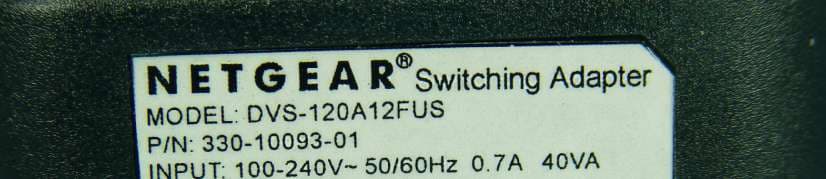

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID : PY306100028 Label Location

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISIONENG APPDDATE 01AW-10017-011 of 1 AW, WAG302, V2H1, PLBL M YU 03/08/06M YUINITIAL DOCUMENT CREATION01 Pantone Cool Gray 11C NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. INK COLOR IS SHOWN TO THE RIGHT. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), UNHIDE THE WHITE BOX LAYER AND INCLUDE WHITE BOX ON LABEL. 5

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Antenna 1 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Antenna 2 Page 20 Page 21 Antenna 3 Page 22 Page 23 Antenna 4 (for 5GHz)

FCC ID: PY306100028 Report No.RF950210L12 Operational Description The transmitter of the EUT (802.11a/g Prosafe Wireless Access Point) is powered by AC adapter or POE. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a 802.11a/g Prosafe Wireless Access Point, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 108Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: PY306100028 Report No: SA950210L12 1 RF EXPOSURE REPORT REPORT NO.: SA950210L12 MODEL NO.: WAG302v2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054, U.S. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PY306100028 Report No: SA950210L12 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PY306100028 Report No: SA950210L12 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PY306100028 Report No: SA950210L12 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4.59352dBi or 2.880(numeric) for 2.4GHz and 5.39536dBi or 3.463(numeric) for 5GHz 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: Antenna 1: (-4.64dBi gain) For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.4660.0031.0 6243750.4660.0031.0 11246250.3500.0031.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.6990.0031.0 6243750.2340.0031.0 11246250.3500.0031.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243750.6990.0031.0 FCC ID: PY306100028 Report No: SA950210L12 5 Antenna 2: (-1.69dBi gain) For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.4660.0071.0 6243750.4660.0071.0 11246250.3500.0071.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.6990.0071.0 6243750.2340.0071.0 11246250.3500.0071.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243750.6990.0071.0 Antenna 3: (4.59352dBi gain) For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.4660.0291.0 6243750.4660.0291.0 11246250.3500.0291.0 For 802.11g OFDM Modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.6990.0291.0 6243750.2340.0291.0 11246250.3500.0291.0 For 802.11g OFDM Modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243750.6990.0291.0 FCC ID: PY306100028 Report No: SA950210L12 6 For 802.11a modulation_Normal Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518017.8240.0121.0 4524018.0300.0121.0 5526017.8240.0121.0 8532022.3870.0151.0 9574551.1680.0351.0 11578550.4660.0351.0 13582550.5820.0351.0 For 802.11a modulation_Turbo Mode Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521028.5100.0201.0 2525028.6420.0201.0 3529028.3140.0201.0 4576050.3500.0351.0 5580050.6990.0351.0 CONCULSION: Both of the 2.4GHz and 5GHz bands can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......e…

Text truncated - open the document above for the full version.

Report No.: RF950210L121Report Format Version 2.0.4 FCC TEST REPORT (15.247) REPORT NO.: RF950210L12 MODEL NO.: WAG302v2 RECEIVED: Feb. 21, 2006 TESTED: Feb. 27 ~ Mar, 07, 2006 ISSUED: Mar. 09, 2006 APPLICANT: NETGEAR, INC. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054, U.S. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 171 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 Report No.: RF950210L122Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION....................................................................................................5 2.SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3.GENERAL INFORMATION.....................................................................................7 3.1GENERAL DESCRIPTION OF EUT.......................................................................7 3.2DESCRIPTION OF TEST MODES.........................................................................9 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...................................................10 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................12 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................16 3.4DESCRIPTION OF SUPPORT UNITS..................................................................16 4.TEST TYPES AND RESULTS (802.11b & g 2412~2462MHz BAND)....................17 4.1CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2TEST INSTRUMENTS..........................................................................................17 4.1.3TEST PROCEDURES..........................................................................................18 4.1.4DEVIATION FROM TEST STANDARD.................................................................18 4.1.5TEST SETUP.......................................................................................................19 4.1.6EUT OPERATING CONDITIONS.........................................................................19 4.1.7TEST RESULTS...................................................................................................20 4.2RADIATED EMISSION MEASUREMENT.............................................................36 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................36 4.2.2TEST INSTRUMENTS..........................................................................................37 4.2.3TEST PROCEDURES..........................................................................................38 4.2.4DEVIATION FROM TEST STANDARD.................................................................38 4.2.5TEST SETUP.......................................................................................................39 4.2.6EUT OPERATING CONDITIONS.........................................................................39 4.2.7TEST RESULTS...................................................................................................40 4.36dB BANDWIDTH MEASUREMENT....................................................................75 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................75 4.3.2TEST INSTRUMENTS..........................................................................................75 4.3.3TEST PROCEDURE.............................................................................................76 4.3.4DEVIATION FROM TEST STANDARD.................................................................76 4.3.5TEST SETUP.......................................................................................................76 4.3.6EUT OPERATING CONDITIONS.........................................................................76 4.3.7TEST RESULTS...................................................................................................77 4.4MAXIMUM PEAK OUTPUT POWER....................................................................85 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................85 4.4.2INSTRUMENTS....................................................................................................85 4.4.1TEST PROCEDURES..........................................................................................86 Report No.: RF950210L123Report Format Version 2.0.4 4.4.2DEVIATION FROM TEST STANDARD.................................................................86 4.4.3TEST SETUP.......................................................................................................86 4.4.4EUT OPERATING CONDITIONS.........................................................................86 4.4.3TEST RESULTS...................................................................................................87 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................88 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................88 4.5.2TEST INSTRUMENTS..........................................................................................88 4.5.3TEST PROCEDURE.............................................................................................89 4.5.4DEVIATION FROM TEST STANDARD..…

Text truncated - open the document above for the full version.

Report No.: RF950210L12131Report Format Version 2.0.4 EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 3 FREQUENCY RANGE 1 ~ 40 GHz MODULATION TYPE BPSK DETECTOR FUNCTION Peak(PK) Average (AV) TRANSFER RATE6Mbps ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 991hPa TESTED BY Lori Chiu INPUT POWER (SYSTEM) 120Vac, 60 Hz ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#3856.0047.68 PK74.00-26.321.79 H12212.9334.75 1#3856.0040.66 AV54.00-13.341.79 H1225.9134.75 2*5785.0096.28 PK1.35 H29557.2039.08 2*5785.0085.54 AV1.35 H29546.4639.08 37712.0053.75 PK76.28-22.531.47 H3578.2545.50 37712.0042.65 AV65.54-22.891.47 H357-2.8545.50 4#11570.0065.30 PK74.00-8.701.52 H27714.2851.02 4#11570.0051.43 AV54.00-2.571.52 H2770.4151.02 517355.0069.42 PK76.28-6.861.30 H24415.5453.88 517355.0055.52 AV65.54-10.021.30 H2441.6453.88 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#3856.0056.31 PK74.00-17.691.10 V31421.5634.75 1#3856.0051.83 AV54.00-2.171.10 V31417.0834.75 2*5785.00108.39 PK1.00 V35769.3139.08 2*5785.0097.04 AV1.00 V35757.9639.08 37712.0053.56 PK88.39-34.831.39 V3178.0645.50 37712.0043.05 AV77.04-33.991.39 V317-2.4545.50 4#11570.0063.83 PK74.00-10.171.03 V1312.8151.02 4#11570.0050.91 AV54.00-3.091.03 V13-0.1151.02 517355.0067.79 PK88.39-20.601.22 V29813.9153.88 517355.0054.52 AV77.04-22.521.22 V2980.6453.88 NOTE: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value 5. “*” : Fundamental frequency 6. “#”The radiated frequency falling in the restricted band. 7. The limit value is defined as per 15.247 Report No.: RF950210L12132Report Format Version 2.0.4 EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 5 FREQUENCY RANGE 1 ~ 40 GHz MODULATION TYPE BPSK DETECTOR FUNCTION Peak(PK) Average (AV) TRANSFER RATE6Mbps ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 991hPa TESTED BY Lori Chiu INPUT POWER (SYSTEM) 120Vac, 60 Hz ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#3883.0053.11 PK74.00-20.891.05 H31518.2834.83 1#3883.0048.93 AV54.00-5.071.05 H31514.1034.83 2*5825.0095.86 PK1.03 H29556.6739.19 2*5825.0085.26 AV1.03 H29546.0839.19 35835.0067.62 PK75.86-8.241.03 H29528.4139.21 35835.0059.12 AV65.26-6.141.03 H29519.9139.21 47766.0053.19 PK75.86-22.671.37 H3017.6745.53 47766.0042.24 AV65.26-23.021.37 H301-3.2845.53 5#11650.0067.25 PK74.00-6.751.17 H31916.4450.80 5#11650.0052.31 AV54.00-1.691.17 H3191.5150.80 617475.0065.55 PK75.86-10.311.12 H711.1354.41 617475.0053.55 AV65.26-11.711.12 H7-0.8654.41 NOTE: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value 5. “*” : Fundamental frequency 6. “#”The radiated frequency falling in the restricted band. 7. The limit value is defined as per 15.247 Report No.: RF950210L12133Report Format Version 2.0.4 EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 5 FREQUENCY RANGE 1 ~ 40 GHz MODULATION TYPE BPSK DETECTOR FUNCTION Peak(PK) Average (AV) TRANSFER RATE6Mbps ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 991hPa TESTED BY Lori Chiu INPUT POWER (SYSTEM) 120Vac, 60 Hz ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#3883.0057.85 PK87.96-30.111.08 V1523.0234.83 1#3883.0052.45 AV77.85-25.401.08 V1517.6234.83 2*5825.00107.96 PK1.01 V35568.7739.19 2*5825.0097.85 AV1.01 V35558.6639.19 35835.0076.71 PK87.96-11.251.01 V35537.5039.21 35835.0068.21 AV77.85-9.641.01 V35529.0039.21 47766.0054.04 PK87.96-33.921.04 V3248.5245.53 47766.0044.82 AV77.85-33.031.04 V324-0.7045.53 5#11650.0068.45 PK74.00-5.551.20 V35917.6550.80 5#11650.0052.42 AV54.00-1.581.20 V3591.6250.80 617475.0066.05 PK87.96-21.911.21 V31411.6454.41 617475.0053.01 AV77.85-24.841.21 V314-1.4054.41 NOTE: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value 5. “*” : Fundamental frequency 6. “#”The radiated frequency falling in the restricted band. 7. The limit value is defined as per 15.247 Report No.: RF950210L12134Report Format Version 2.0.4 802.11a Turbo OFDM modulation EUT TEST CONDITIONMEASUREMENT DETAIL CHANNELChannel 1 FREQUENCY RANGE 1 ~ 40 GHz MODULATION TYPE QPSK DETECTOR FUNCTION Peak(PK) Average (AV) TRANSFER RATE 12Mbps ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH, 991hPa TESTED BY Lori Chiu INPUT POWER (SYSTEM) 120Vac, 60 Hz ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB) 1#3840.0047.07 PK74.00-26.931.35 H7512.3734.70 1#3840.0039.80 AV54.00-14.201.35 H755.1034.70 2*5760.0094.31 PK1.21 H14755.2939.02 2*5760.0084.68 AV1.21 H14745.6639.02 3#7680.0054.10 PK74.00-19.901.09 H2728.6645.44 3#7680.0040.96 AV54.00-13.041.09 H272-4.4845.44 4#11520.0058.31 PK74.00-15.691.13 H3387.1551.16 4#11520.0046.23 AV54.00-7.771.13 H338-4.9351.16 517280.0064.44 PK74.31-9.871.06 H16310.8053.64 517280.0052.24 AV64.68-12.441.06 H163-1.4053.64 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission L…

Text truncated - open the document above for the full version.

Report No.: RF950210L12162Report Format Version 2.0.4 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST MODE A Report No.: RF950210L12163Report Format Version 2.0.4 MODE D Report No.: RF950210L12164Report Format Version 2.0.4 RADIATED EMISSION TEST MODE A Report No.: RF950210L12165Report Format Version 2.0.4 MODE B Report No.: RF950210L12166Report Format Version 2.0.4 MODE C Report No.: RF950210L12167Report Format Version 2.0.4 MODE D Report No.: RF950210L12168Report Format Version 2.0.4 MODE E Report No.: RF950210L12169Report Format Version 2.0.4 MODE F
