PY306100033NEXT Wireless Router

April 2006 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA RangeMax NEXT Wireless Router WNR834A Reference Manual ii v1.0, April 2006 © 2006 by NETGEAR, Inc. All rights reserved. April 2006. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. v1.0, April 2006 iii European Union Statement of Compliance Hereby, NETGEAR, Inc. declares that this wireless router is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Èesky [Czech] NETGEAR, Inc. tímto prohlašuje, že tento RangeMax NEXT Wireless Router WNR834A je ve shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES. Dansk [Danish] Undertegnede NETGEAR, Inc. erklærer herved, at følgende udstyr RangeMax NEXT Wireless Router WNR834A overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt NETGEAR, Inc., dass sich das Gerät RangeMax NEXT Wireless Router WNR834A in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab NETGEAR, Inc. seadme RangeMax NEXT Wireless Router WNR834A vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, NETGEAR, Inc., declares that this RangeMax NEXT Wireless Router WNR834A is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente NETGEAR, Inc. declara que el RangeMax NEXT Wireless Router WNR834A cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR, Inc. ∆ΗΛΩΝΕΙ ΟΤΙ RangeMax NEXT Wireless Router WNR834A ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente NETGEAR, Inc. déclare que l'appareil RangeMax NEXT Wireless Router WNR834A est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente NETGEAR, Inc. dichiara che questo RangeMax NEXT Wireless Router WNR834A è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo NETGEAR, Inc. deklarç, ka RangeMax NEXT Wireless Router WNR834A atbilst Direktîvas 1999/5/EK bûtiskajâm prasîbâm un citiem ar to saistîtajiem noteikumiem. Lietuviø [Lithuanian] Šiuo NETGEAR, Inc. deklaruoja, kad šis RangeMax NEXT Wireless Router WNR834A atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. v1.0, April 2006 iv A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WNR834A product package. Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das RangeMax NEXT Wireless Router WNR834A gemäß der im BMPT-AmtsblVfg 243/ 1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the RangeMax NEXT Wireless Router WNR834A has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, Nederlands [Dutch] Hierbij verklaart NETGEAR, Inc. dat het toestel RangeMax NEXT Wireless Router WNR834A in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, NETGEAR, Inc., jiddikjara li dan RangeMax NEXT Wireless Router …

Text truncated - open the document above for the full version.

NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. FCC ID: PY306100033 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Mark Gandler Sr. Compliance Engineer NETGEAR, Inc. TEL:408-907-8000 FAX:408-907-8097 E-mail: [email protected]

From: [email protected] [mailto:[email protected]] Sent: Thursday, April 20, 2006 6:16 AM To: steve.cheng Cc: [email protected]; [email protected]; [email protected]; [email protected]; [email protected]; [email protected] Subject: Revsied2: Re : TCB Review Comments for (B06-0420e- PY306100033- Netgear 11g router) Dear Steve, Thank you for your comments on this application! The following items are our replies for your comments: Question #1: All test plots are not readable, please increase the print resolution. =>Report revised! Question #2: P8 of test report; note 1 says card provides two completed transmitters and three receivers. And note 2 stated product is a 3x3 MIMO. Please correct the inconsistency. =>Typo, Report revised! Question #3: report test only 3x3 MIMO, is 2x3 MIMO or other single chain transmission available to this device? If yes, please justify why those tests are not conducted.=>This device support only 3x3 MIMO as tested in the report; all other functions are not available for this version. Question #4: User’s manual 18-26 are all blank; please confirm if this is intended?=>Yes,they are blank. Question #5: User’s manual P 45-46, show country selection manual and is not allowed in US. Please clarify if end user allowed selecting different regulatory domain.=> This function is not available for US model as indicated in the manual that the function is in lighter color. All comments are done! ^_^ Thanks! Best Regards, Amanda Chu / 朱芳誼 Certification Specialist / ADT Corp. (Hsin Chu Office) Tel: 03-5935343 ext. 1737 Fax: 03-5934728 "steve.cheng" <[email protected]> 2006/04/20 下午 07:28 收件人 [email protected] 副本抄 送 主旨 TCB Review Comments for (B06-0420e- PY306100033- Netgear 11g router) TCB Review Comments for (B06-0420e- PY306100033- Netgear 11g router) -EMC- Question #1: All test plots are not readable, please increase the print resolution. Question #2: P8 of test report; note 1 says card provides two completed transmitters and three receivers. And note 2 stated product is a 3x3 MIMO. Please correct the inconsistency. Question #3: report test only 3x3 MIMO, is 2x3 MIMO or other single chain transmission available to this device? If yes, please justify why those tests are not conducted. Question #4: User’s manual 18-26 are all blank; please confirm if this is intended? Question #5: User’s manual P 45-46, show country selection manual and is not allowed in US. Please clarify if end user allowed selecting different regulatory domain. Best regards, Steve Cheng Curtis-Straus LLC

NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned, NETGEAR, Inc. , hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Note: Product name: NEXT Wireless Router Model name: WNR834A Sincerely yours, Signature: Mark Gandler Sr. Compliance Engineer NETGEAR, Inc. TEL:408-907-8000 FAX:408-907-8097 E-mail: [email protected]

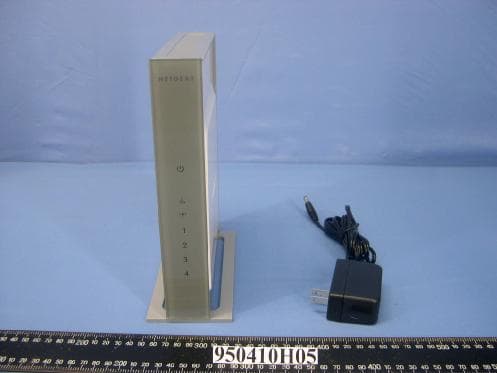

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: PY306100033 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE 01AW-10087-011 of 1 AW, WNR834A, V1H1, PLBL M YU 04/13/06M YUINITIAL DOCUMENT CREATION01 Netgear Light Gray Pantone Cool Gray 11C Pantone 144C Pantone 114C Pantone 200C Black 5 NOTE: 1. REFER TO NETGEAR SPEC. DOC-0093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL.

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID:PY306100033 Report No. RF950410H05 Operational Description This device is a NEXT Wireless Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. There are three dipole antennas provided to this EUT, all the antennas are the same. The information of the antenna, please refer to the following table: Gain (dBi) Cable lose(dB) Antenna Type Antenna Connector 1.80.4DipoleHRS RF 1. The EUT incorporates a MIMO function with 802.11b, 802.11g, draft 802.11n. Physically, the card provides two completed transmit and three receivers. 2. The EUT is 3 * 3 spatial MIMO without beam forming function. The antenna configuration have three transmitter antenna and three receiver antenna. Spatial multiplexing modes for simultaneous transmission using 3 antennas , and for simultaneous receiver using 3 antennas. 3. When the EUT operating in draft 802.11n, the software operation, which is defined by manufacturer, MCS (Modulation and Coding Schemes) from 0 to 15. 4. The EUT complies with draft 802.11n standards and backwards compatible with 802.11b, 802.11g products. 5. The EUT operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps. 7. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual.

Report No.: SA950410H05 1 RF EXPOSURE REPORT REPORT NO.: SA950410H05 MODEL NO.: WNR834A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950410H05 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950410H05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950410H05 4 6. Test Results 6.1 Antenna Gain There are three dipole antennas provided to this EUT, all the antennas are the same. The information of the antenna, please refer to the following table: Gain (dBi) Cable lose(dB) Antenna Type Antenna Connector 1.80.4DipoleHRS RF 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412207.300.1711.0 62437211.110.1741.0 112462182.330.1501.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412212.530.1751.0 62437310.130.2551.0 112462142.550.1171.0 DRAFT 802.11n (20MHz) OFDM modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412200.060.1651.0 62437282.600.2331.0 11246288.050.0731.0 DRAFT 802.11n (40MHz) OFDM modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1242282.230.0681.0 42437227.730.1881.0 7245268.840.0571.0

Report No.: RF950410H051Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950410H05 MODEL NO.: WNR834A RECEIVED: April 10, 2006 TESTED: April 14 to 18, 2006 ISSUED: April 19, 2006 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 156 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950410H052Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION...........................................................................................4 2.SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................6 3.GENERAL INFORMATION............................................................................7 3.1GENERAL DESCRIPTION OF EUT..............................................................7 3.2DESCRIPTION OF TEST MODES................................................................8 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.............................12 3.4DESCRIPTION OF SUPPORT UNITS........................................................13 3.5CONFIGURATION OF SYSTEM UNDER TEST.........................................14 4.TEST TYPES AND RESULTS.....................................................................15 4.1CONDUCTED EMISSION MEASUREMENT..............................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................15 4.1.2TEST INSTRUMENTS................................................................................15 4.1.3TEST PROCEDURES.................................................................................16 4.1.4DEVIATION FROM TEST STANDARD.......................................................16 4.1.5TEST SETUP..............................................................................................17 4.1.6EUT OPERATING CONDITIONS................................................................17 4.1.7TEST RESULTS..........................................................................................18 4.2RADIATED EMISSION MEASUREMENT...................................................26 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................26 4.2.2TEST INSTRUMENTS................................................................................27 4.2.3TEST PROCEDURES.................................................................................28 4.2.4DEVIATION FROM TEST STANDARD.......................................................28 4.2.5TEST SETUP..............................................................................................29 4.2.6EUT OPERATING CONDITIONS................................................................29 4.2.7TEST RESULTS..........................................................................................30 4.36DB BANDWIDTH MEASUREMENT..........................................................62 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT.......................................62 4.3.2TEST INSTRUMENTS................................................................................62 4.3.3TEST PROCEDURE...................................................................................62 4.3.4DEVIATION FROM TEST STANDARD.......................................................62 4.3.5TEST SETUP..............................................................................................63 Report No.: RF950410H053Report Format Version 2.0.4 4.3.6EUT OPERATING CONDITIONS................................................................63 4.3.7TEST RESULTS..........................................................................................64 4.4MAXIMUM PEAK OUTPUT POWER..........................................................92 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........92 4.4.2INSTRUMENTS..........................................................................................92 4.4.3TEST PROCEDURES.................................................................................92 4.4.4DEVIATION FROM TEST STANDARD.......................................................92 4.4.5TEST SETUP..............................................................................................93 4.4.6EUT OPERATING CONDITIONS................................................................93 4.4.7TEST RESULTS..........................................................................................94 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................96 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................96 4.5.2TEST INSTRUMENTS................................................................................96 4.5.3TEST PROCEDURE...................................................................................96 4.5.4DEVIATION FROM TEST STANDARD.......................................................96 4.5.5TEST SETUP..............................................................................................97 4.5.6EUT OPERATING CONDITION..................................................................97 4.5.7TEST RESULTS..........................................................................................98 4.6CONDUCTED EMISSION AND BAND EDGES MEASUREMENT...........126 4.6.1…

Text truncated - open the document above for the full version.

Report No.: RF950410H05105Report Format Version 2.0.4 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 70%RH, 964hPa TESTED BY Moris Lin RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0CHAIN 1CHAIN 2 MAXIMUM LIMIT (dBm) PASS / FAIL 12412-8.50-7.17-8.238PASS 62437-7.10-7.66-6.848PASS 112462-11.59-10.82-11.108PASS Report No.: RF950410H05106Report Format Version 2.0.4 FOR CHAIN 0: CH1 CH6 Report No.: RF950410H05107Report Format Version 2.0.4 CH11 Report No.: RF950410H05108Report Format Version 2.0.4 FOR CHAIN 1: CH1 CH6 Report No.: RF950410H05109Report Format Version 2.0.4 CH11 Report No.: RF950410H05110Report Format Version 2.0.4 FOR CHAIN 2: CH1 CH6 Report No.: RF950410H05111Report Format Version 2.0.4 CH11 Report No.: RF950410H05112Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 70%RH, 964hPa TESTED BY Moris Lin RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0CHAIN 1CHAIN 2 MAXIMUM LIMIT (dBm) PASS / FAIL 12412-11.27-10.79-10.138PASS 62437-6.62-8.17-6.668PASS 112462-14.47-12.30-12.388PASS Report No.: RF950410H05113Report Format Version 2.0.4 FOR CHAIN 0: CH1 CH6 Report No.: RF950410H05114Report Format Version 2.0.4 CH11 Report No.: RF950410H05115Report Format Version 2.0.4 FOR CHAIN 1: CH1 CH6 Report No.: RF950410H05116Report Format Version 2.0.4 CH11 Report No.: RF950410H05117Report Format Version 2.0.4 FOR CHAIN 2: CH1 CH6 Report No.: RF950410H05118Report Format Version 2.0.4 CH11 Report No.: RF950410H05119Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 70%RH, 964hPa TESTED BY Moris Lin RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0CHAIN 1CHAIN 2 MAXIMUM LIMIT (dBm) PASS / FAIL 12422-13.83-14.05-16.078PASS 42437-10.52-12.29-10.968PASS 72452-17.17-16.40-15.388PASS Report No.: RF950410H05120Report Format Version 2.0.4 FOR CHAIN 0: CH1 CH4 Report No.: RF950410H05121Report Format Version 2.0.4 CH7 Report No.: RF950410H05122Report Format Version 2.0.4 FOR CHAIN 1: CH1 CH4 Report No.: RF950410H05123Report Format Version 2.0.4 CH7 Report No.: RF950410H05124Report Format Version 2.0.4 FOR CHAIN 2: CH1 CH4 Report No.: RF950410H05125Report Format Version 2.0.4 CH7 Report No.: RF950410H05126Report Format Version 2.0.4 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2006 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (RBW = VBW = 100kHz) are attached on the following pages. Report No.: RF950410H05127Report Format Version 2.0.4 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 12 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). Report No.: RF950410H05128Report Format Version 2.0.4 802.11b DSSS MODULATION: FOR CHAIN 0:CH1 CH11 Report No.: RF950410H05129Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05130Report Format Version 2.0.4 FOR CHAIN 1:CH1 CH11 Report No.: RF950410H05131Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05132Report Format Version 2.0.4 FOR CHAIN 2:CH1 CH11 Report No.: RF950410H05133Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05134Report Format Version 2.0.4 802.11g OFDM MODULATION: FOR CHAIN 0:CH1 CH11 Report No.: RF950410H05135Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05136Report Format Version 2.0.4 FOR CHAIN 1:CH1 CH11 Report No.: RF950410H05137Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05138Report Format Version 2.0.4 FOR CHAIN 2:CH1 CH11 Report No.: RF950410H05139Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05140Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: FOR CHAIN 0:CH1 CH11 Report No.: RF950410H05141Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05142Report Format Version 2.0.4 FOR CHAIN 1:CH1 CH11 Report No.: RF950410H05143Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05144Report Format Version 2.0.4 FOR CHAIN 2:CH1 CH11 Report No.: RF950410H05145Report Format Version 2.0.4 CH1 CH11 Report No.: RF950410H05146Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: FOR CHAIN 0:CH1 CH7 Report No.: RF950410H05147Report Format Version 2.0.4 CH1 CH7 Report No.: RF950410H05148Report Format Version 2.0.4 FOR CHAIN 1:CH1 CH7 Report No.: RF950410H05149Report Format Version 2.0.4 CH1 CH7 Report No.: RF950410H05150Report Format Version 2.0.4 FOR CHAIN 2:CH1 CH7 Report No.: RF950410H05151Report Format Version 2.0.4 CH1 CH7 Report No.: RF950410H05152Report Format Version 2.0.4 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Se…

Text truncated - open the document above for the full version.

Report No.: RF950410H05153Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950410H05154Report Format Version 2.0.4 RADIATED EMISSION TEST
