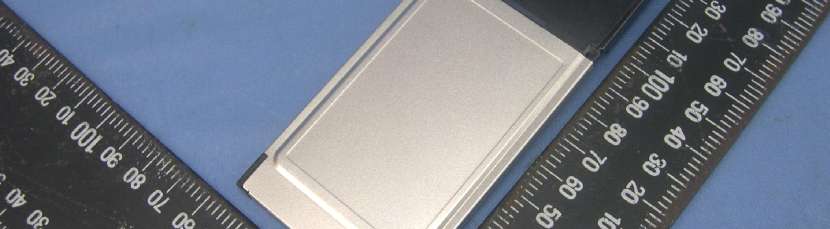

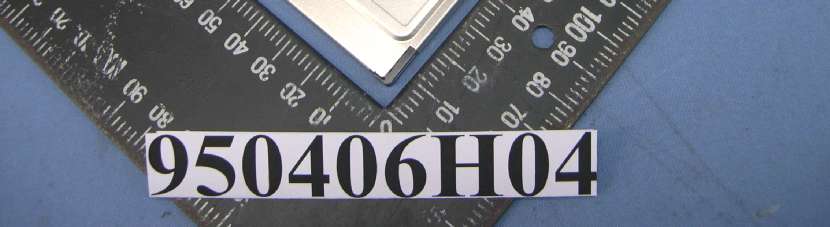

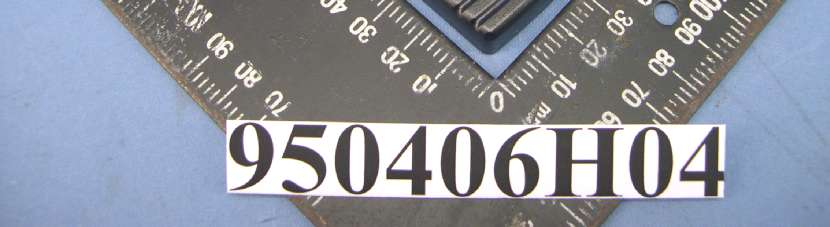

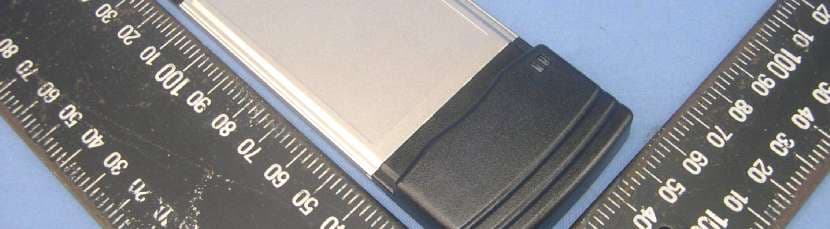

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: PY306100034 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: PY306100034 Report No.: RF950406H04 OPERATIONAL DESCRIPTION This device is a NEXT Wireless Notebook Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is printed antenna without antenna connector. 1. The EUT incorporates a MIMO function with 802.11b, 802.11g, draft 802.11n. Physically, the card provides two completed transmit and three receivers. 2. The EUT is 2 * 3 spatial MIMO (2Tx & 3Rx) without beam forming function that only operate dual chain configuration (both chain 0 and chain 1 transceivers are operational). 3. When the EUT operating in draft 802.11n, the software operation, which is defined by manufacturer, set 0~15 of”MCS”(MCS: Modulation and Coding Schemes). 4. The EUT complies with draft 802.11n standards and backwards compatible with 802.11b, 802.11g products. 5. The EUT operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps. 6. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual.

Report no.: SA950406H041Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950406H04 MODEL NO.: WN511B RECEIVED: Apr. 06, 2006 TESTED: Apr. 07, 2006 ISSUED: Apr. 11, 2006 APPLICANT: Netgear Incorporated ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 41 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA950406H042Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT................................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................6 2.3GENERAL INOFRMATION OF THE SAR SYSTEM........................................................7 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION......................10 3.DESCRIPTION OF SUPPORT UNITS................................................................................14 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS..............................................15 4.1.DESCRIPTION OF ANTENNA LOCATION...................................................................15 4.2.DESCRIPTION OF ASSESSMENT POSITION.............................................................16 4.3.DESCRIPTION OF TEST MODE..................................................................................17 4.4.SUMMARY OF TEST RESULTS...................................................................................17 5.TEST RESULTS.................................................................................................................19 5.1TEST PROCEDURES..................................................................................................19 5.2MEASURED SAR RESULTS........................................................................................21 5.3SAR LIMITS.................................................................................................................25 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS...........................................................26 5.5TEST EQUIPMENT FOR TISSUE PROPERTY............................................................28 6.SYSTEM VALIDATION.......................................................................................................29 6.1TEST EQUIPMENT......................................................................................................29 6.2TEST PROCEDURE.....................................................................................................30 6.3VALIDATION RESULTS................................................................................................32 6.4SYSTEM VALIDATION UNCERTAINTIES....................................................................33 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................34 7.1.PROBE CALIBRATION UNCERTAINTY.......................................................................34 7.2.ISOTROPY UNCERTAINTY.........................................................................................35 7.3.BOUNDARY EFFECT UNCERTAINTY.........................................................................35 7.4.PROBE LINEARITY UNCERTAINTY............................................................................36 7.5.READOUT ELECTRONICS UNCERTAINTY................................................................36 7.6.RESPONSE TIME UNCERTAINTY..............................................................................36 7.7.INTEGRATION TIME UNCERTAINTY..........................................................................37 7.8.PROBE POSITIONER MECHANICAL TOLERANCE....................................................38 7.9.PROBE POSITIONING.................................................................................................38 7.10.PHANTOM UNCERTAINTY.........................................................................................39 7.11.DASY4 UNCERTAINTY BUDGET................................................................................40 8.INFORMATION ON THE TESTING LABORATORIES.........................................................41 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950406H043Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: NEXT Wireless Notebook Adapter MODEL: WN511B BRAND: NETGEAR APPLICANT: Netgear Incorporated TESTED : Apr. 07, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS:FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 11, 2006 Rennie Wang TECHNICAL ACCEPTANCE:, DATE:Apr. 11, 2006 Responsible for RF Stanely Hsu APPROVED BY : , DATE: Apr. 11, 2006 Gary Chang / Supervisor Report no.: SA950406H044Report Format Version 2.0…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=152mm A - 2 Date/Time: 2006/4/7 10:05:48 Test Laboratory: Advance Data Technology N800C-11b-Ch01-Mode 1 DUT: NEXT Wireless Notebook Adapter ; Type: WN511B ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.97 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.9 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.389 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.8 V/m Peak SAR (extrapolated) = 0.742 W/kg SAR(1 g) = 0.382 mW/g; SAR(10 g) = 0.208 mW/g Maximum value of SAR (measured) = 0.413 mW/g A - 3 A - 4 Date/Time: 2006/4/7 10:35:10 Test Laboratory: Advance Data Technology N800C-11b-Ch06-Mode 1 DUT: NEXT Wireless Notebook Adapter ; Type: WN511B ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.9 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.335 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.5 V/m Peak SAR (extrapolated) = 0.787 W/kg SAR(1 g) = 0.367 mW/g; SAR(10 g) = 0.197 mW/g Maximum value of SAR (measured) = 0.396 mW/g A - 5 Date/Time: 2006/4/7 11:03:43 Test Laboratory: Advance Data Technology N800C-11b-Ch11-Mode 1 DUT: NEXT Wireless Notebook Adapter ; Type: WN511B ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.04 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.9 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 High Channel 11/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.250 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.3 V/m Peak SAR (extrapolated) = 0.636 W/kg SAR(1 g) = 0.263 mW/g; SAR(10 g) = 0.141 mW/g Maximum value of SAR (measured) = 0.272 mW/g A - 6 Date/Time: 2006/4/7 11:28:25 Test Laboratory: Advance Data Technology N800C-11g-Ch01-Mode 2 DUT: NEXT Wireless Notebook Adapter ; Type: WN511B ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.97 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.9 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.221 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.3 V/m Peak SAR (extrapolated) = 0.463 W/kg SAR(1 g) = 0.206 mW/g; SAR(10 g) = 0.108 mW/g Maximum value of SAR (measured) = 0.227 mW/g A - 7 Date/Time: 2006/4/7 11:50:17 Test Laboratory: Advance Data Technology N800C-11g-Ch06-Mode 2 DUT: NEXT Wireless Notebook Adapter ; Type: WN511B ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.9 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ;…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: DOSIMETRIC E-FIELD PROBE D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: RF950406H041Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950406H04 MODEL NO.: WN511B RECEIVED: April 06, 2006 TESTED: April 06 to 08, 2006 ISSUED: April 10, 2006 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 109 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950406H042Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................6 3.GENERAL INFORMATION.....................................................................................7 3.1GENERAL DESCRIPTION OF EUT..................................................................7 3.2DESCRIPTION OF TEST MODES...................................................................8 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.....................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................12 3.4DESCRIPTION OF SUPPORT UNITS............................................................13 3.5CONFIGURATION OF SYSTEM UNDER TEST.............................................14 4.TEST TYPES AND RESULTS..............................................................................15 4.1CONDUCTED EMISSION MEASUREMENT..................................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................15 4.1.2TEST INSTRUMENTS....................................................................................15 4.1.3TEST PROCEDURES....................................................................................16 4.1.4DEVIATION FROM TEST STANDARD...........................................................16 4.1.5TEST SETUP..................................................................................................17 4.1.6EUT OPERATING CONDITIONS....................................................................17 4.1.7TEST RESULTS.............................................................................................18 4.2RADIATED EMISSION MEASUREMENT.......................................................24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................24 4.2.2TEST INSTRUMENTS....................................................................................25 4.2.3TEST PROCEDURES....................................................................................26 4.2.4DEVIATION FROM TEST STANDARD...........................................................26 4.2.5TEST SETUP..................................................................................................27 4.2.6EUT OPERATING CONDITIONS....................................................................27 4.2.7TEST RESULTS.............................................................................................28 4.36dB BANDWIDTH MEASUREMENT..............................................................59 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................59 4.3.2TEST INSTRUMENTS....................................................................................59 4.3.3TEST PROCEDURE.......................................................................................59 4.3.4DEVIATION FROM TEST STANDARD...........................................................59 4.3.5TEST SETUP..................................................................................................60 4.3.6EUT OPERATING CONDITIONS....................................................................60 4.3.7TEST RESULTS.............................................................................................61 4.4MAXIMUM PEAK OUTPUT POWER..............................................................73 Report No.: RF950406H043Report Format Version 2.0.4 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT................73 4.4.2INSTRUMENTS..............................................................................................73 4.4.3TEST PROCEDURES....................................................................................73 4.4.4DEVIATION FROM TEST STANDARD...........................................................73 4.4.5TEST SETUP..................................................................................................74 4.4.6EUT OPERATING CONDITIONS....................................................................74 4.4.7TEST RESULTS.............................................................................................75 4.5POWER SPECTRAL DENSITY MEASUREMENT..........................................77 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT........................77 4.5.2TEST INSTRUMENTS....................................................................................77 4.5.3TEST PROCEDURE.......................................................................................77 4.5.4DEVIATION FROM TEST STANDARD...........................................................77 4.5.5TEST SETUP..................................................................................................78 4.5.6EUT OPERATING CONDITION........................…

Text truncated - open the document above for the full version.

Report No.: RF950406H0459Report Format Version 2.0.4 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2006 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum anal…

Text truncated - open the document above for the full version.
