2006-01-17 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Router Setup Manual ii v1.0, 2006-01-17 © 2006 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. EN 55 022 Declaration of Conformance This is to certify that the 54 Mbps Wireless Router WGR614 v7 is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das 54 Mbps Wireless Router WGR614 v7 gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the 54 Mbps Wireless Router WGR614 v7 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. v1.0, 2006-01-17 iii Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Customer Support Refer to the Support Information Card that shipped with your 54 Mbps Wireless Router WGR614 v7. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required. Product and Publication Details Model Number: WGR614 v7 Publication Date: January 2006 Product Family:router Product Name: 54 Mbps Wireless Router WGR614 v7 Home or Business Product:Home Language:English v1.0, 2006-01-17 iv 1 v1.0, 2006-01-17 Contents Router Setup Manual Chapter 1 Connecting the Router to the Internet What’s in the Box? ..........................................................................................................1-1 The Router Bottom Label .........................................................................................1-1 The Front of the Router ............................................................................................1-2 The Back of the Router ............................................................................................1-3 What You Need Before You Begin ..................................................................................1-3 Two Setup Methods: 1) Smart Wizard Setup 2) Manual Setup ......................................1-4 Smart Wizard Setup .......................................................................................................1-4 Manual Setup .................................................................................................................1-5 To Connect Your Router ...........................................................................................1-5 To Configure the Router to Use Your Internet Service .............................................1-8 Product Registration, Support, and Documentation .......................................................1-9 How to Access the Router Again Later ....................…
Text truncated - open the document above for the full version.

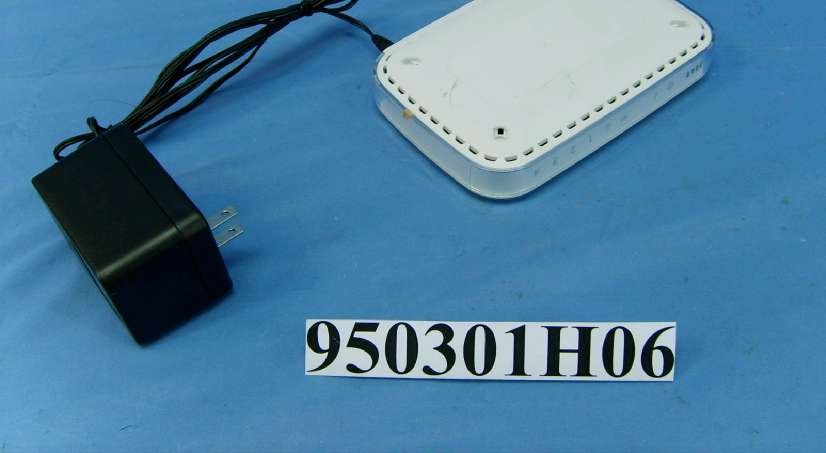

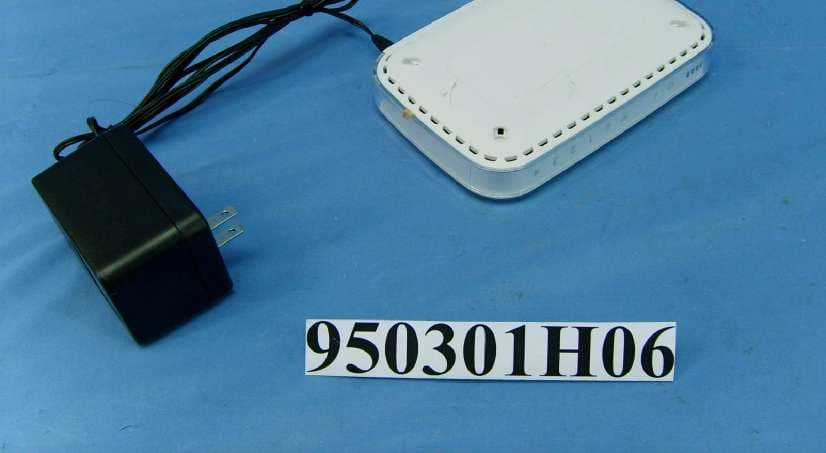

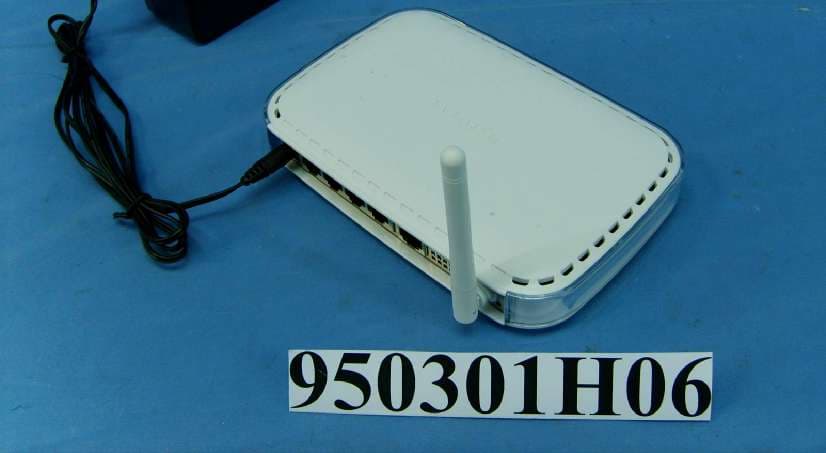

Page 1 CONSTRUCTION PHOTOS OF EUT
(Fig. 1) FCC ID: PY306100036 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label
Page 2 Page 3 Page 4 Page 5
FCC ID: PY306100036 Report No. RF950301H06 Operational Description This device is a 54Mbps Wireless Router, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (54Mbps Wireless Router) is powered by power adapter. The antennas used in this product are as following: No. Antenna Type Gain (dBi)Cable lose(dB)Antenna ConnectorDescription 1Dipole1.80.6dBNATX & RX function 2 Printed 0 0 NARX function The other instruction, please have a look at the users manual.
Report No.: SA950301H06 1 RF EXPOSURE REPORT REPORT NO.: SA950301H06 MODEL NO.: WGR614 v7 FCC ID: PY306100036 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950301H06 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950301H06 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950301H06 4 6. Test Results 6.1 Antenna Gain No. Antenna Type Gain (dBi)Cable lose(dB)Antenna ConnectorDescription 1Dipole1.80.6dBNATX & RX function 2 Printed 0 0 NARX function 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241272.4440.0191.0 6243774.1310.0191.0 11246270.7950.0191.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241261.6600.0161.0 62437128.8250.0341.0 11246258.8840.0151.0
Report No.: RF950301H061Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.:RF950301H06 MODEL NO.: WGR614 v7 RECEIVED:March 10, 2006 TESTED:March 10 to 14, 2006 ISSUED: March 24, 2006 APPLICANT:NETGEAR, Inc. ADDRESS:4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950301H062Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................. 10 3.5DESCRIPTION OF SUPPORT UNITS.........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 12 4TEST TYPES AND RESULTS..................................................................... 13 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 13 4.1.2TEST INSTRUMENTS ................................................................................ 13 4.1.3TEST PROCEDURES................................................................................. 14 4.1.4TEST SETUP .............................................................................................. 14 4.1.5EUT OPERATING CONDITIONS................................................................ 15 4.1.6TEST RESULTS.......................................................................................... 16 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.2.7TEST RESULTS –DSSS ............................................................................. 23 4.2.8TEST RESULTS – OFDM ........................................................................... 26 4.36dB BANDWIDTH MEASUREMENT .......................................................... 29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 29 4.3.2TEST INSTRUMENTS ................................................................................ 29 4.3.3TEST PROCEDURE ................................................................................... 30 4.3.4TEST SETUP .............................................................................................. 30 4.3.5EUT OPERATING CONDITIONS................................................................ 30 4.3.6TEST RESULTS –DSSS ............................................................................. 31 4.3.7TEST RESULTS-OFDM .............................................................................. 34 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 37 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 37 4.4.2TEST INSTRUMENTS ................................................................................ 37 4.4.3TEST PROCEDURES................................................................................. 38 4.4.4TEST SETUP .............................................................................................. 38 Report No.: RF950301H063Report Format Version 2.0.4 4.4.5EUT OPERATING CONDITIONS................................................................ 38 4.4.6TEST RESULTS – DSSS ............................................................................ 39 4.4.7TEST RESULTS –OFDM ............................................................................ 40 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 41 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 41 4.5.2TEST INSTRUMENTS ................................................................................ 41 4.5.3TEST PROCEDURE ................................................................................... 42 4.5.4TEST SETUP .............................................................................................. 42 4.5.5EUT OPERATING CONDITIONS................................................................ 42 4.5.6TEST RESULTS –DSSS ............................................................................. 43 4.5.7TEST RESULTS –OFDM ............................................................................ 46 4.6BAND EDGES MEASUREMENT ....................................…
Text truncated - open the document above for the full version.
Report No.: RF950301H0659Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950301H0660Report Format Version 2.0.4 RADIATED EMISSION TEST
