PY306100037RangeMax Next Wireless Router

2006-03 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Wireless Router Setup Manual © 2006 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC&IC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ii v1.0, 2006-03 "Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." "To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication". "This device has been designed to operate with an antenna having a maximum gain of [2] dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms." “To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.” iii v1.0, 2006-03 1 v1.0, 2006-03 Contents Wireless Router Setup Manual Chapter 1 Connecting the Router to the Internet What’s in the Box? ..........................................................................................................1-1 The Wireless Router Label .......................................................................................1-1 The Front of the Wireless Router .............................................................................1-2 The Back of the Wireless Router .............................................................................1-3 What You Need Before You Begin ..................................................................................1-3 To Set Up Your Router ....................................................................................................1-4 To Connect Your Wireless Router ............................................................................1-4 To Configure the Wireless Router to Use Your Internet Service ..............................1-7 To Set Up and Test Basic Wireless Connectivity ..........................................................1-10 Implement Appropriate Wireless Security .................................................................... 1-11 Chapter 2 Troubleshooting Quick Tips .......................................................................................................................2-1 Be sure to always start your network in this sequence: ..........................................2-1 Make sure the Ethernet cables are securely plugged in. .........................................2-1 Make sure the network settings of the computer are correct. .................................2-1 Check the router status lights to verify correct router operation. .............................2-2 To Verify Basic Functioning ............................................................................................2-2 Power Light Not On ..................................................................................................2-2 LAN or Internet Port Lights Not On ..........................................................................2-3 Troubleshooting Logging In to the Wireless Router ........................................................2-3 Troubleshooting the Internet Service Connection ...........................................................2-3 Interne…

Text truncated - open the document above for the full version.

Confidential Letter Date: 2006/3/29 Federal Communications Commission Authorization and Evaluation Division FCC ID：PY306100037 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Netgear Incorporated Applicant’s company address: 4500 Great America Parkway Santa Clara, CA 95054 U.S.A. Signature : _________________________________ Job Title and Dept. : Mark Gandler / Senior Compliance Engineer

SPORTON International Inc. PAGE NUMBER : A1 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255

Label Here

SPORTON International Inc. PAGE NUMBER : A7 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 06, 2006 FAX : 886-2-2696-2255

Report No.: FR640311 FCC ID: PY306100037 Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure Report No.: FR640311 FCC ID: PY306100037 Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) d GP××30 Power Density: Pd (W/m²) 377 2 E E Electric field (V/m) P Peak RF output power (W) G EUT Antenna numeric gain (numeric) d Separation distance between radiator and human body (m) The formula can be changed to Pd 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR640311 FCC ID: PY306100037 Page No. : C3 of C4 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11b 20MHz Ant. A : 18.1dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 18.1000 64.5654 0.020368 1 Complies Antenna Type : Dipole Lower Channel Max Conducted Power for IEEE 802.11b 40MHz Ant. A : 17.68dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.6800 58.6138 0.018491 1 Complies Antenna Type : Dipole Upper Channel Max Conducted Power for IEEE 802.11b 40MHz Ant. A : 17.89dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.8900 61.5177 0.019407 1 Complies Antenna Type : Dipole Max Conducted Power for IEEE 802.11g 20MHz Ant. A : 14.55dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 14.5500 28.5102 0.008994 1 Complies Antenna Type : Dipole Max Conducted Power for IEEE 802.11g 40MHz Ant. A + Ant. B: 17.47dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.4700 55.8470 0.017618 1 Complies Report No.: FR640311 FCC ID: PY306100037 Page No. : C4 of C4 Antenna Type : Dipole Max Conducted Power for draft 11n MCS8 20MHz Ant. A + Ant. B : 17.52dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.5200 56.4937 0.017822 1 Complies Antenna Type : Dipole Max Conducted Power for draft 11n MCS8 40MHz Ant. A + Ant. B : 17.50dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.5000 56.2341 0.017740 1 Complies Antenna Type : Dipole Max Conducted Power for draft 11n MCS15 20MHz Ant. A + Ant. B : 17.52dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.5200 56.4937 0.017822 1 Complies Antenna Type : Dipole Max Conducted Power for draft 11n MCS15 40MHz Ant. A + Ant. B : 17.48dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 17.4800 55.9758 0.017658 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-2-17-d FCC RADIO TEST REPORT Applicant’s company Netgear Incorporated Applicant Address 4500 Great America Parkway Santa Clara, CA 95054 U.S.A. FCC ID PY306100037 Manufacturer’s company Gemtek Technology Co., Ltd. Manufacturer Address No. 1 Jen Ai Road, Hsinchu Industrial Park, Hukou, Hsinchu, Taiwan, R.O.C. 303 Product Name RangeMax Next Wireless Router Brand Name NETGEAR Model Name WNR854T Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Mar. 26, 2006 Test Date Apr. 06, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE .......................................................................................................... 1 2. SUMMARY OF THE TEST RESULT........................................................................................................ 2 3. GENERAL INFORMATION................................................................................................................... 3 3.1. Product Details.................................................................................................................................................................3 3.2. Accessories ......................................................................................................................................................................4 3.3. Table for Filed Antenna ....................................................................................................................................................5 3.4. Table for Carrier Frequencies ...........................................................................................................................................5 3.5. Table for Test Modes .......................................................................................................................................................6 3.6. Table for Testing Locations ..............................................................................................................................................6 3.7. Table for Supporting Units ...............................................................................................................................................7 3.8. Table for Parameters of Test Software Setting ..................................................................................................................7 3.9. Test Configurations .........................................................................................................................................................8 4. TEST RESULT.................................................................................................................................. 10 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................10 4.2. Maximum Peak Output Power Measurement...................................................................................................................16 4.3. Power Spectral Density Measurement .............................................................................................................................19 4.4. 6dB Spectrum Bandwidth Measurement..........................................................................................................................29 4.5. Radiated Emissions Measurement ..................................................................................................................................40 4.6. Band Edge Emissions Measurement................................................................................................................................78 4.7. Antenna Requirements ...................................................................................................................................................94 5. LIST OF MEASURING EQUIPMENTS ...................................................................................................95 6. SPORTON COMPANY PROFILE .........................................................................................................97 6.1. Test Location .................................................................................................................................................................97 7. NVLAP CERTIFICATE OF ACCREDITATION ........................................................................................ 98 APPENDIX A. PHOTOGRAPHS OF EUT ........................................................................................ A1 ~ A14 APPENDIX B. TEST PHOTOS ........................................................................................................B1 ~ B6 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE ...........................................................................C1 ~C4 Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : ii of ii FCC ID: PY306100037 Issued Date : Apr. 06, 2006 History of This Test Report Original Issue Date: Apr. 06, 2006 Report No.…

Text truncated - open the document above for the full version.

Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 52 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11b 20MHz Channel 11 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 53 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11b 20MHz Channel 11 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 54 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Lower Channel 802.11b 40MHz Channel 3 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 55 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Lower Channel 802.11b 40MHz Channel 3 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 56 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Lower Channel 802.11b 40MHz Channel 6 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 57 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Lower Channel 802.11b 40MHz Channel 6 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 58 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Lower Channel 802.11b 40MHz Channel 9 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 59 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Lower Channel 802.11b 40MHz Channel 9 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 60 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Upper Channel 802.11b 40MHz Channel 3 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 61 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Upper Channel 802.11b 40MHz Channel 3 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 62 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Upper Channel 802.11b 40MHz Channel 6 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 63 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Upper Channel 802.11b 40MHz Channel 6 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 64 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Upper Channel 802.11b 40MHz Channel 9 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 65 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations Upper Channel 802.11b 40MHz Channel 9 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 66 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 20MHz Channel 1 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 67 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 20MHz Channel 1 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 68 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 20MHz Channel 6 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 69 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 20MHz Channel 6 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 70 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 20MHz Channel 11 Ant. A Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 71 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 20MHz Channel 11 Ant. A Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 72 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 40MHz Channel 3 Ant. A + Ant. B Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 73 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 40MHz Channel 3 Ant. A + Ant. B Horizontal Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 74 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 40MHz Channel 6 Ant. A + Ant. B Vertical Report No.: FR640311 Report Format Version: RF-15.247-2006-2-17-d Page No. : 75 of 98 FCC ID: PY306100037 Issued Date : Apr. 06, 2006 Temperature 20 Humidity 70% Test Engineer Leo Hung Configurations 802.11g 40MHz Channel 6 Ant. A + Ant. B Horizontal Report N…

Text truncated - open the document above for the full version.

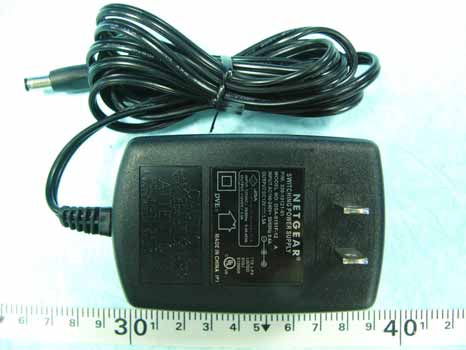

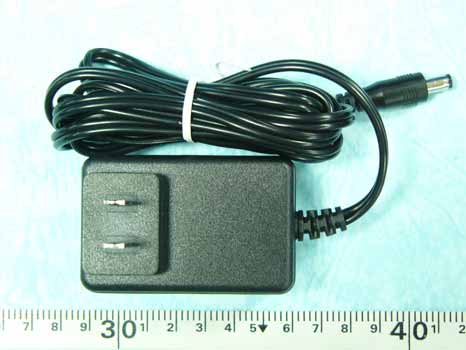

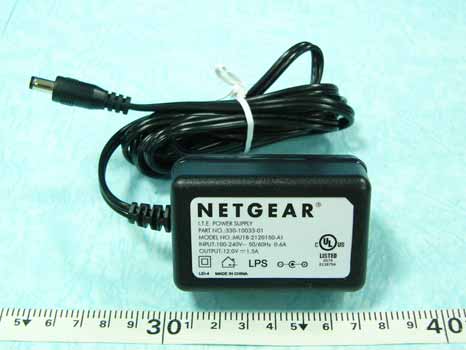

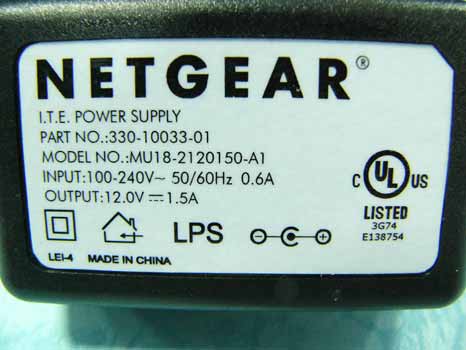

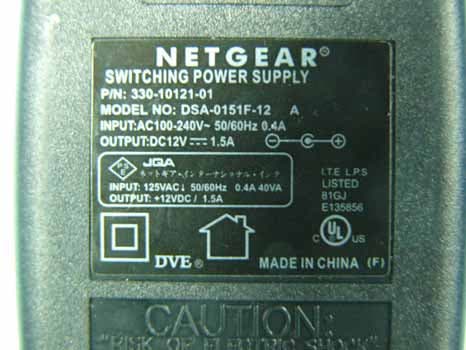

Report No.: FR640311 FCC ID: PY306100037 Page No. : B1 of B6 Appendix B. Test Photos Report No.: FR640311 FCC ID: PY306100037 Page No. : B2 of B6 1. Photographs of Conducted Emissions Test Configuration Adapter 1 FRONT VIEW REAR VIEW Report No.: FR640311 FCC ID: PY306100037 Page No. : B3 of B6 Adapter 2 FRONT VIEW Report No.: FR640311 FCC ID: PY306100037 Page No. : B4 of B6 REAR VIEW Report No.: FR640311 FCC ID: PY306100037 Page No. : B5 of B6 2. Photographs of Radiated Emissions Test Configuration Adapter 1 FRONT VIEW REAR VIEW Report No.: FR640311 FCC ID: PY306100037 Page No. : B6 of B6 Adapter 2 FRONT VIEW REAR VIEW
