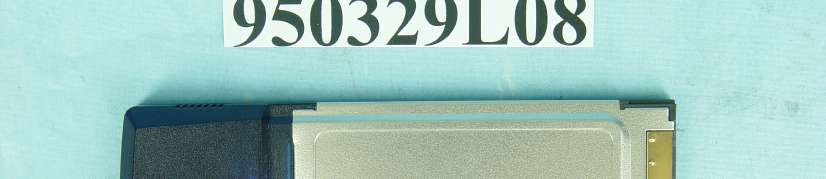

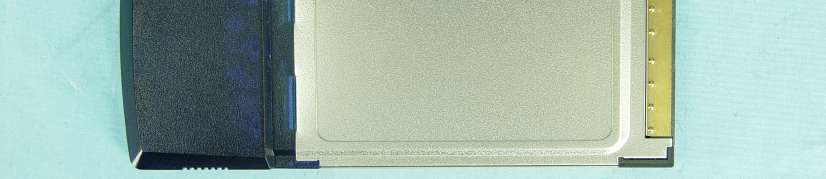

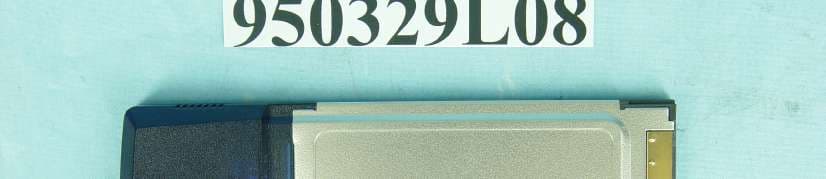

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISIONENG APPDDATE NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. INK COLOR SHOWN TO THE RIGHT. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), UNHIDE THE WHITE BOX LAYER AND INCLUDE WHITE BOX ON LABEL. 5 01AW-10105-011 of 1 AW, WN511T, V1H1, PLBL M YU 03/20/06M YUINITIAL DOCUMENT CREATION01 64.8mm 40.8mm R3.0 Pantone Cool Gray 11C

Page 3 Page 4 Page 5

FCC ID: PY306100040 Report No.: RF950329L08 OPERATIONAL DESCRIPTION This device is a RangeMax Next Wireless PC Card, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The EUT is 2 * 3 spatial MIMO (2Tx & 3Rx) without beam forming function that only operate dual chain configuration (both chain 0 and chain 1 transceivers are operational). The transmitter of the EUT is powered by host equipment. The antenna is printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=152mm A - 2 Date/Time: 2006/3/27 09:50:42 Test Laboratory: Advance Data Technology N800C-11b-Ch01-Mode1 DUT: RangeMax Next Wireless PC Card ; Type: WN511T ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.87 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 20.9 degrees ; Liquid temp. : 20.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Low Channel 1/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.404 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.06 V/m Peak SAR (extrapolated) = 0.852 W/kg SAR(1 g) = 0.364 mW/g; SAR(10 g) = 0.168 mW/g Maximum value of SAR (measured) = 0.405 mW/g A - 3 Date/Time: 2006/3/27 10:15:51 Test Laboratory: Advance Data Technology N800C-11b-Ch06-Mode1 DUT: RangeMax Next Wireless PC Card ; Type: WN511T ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.9 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 20.9 degrees ; Liquid temp. : 20.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.407 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.37 V/m Peak SAR (extrapolated) = 0.880 W/kg SAR(1 g) = 0.371 mW/g; SAR(10 g) = 0.172 mW/g Maximum value of SAR (measured) = 0.411 mW/g A - 4 Date/Time: 2006/3/27 10:48:34 Test Laboratory: Advance Data Technology N800C-11b-Ch11-Mode1 DUT: RangeMax Next Wireless PC Card ; Type: WN511T ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.93 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 20.9 degrees ; Liquid temp. : 20.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 High Channel 11/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.412 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.92 V/m Peak SAR (extrapolated) = 0.884 W/kg SAR(1 g) = 0.371 mW/g; SAR(10 g) = 0.174 mW/g Maximum value of SAR (measured) = 0.398 mW/g A - 5 Date/Time: 2006/3/27 11:21:37 Test Laboratory: Advance Data Technology N800C-11g-Ch06-Mode2 DUT: RangeMax Next Wireless PC Card ; Type: WN511T ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.9 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 20.9 degrees ; Liquid temp. : 20.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 161 Mid Channel 6/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.305 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.14 V/m Peak SAR (extrapolated) = 0.658 W/kg SAR(1 g) = 0.279 mW/g; SAR(10 g) = 0.129 mW/g Maximum value of SAR (measured) = 0.310 mW/g A - 6 Date/Time: 2006/3/27 11:49:25 Test Laboratory: Advance Data Technology N800C-Ch01-20MHz-EWC-Single Tx(MCS0)-Mode3 DUT: RangeMax Next Wireless PC Card ; Type: WN511T ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.87 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 20.9 degrees ; Liquid temp. : 20.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 1…
