PY306100041RangeMax NEXT Wireless PCI Adapter

202-10203-01 May 2006 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311B User Manual ii v1.0, May 2006 Technical Support Please refer to the support information card that shipped with your product. By registering your product at http://www.netgear.com/register, we can provide you with faster expert technical support and timely notices of product and software upgrades. NETGEAR, INC. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card. E-mail: [email protected] Web site: http://www.netgear.com Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. © 2006 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved . Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Safety and Regulatory Notices FCC Statement Certification ID: FCC: PY306100041 IC: 4054A-06100041 The WN311B has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television v1.0, May 2006 iii reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment or devices •Connect the equipment to an outlet other than the receiver’s •Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved by Netgear could void the user’s authority to operate the device. FCC RF Radiation Exposure RF Exposure Information The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to be compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. This model meets the applicable government requirements for exposure to radio frequency waves. Canadian Department of Communications Industry Canada (IC) Notice This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210 du Canada. “To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.” “Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit être utilisé à l’intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installé à l’extérieur, il doit faire l’objet d’une licence.” Europe - EU Declaration of Conformity A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WN311B product package. Èesky [Czech] NETGEAR, Inc. tímto prohlašuje, že tento NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311B je ve shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES. Dansk [Danish] Undertegnede NETGEAR, Inc. erklærer herved, at følgende udstyr NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311B overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt NETGEAR, Inc., dass sich das Gerät NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311B in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. v1.0, May 2006 iv Eesti [Estonian] Käesolevaga kinnitab NETGEAR, Inc. seadme NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311B vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. EnglishHereby, NETGEAR, Inc., declares that this NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311B is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente NETGEAR, Inc. declara que el NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311B cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR, Inc. ΔΗΛΩΝΕΙ ΟΤΙ NETGEAR Range…

Text truncated - open the document above for the full version.

NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. FCC ID: PY306100041 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Mark Gandler Sr. Compliance Engineer NETGEAR, Inc. TEL:408-907-8000 FAX:408-907-8097 E-mail: [email protected]

NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned, NETGEAR, Inc. , hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Note: Product name: RangeMax NEXT Wireless PCI Adapter Model name: WN311B Sincerely yours, Signature: Mark Gandler Sr. Compliance Engineer NETGEAR, Inc. TEL:408-907-8000 FAX:408-907-8097 E-mail: [email protected]

From: [email protected] [mailto:[email protected]] Sent: Sunday, May 21, 2006 11:38 PM To: steve.cheng Cc: [email protected] Subject: Re : TCB Review Comments for (B06-0519a- PY3060100041,950512H01- Netgear 2x2 MIMO 11n PCI) Dear Steve, Thank you for your comments on this application! Question #1: Why include OEM statement in the manual? Is product intended only for the OEM application? => This is typo, the usr's manual was revised. Question #2: Is dual transmission available in 11b and 11g mode? If yes, please explain why dual transmission mode is not tested for 11b and 11g mode? =>No. 11b and 11g only use antenna 1. Thanks! Best Regards, Amanda Chu / 朱芳誼 Certification Specialist / ADT Corp. (Hsin Chu Office) Tel: 03-5935343 ext. 1737 Fax: 03-5934728 "steve.cheng" <[email protected]> 2006/05/20 上午 11:09 收件 人 [email protected] 副本 抄送 主旨 TCB Review Comments for (B06-0519a- PY3060100041,950512H01- Netgear 2x2 MIMO 11n PCI) TCB Review Comments for (B06-0519a- PY3060100041, 950512H01- Netgear 2x2 MIMO 11n PCI) -EMC- Question #1: Why include OEM statement in the manual? Is product intended only for the OEM application? Question #2: Is dual transmission available in 11b and 11g mode? If yes, please explain why dual transmission mode is not tested for 11b and 11g mode? Best regards, Steve Cheng Curtis-Straus LLC

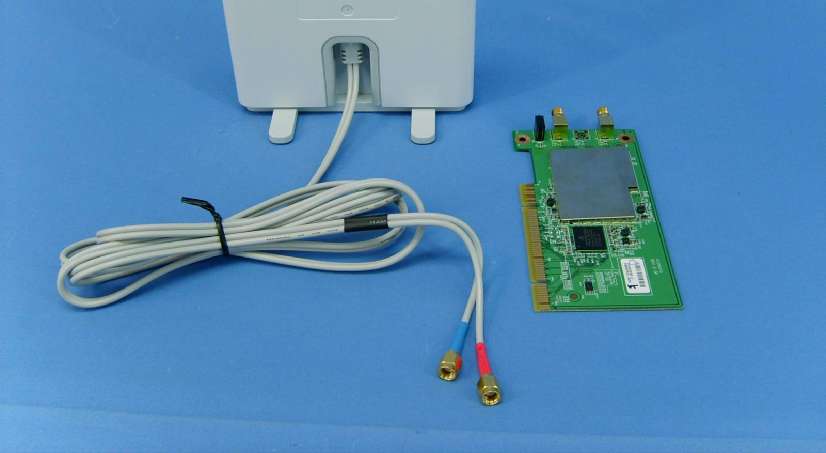

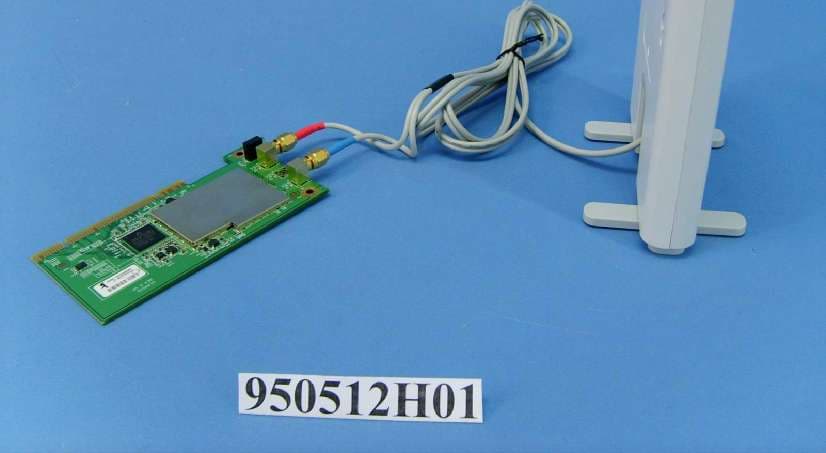

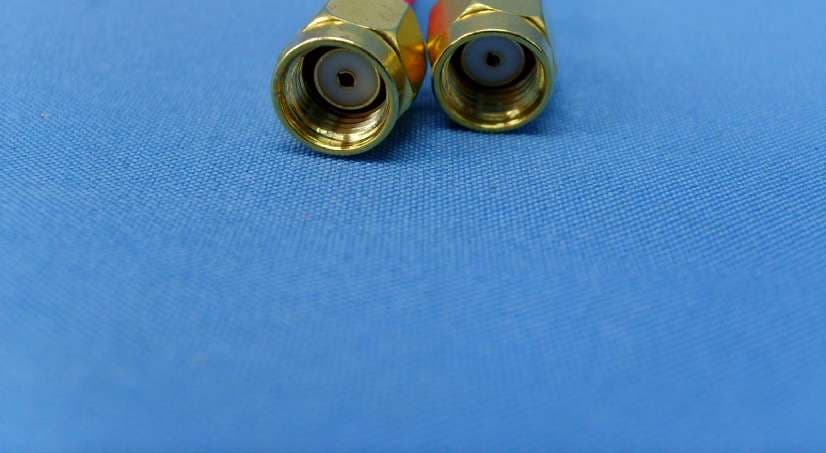

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: PY306100041 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISIONENG APPDDATE 5 01AW-10084-011 of 1 AW, WN311B, V1H1, PLBL M YU 05/11/06M YUINITIAL DOCUMENT CREATION01 Pantone Cool Gray 11C NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 3. DIE LINE IS MAGENTA COLOR. DO NOT PRINT. 4. INK COLOR IS SHOWN TO THE RIGHT. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), UNHIDE THE WHITE BOX LAYER AND INCLUDE WHITE BOX ON LABEL.

Page 4 Page 5 Page 6

FCC ID: PY306100041 Report No. RF950512H01 Operational Description This device is a RangeMax NEXT Wireless PCI Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The antenna used in this product is printed antenna without connector. The maximum Gain of the antenna is 1dBi. 1. The EUT incorporates a MIMO function with 802.11b, 802.11g, draft 802.11n. Physically, the card provides two completed transmit and two receivers. 2. The EUT is 2 * 2 spatial MIMO without beam forming function. Spatial multiplexing modes for simultaneous transmission using 2 antennas , and for simultaneous receiver using 2 antennas. 3. When the EUT operating in draft 802.11n, the software operation, which is defined by manufacturer, MCS (Modulation and Coding Schemes) from 0 to 15. 4. The EUT complies with draft 802.11n standards and backwards compatible with 802.11b, 802.11g products. 5. The EUT operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps. 6. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual.

Report No.: SA950512H01 1 RF EXPOSURE REPORT REPORT NO.: SA950512H01 MODEL NO.: WN311B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950512H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950512H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950512H01 4 6. Test Results 6.1 Antenna Gain There are two Printed antennas provided to this EUT, all the antennas are the same. The information of the antenna, please refer to the following table: Gain (dBi)Antenna Type Antenna Connector 1.8PrintedNA 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241284.1400.0251.0 62437133.3520.0401.0 112462105.9250.0321.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412103.5140.0311.0 62437188.3650.0571.0 11246298.8550.0301.0 DRAFT 802.11n (20MHz) OFDM modulation: DUAL TX: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412174.2970.1051.0 62437387.8910.2341.0 112462171.9530.1041.0 DRAFT 802.11n (20MHz) OFDM modulation: DUAL TX: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12422164.4920.0991.0 42437205.8440.1241.0 72452151.0890.0911.0

Report No.: RF950512H0143Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: DUAL TX: EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 1 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK INPUT POWER (SYSTEM) 120Vac, 60 Hz TRANSFER RATE 6.5Mbps DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 22deg. C, 70%RH, 962hPa TESTED BY Rex Huang ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 12390.0069.10 PK74.00-4.901.34 H13839.4029.70 12390.0053.40 AV54.00-0.601.34 H13823.7029.70 2*2412.00109.40 PK1.47 H14079.6029.80 2*2412.00101.10 AV1.47 H14071.3029.80 34824.0046.40 PK74.00-27.601.30 H311.3035.10 34824.0034.10 AV54.00-19.901.30 H3-1.0035.10 47236.0050.70 PK74.00-23.301.27 H2110.2040.50 47236.0037.60 AV54.00-16.401.27 H21-2.9040.50 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 12390.0068.40 PK74.00-5.601.00 V5238.7029.70 12390.0050.60 AV54.00-3.401.00 V5220.9029.70 2*2412.00108.00 PK1.39 V29478.2029.80 2*2412.00100.50 AV1.39 V29470.7029.80 34824.0046.70 PK74.00-27.301.00 V1911.6035.10 34824.0034.50 AV54.00-19.501.00 V19-0.6035.10 47236.0051.60 PK74.00-22.401.07 V2611.1040.50 47236.0038.40 AV54.00-15.601.07 V26-2.1040.50 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247. 6. “ * “: Fundamental frequency. Report No.: RF950512H0144Report Format Version 2.0.4 EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 6 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK INPUT POWER (SYSTEM) 120Vac, 60 Hz TRANSFER RATE 6.5Mbps DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 22deg. C, 70%RH, 962hPa TESTED BY Rex Huang ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2437.00112.50 PK1.40 H21182.6029.90 1*2437.00101.90 AV1.40 H21172.0029.90 24874.0052.10 PK74.00-21.901.32 H35716.8035.30 24874.0037.80 AV54.00-16.201.32 H3572.5035.30 37311.0050.40 PK74.00-23.601.34 H79.7040.70 37311.0037.50 AV54.00-16.501.34 H7-3.2040.70 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2437.00112.30 PK1.40 V30882.4029.90 1*2437.00101.70 AV1.40 V30871.8029.90 24874.0051.90 PK74.00-22.101.34 V1516.6035.30 24874.0037.60 AV54.00-16.401.34 V152.3035.30 37311.0051.10 PK74.00-22.901.20 V1810.4040.70 37311.0038.00 AV54.00-16.001.20 V18-2.7040.70 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247. 6. “ * “: Fundamental frequency. Report No.: RF950512H0145Report Format Version 2.0.4 EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 11 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK INPUT POWER (SYSTEM) 120Vac, 60 Hz TRANSFER RATE 6.5Mbps DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 22deg. C, 70%RH, 962hPa TESTED BY Rex Huang ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2462.00110.00 PK1.38 H13680.0030.00 1*2462.00100.90 AV1.38 H13670.9030.00 22483.5064.30 PK74.00-9.701.40 H13634.2030.10 22483.5051.10 AV54.00-2.901.40 H13621.0030.10 32484.3065.30 PK74.00-8.701.40 H13635.2030.10 32484.3052.60 AV54.00-1.401.40 H13622.5030.10 44924.0046.40 PK74.00-27.601.33 H35910.9035.50 44924.0033.90 AV54.00-20.101.33 H359-1.6035.50 57386.0050.60 PK74.00-23.401.27 H139.8040.80 57386.0037.40 AV54.00-16.601.27 H13-3.4040.80 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2462.00109.80 PK1.40 V31079.8030.00 1*2462.00100.00 AV1.40 V31070.0030.00 22483.8069.10 PK74.00-4.901.00 V30439.0030.10 22483.8052.70 AV54.00-1.301.00 V30422.6030.10 34924.0046.70 PK74.00-27.301.11 V1711.2035.50 34924.0034.30 AV54.00-19.701.11 V17-1.2035.50 47386.0051.40 PK74.00-22.601.12 V1310.6040.80 47386.0038.10 AV54.00-15.901.12 V13-2.7040.80 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247. 6. “ * “: Fundamental frequency. Report No.: RF950512H0146Report Format Version 2.0.4 RESTRICTED BANDEDGE (DRAFT 802.11n (20MHz) MODE,CH1, HORIZONTAL ) Report No.: RF950512H0147Report Format Version 2.0.4 RESTRICTED BANDEDGE (DRAFT 802.11n (20MHz) MODE,CH1, VERTICAL ) Report No.: RF950512H0148Report Format Version 2.0.4 RESTRICTED BANDEDGE (DRAFT 802.11n (20MHz) MODE,CH11, HORIZONTAL ) Report No.: RF950512H0149Report Format Version 2.0.4 RESTRICTED BANDEDGE (DRAFT 802.11n (20MHz) MODE,CH11, VERTICAL ) Report No.: RF950512H0150Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: DUAL TX: EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 1 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK INPUT POWER (SYSTEM) 120Vac, 60 Hz TRANSFER RATE 13.5Mbps DETECTO…

Text truncated - open the document above for the full version.

Report No.: RF950512H011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950512H01 MODEL NO.: WN311B RECEIVED: May 12, 2006 TESTED: May 13 to 15, 2006 ISSUED: May 19, 2006 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 107 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950512H012Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION........................................................................................... 4 2.SUMMARY OF TEST RESULTS .................................................................. 5 2.1 MEASUREMENT UNCERTAINTY ................................................................ 6 3.GENERAL INFORMATION ........................................................................... 7 3.1GENERAL DESCRIPTION OF EUT ............................................................. 7 3.2DESCRIPTION OF TEST MODES ............................................................... 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................ 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................. 12 3.4DESCRIPTION OF SUPPORT UNITS........................................................ 13 3.5CONFIGURATION OF SYSTEM UNDER TEST......................................... 14 4.TEST TYPES AND RESULTS .................................................................... 15 4.1CONDUCTED EMISSION MEASUREMENT.............................................. 15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 15 4.1.2 TEST INSTRUMENTS ................................................................................ 15 4.1.3 TEST PROCEDURES ................................................................................ 16 4.1.4 DEVIATION FROM TEST STANDARD ....................................................... 16 4.1.5 TEST SETUP.............................................................................................. 17 4.1.6 EUT OPERATING CONDITIONS ............................................................... 17 4.1.7 TEST RESULTS ......................................................................................... 18 4.2RADIATED EMISSION MEASUREMENT................................................... 24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 24 4.2.2 TEST INSTRUMENTS ................................................................................ 25 4.2.3 TEST PROCEDURES ................................................................................ 26 4.2.4 DEVIATION FROM TEST STANDARD ....................................................... 26 4.2.5 TEST SETUP.............................................................................................. 27 4.2.6 EUT OPERATING CONDITIONS ............................................................... 27 4.2.7 TEST RESULTS ......................................................................................... 28 4.36DB BANDWIDTH MEASUREMENT ......................................................... 57 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 57 4.3.2 TEST INSTRUMENTS ................................................................................ 57 4.3.3 TEST PROCEDURE ................................................................................... 57 4.3.4 DEVIATION FROM TEST STANDARD ....................................................... 57 4.3.5 TEST SETUP.............................................................................................. 58 Report No.: RF950512H013Report Format Version 2.0.4 4.3.6 EUT OPERATING CONDITIONS ............................................................... 58 4.3.7 TEST RESULTS ......................................................................................... 59 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 71 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........... 71 4.4.2 INSTRUMENTS.......................................................................................... 71 4.4.3 TEST PROCEDURES ................................................................................ 71 4.4.4 DEVIATION FROM TEST STANDARD ....................................................... 71 4.4.5 TEST SETUP.............................................................................................. 72 4.4.6 EUT OPERATING CONDITIONS ............................................................... 72 4.4.7 TEST RESULTS ......................................................................................... 73 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 75 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 75 4.5.2 TEST INSTRUMENTS ................................................................................ 75 4.5.3 TEST PROCEDURE ................................................................................... 75 4.5.4 DEVIATION FROM TEST STANDARD ....................................................... 75 4.5.5 TEST SETUP.............................................................................................. 76 4.5.6 EUT OPERATING CONDITION.................................................................. 76 4.5.7 TEST RESULTS ..................................................................…

Text truncated - open the document above for the full version.

Report No.: RF950512H0175Report Format Version 2.0.4 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2006 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time = span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF950512H0176Report Format Version 2.0.4 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITION Same as Item 4.3.6 SPECTRUM ANALYZER EUT Report No.: RF950512H0177Report Format Version 2.0.4 4.5.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE DBPSK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg.C, 68%RH, 962hPa TESTED BY Sky Liao CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS / FAIL 12412-7.138PASS 62437-5.888PASS 112462-6.208PASS CH1 Report No.: RF950512H0178Report Format Version 2.0.4 CH6 CH11 Report No.: RF950512H0179Report Format Version 2.0.4 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg.C, 68%RH, 962hPa TESTED BY Sky iao CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS / FAIL 12412-10.968PASS 62437-7.758PASS 112462-10.988PASS CH1 Report No.: RF950512H0180Report Format Version 2.0.4 CH6 CH11 Report No.: RF950512H0181Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: DUAL TX: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 22deg.C, 68%RH, 962hPa TESTED BY Sky Liao RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENC…

Text truncated - open the document above for the full version.
