  1. Home/
  2. Netgear Incorporated/
  3. PY306100042

PY306100042RangeMax NEXT Wireless ADSL2 + Modem Router

Netgear Incorporated
RangeMax NEXT Wireless ADSL2 + Modem Router - FCC ID PY306100042 - Netgear Incorporated
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 03, 2007
Application Purpose
Original Equipment
Date of Application
Jan 03, 2007
Equipment Note
RangeMax NEXT Wireless ADSL2 + Modem Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Netgear Incorporated
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

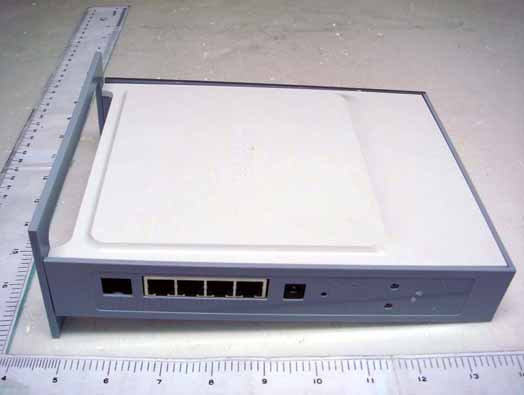

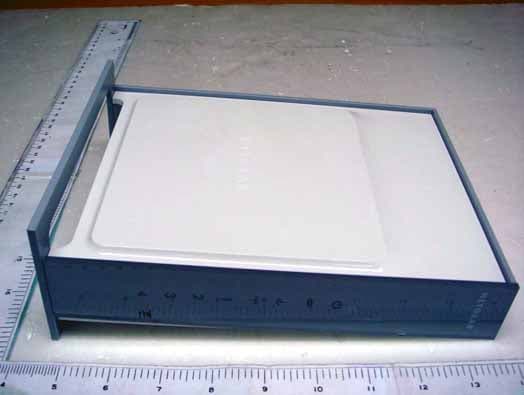

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

May 2005 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Phone 1-888-NETGEAR DG834N RangeMax TM NEXT Wireless ADSL2+ Modem Router Reference Manual ii © 2006 by NETGEAR, Inc. All rights reserved. May 2005. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Federal Communications Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. Note:This equipment marketed in USA is restricted by firmware to only operate on 2.4G channel 1-11 . iii European Union Statement of Compliance Hereby, NETGEAR, Inc. declares that this wireless modem router is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Èesky [Czech] NETGEAR, Inc. tímto prohlašuje, že tento DG834N RangeMax TM NEXT Wireless ADSL2+ Modem Router je ve shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES. Dansk [Danish] Undertegnede NETGEAR, Inc. erklærer herved, at følgende…

Text truncated - open the document above for the full version.

Block Diagram

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Title Document NumberRev Date:Sheet of DG834N/NB (490YAX10) A Block 19Thursday, December 21, 2006 SerComm Corp. Title Document NumberRev Date:Sheet of DG834N/NB (490YAX10) A Block 19Thursday, December 21, 2006 SerComm Corp. Title Document NumberRev Date:Sheet of DG834N/NB (490YAX10) A Block 19Thursday, December 21, 2006 SerComm Corp. +3.3V +2.5V +1.2V V R E G S U S B 2 . 0 4 PORTS SPI M P I Connector FLASH 4MB S/W Download DDR SDRAM 32MB E P H Y U S B 1 . 1 BCM6358UV U A R T U S B D D R Line Driver A F E J T A G P C I PCMCIA MiniPCI Interface Connector E B I PCM BCM6301 M I I BCM5325E RJ45 Jack ADSL Jack 12VDC/1A +1.8V BCM6358 +1.2V AP1513@2A AZ117H-5 @1A Ap1513@2A +3.3V 2SB1188 +2.5V +5V Q105 X'Tal 25MHz X'Tal 64MHz Operating Frequency in USA: 2412-2462 MHz Operating Frequency in Europe: 2412-2472 MHz

Cover Letter(s)

Request for non-disclosure RF_501_02 Netgear Inc., 4500 Great America Parkway Santa Clara California 95054 USA To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: PY306100042) Reference number: DG834N Date: 2006-10-12 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), < Netgear Inc.> hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( PY306100042) a. Schematic diagrams b. Operational description Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Netgear understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Name: Mark Gandler

Cover Letter(s)

RF_160, Issue 01 Declaration of Authorization We Name: Netgear Inc. Address: 4500 Great America Parkway City: Santa Clara, CA 95054 Country: USA Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No.28, Lane 78, Xing-Ai Rd. City: Neihu, Taipei 114 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: RangeMax NEXT Wireless ADSL2 + Modem Router Type designation: DG834N Trademark: Netgear on our behalf. Date: 2006/10/12 City: California Name: Mark Gandler Signature:

External Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 1 of 9 FCC Test Report: FI06100402-A Appendix A. Photographs of EUT 06100402-A 06100402-A

ID Label/Location Info

944YAX1072 V1 272-10386-02 DG834NR/NETGEAR Pantone 428 Pantone Cool Gray 11C Pantone 144C Pantone 114C Pantone 200C Black NOTES: 1. : t=0.254 mm PC, (3M-467) 2. : 3. :+0 mm, -0.2mm Exclusive Certification Corp.Tel:886-2-2792-3366 Fax:886-2-2792-1100Issued date: Oct. 27, 2006 1 of 9 FCC Test Report: FI06100402-A Appendix A. Photographs of EUT 06100402-A

Internal Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 2 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 3 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 4 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 5 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 6 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 7 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 8 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 9 of 9 FCC Test Report: FI06100402-A 06100402-A 06100402-A

Parts List/Tune Up Info

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 1.8dBi (excluding cable loss) 1.7 Cable Loss.................. ...0.6dB 1.8 Polarization............... ...Linear Vertical 1.9 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................φ1.13 Coaxial Cable 2.2 Antenna Cover............ ...ABS+PC 2.3 Operating Temp. ......... ...-20 ~ +65 2.4 Storage Temp. ............ ...-30 ~ +75 2.5 Color ........................ .White 2.6 Connector.................. ...HRS 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum RF Antenna Cable Assembly Omni-directional 1 2 RF Antenna Assembly P/NO : C147-510271-A SPEC : 2.4GHz 3/21/2006 3 3/21/2006 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB Far-field amplitude of 150-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 4 3/21/2006 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB Far-field amplitude of 150-H01.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 6 7 8 9

RF Exposure Info

1.1. Test Result of RF Exposure Evaluation . Product: RangeMax NEXT Wireless ADSL2 + Modem Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.8 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance of 20 cm Modulation Standard: IEEE 802.11b Test Date: Oct. 12, 2006 Temperature: 25 Humidity: 68% Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 23.30 0.064 06 2437 23.07 0.061 11 2462 22.09 0.049 Modulation Standard: IEEE 802.11g Test Date: Oct. 12, 2006 Temperature: 25 Humidity: 68% Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 03 2422 21.00 0.038 06 2437 20.86 0.037 09 2452 19.83 0.029 Modulation Standard: IEEE 802.11MIMO Test Date: Oct. 12, 2006 Temperature: 25 Humidity: 68% Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 24.43 0.084 06 2437 24.19 0.079 11 2462 23.12 0.062 Modulation Standard: IEEE 802.11MIMO + CB Test Date: Oct. 12, 2006 Temperature: 25 Humidity: 68% Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 03 2422 24.67 0.088 06 2437 24.49 0.085 09 2452 24.15 0.078 The MPE is calculated as 0.088 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 1 of 107 FCC Test Report: FI06100402-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Netgear Inc. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment RangeMax NEXT Wireless ADSL2+Modem Router Model No. DG834N FCC ID PY306100042 Trade Name NETGEAR Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 2 of 107 FCC Test Report: FI06100402-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 7 2.3 Test Mode and Test Software..................................................................................................... 8 2.4 Description of Test System......................................................................................................... 8 2.5 Connection Diagram of Test System..........................................................................................9 2.6 General Information of Test......................................................................................................10 2.7 History of this test report ..........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit..................................................................................................................................12 4.2 Test Procedures.......................................................................................................................12 4.3 Typical Test Setup ...................................................................................................................13 4.4 Measurement equipment .........................................................................................................13 4.5 Test Result and Data................................................................................................................14 4.6 Test Photographs .....................................................................................................................20 5. Test of Radiated Emission ...............................................................................................................21 5.1 Test Limit..................................................................................................................................21 5.2 Test Procedures.......................................................................................................................22 5.3 Typical Test Setup ....................................................................................................................23 5.4 Measurement equipment .........................................................................................................23 5.5 Test Result and Data................................................................................................................24 5.6 Test Photographs .....................................................................................................................60 6. 6dB Bandwidth Measurement Data .................................................................................................61 6.1 Test Limit ..................................................................................................................................61 6.2 Test Procedures .......................................................................................................................61 6.3 Test Setup Layout ....................................................................................................................61 6.4 Measurement equipment .........................................................................................................61 6.5 Test Result and Data................................................................................................................61 7. Maximum Peak Output Power .........................................................................................................71 7.1 Test Limit ..................................................................................................................................71 7.2 Test Procedures ....................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 20 of 107 FCC Test Report: FI06100402-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 27, 2006 60 of 107 FCC Test Report: FI06100402-A 5.6 Test Photographs Front View Rear View

Contact Information

Applicant

David Kay
[email protected]4088903160Fax: 4089078097

Technical Contact

Netgear Inc.Mark Gandler
[email protected]408 367 7957

4500 Great America Parkway · Santa Clara, California · United States

Test Firm

Cerpass Technology CorporationAnson Chou
[email protected]886-2-27923366Fax: 886-2-27921100

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz293.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is maximum combined conducted output power. Device can operate in draft 802.11n 2x2 spatial mulitplexing MIMO configuration as described in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
