NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. Date April 27 th 2006 Elliott TCB 684 West Maude Ave. Sunnyvale, CA. 94085 FCC ID: PY306200046 Gentlemen: This is your letter of authorization to accept our appointment of Elliott Laboratories, Inc. as Agent for NETGEAR, Inc. 4500 Great America Parkway, Santa Clara, CA 95054 USA, to sign applications before Elliott TCB and the Commission and to make representations to you on our behalf. Elliott Laboratories is to receive and exchange data between our company and Elliott TCB and the Commission. This authorization is made pursuant to Section 2.911(c) of the FCC Rules and expires on expiration date. I hereby certify on behalf of NETGEAR, Inc. 4500 Great America Parkway, Santa Clara, CA 95054 USA ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 853a. Sincerely, Mark Gandler Sr. Compliance Engineer NETGEAR, Inc.

NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. Date April 27 th 2006 Elliott TCB 684 West Maude Ave. Sunnyvale, CA. 94085 FCC ID: PY306200046 Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Elliott Laboratories, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application are block diagrams, schematics, and a detailed description of the theory of operation of the device. It is our intention to provide Elliott TCB and the commission with a full disclosure of our product so that its merits can be evaluated. Indeed, we are pleased to provide any further information that the commission might wish to see. It is not our intention, however, to make our proprietary process a matter of public record. In view of the fact that the block diagrams, schematics, and associated theory of operation disclose the mechanism of our process, we ask that these portions (block diagrams, schematics, and theory of operation) of our application be withheld from public inspection as provided under FCC section 0.459. These documents contain details of the proprietary operation of product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request therefore that these documents be segregated from the body of our evaluation report and withheld from public inspection. Thank you for your attention. Please let the undersigned know if Elliott TCB or the Commission disagrees with our position or requires further justification. Sincerely, Mark Gandler Sr. Compliance Engineer

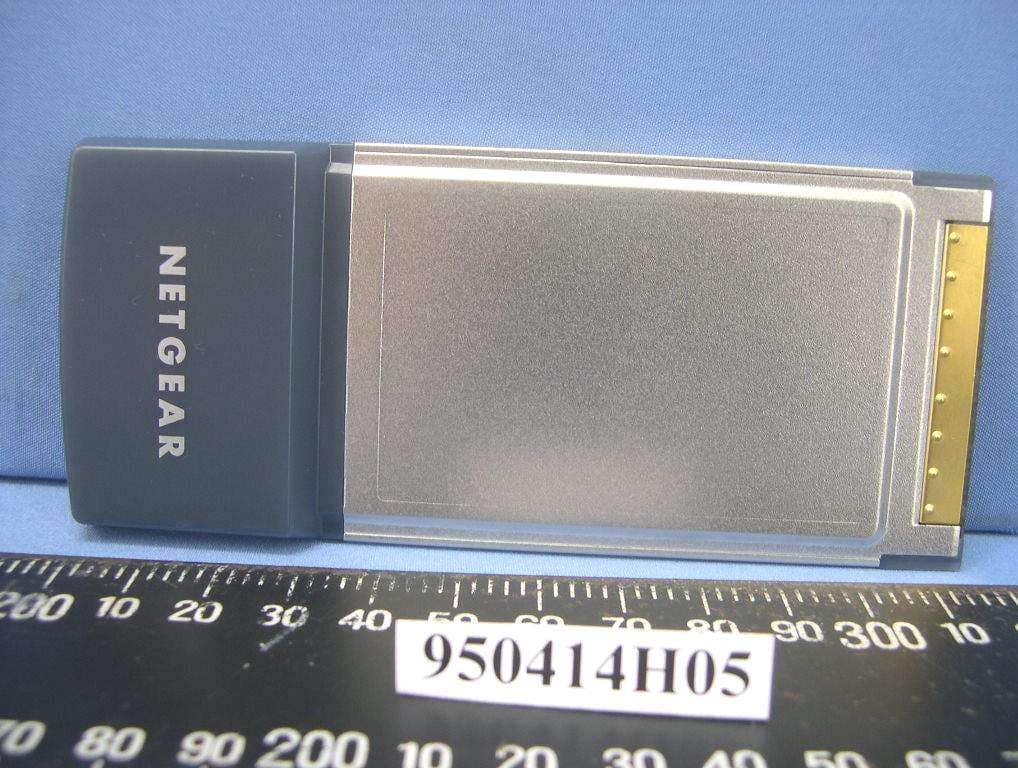

Page 1 CONSTRUCTION PHOTOS OF EUT

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISIONENG APPDDATE NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. INK COLOR SHOWN TO THE RIGHT. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), UNHIDE THE WHITE BOX LAYER AND INCLUDE WHITE BOX ON LABEL. 5 01AW-10078-021 of 1 AW, WN511B, V1H1, PLBL M YU 04/26/06M YUINITIAL DOCUMENT CREATION01 64.8mm 41.0mm R1.0 Pantone Cool Gray 11C

IN ACCORDANCE WITH THE REQUIREMENTS OF OET BULLETIN 65 SUPPLEMENT C & IC RSS 102 ISSUE 1 : 1999 FOR BROADCOM 2.4 GHz 802.11g / DRAFT 802.11n WLAN CARDBUS CARD MODEL: BCM94321CB2 FCC ID: QDS-BRCM1023 IC ID: 4324A-BRCM1023 REPORT NUMBER: 06U10256-1C ISSUE DATE: MAY 5, 2006 PREPARED FOR BROADCOM CORPORATION 190 MATHILDA PLACE SUNNYVALE, CA 94086, USA PREPARED BY COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 06U10256-1C DATE: May 5, 2006 FCC ID: QDS-BRCM1023 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 35 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- April 25, 2006 Initial issue HS B April 26, 2006 Corrected table labeled in page 16 of 35 of RF power HS C May 5, 2006 Corrected table labeled in page 16 of 35 of RF power HS REPORT NO: 06U10256-1C DATE: May 5, 2006 FCC ID: QDS-BRCM1023 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 35 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: April 20, 21, and 24, 2006 APPLICANT: ADDRESS: BROADCOM CORPORATION 190 Mathilda Place, Sunnyvale, CA 94086, USA FCC ID: IC: MODEL: QDS-BRCM1023 4324A-BRCM1023 BCM94321CB2 DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure Broadcom 2.4 GHz 802.11g / Draft 802.11n WLAN Cardbus Card is installed in three host laptops. Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Frequency Division Multiplexing (OFDM) for 802.11ag Orthogonal Frequency Division Multiplexing (OFDM) for 802.11n Host Laptops Host # / Brand name Spacing between EUT & Phantom Host 1 / HP Pavilion zv6000 19 mm Host 2 / Compaq nx7000 13 mm Host 3 / Dell Inspiron 6000 17 mm Rule Parts Frequency Range [MHz] The Highest SAR Values (1g) FCC 15.247 RSS102 2412 - 2462 Host 1: HP Pavilion zv6000 0.554 mW/g Host 2: Compaq nx7000 1.370 mW/g Host 3: Dell Inspiron 6000 0.599 mW/g This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01) and RSS 102. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Ninous Davoudi Senior Engineer EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 06U10256-1C DATE: May 5, 2006 FCC ID: QDS-BRCM1023 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 35 This report shall not be reproduced except in full, without the written approval of CCS. Table Of Contents 1 EQUIPMENT UNDER TEST (EUT) DESCRIPTION............................................................................ 5 2 FACILITIES AND ACCREDITATION ...................................................................................................5 3 SYSTEM DESCRIPTION ..................................................................................................................... 6 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATIG LIQUIDS ................................. 7 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................... 8 4.1 SIMULATING LIQUID PARAMETER CHECK RESULT.............................................................. 9 5 SYSTEM PERFORMANCE CHECK .................................................................................................. 12 5.1 SYSTEM PERFORMANCE CHECK RESULTS........................................................................ 13 6 SAR MEASURMENT PROCEDURE ................................................................................................. 14 6.1 DASY4 SAR MEASURMENT PROCEDURE............................................................................ 15 7 PROCEDURE USED TO ESTABLISH TEST SIGNAL ...................................................................... 16 8 SAR MEASURMENT RESULTS........................................................................................................ 17 8.1 HOST 1 - HP PAVILION ZV6000............................................................................................... 17 8.1.1 B MODE .................................................................................................................................. 17 8.1.2 G MODE.................................................................................................................................. 18 8.1.3 802.11N 20 MHZ ..................................................................................................................... 19 8.1.4 802.11N 40 MHZ ..................................................................................................................... 20 8.2 HOST 2 - COMPAQ NX7000..................................................................................................... 21 8.2.1 B MODE .................................................................................................................................. 21 8.2.2 G MODE.................................................................................................................................. 22 8.2.3 802.11N…

Text truncated - open the document above for the full version.

Date/Time: 4/20/2006 12:19:47 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.5deg. C; Liquid Temperature: 22.5 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.3 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.1 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 25.9 W/kg SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.75 mW/g Maximum value of SAR (measured) = 13.9 mW/g 0 dB = 13.9mW/g Date/Time: 4/20/2006 12:30:24 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 7.03 mW/g Date/Time: 4/21/2006 10:00:05 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 15.0 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.5 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 27.0 W/kg SAR(1 g) = 13.1 mW/g; SAR(10 g) = 6 mW/g Maximum value of SAR (measured) = 14.6 mW/g 0 dB = 14.6mW/g Date/Time: 4/21/2006 10:10:40 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 14.5 mW/g Date/Time: 4/24/2006 9:10:32 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.01 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.9 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.3 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 27.1 W/kg SAR(1 g) = 13 mW/g; SAR(10 g) = 5.99 mW/g Maximum value of SAR (measured) = 14.6 mW/g 0 dB = 14.6mW/g Date/Time: 4/24/2006 9:21:07 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 14.6 mW/g

Date/Time: 4/21/2006 12:07:33 PM Test Laboratory: Compliance Certification Services Laptop 1-HP Pavilion zv6000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1.02 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 b mode M ch Main Ant/Area Scan (12x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.301 mW/g b mode M ch Main Ant/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = -0.097 dB Peak SAR (extrapolated) = 0.518 W/kg SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.151 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.309 mW/g Date/Time: 4/21/2006 12:37:25 PM Test Laboratory: Compliance Certification Services Laptop 1-HP Pavilion zv6000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1.02 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 b mode M ch AUX Ant/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.292 mW/g b mode M ch AUX Ant/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.150 dB Peak SAR (extrapolated) = 0.563 W/kg SAR(1 g) = 0.310 mW/g; SAR(10 g) = 0.168 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.340 mW/g Date/Time: 4/21/2006 1:10:43 PM Test Laboratory: Compliance Certification Services Laptop 1-HP Pavilion zv6000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1.099 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 g mode M ch Main Ant/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.157 mW/g g mode M ch Main Ant/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.16 V/m; Power Drift = -0.121 dB Peak SAR (extrapolated) = 0.342 W/kg SAR(1 g) = 0.171 mW/g; SAR(10 g) = 0.091 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.187 mW/g Date/Time: 4/21/2006 1:33:56 PM Test Laboratory: Compliance Certification Services Laptop 1-HP Pavilion zv6000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1.099 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 g mode M ch AUX Ant/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.268 mW/g g mode M ch AUX Ant/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.4 V/m; Power Drift = -0.161 dB Peak SAR (extrapolated) = 0.504 W/kg SAR(1 g) = 0.279 mW/g; SAR(10 g) = 0.151 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.306 mW/g Date/Time: 4/21/2006 5:35:03 PM Test Laboratory: Compliance Certification Services Laptop 1-HP Pavilion zv6000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1.099 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.95 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting -…

Text truncated - open the document above for the full version.

Date/Time: 4/24/2006 1:33:21 PM Test Laboratory: Compliance Certification Services Laptop 2-Compaq nx7000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1.02 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.95 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 b mode Main L ch/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.561 mW/g b mode Main L ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = 0.195 dB Peak SAR (extrapolated) = 0.983 W/kg SAR(1 g) = 0.517 mW/g; SAR(10 g) = 0.256 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.573 mW/g Date/Time: 4/24/2006 1:14:46 PM Test Laboratory: Compliance Certification Services Laptop 2-Compaq nx7000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1.02 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.99 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 b mode Main M ch/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.991 mW/g b mode Main M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 18.5 V/m; Power Drift = 0.201 dB Peak SAR (extrapolated) = 1.74 W/kg SAR(1 g) = 0.913 mW/g; SAR(10 g) = 0.454 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.00 mW/g Date/Time: 4/24/2006 1:52:17 PM Test Laboratory: Compliance Certification Services Laptop 2-Compaq nx7000 DUT: 2.4GHz MIMO CardBus; Type: CardBus; Serial: N/A Communication System: 802.11bg; Frequency: 2462 MHz;Duty Cycle: 1:1.02 Medium parameters used (interpolated): f = 2462 MHz; σ = 2.02 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater tha…

Text truncated - open the document above for the full version.
