PY306200051RangeMax Next Wireless USB Adapter

202-10209-01 August 2006 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T User Manual ii v1.0, August 2006 Technical Support For customer support see http://kbserver.netgear.com/kb_web_files/n10005.asp NETGEAR, INC. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your support information card. E-mail: [email protected] North American NETGEAR website: http://www.netgear.com Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. © 2006 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved . Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Safety and Regulatory Notices FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. v1.0, August 2006 iii •This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Canadian Department of Communications Industry Canada (IC) Notice This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210 du Canada. “To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.” “Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit être utilisé à l’intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installé à l’extérieur, il doit faire l’objet d’une licence.” Europe - EU Declaration of Conformity A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WN121T product package. Èesky [Czech] NETGEAR, Inc. tímto prohlašuje, že tento NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T je ve shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES. Dansk [Danish] Undertegnede NETGEAR, Inc. erklærer herved, at følgende udstyr NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt NETGEAR, Inc., dass sich das Gerät NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab NETGEAR, Inc. seadme NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. v1.0, August 2006 iv EnglishHereby, NETGEAR, Inc., declares that this NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente NETGEAR, Inc. declara que el NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR, Inc. ΔΗΛΩΝΕΙ ΟΤΙ NETGEAR Next 300 Mbps Wireless USB 2.0 Adapter WN121T ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ Ο…

Text truncated - open the document above for the full version.

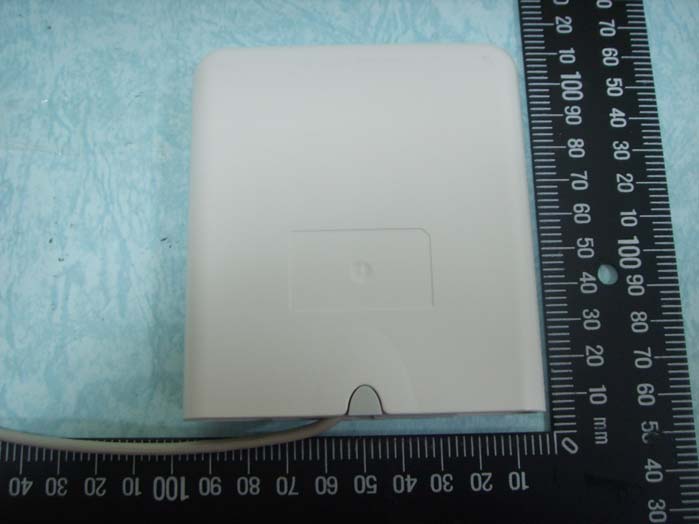

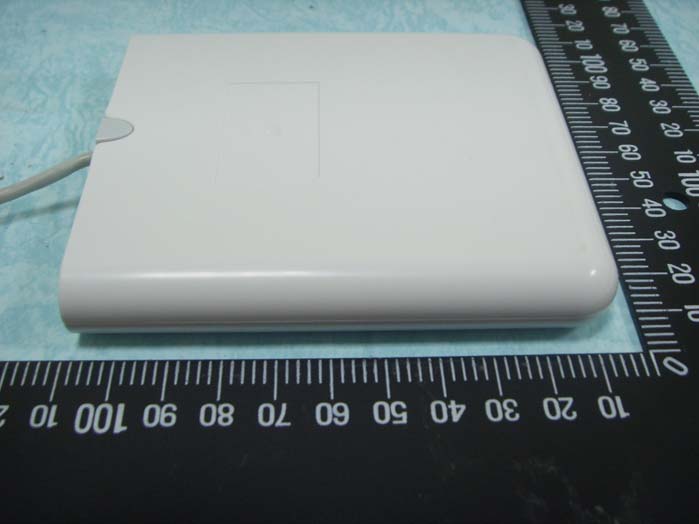

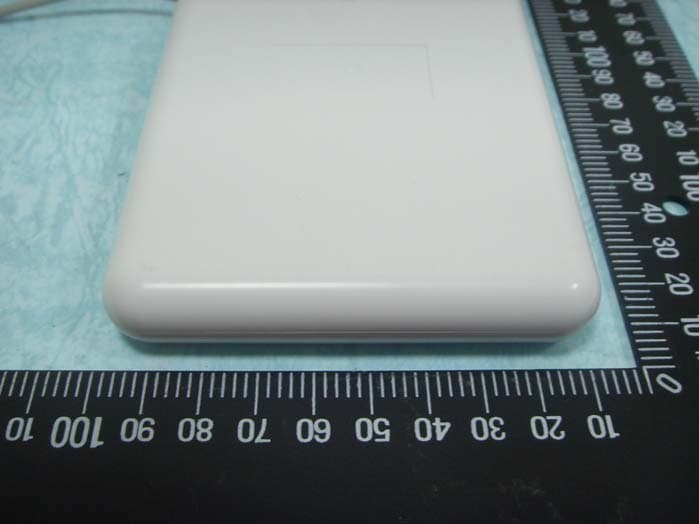

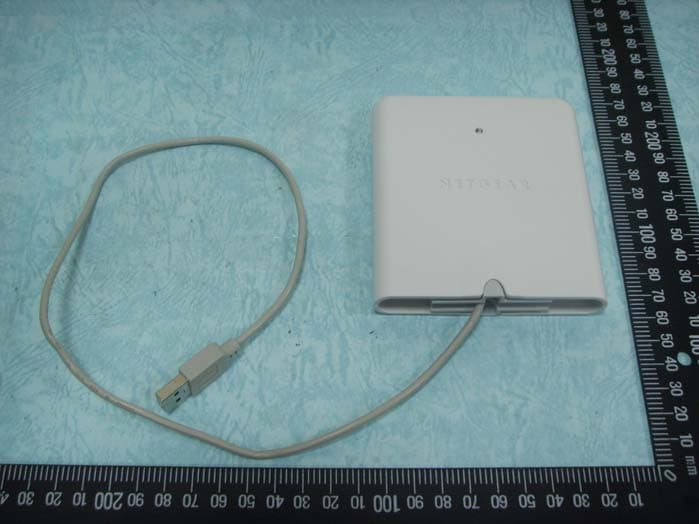

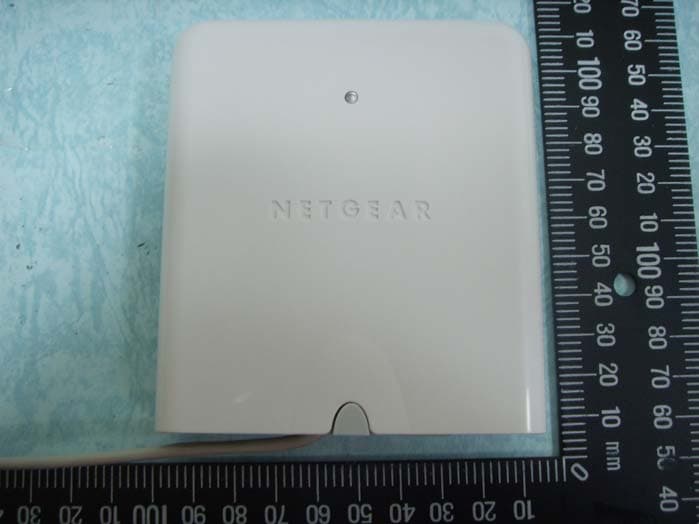

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2006 FAX : 886-2-2696-2255

FCC ID: PY306200051 Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure FCC ID: PY306200051 Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC ID: PY306200051 Page No. : C3 of C4 1.3. Calculated Result and Limit Antenna Type : Printed Max Conducted Power for 802.11n 20MHz Ant. A : 16.60dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 16.6000 45.7088 0.017577 1 Complies Antenna Type : Printed Max Conducted Power for 802.11n 20MHz Ant. B : 17.20dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 17.2000 52.4807 0.020181 1 Complies Antenna Type : Printed Max Conducted Power for 802.11n 20MHz Ant. A + Ant. B : 19.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 19.9200 98.1748 0.037753 1 Complies Antenna Type : Printed Max Conducted Power for 802.11n 40MHz Ant. A : 16.20dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 16.2000 41.6869 0.016031 1 Complies Antenna Type : Printed Max Conducted Power for 802.11n 40MHz Ant. B : 15.88dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 15.8800 38.7258 0.014892 1 Complies Antenna Type : Printed Max Conducted Power for 802.11n 40MHz Ant. A + Ant. B : 19.05dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 19.0500 80.3526 0.030899 1 Complies FCC ID: PY306200051 Page No. : C4 of C4 Antenna Type : Printed Max Conducted Power for 802.11g 20MHz Ant. A : 20.60dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 20.6000 114.8154 0.044152 1 Complies Antenna Type : Printed Max Conducted Power for 802.11g 20MHz Ant. B : 20.50dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 20.5000 112.2018 0.043147 1 Complies Antenna Type : Printed Max Conducted Power for 802.11g 20MHz Ant. A + Ant. B: 23.56dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 23.5600 226.9865 0.087287 1 Complies Antenna Type : Printed Max Conducted Power for 802.11b 40MHz Ant. A : 16.23dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 16.2300 41.9759 0.016142 1 Complies Antenna Type : Printed Max Conducted Power for 802.11b 40MHz Ant. B : 16.32dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 16.3200 42.8549 0.016480 1 Complies Antenna Type : Printed Max Conducted Power for 802.11b 40MHz Ant. A + Ant. B: 19.28dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 19.2800 84.7227 0.032580 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-2-17-d FCC RADIO TEST REPORT Applicant’s company NETGEAR Inc. Applicant Address 4500 Great America Parkway, Santa Clara, CA 95054 FCC ID PY306200051 Manufacturer’s company Cameo Communications, Inc. Manufacturer Address No.42 Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiean Product Name RangeMax Next Wireless USB Adapter Brand Name NETGEAR Model Name WN121T Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Jul. 28, 2006 Final Test Date Aug. 9, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR680813AA Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: PY306200051 Issued Date : Aug. 9, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................14 4.3. Power Spectral Density Measurement ..............................................................................................................................................16 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................27 4.5. Radiated Emissions Measurement ....................................................................................................................................................32 4.6. Band Edge Emissions Measurement .................................................................................................................................................50 4.7. Antenna Requirements .....................................................................................................................................................................57 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 58 6. TEST LOCATION.............................................................................................................................................. 60 7. NVLAP CERTIFICATE OF ACCREDITATION ......................................................................................................... 61 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A7 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B6 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company NETGEAR Inc. Applicant Address 4500 Great America Parkway, Santa Clara, CA 95054 FCC ID PY306200051 Manufacturer’s company Cameo Communications, Inc. Manufacturer Address No.42 Sec. 6, Mincyuan E. Rd., Neihu District, Taipei City 114, Taiean Product Name RangeMax Next Wireless USB Adapter Brand Name NETGEAR Model Name WN121T Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Jul. 28, 2006 Final Test Date Aug. 9, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR680813AB Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: PY306200051 Issued Date : Aug. 9, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................13 4.3. Power Spectral Density Measurement ..............................................................................................................................................15 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................38 4.5. Radiated Emissions Measurement ....................................................................................................................................................47 4.6. Band Edge Emissions Measurement .................................................................................................................................................79 4.7. Antenna Requirements .....................................................................................................................................................................92 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 93 6. SPORTON COMPANY PROFILE ........................................................................................................................ 95 6.1. Test Location.....................................................................................................................................................................................95 7. NVLAP CERTIFICATE OF ACCREDITATION ......................................................................................................... 96 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A7 APPENDIX B. TEST PHOTOS........…

Text truncated - open the document above for the full version.

Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 48 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 4.5.3. Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 49 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 4.5.4. Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1m. Distance extrapolation factor = 20 log (specific distanc [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 4.5.5. Test Deviation There is no deviation with the original standard. 4.5.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 50 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 4.5.7. Results of Radiated Emissions (9kHz~30MHz) Temperature 24°C Humidity 64% Test Engineer Leo Hung Configurations 802.11g Channel 6 Ant. A + Ant. B Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 51 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 4.5.8. Results of Radiated Emissions (30MHz~1GHz) Temperature 24°C Humidity 64% Test Engineer Leo Hung Configurations 802.11g Channel 6 Ant. A + Ant. B Vertical Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 52 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 Horizontal Note: The amplitude of spurious emissions which are attenuated by more than 20 dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 53 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 4.5.9. Results for Radiated Emissions (1GHz~10 th Harmonic) Temperature 24°C Humidity 64% Test Engineer Leo Hung Configurations 802.11b 20MHz Channel 1 Ant. A + Ant. B Vertical Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 54 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 Horizontal Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 55 of 96 FCC ID: PY306200051 Issued Date : Aug. 9, 2006 Temperature 24°C Humidity 64% Test Engineer Leo Hung Configurations 802.11b 20MHz Channel 6 Ant. A + Ant. B Vertical Report No.: FR680813AB Report Format Version: RF-15.247-2006-6-16-e Page No. : 56 of 96 FCC ID: P…
