PY306200053RangeMax NEXT Wireless PCI Adapter

May 2006 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311T User Manual ii v1.0, May 2006 Technical Support Please refer to the support information card that shipped with your product. By registering your product at http://www.netgear.com/register, we can provide you with faster expert technical support and timely notices of product and software upgrades. NETGEAR, INC. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card. E-mail: [email protected] Web site: http://www.netgear.com Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. © 2006 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved . Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Safety and Regulatory Notices FCC Statement The WN311T has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna v1.0, May 2006 iii •Increase the separation between the equipment or devices •Connect the equipment to an outlet other than the receiver’s •Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved by Netgear could void the user’s authority to operate the device. FCC RF Radiation Exposure RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canadian Department of Communications Industry Canada (IC) Notice This Class B digital apparatus complies with Canadian RSS-210. Cet appareil numérique de la classe B est conforme à la norme CNR-210 du Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device has been designed to operate with an antenna having a maximum gain of -1.1 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This equipment Europe - EU Declaration of Conformity A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WN311T product package. Èesky [Czech] NETGEAR, Inc. tímto prohlašuje, že tento NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311T je ve shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES. Dansk [Danish] Undertegnede NETGEAR, Inc. erklærer herved, at følgende udstyr NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311T overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt NETGEAR, Inc., dass sich das Gerät NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311T in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab NETGEAR, Inc. seadme NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311T vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. v1.0, May 2006 iv EnglishHereby, NETGEAR, Inc., declares that this NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311T is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente NETGEAR, Inc. declara que el NETGEAR RangeMax™ NEXT Wireless PCI Adapter WN311T cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR, Inc…

Text truncated - open the document above for the full version.

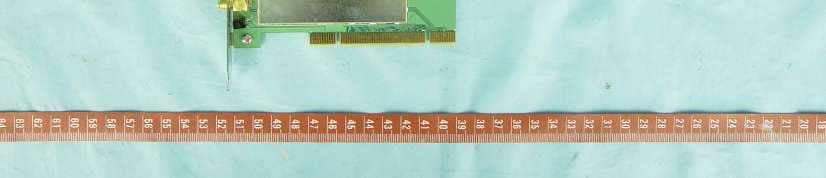

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID .: PY306200053 Label Location

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISIONENG APPDDATE 01AW-10118-021 of 1 AW, WN311T, V1H1, PLBL M YU 06/20/06M YUINITIAL DOCUMENT CREATION01 Black Pantone 137C Pantone 2745C Pantone Cool Gray 11C NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. INK COLOR SHOWN TO THE RIGHT. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 5

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: PY306200053 Report No.: RF950601L15 OPERATIONAL DESCRIPTION This device is a RangeMax NEXT Wireless PCI Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: PY306200053 Report No: SA950601L15 1 RF EXPOSURE REPORT REPORT NO.: SA950601L15 MODEL NO.: WN311T ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Netgear Incorporated ADDRESS: 4500 Great America Parkway Santa Clara, CA 95054, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: PY306200053 Report No: SA950601L15 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500......F/3006 1500-100,000......56 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PY306200053 Report No: SA950601L15 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION This device is fixed inside the host equipment. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PY306200053 Report No: SA950601L15 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is –1.1dBi or 0.776247 (numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION: DUAL TX CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 12412 89.9570.014 1.0 62437 101.5170.016 1.0 112462 114.1660.018 1.0 802.11g OFDM MODULATION: DUAL TX CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 12412 113.7730.018 1.0 62437 227.5280.035 1.0 112462 113.3790.018 1.0 DRAFT 802.11n (20MHz) OFDM MODULATION: DUAL TX CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 12412 114.0330.018 1.0 62437 227.0050.035 1.0 112462 113.5090.018 1.0 FCC ID: PY306200053 Report No: SA950601L15 5 DRAFT 802.11n (40MHz) OFDM MODULATION: DUAL TX CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 12422 50.5860.008 1.0 42437 101.4010.016 1.0 72452 50.9370.008 1.0 802.11b (CB mode) DSSS MODULATION: DUAL TX CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 12422 113.9020.018 1.0 42437 96.9470.015 1.0 72452 101.4010.016 1.0

Report No.: RF950601L151Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950601L15 MODEL NO.: WN311T RECEIVED: Jun. 09, 2006 TESTED: Jun. 09 ~ 21, 2006 ISSUED: Jun. 26, 2006 APPLICANT: Netgear Incorporated ADDRESS: 4500 Great America Parkway Santa Clara, CA 95054, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 135 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950601L152Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION .....................................................................................................4 2.SUMMARY OF TEST RESULTS.............................................................................5 2.1 MEASUREMENT UNCERTAINTY ..........................................................................5 3.GENERAL INFORMATION .....................................................................................6 3.1GENERAL DESCRIPTION OF EUT........................................................................6 3.2DESCRIPTION OF TEST MODES..........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4DESCRIPTION OF SUPPORT UNITS.................................................................. 11 4.TEST TYPES AND RESULTS ...............................................................................12 4.1CONDUCTED EMISSION MEASUREMENT ........................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .....................................12 4.1.2TEST INSTRUMENTS ..........................................................................................12 4.1.3TEST PROCEDURES ...........................................................................................13 4.1.4DEVIATION FROM TEST STANDARD .................................................................13 4.1.5TEST SETUP ........................................................................................................14 4.1.6EUT OPERATING CONDITIONS..........................................................................14 4.1.7TEST RESULTS ....................................................................................................15 4.2RADIATED EMISSION MEASUREMENT .............................................................39 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ..........................................39 4.2.2TEST INSTRUMENTS ..........................................................................................40 4.2.3TEST PROCEDURES ...........................................................................................41 4.2.4DEVIATION FROM TEST STANDARD .................................................................41 4.2.5TEST SETUP ........................................................................................................42 4.2.6EUT OPERATING CONDITIONS..........................................................................42 4.2.7TEST RESULTS ....................................................................................................43 4.36dB BANDWIDTH MEASUREMENT ....................................................................62 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................62 4.3.2TEST INSTRUMENTS ..........................................................................................62 4.3.3TEST PROCEDURE .............................................................................................62 4.3.4DEVIATION FROM TEST STANDARD .................................................................62 4.3.5TEST SETUP ........................................................................................................63 4.3.6EUT OPERATING CONDITIONS..........................................................................63 4.3.7TEST RESULTS ....................................................................................................64 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................84 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................84 4.4.2INSTRUMENTS ....................................................................................................84 4.4.3TEST PROCEDURES ...........................................................................................84 4.4.4DEVIATION FROM TEST STANDARD .................................................................84 4.4.5TEST SETUP ........................................................................................................85 4.4.6EUT OPERATING CONDITIONS..........................................................................85 Report No.: RF950601L153Report Format Version 2.0.4 4.4.7TEST RESULTS ....................................................................................................86 4.5POWER SPECTRAL DENSITY MEASUREMENT ...............................................89 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................89 4.5.2TEST INSTRUMENTS ..........................................................................................89 4.5.3TEST PROCEDURE .............................................................................................89 4.5.4DEVIATION FROM TEST STANDARD …

Text truncated - open the document above for the full version.

Report No.: RF950601L15101Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 6 Report No.: RF950601L15102Report Format Version 2.0.4 CH 11 Report No.: RF950601L15103Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: DUAL TX: MODULATION TYPE BPSK TRANSFER RATE 15.0Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26deg.C, 70%RH, 991hPa TESTED BY Match Tsui RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 0CHAIN 1 TOTAL POWER DENSITY (mW) TOTAL POWER DENSITY (dBm) MAX. LIMIT (dBm) PASS / FAIL 12422 0.0190.018-17.12-17.480.037-14.29 8PASS 42437 0.0320.035-14.90-14.590.067-11.73 8PASS 72452 0.0200.021-16.95-16.860.041-13.89 8PASS FOR CHAIN 0: CH 1 Report No.: RF950601L15104Report Format Version 2.0.4 CH 4 CH 7 Report No.: RF950601L15105Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 4 Report No.: RF950601L15106Report Format Version 2.0.4 CH 7 Report No.: RF950601L15107Report Format Version 2.0.4 802.11b (CB mode) DSSS MODULATION: DUAL TX: MODULATION TYPE DBPSK TRANSFER RATE 1.0Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26deg.C, 70%RH, 991hPa TESTED BY Match Tsui RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 0CHAIN 1 TOTAL POWER DENSITY (mW) TOTAL POWER DENSITY (dBm) MAX. LIMIT (dBm) PASS / FAIL 12422 0.0470.043-13.30-13.630.090-10.45 8PASS 42437 0.0400.038-13.97-14.250.078-11.10 8PASS 72452 0.0430.040-13.67-13.980.083-10.81 8PASS FOR CHAIN 0: CH 1 Report No.: RF950601L15108Report Format Version 2.0.4 CH 4 CH 7 Report No.: RF950601L15109Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 4 Report No.: RF950601L15110Report Format Version 2.0.4 CH 7 Report No.: RF950601L15111Report Format Version 2.0.4 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO.CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSEK30100049Aug. 14, 2006 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF950601L15112Report Format Version 2.0.4 4.6.3 TEST PROCEDURE For Single TX: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 10Hz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) are attached on the following pages. For Dual TX: a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) NOTE: The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 10Hz for Average detection (AV) at frequency above 1GHz. 4.6.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF950601L15113Report Format Version 2.0.4 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 30 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). 802.11b DSSS MODULATION: DUAL TX NOTE 1: The band edge emission plot on the next page shows 48.87dBc between carrier maximum power and local maximum emission in restrict band (2.38620GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 108.12dBuV/m (Peak), so the maximum field strength in restrict band is 108.12-48.87=59.25dBuV/m which is under 74dBuV/m limit. The band edge emission plot on the next page shows 51.46dBc between carrier maximum power and local maximum emission in restrict band (2.38660GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 104.37dBuV/m (Average), so the maximum field strength in restrict band is 104.37-51.46=52.91dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on the next second page shows 52.55dBc between carrier maximum power and local maximum emission in restrict band (2.48760GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 110.57dBuV/m (Peak), so the maximum field strength in restrict band is 110.57- 52.55=58.02dBuV/m which is under 74dBuV/m limit. The band edge emission plot on the next third page shows 56.46dBc between carrier maximum power and local maximum emission in restrict band (2.48760GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 107.22dBuV/m (Average), so the maximum field strength in restrict band is 107.22-56.46=50.76dBuV/m which is under 54dBuV/m limit. Report No.: RF950601L15114Report Format Version 2.0.4 Report No.: RF950601L15115Report Format Version 2.0.4 Report No.: RF950601L15116Report Format Version…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
