PY3073000705GHz Wireless-N HD Access Point/Bridge

)NSTALLATION'UIDE T WNHDE111 5GHz Wireless-N HD Access Point/Bridge & WNHDE111 HD/Gaming 5GHz Wireless-N Networking Kit Start Here This guide describes installation for the WNHDE111 5GHz Wireless-N HD Access Point/ Bridge or the WNHDE111 HD/Gaming 5GHz Wireless-N Networking Kit. 1.Familiarize yourself with the features of the Wireless-N Bridge. The mode switch can be set to: •Auto. In Auto mode, the Wireless-N Bridge will automatically sense and set its own mode. It will run in AP mode if connected to a router or gateway. Otherwise, if connected to any other wired device(s), it will run in Bridge mode. (The Wireless-N Bridge is set to Auto mode from the factory.) •AP. In AP (access point) mode, the Wireless-N Bridge will act as an access point. In this mode, the Wireless-N Bridge should be connected to a router. •Bridge. In Bridge mode, the Wireless-N Bridge is connected to your other wired device(s) and will connect wirelessly to the Wireless-N Bridge being used as an access point. 2.Verify that: •You have Broadband Internet access through a powered-on router or gateway. DEFAULT ACCESS PowerEthernet portsMode switchPower light on/off switch Rear panel Front panel Power light WPS button/light •You are connecting Ethernet-enabled devices, such as a network-enabled game console (an XBox 360 or Sony PS3), a digital media player (an Apple TV or NETGEAR Digital Entertainer), an IPTV set-top box, or a laptop with an embedded Wireless-N adapter. Setting Up the WNHDE111 HD/Gaming 5GHz Wireless-N Networking Kit For Gaming or Digital Media 1.Set the switch on the back of each Wireless-N Bridge to Auto mode. Caution: Do not plug in the power adapter before step 2. 2.Connect the Ethernet cable from a LAN port in the router or gateway (A) to either LAN port on one Wireless-N Bridge. 3.Place the other Wireless-N Bridge near the media player, game console, or set-top box (B), and connect it with an Ethernet cable. 4.To complete installation, connect a power adapter to the Wireless-N Bridge(s). Allow a few minutes for your devices to connect to the Internet. If you are not connected, see “Troubleshooting” on page 2. Note: By following the steps in this installation with both Wireless-N Bridge units set to Auto mode, the Wireless-N Bridge connected to your router has set itself to AP mode, while the second Wireless-N Bridge is set to Bridge mode. A B Digital set-top box Network TV viewer/DVR DMA Gaming console WNHDE111 Network storage Router/gateway Desktop PC Internet Setting Up One WNHDE111 5GHz Wireless-N HD Access Point/Bridge 1.Set the switch on the back of the Wireless-N Bridge to Auto mode (it will set itself to AP mode). 2.Connect the Ethernet cable from a LAN port on the router or gateway (A) to either LAN port on the Wireless-N Bridge. 3.Place your computer or other device (B) within range of the Wireless-N Bridge in AP mode. 4.Connect a power adapter to the Wireless-N Bridge. 5.Connect your wireless clients by one of the following methods: •In your client’s adapter configuration settings, to use the default WPA-PSK/ WPA2-PSK security settings, enter the SSID as NETGEAR-HD, and the passphrase that is printed on the Resource CD. •If your wireless device has a WPS push-button, connect it to the Wireless-N Bridge in AP mode, similar to steps 3-5 in “To Add Another Wireless-N Bridge to a System with a Wireless-N Bridge in AP Mode” on page 1. To Add Another Wireless-N Bridge to a System with a Wireless-N Bridge in AP Mode 1.Make sure the WNHDE111 5GHz Wireless-N HD Access Point/Bridge you are adding is not set to AP mode, place it near the devices that will work with it. 2.Connect a power adapter to the new Wireless-N Bridge. A B WNHDE111 Network storage Router/gateway Desktop PC Internet Laptop with embedded Wireless-N adapter HDTV with Wireless-N Wireless-N enabled set-top box Apple TV October 2007 This symbol was placed in accordance with the European Union Directive 2002/96 on the Waste Electrical and Electronic Equipment (the WEEE Directive). If disposed of within the European Union, this product should be treated and recycled in accordance with the laws of your jurisdiction implementing the WEEE Directive. © 2007 by NETGEAR, Inc. All rights reserved. NETGEAR and the NETGEAR logo are registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. The power light should blink quickly in groups of 3 (if the power light is off, press the power light on/off switch on the back panel to turn it on). 3.On the new Wireless-N Bridge, press the WPS button for 10 seconds (located on the front panel). Its WPS light should start to blink. 4.Within 2 minutes, press the WPS button on the Wireless-N Bridge in AP mode. Its WPS light should start to blink. 5.After 1-2 minutes the new Wireless-N Bridge in Bridge mode should be associated with the Wireless-N Bridge in AP mode. The WPS light for the Bridge mode unit will turn off. On the AP mode unit, the WPS light will be on solid for about 6 minutes, then turn off. The power lights on both units will be steadily on. Configuring With the Smart Wizard Use the NETGEAR Smart Wizard Configuration Assistant to change the IP address type (static or dynamic), set the wireless network SSID, set up wireless security, or view device status. By default, the IP address is assigned dynamically by the router. Without a router, the IP address of the Wireless-N Bridge in AP mode will default to 192.168.0.240 and the IP address of the Wireless-N Bridge in bridge mode will default to 192.168.0.241. Configuring the Wireless-N Bridge to use a fixed or dynamic IP address lets you access the Wireless-N Bridge configuration from the Smart Wizard Configuration Assistant or a Web browser. 1.Do one of the following: a.Connect via a wireless connection to the Wireless-N Bridge as described in “Setting Up One WNHDE111 5GHz Wi…

Text truncated - open the document above for the full version.

RF_160, Issue 01 Declaration of Authorization We Name: Netgear Inc. Address: 4500 Great America Parkway City: Santa Clara, CA 95054 Country: USA Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No.28 Lang 78, Xing-Ai Rd. City: Nei-hu Taipei City 114 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product Description: 5GHz Wireless-N HD Access Point/Bridge Model: WNHDE111 Brand: Netgear on our behalf. Date: 2007/12/07 City: California Name: Mark Gandler Signature:

Request for non-disclosure RF_501_02 Netgear Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID:PY307300070) Reference number: WNHDE111 Date: 2007/12/07 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), Netgear Inc. hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( PY307300070) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Netgear Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Mark Gandler

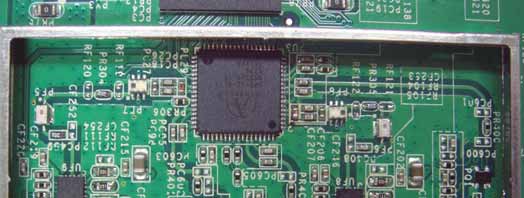

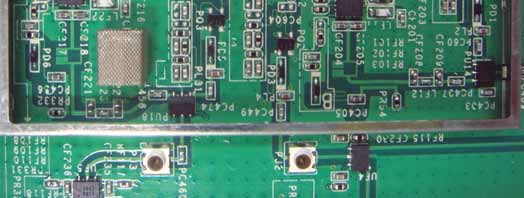

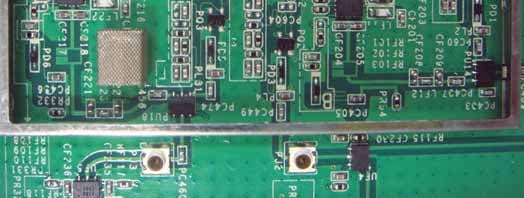

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 1 of 10 FCC Test Report: FE07112003-A Appendix A. Photographs of EUT 07112003-A 07112003-A

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE 01AW-10331-031 of 1 AW, WNHDE111, V1H1, PLBLJ RAMONES 30SEP07J RAMONESINITIAL DOCUMENT CREATION 01 Pantone Cool Gray 5C NETGEAR 490-10021-01 Pantone 200C Black 5 NOTE: 1. REFER TO NETGEAR SPEC. DOC-0093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. Label & Location

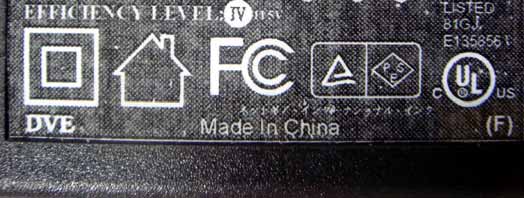

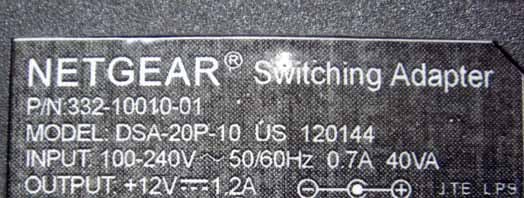

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 2 of 10 FCC Test Report: FE07112003-A 07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 3 of 10 FCC Test Report: FE07112003-A 07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 4 of 10 FCC Test Report: FE07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 5 of 10 FCC Test Report: FE07112003-A DSA-20P-10 US 120144 07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 6 of 10 FCC Test Report: FE07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 7 of 10 FCC Test Report: FE07112003-A 07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 8 of 10 FCC Test Report: FE07112003-A MT18-Y120120-A1 07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 9 of 10 FCC Test Report: FE07112003-A 07112003-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 10 of 10 FCC Test Report: FE07112003-A 07112003-A 07112003-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 1 of 412 FCC Test Report: FI07112003-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : NETGEAR, INC. Address : 4500 GREAT AMERICA PARKWAY, SANTA CLARA, CA 95054 U.S.A. Equipment : 5GHz Wireless-N HD Access Point / Bridge Model No. : WNHDE111 FCC ID : PY307300070 Trade Name : NETGEAR Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 2 of 412 FCC Test Report: FI07112003-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 RF Specifications ....................................................................................................................... 6 2.2 Carrier Frequency of Channels ..................................................................................................7 2.3 Test Mode and Test Software.....................................................................................................8 2.4 Description of Test System......................................................................................................... 9 2.5 Connection Diagram of Test System.......................................................................................... 9 2.6 General Information of Test......................................................................................................10 2.7 Measurement Uncertainty ........................................................................................................10 2.8 History of this test report .......................................................................................................... 11 3. Antenna Requirements.....................................................................................................................12 3.1 Standard Applicable .................................................................................................................12 3.2 Antenna Construction and Directional Gain............................................................................. 12 4. Test of Conducted Emission............................................................................................................13 4.1 Test Limit .................................................................................................................................. 13 4.2 Test Procedures .......................................................................................................................13 4.3 Typical Test Setup ....................................................................................................................14 4.4 Measurement equipment ......................................................................................................... 14 4.5 Test Result and Data................................................................................................................15 4.6 Test Photographs .....................................................................................................................27 5. Test of Radiated Emission ...............................................................................................................28 5.1 Test Limit .................................................................................................................................. 28 5.2 Test Procedures .......................................................................................................................28 5.3 Typical Test Setup ....................................................................................................................29 5.4 Measurement equipment ......................................................................................................... 29 5.5 Test Result and Data................................................................................................................30 5.6 Test Photographs ...................................................................................................................270 6. 6dB Bandwidth Measurement Data ...............................................................................................271 6.1 Test Limit ................................................................................................................................271 6.2 Test Procedures .....................................................................................................................271 6.3 Test Setup Layout ..................................................................................................................271 6.4 Measurement equipment .......................................................................................................271 6.5 Test Result and Data..............................................................................................................271 7. Maximum Peak Output Power .......................................................................................................304 7.1 Test Limit ...............................................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 152 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 153 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 154 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 155 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 156 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 157 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 157 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 157 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 158 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 165 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 159 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 13 : Transmit / Receive Temperature : 22 °C Operation Channel : 165 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L1 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 160 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L3 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 161 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L3 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 162 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L3 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 163 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L3 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 164 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L3 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 165 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 149 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L3 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 166 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 157 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 ANT-L3 Rate : 6Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 167 of 412 FCC Test Report: FI07112003-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 14 : Transmit / Receive Temperature : 22 °C Operation Channel : 157 Humidity : 70 % Modulation Type : 802.11a Atmospheric Pressure : 1010 hPa Memo : DSA-20P-10 US 120144 AN…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 303 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 40MHz (270Mbps) – ANT-R1 + ANT-R3 (ANT-R3) Channel: 155 Modulation Standard: 802.11Draft n, 40MHz (270Mbps) – ANT-R1 + ANT-R3 (ANT-R3) Channel: 159 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 304 of 412 FCC Test Report: FI07112003-A 7. Maximum Peak Output Power 7.1 Test Limit The Maximum Peak Output Power Measurement is 30dBm. 7.2 Test Procedures The antenna portRF outputof the EUT was connected to the inputRF inputof a power meter. Power was read directly from the meter and cable loss connection was added to the reading to obtain power at the EUT antenna terminal. The EUT Output Power was set to maximum to produce the worse case test result. 7.3 Test Setup Layout 7.4 Measurement equipment Instrument/Ancillary Model No. ManufacturerSerial No. Calibration Date Valid Date Spectrum AnalyzerFSP40 R&S 10047 2007/01/23 2008/01/22 7.5 Test Result and Data (1) Modulation Standard: IEEE 802.11a (6Mbps), ANT-L1 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 149 5745 21.22 132.40 157 5785 21.31 135.20 165 5825 21.10 128.80 (2) Modulation Standard: IEEE 802.11a (6Mbps), ANT-L3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 149 5745 20.93 123.90 157 5785 21.38 137.40 165 5825 21.19 131.50 (3) Modulation Standard: IEEE 802.11a (6Mbps), ANT-R1 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 149 5745 21.05 127.40 157 5785 21.05 127.40 165 5825 21.43 139.40 (4) Modulation Standard: IEEE 802.11a (6Mbps), ANT-R3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output (dBm) Peak Power Output (mW) 149 5745 21.01 126.20 157 5785 21.13 129.70 165 5825 21.22 132.40 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 305 of 412 FCC Test Report: FI07112003-A (5) Modulation Standard: IEEE 802.11Draft n, 20MHz (130Mbps), ANT-L1+ANT-L3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-L1 (dBm) Peak Power Output of ANT-L3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.83 18.04 21.46 140.06 157 5785 18.89 17.75 21.37 137.01 165 5825 18.46 17.44 20.99 125.61 (6) Modulation Standard: IEEE 802.11Draft n, 20MHz (130Mbps), ANT-L1+ANT-R3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-L1 (dBm) Peak Power Output of ANT-R3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.38 17.53 20.99 125.49 157 5785 18.30 17.21 20.80 120.01 165 5825 18.80 17.41 21.17 130.94 (7) Modulation Standard: IEEE 802.11Draft n, 20MHz (130Mbps), ANT-R1+ANT-L3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-R1 (dBm) Peak Power Output of ANT-L3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.34 17.30 20.86 121.94 157 5785 18.22 17.35 20.82 120.70 165 5825 18.21 16.91 20.62 115.31 (8) Modulation Standard: IEEE 802.11Draft n, 20MHz (130Mbps), ANT-R1+ANT-R3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-R1 (dBm) Peak Power Output of ANT-R3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.17 17.43 20.83 120.95 157 5785 18.16 17.02 20.64 115.81 165 5825 18.13 17.76 20.96 124.72 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 306 of 412 FCC Test Report: FI07112003-A (9) Modulation Standard: IEEE 802.11Draft n, 40MHz (270Mbps), ANT-L1+ANT-L3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-L1 (dBm) Peak Power Output of ANT-L3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.23 17.16 20.74 118.53 157 5785 18.21 17.36 20.82 120.67 165 5825 18.75 17.77 21.30 134.83 (10) Modulation Standard: IEEE 802.11Draft n, 40MHz (270Mbps), ANT-L1+ANT-R3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-L1 (dBm) Peak Power Output of ANT-R3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.50 17.60 21.08 128.34 157 5785 18.52 17.35 20.98 125.45 165 5825 18.68 17.55 21.16 130.68 (11) Modulation Standard: IEEE 802.11Draft n, 40MHz (270Mbps), ANT-R1+ANT-L3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-R1 (dBm) Peak Power Output of ANT-L3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.30 17.05 20.73 118.31 157 5785 18.55 17.44 21.04 127.08 165 5825 18.62 17.00 20.90 122.90 (12) Modulation Standard: IEEE 802.11Draft n, 40MHz (270Mbps), ANT-R1+ANT-R3 Test Date: Dec. 10, 2007 Temperature: 23 Humidity: 60% Atmospheric pressure: 1008 hPa Channel Frequency (MHz) Peak Power Output of ANT-R1 (dBm) Peak Power Output of ANT-R3 (dBm) Peak Power Output of Total (dBm) Peak Power Output of Total (mW) 149 5745 18.33 17.45 20.92 123.67 157 5785 18.70 17.55 21.17 131.02 165 5825 18.67 17.37 21.08 128.20 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 307 of 412 FCC Test Report: FI07112003-A Modulation Standard…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 353 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-L1+ANT-R3 (ANT-R3) Channel: 149 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 354 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-L1+ANT-R3 (ANT-R3) Channel: 165 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 355 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-R1+ANT-L3 (ANT-R1) Channel: 149 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 356 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-R1+ANT-L3 (ANT-R1) Channel: 165 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 357 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-R1+ANT-L3 (ANT-L3) Channel: 149 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 358 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-R1+ANT-L3 (ANT-L3) Channel: 165 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 359 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-R1+ANT-R3 (ANT-R1) Channel: 149 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 360 of 412 FCC Test Report: FI07112003-A Modulation Standard: 802.11Draft n, 20MHz (130Mbps) – ANT-R1+ANT-R3 (ANT-R1) Channel: 165 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 24, 2007 361 of 412 FCC Test Report: FI07112003-A Modulation Stan…
