PY307300071RangeMax Wireless Router

August 2007 208-10147-01 v1.0 NETGEAR, Inc. 4500 Great America Parkway Wireless Router Setup Manual ii Trademarks NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of NETGEAR. Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. © 2007 by NETGEAR, Inc. All rights reserved. Contentsiii Contents Getting to Know Your Wireless Router................................................................................ 1 Unpacking Your New Router ............................................................................................. 1 What You Need Before You Begin ..................................................................................... 6 Updating Your Router Firmware ........................................................................................ 6 Two Setup Methods: Smart Wizard Setup or Manual Setup ............................................. 6 Smart Wizard Setup .......................................................................................................... 7 Manual Setup .................................................................................................................... 7 Product Registration, Support, and Documentation ........................................................ 12 Accessing the Wireless Router after Installation and Checking for New Firmware ......... 13 Setting Up and Testing Basic Wireless Connectivity ....................................................... 15 Implementing Appropriate Wireless Security ................................................................... 16 Help with Troubleshooting.................................................................................................. 19 Basic Troubleshooting ..................................................................................................... 19 Troubleshooting Connectivity Using the Ping Utility ........................................................ 25 Technical Specifications..................................................................................................... 27 Factory Default Settings .................................................................................................. 27 Related Documents.............................................................................................................. 31 ivContents Getting to Know Your Wireless Router1 v1.0, August 2007 Getting to Know Your Wireless Router Congratulations on your purchase of a NETGEAR® high-speed wireless router, the Wireless Router Model WPN824v3. Before you begin installing your router, check the package contents (see Unpacking Your New Router). Become familiar with the front and back panels of your router—especially the status lights—and the important information on the router label (see “Bottom Label” on page 5). Unpacking Your New Router The product package should contain the following items: •The wireless router •A snap-on stand for your wireless router •An AC power adapter (varies by region) •A yellow Ethernet cable •The Resource CD, which includes: –The Smart Wizard Installation Assistant (Autorun.exe) –A PDF version of this manual –A link to the online User Manual •Warranty and Support Information cards If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the product for repair. To prepare your router for installation: 1. Carefully peel off the protective film covering the sides of your router. Wireless Router Setup Manual 2Getting to Know Your Wireless Router v1.0, August 2007 2. Set up your wireless router by inserting the router into the stand supplied with your router. 3.Place your router in an area suitable for installation (near an AC power outlet and accessible to the Ethernet cables for your wired computers). Figure 1 Wireless Router Setup Manual Getting to Know Your Wireless Router3 v1.0, August 2007 Router Front Panel You can use the status lights on the front of the wireless router to verify various conditions. Figure 2 Table 1-1. Status Light Descriptions ItemFunction ActivityDescription 1 PowerOn green solid Off Power is supplied to the router. Power is not supplied to the router. 2 Te s t O n Off Slow blinking The unit is performing the power-on self-test diagnostic. The unit successfully completed the power-on self-test diagnostic. The reset button is being pushed, restoring the factory default settings. 3 WirelessOn Off Blinking The wireless interface is enabled. The wireless interface is turned off. Data is being communicated over the wireless network. 4 Internet Amber off Amber on Amber blinking Green off On Blinking No Ethernet cable is connected to the modem. The Ethernet cable connection to the modem is good. Packets are being transmitted and received from a modem or other network device, but no IP address has been received. No IP address has been received. IP address has been received. IP address received and data is being transmitted and received. 5 LANGreen Amber The LAN port has detected a 100 Mbps link with an attached device. The LAN port has detected a 10 Mbps link with an attached device.     Wireless Router Setup Manual 4Getting to Know Your Wireless Router v1.0, August 2007 Router Back Panel The rear panel of the WPN824v3 router contains the items in the list that follows the figure. The back of the wireless router includes: 1. On/off switch for the antenna …

Text truncated - open the document above for the full version.

RF_160, Issue 01 Declaration of Authorization We Name: Netgear Inc. Address: 4500 Great America Parkway City: Santa Clara, CA 95054 Country: USA Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No.28 Lang 78, Xing-Ai Rd. City: Nei-hu Taipei City 114 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product Description: RangeMax Wireless Router Model: WPN824v3 Series Model: WPN824EXT Brand: Netgear on our behalf. Date: 2007/10/13 City: California Name: Mark Gandler Signature:

Request for non-disclosure RF_501_02 Netgear Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID:PY307300071) Reference number: WPN824v3 Date: 2007/10/13 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), Netgear Inc. hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( PY307300071) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Netgear Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Mark Gandler

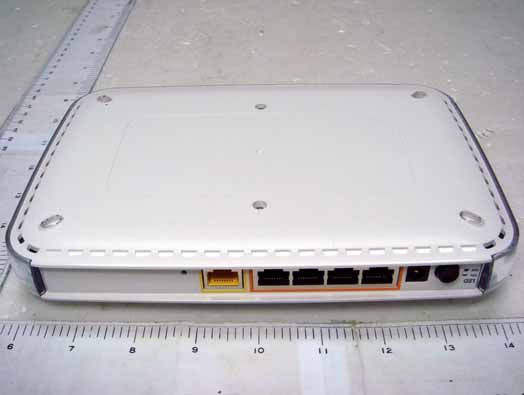

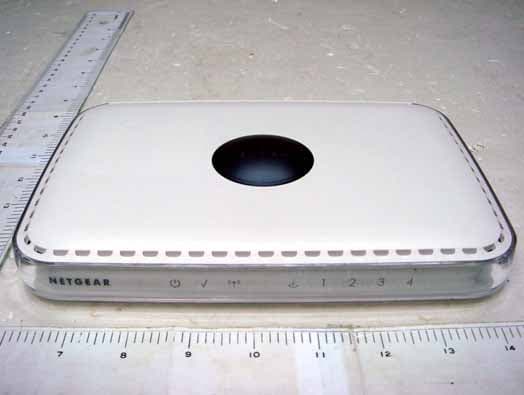

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 1 of 12 FCC Test Report: FI07091501-A Appendix A. Photographs of EUT 07091501-A 07091501-A

Label & Location

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 2 of 12 FCC Test Report: FI07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 3 of 12 FCC Test Report: FI07091501-A 07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 4 of 12 FCC Test Report: FI07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 5 of 12 FCC Test Report: FI07091501-A 07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 6 of 12 FCC Test Report: FI07091501-A Antenna Position Note: c: Antenna 1 d: Antenna 2 e: Antenna 3 f: Antenna 4 g: Antenna 5 07091501-A c de f g Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 7 of 12 FCC Test Report: FI07091501-A Adapter 1: MT12-Y120100-A1 07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 8 of 12 FCC Test Report: FI07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 9 of 12 FCC Test Report: FI07091501-A 07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 10 of 12 FCC Test Report: FI07091501-A Adapter 2: RHQ-120100-1 07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 11 of 12 FCC Test Report: FI07091501-A 07091501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 12 of 12 FCC Test Report: FI07091501-A 07091501-A 07091501-A

1.1. Test Result of RF Exposure Evaluation . Product: RangeMax Wireless Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 0dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance 20cm Test Mode 1: Modulation Standard: IEEE 802.11b(11Mbps) Test Date: Sep. 21, 2007 Temperature: 26 Humidity: 62 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 24.02 0.050 06 2437 24.08 0.051 11 2462 24.01 0.050 Test Mode 2: Modulation Standard: IEEE 802.11g(54Mbps) Test Date: Sep. 21, 2007 Temperature: 26 Humidity: 62 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 24.38 0.055 06 2437 24.27 0.053 11 2462 24.06 0.051 Test Mode 3: Modulation Standard: IEEE 802.11Turbo G(108Mbps) Test Date: Oct. 24, 2007 Temperature: 26 Humidity: 62 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 06 2437 24.18 0.052 The MPE is calculated as 0.055 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 1 of 417 FCC Test Report: FI07091501-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : NETGEAR, INC. Address : 4500 GREAT AMERICA PARKWAY, SANTA CLARA, CA 95054 U.S.A. Equipment : RangeMax Wireless Router Model No. : WPN824v3 Series No. : WPN824EXT FCC ID : PY307300071 Trade Name : NETGEAR Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 2 of 417 FCC Test Report: FI07091501-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 7 2.3 Test Mode & Test Software ........................................................................................................ 8 2.4 Description of Test System......................................................................................................... 9 2.5 Connection Diagram of Test System.......................................................................................... 9 2.6 General Information of Test......................................................................................................10 2.7 Measurement Uncertainty ........................................................................................................10 2.8 History of this test report .......................................................................................................... 11 3. Antenna Requirements.....................................................................................................................12 3.1 Standard Applicable .................................................................................................................12 3.2 Antenna Construction and Directional Gain............................................................................. 12 4. Test of Conducted Emission............................................................................................................13 4.1 Test Limit.................................................................................................................................. 13 4.2 Test Procedures.......................................................................................................................13 4.3 Typical Test Setup ...................................................................................................................14 4.4 Measurement equipment ......................................................................................................... 14 4.5 Test Result and Data................................................................................................................15 4.6 Test Photographs .....................................................................................................................24 5. Test of Radiated Emission ...............................................................................................................25 5.1 Test Limit.................................................................................................................................. 25 5.2 Test Procedures.......................................................................................................................26 5.3 Typical Test Setup ....................................................................................................................27 5.4 Measurement equipment ......................................................................................................... 27 5.5 Test Result and Data................................................................................................................28 5.6 Test Photographs ...................................................................................................................380 6. 6dB Bandwidth Measurement Data ...............................................................................................381 6.1 Test Limit ................................................................................................................................381 6.2 Test Procedures .....................................................................................................................381 6.3 Test Setup Layout ..................................................................................................................381 6.4 Measurement equipment .......................................................................................................381 6.5 Test Result and Data..............................................................................................................381 7. Maximum Peak Output Power .......................................................................................................386 7.1 Test Limit ...........................................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 102 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 11 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 103 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 11 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 104 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 1 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 105 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 1 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 106 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 107 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 108 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 11 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 109 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 11 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 110 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 4 : Transmit / Receive Temperature : 30 °C Operation Channel : 6 Humidity : 67 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1antenna 2+4Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 111 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 4 : Transmit / Receive Temperature : 30 °C Operation Channel : 6 Humidity : 67 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 112 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 4 : Transmit / Receive Temperature : 30 °C Operation Channel : 6 Humidity : 67 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 113 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 4 : Transmit / Receive Temperature : 30 °C Operation Channel : 6 Humidity : 67 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 114 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4 Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 115 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 4 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 2+4Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 116 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 5 : Transmit / Receive Temperature : 30 °C Operation Channel : 1 Humidity : 67 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 3Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 117 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 5 : Transmit / Receive Temperature : 30 °C Operation Channel : 1 Humidity : 67 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : …

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 202 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 8 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 5 Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 203 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 8 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : MT12-Y120100-A1 antenna 5 Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 204 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 9 : Transmit / Receive Temperature : 30 °C Operation Channel : 1 Humidity : 67 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 205 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 9 : Transmit / Receive Temperature : 30 °C Operation Channel : 1 Humidity : 67 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 206 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 9 : Transmit / Receive Temperature : 30 °C Operation Channel : 1 Humidity : 67 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 207 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 9 : Transmit / Receive Temperature : 30 °C Operation Channel : 1 Humidity : 67 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 208 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 1 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 209 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 1 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 210 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 211 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 212 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 11 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 213 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 11 Humidity : 70 % Modulation Type : 802.11b Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 11 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 214 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 1 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 215 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 1 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 216 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 217 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 9 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11g Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 1 Rate : 54 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:88…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 312 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : VERTICAL Test Mode 13 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11 Turbo G Atmospheric Pressure : 1010 hPa Memo : RHQ-120100-1 antenna 3 Rate : 108 Mbps Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 29, 2007 313 of 417 FCC Test Report: FI07091501-A Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 13 : Transmit / Receive Temperature : 26 °C Operation Channel : 6 Humidity : 70 % Modulation Type : 802.11 Turbo G Atmospheric Pressure …
