PY307300072RangeMax Duo Wireless-N Router

November 2007 208-10148-01 v1.0 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Wireless Router Setup Manual ii Trademarks NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of NETGEAR. Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. © 2007 by NETGEAR, Inc. All rights reserved. Contentsiii Contents Getting to Know Your Wireless Router................................................................................ 1 Unpacking Your New Wireless Router ............................................................................... 1 What You Need Before You Begin ..................................................................................... 8 Updating Your Router Firmware ........................................................................................ 9 Two Setup Methods: Smart Wizard Setup or Manual Setup ............................................. 9 Smart Wizard Setup .......................................................................................................... 9 Manual Setup ..................................................................................................................10 Product Registration, Support, and Documentation ........................................................ 15 Accessing the Wireless Router after Installation and Checking for New Firmware ......... 16 Setting Up and Testing Basic Wireless Connectivity ....................................................... 18 Implementing Appropriate Wireless Security ................................................................... 20 Help with Troubleshooting.................................................................................................. 21 Basic Troubleshooting ..................................................................................................... 21 Troubleshooting Connectivity Using the Ping Utility ........................................................ 26 Default Configuration.......................................................................................................... 29 Default Configuration Settings ......................................................................................... 29 Restoring the Default Password and Configuration Settings ........................................... 32 Related Documents.............................................................................................................. 33 ivContents Getting to Know Your Wireless Router1 v1.0, November 2007 Getting to Know Your Wireless Router Congratulations on your purchase of the NETGEAR® RangeMax™ Dual Band Wireless-N Router WNDR3300. Before you begin installing your router, check the package contents (see Unpacking Your New Wireless Router). Become familiar with the front and back panels of your router—especially the status lights—and the important information on the router label (see “Bottom Label” on page 8). Unpacking Your New Wireless Router The product package should contain the following items: •The wireless router •A snap-on stand for your wireless router •An AC power adapter (varies by region) •A yellow Ethernet cable •The Resource CD, which includes: –The Smart Wizard™ Installation Assistant (Autorun.exe) –A PDF version of this manual –A link to the online Reference Manual •Warranty and Support Information cards If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the product for repair. To prepare your router for installation: 1. Carefully peel off the protective film covering the sides of your router. Wireless Router Setup Manual 2Getting to Know Your Wireless Router v1.0, November 2007 2. Set up your wireless router by inserting the router into the stand supplied with your router. 3.Place your router in an area suitable for installation (near an AC power outlet and accessible to the Ethernet cables for your wired computers). Figure 1 Wireless Router Setup Manual Getting to Know Your Wireless Router3 v1.0, November 2007 Router Front Panel You can use the status lights on the front of the wireless router to verify various conditions. Figure 2 Table 1. Status Light Descriptions ItemFunctionActivityDescription 1 PowerOn green solidPower is supplied to the router. BlinkingThe unit is starting up, or the restore factory settings button is being pushed to restore the factory default settings. OffPower is not supplied to the router. 2 2.4 GHz Mode On amber a The unit is operating in Legacy G mode at 2.4 GHz (5 GHz Mode [item 3] is also on). On green b The unit is operating in 11n mode at 2.4 GHz (5 GHz Mode [item 3] is off). BlinkingData is being communicated over the wireless network. 3 5 GHz Mode On blue c The unit is operating in 11n mode at 5 GHz (2.4 GHz Mode [item 2] is also on, amber). Off11n mode at 5 GHz is off (2.4 GHz Mode [item 2] is on, green). BlinkingData is being communicated over the wireless network. Wireless Router Setup Manual 4Getting to Know Your Wireless Router v1.0, November 2007 4 InternetAmber offNo Ethernet cable is connected to the modem. Amber onThe Ethernet cable connection to the modem is good. Amber blinkingPackets are being transmitted and received from a modem or other network device, but no IP address has been received. Green offNo IP address has been received. OnIP address has been received. BlinkingIP address has been received, and data…

Text truncated - open the document above for the full version.

Page No. : 6 NETGEAR, Inc. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. Tel: +1 408 907 8000 Fax: +1 408 907 8097 Confidential Letter Date: 2007/12/27 Federal Communications Commission Authorization and Evaluation Division FCC ID：PY307300072 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Note: The registered grantee contact is not avliable, Mark Gandler is signing for grantee contact. He can be reached at email : [email protected] Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. Signature : signed for Mark Merrill Job Title and Dept. : Mark Merrill / VP Engineering E-Mail : [email protected]

NETGEAR, Inc. 4500 Great America Parkway, Santa Clara, CA95054 U.S.A. Tel: +1 408 907 8000 Fax: +1 408 907 8097 Power of Attorney Date: 2007/12/26 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / WNDR3300 FCC ID: PY30730 0072 Product name: RangeMax Duo Wireless-N Router Note: The registered grantee contact is not avliable, Mark Gandler is signing for grantee contact. He can be reached at email : [email protected] Applicant : NETGEAR, Inc. Address : 4500 Great America Parkway, Santa Clara, CA 95054, USA Signature : ________________________________ signed for Mark Merrill Name and Job Title. : Mark Merrill / VP Engineering E-mail : [email protected] Te l . : +1 408 907 8000

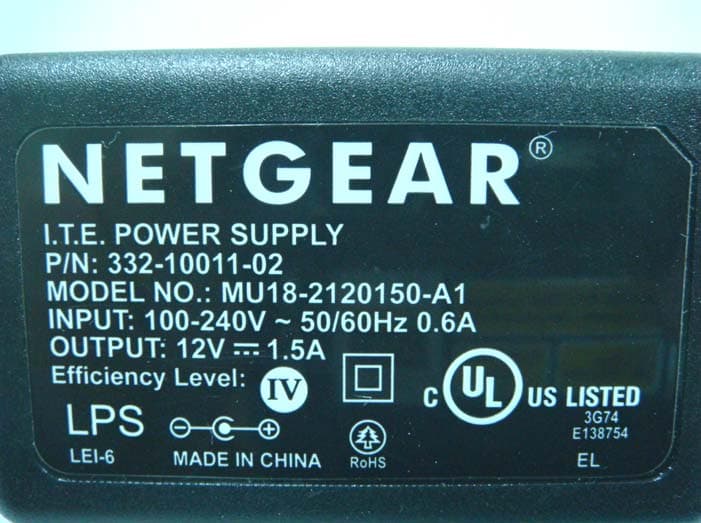

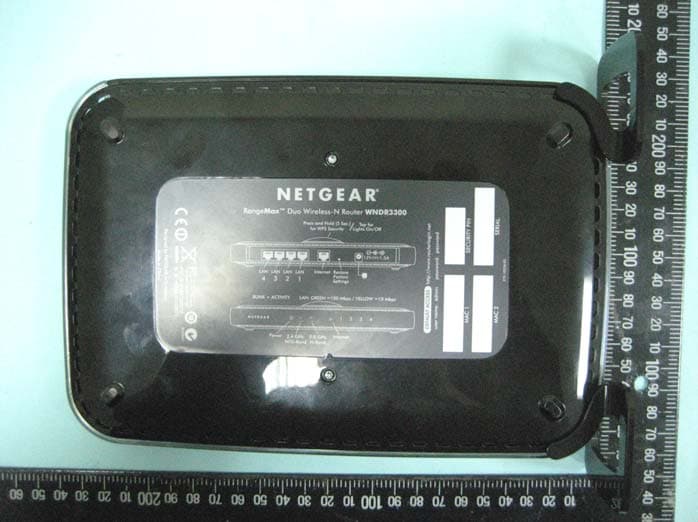

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255

Label Here 14cm 7cm

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 12, 2007 FAX : 886-2-2696-2255

Report No.: FR7N2806 FCC ID: PY307300072 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR7N2806 FCC ID: PY307300072 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR7N2806 FCC ID: PY307300072 Page No. : C3 of C3 1.3. Calculated Result and Limit For 5GHz Band: Band 1 Antenna Type : Printed Antenna Max Conducted Power for 802.11a Ant. 3 + Ant. 5 : 16.07 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.92 4.9249 16.0709 40.4656 0.039668 1 Complies Antenna Type : Printed Antenna Max Conducted Power for draft n 20MHz Ant. 3 + Ant. 5 : 16.07 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.92 4.9249 16.0709 40.4656 0.039668 1 Complies For 5GHz Band: Band 4 Antenna Type : Printed Antenna Max Conducted Power for 802.11a Ant. 3 + Ant. 5 : 26.39 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.92 4.9204 26.3914 435.6480 0.426664 1 Complies Antenna Type : Printed Antenna Max Conducted Power for draft n 40MHz Ant. 3 + Ant. 5 : 27.39 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.92 4.9204 27.3856 547.7278 0.536433 1 Complies For 2.4GHz Band: Antenna Type : Printed Antenna Max Conducted Power for 802.11b/g Ant. 3 + Ant. 5 : 23.09dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.39 2.1827 23.0900 203.7042 0.088501 1 Complies Antenna Type : Printed Antenna Max Conducted Power for draft n 20MHz Ant. 3+ Ant. 5 : 29.44 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.51 1.7824 29.4359 878.1870 0.311557 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company NETGEAR Inc. Applicant Address 4500 Great America Parkway, Santa Clara, CA 95054, USA FCC ID PY307300072 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name RangeMax Duo Wireless-N Router Brand Name NETGEAR Model Name WNDR3300 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Nov. 24, 2007 Final Test Date Dec. 11, 2007 Submission Type Original Equipment Statement Test result included is only for the Draft n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR7N2806AC Report Format Version: 02 Page No. : iof ii FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................16 4.3. Power Spectral Density Measurement ..............................................................................................................................................21 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................30 4.5. Radiated Emissions Measurement ....................................................................................................................................................39 4.6. Band Edge Emissions Measurement .................................................................................................................................................67 4.7. Antenna Requirements .....................................................................................................................................................................76 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 77 6. TEST LOCATION.............................................................................................................................................. 79 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 80 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A17 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 APPENDIX C. MPE REPORT ...........................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 4500 Great America Parkway, Santa Clara, CA 95054, USA FCC ID PY307300072 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name RangeMax Duo Wireless-N Router Brand Name NETGEAR Model Name WNDR3300 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Nov. 24, 2007 Final Test Date Dec. 11, 2007 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part and 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR7N2806AD Report Format Version: 02 Page No. : i of ii FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................15 4.3. Power Spectral Density Measurement ..............................................................................................................................................19 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................30 4.5. Radiated Emissions Measurement ....................................................................................................................................................41 4.6. Band Edge Emissions Measurement .................................................................................................................................................77 4.7. Antenna Requirements .....................................................................................................................................................................88 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 89 6. TEST LOCATION.............................................................................................................................................. 91 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 92 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A17 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 APPENDIX C. MPE REPORT .........................................…

Text truncated - open the document above for the full version.

Report No.: FR7N2806AD Report Format Version: 02 Page No. : 68 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Vertical Report No.: FR7N2806AD Report Format Version: 02 Page No. : 69 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Temperature 23°C Humidity 54% Test Engineer Barry Chen Configurations 802.11g CH 11 Ant. 3+Ant. 5 / Mode 4 Horizontal Report No.: FR7N2806AD Report Format Version: 02 Page No. : 70 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Vertical Report No.: FR7N2806AD Report Format Version: 02 Page No. : 71 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Temperature 23°C Humidity 54% Test Engineer Barry Chen Configurations 802.11a CH 149 / Mode 4 Horizontal Report No.: FR7N2806AD Report Format Version: 02 Page No. : 72 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Vertical Report No.: FR7N2806AD Report Format Version: 02 Page No. : 73 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Temperature 23°C Humidity 54% Test Engineer Barry Chen Configurations 802.11a CH 157 / Mode 4 Horizontal Report No.: FR7N2806AD Report Format Version: 02 Page No. : 74 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Vertical Report No.: FR7N2806AD Report Format Version: 02 Page No. : 75 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Temperature 23°C Humidity 54% Test Engineer Barry Chen Configurations 802.11a CH 165 / Mode 4 Horizontal Report No.: FR7N2806AD Report Format Version: 02 Page No. : 76 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR7N2806AD Report Format Version: 02 Page No. : 77 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 4.6. Band Edge Emissions Measurement 4.6.1. Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.6.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of the spectrum analyzer. Spectrum Parameter Setting Attenuation Auto Span Frequency 100 MHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 100 KHz /100 KHz for Peak 4.6.3. Test Procedures 1. The test procedure is the same as section 4.5.3, only the frequency range investigated is limited to 100MHz around bandedges. 2. In case the emission is fail due to the used RB/VB is too wide, marker-delta method of FCC Public Notice DA00-705 will be followed. 4.6.4. Test Setup Layout This test setup layout is the same as that shown in section 4.5.4. 4.6.5. Test Deviation There is no deviation with the original standard. 4.6.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. Report No.: FR7N2806AD Report Format Version: 02 Page No. : 78 of 92 FCC ID: PY307300072 Issued Date : Dec. 28, 2007 4.6.7. Test Result of Band Edge and Fundamental Emissions Temperature 23°C Humidity 54% Test Engineer Barry Chen Configurations 802.11b CH 1, 6, 11 Ant. 1…

Text truncated - open the document above for the full version.
