PY309300116N600 Wireless Dual Band Router

202-10581-01 February 2010 v1.0 NETGEAR, Inc. 350 E. Plumeria Drive San Jose, CA 95134 USA RangeMax™ Dual Band Wireless-N Router WNDR3400 User Manual v1.0, February 2010 ii © 2010 by NETGEAR, Inc. All rights reserved. Product Registration, Support, and Documentation Register your product at http://www.NETGEAR.com/register. Registration is required before you can use our telephone support service. Product updates and Web support are always available by going to: http://www.netgear.com/support. Setup documentation is available on the CD, on the support website, and on the documentation website. When the wireless router is connected to the Internet, click the Knowledgebase or the Documentation link under Web Support in the main menu to view support information. Trademarks NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of NETGEAR. Inc. in the United States and/or other countries. Microsoft, Windows, and Windows NT are registered trademarks and Windows Vista is a trademark of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Certificate of the Manufacturer/Importer It is hereby certified that the RangeMax Dual Band Wireless-N Router WNDR3400 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das RangeMax Dual Band Wireless-N Router WNDR3400 gemäß der im BMPT- AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Regulatory Compliance Information This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority. v1.0, February 2010 iii NOTE:This product’s firmware limits operation to only the channels allowed in a particular Region or Country. Therefore, all options described in this user's guide may not be available in your version of the product. Europe – EU Declaration of Conformity Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: EN300 328, EN301 893, EN301 489-17, EN60950 A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WNDR3400 product package. Europe – Declaration of Conformity in Languages of the European Community Cesky [Czech]NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES. Dansk [Danish] UndertegnedeNETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. EnglishHereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕΤΗΝΠΑΡΟΥΣΑ NETGEAR Inc. ΔΗΛΩΝΕΙΟΤΙRadiolanΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣΤΙΣΟΥΣΙΩΔΕΙΣΑΠΑΙΤΗΣΕΙΣΚΑΙΤΙΣΛΟΙΠΕΣΣΧΕΤΙΚΕΣΔΙΑΤΑΞΕΙΣΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian]Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo NETGEAR Inc. deklarē,ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām prasīb ām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] ŠiuoNETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. 0700 v1.0, February 2010 iv FCC Requirements for Operation in the United States FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will inv…

Text truncated - open the document above for the full version.

Page No. : 10 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Date: 2010/3/12 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY309300116 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 15 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 DoC Attestation Letter Date: 2010/3/12 We NETGEAR, Inc., as the grantee of this project FCC ID: PY309300116, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Power of Attorney Date: 2010/3/12 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: PY309300116 The specified radio equipment as below: Brand name: NETGEAR Product name: Range Max Dual Band Wireless-N Router Model type: WNDR3400, WNDR3300v2 FCC Grantee / IC contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

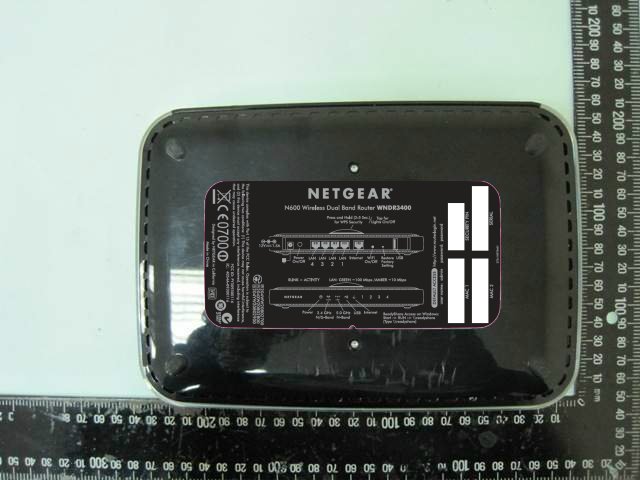

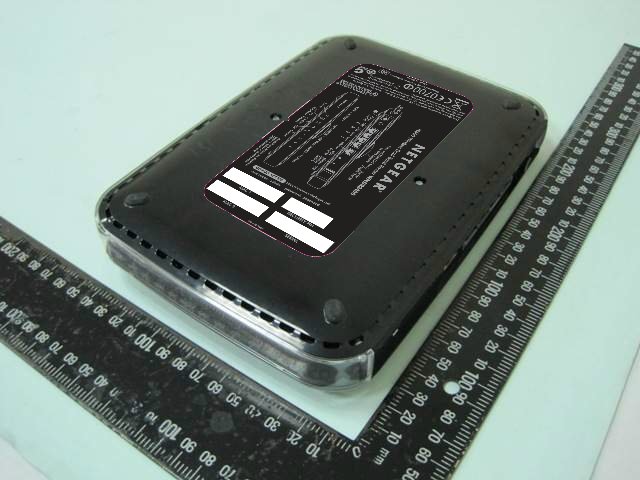

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 Adapter 1 Brand Name: NETGEAR Model No.: FA-1201500SUA P/N: 332-10209-01 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 Adapter 2 Brand Name: NETGEAR Model No.: AD661F 0916BLF P/N: 332-10114-01 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255

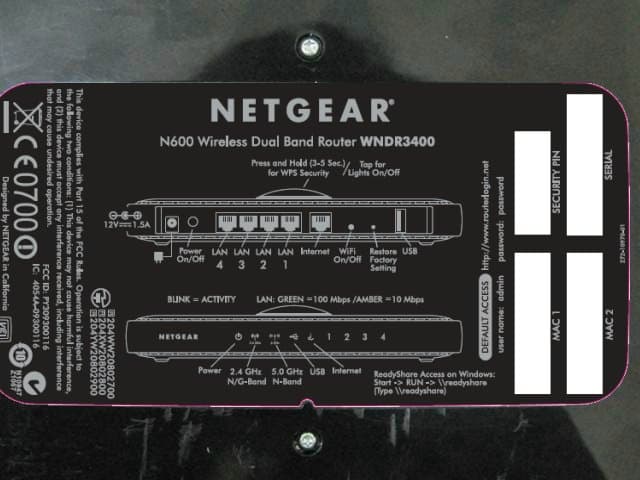

Model number: WNDR3400 Model number: WNR3300v2 Label size: 110mm*50mm

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 11, 2010 FAX : 886-2-2696-2255

Report No.: FR012920 FCC ID: PY309300116 Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure Report No.: FR012920 FCC ID: PY309300116 Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0. 20m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR012920 FCC ID: PY309300116 Page No. : C3 of C4 1.3. Calculated Result and Limit 1.3.1. For 5GHz Band: For UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11an MCS0 20MHz Ant. A + Ant. C :16.95 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.76 1.8880 16.9500 49.5450 0.018619 1 Complies For ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11an MCS0 40MHz Ant. A + Ant. C : 29.95 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.76 1.8880 29.9478 988.0496 0.371304 1 Complies 1.3.2. For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11g Ant. B + Ant. D : 29.85 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 29.8471 965.4057 0.371245 1 Complies Report No.: FR012920 FCC ID: PY309300116 Page No. : C4 of C4 1.3.3. For 5GHz & 2.4GHz Band (Co-Location): <5GHz> Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11an MCS0 40MHz Ant. A + Ant. C : 29.95 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.76 1.8880 29.9478 988.0496 0.371304 1 Complies <2.4GHz> Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11g Ant. B + Ant. D : 29.85 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.86 1.9320 29.8471 965.4057 0.371245 1 Complies CONCULSION: Both of the 5GHz and 2.4GHz can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.371304 / 1 + 0.371245 / 1 = 0.742549, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR012920 FCC ID: PY309300116 Page No. : D1 of D6 Appendix D. Co-location Test Report Report No.: FR012920 FCC ID: PY309300116 Page No. : D2 of D6 1.1. Co-Location Measurement 1.1.1. Limit The emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 40 GHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Report No.: FR012920 FCC ID: PY309300116 Page No. : D3 of D6 1.1.3. Test Procedures 1. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The horn antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 6. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 7. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. Report No.: FR012920 FCC ID: PY309300116 Page No. : D4 of D6 1.1.4. Test Setup Layout For radiated emissions above 1000MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1.5m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1.5m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [6 dB]. 1.1.5. Test Deviation There is no deviation with the original standard. 1.1.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1.5m Report No.: FR012920 FCC ID: PY309300116 Page No. : D5 of D6 2. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 56% Test Engineer Howar Sung Configurations 2.4GHz + 5 GHz TX Normal Link Test Result Pass Horizontal Report No.: FR012920 FCC ID: PY309300116 Page No. : D6 of D6 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, CA 95134, USA FCC ID PY309300116 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name N600 Wireless Dual Band Router Brand Name NETGEAR Model Name WNDR3400, WNDR3300v2 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jan. 29, 2010 Final Test Date Mar. 11, 2010 Submission Type Original Equipment Operating Mode Client (without radar detection function) Multiple Listing Please refer to section 3.7 Statement Test result included is for the 802.11n and 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR012920AA Report Format Version: 01 Page No. : i of ii FCC ID: PY309300116 Issued Date : Mar. 11, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................18 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................24 4.4. Power Spectral Density Measurement ..............................................................................................................................................31 4.5. Peak Excursion Measurement ...........................................................................................................................................................35 4.6. Radiated Emissions Measurement ....................................................................................................................................................38 4.7. Band Edge Emissions Measurement .................................................................................................................................................60 4.8. Frequency Stability Measurement ....................................................................................................................................................64 4.9. Antenna Requirements .....................................................................................................................................................................66 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 67 6. TEST LOCATION.............................................................................................................................................. 68 7. TAF CERTIFICATE OF ACCREDITATION ....................…

Text truncated - open the document above for the full version.

Report No.: FR012920 FCC ID: PY309300116 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR012920 FCC ID: PY309300116 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR012920 FCC ID: PY309300116 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR012920 FCC ID: PY309300116 Page No. : 4 of 5 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR012920 FCC ID: PY309300116 Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW
