PY309400124Wireless-N 150 Router

202-10614-01 March 2010 v1.0 NETGEAR, Inc. 350 E. Plumeria Drive San Jose, CA 95134 USA Wireless-N 150 Router WNR612v2 User Manual ii v1.0, March 2010 ©2010 by NETGEAR, Inc. All rights reserved. Product Registration, Support, and Documentation Register your product at http://www.netgear.com/register. Registration is required before you can use our telephone support service. Product updates and Web support are always available at http://www.netgear.com/support. Setup documentation is available on the support website and on the documentation website. When the wireless router is connected to the Internet, click the Knowledge Base or the Documentation link under Web Support on the main menu to view support information. Trademarks NETGEAR and the NETGEAR logo are registered trademarks of NETGEAR. Inc. in the United States and/or other countries. Microsoft, Windows, and Windows NT are registered trademarks and Windows Vista is a trademark of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Certificate of the Manufacturer/Importer It is hereby certified that the Wireless-N 150 Router Model WNR612v2 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das Wireless-N 150 Router Model WNR612v2 gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Regulatory Compliance Information This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority. v1.0, March 2010 iii NOTE:This product's firmware limits operation to only the channels allowed in a particular Region or Country. Therefore, all options described in this user's guide may not be available in your version of the product. Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: •EN 60950-1: 2001 Safety of information technology equipment •EN 300 328 V1.7.1 (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive •EN 301 489-17 V1.2.1 (2002-08) and EN 301 489-1 V1.4.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries under the following conditions and/or with the following restrictions: •In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. •This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Europe – Declaration of Conformity in Languages of the European Community Č esky [Czech] [NETGEAR Inc.] tímto prohlašuje, že tento [WNR612v2] je ve shode se základními požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES. Dansk [Danish] Undertegnede [NETGEAR Inc.] erklærer herved, at følgende udstyr [WNR612v2] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [NETGEAR Inc.], dass sich das Gerät [WNR612v2] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [NETGEAR Inc.] seadme [WNR612v2] vastavust direktiivi 1999/ 5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. EnglishHereby, [NETGEAR Inc.], declares that this [WNR612v2] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. v1.0, March 2010 iv Español [Spanish] Por medio de…

Text truncated - open the document above for the full version.

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 Date: 2010-03-16 General Declaration General Declaration General Declaration General Declaration FCC ID: PY309400124 We, Netgear Inc. declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies”. If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Mark Gandler / project manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected]

FCC ID: PY309400124 Date: 2010-03-29 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------- Mark Gandler/ project manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected] Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 AUTHORIZATION LETTER FCC ID: PY309400124 Date:2010/3/16 To whom it may concern: We, the undersigned UNetgear Inc.U hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part15C and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Mark Gandler / project manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected]

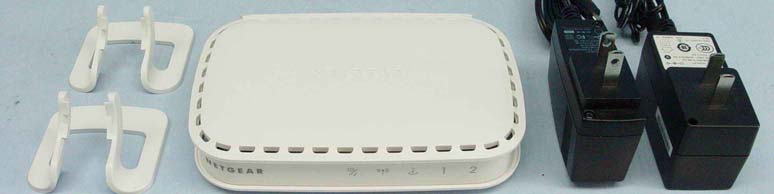

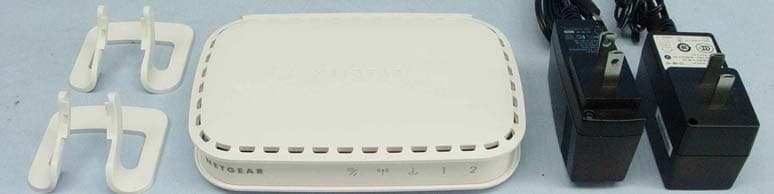

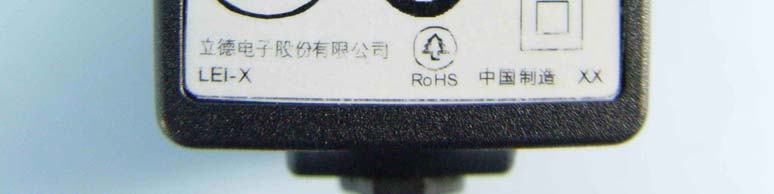

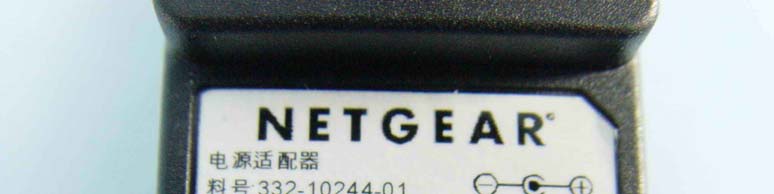

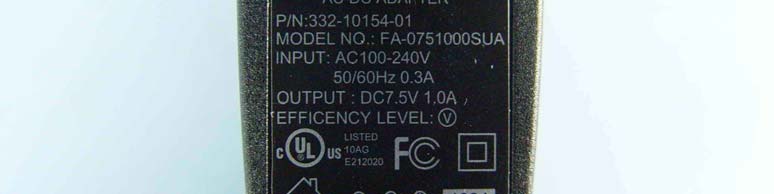

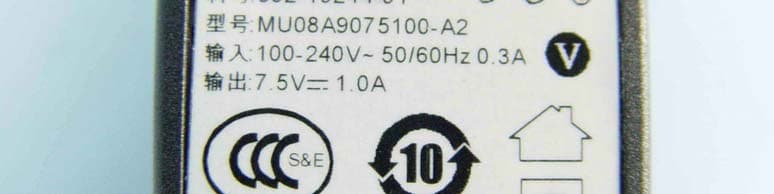

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 5 01AW-11045-011 of 1 AW, WNR612, V2H1, PLBLR HU 02NOV09R HUINITIAL DOCUMENT CREATION 01 Pantone 430C

FCC ID: PY309400124 Label Location

Page 4 Page 5 Page 6

FCC ID: PY309400124 Report No.: RF990302L10 OPERATIONAL DESCRIPTION This device is a Wireless-N 150 Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by an AC adapter. The antenna is printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA990302L10 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990302L10 MODEL NO.: WNR612v2 FCC ID: PY309400124 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, INC. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA990302L10 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 26.9 3.01 20 0.195 1.00

Report No.: RF990302L10 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990302L10 MODEL NO.: WNR612v2 RECEIVED: Mar. 02, 2010 TESTED: Mar. 04 ~ Mar. 09, 2010 ISSUED: Mar. 16, 2010 APPLICANT: NETGEAR, INC. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990302L10 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................. 5 2.1 MEASUREMENT UNCERTAINTY........................................................................... 5 3. GENERAL INFORMATION ...................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 11 4. TEST TYPES AND RESULTS ............................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 12 4.1.2 TEST INSTRUMENTS........................................................................................... 13 4.1.3 TEST PROCEDURES ........................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD.................................................................. 14 4.1.5 TEST SETUP......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 15 4.1.7 TEST RESULTS .................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 30 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 30 4.2.2 TEST INSTRUMENTS........................................................................................... 30 4.2.3 TEST PROCEDURES ........................................................................................... 31 4.2.4 DEVIATION FROM TEST STANDARD.................................................................. 31 4.2.5 TEST SETUP......................................................................................................... 32 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 32 4.2.7 TEST RESULTS .................................................................................................... 33 4.3 6dB BANDWIDTH MEASUREMENT..................................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 37 4.3.2 TEST INSTRUMENTS........................................................................................... 37 4.3.3 TEST PROCEDURE.............................................................................................. 37 4.3.4 DEVIATION FROM TEST STANDARD.................................................................. 37 4.3.5 TEST SETUP......................................................................................................... 38 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 38 4.3.7 TEST RESULTS .................................................................................................... 39 4.4 MAXIMUM OUTPUT POWER ............................................................................... 43 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT................................ 43 4.4.2 INSTRUMENTS ..................................................................................................... 43 4.4.3 TEST PROCEDURE.............................................................................................. 43 Report No.: RF990302L10 3 Report Format Version 3.0.1 4.4.4 DEVIATION FROM TEST STANDARD.................................................................. 44 4.4.5 TEST SETUP......................................................................................................... 44 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 44 4.4.7 TEST RESULTS .................................................................................................... 45 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................ 46 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................. 46 4.5.2 TEST INSTRUMENTS......................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) 2 CONDUCTED EMISSION TEST (TEST MODE B) 3 RADIATED EMISSION TEST (TEST MODE A) 4 RADIATED EMISSION TEST (TEST MODE B)
