PY310100129N600 WIRELESS DUAL BAND GIGABIT VDSL2 MODEM ROUTER

350 East Plumeria Drive San Jose, CA 95134 USA February 2011 202-10642-01 v1.0 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700 User Manual 2 | N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700 User Manual © 2011 NETGEAR, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online, visit us at http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR Phone (Other Countries): See Support information card. Trademarks NETGEAR, the NETGEAR logo, ReadyNAS, ProSafe, Smart Wizard, Auto Uplink, X-RAID2, and NeoTV are trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use, or application of, the product(s) or circuit layout(s) described herein. Contents|3 Contents Chapter 1 Hardware Setup Unpack Your New Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Position Your Wireless Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 ADSL Microfilters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 One-Line ADSL Microfilter (Not Included) . . . . . . . . . . . . . . . . . . . . . . . 18 Two-Line ADSL Microfilter (Included) . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Cable Your N600 Wireless Modem Router . . . . . . . . . . . . . . . . . . . . . . . . 20 Verify the Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 For More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Chapter 2 Router Internet Setup Router Setup Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . . 23 Replace an Existing Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Adapters and Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Gather ISP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Log In to the N600 Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Upgrade Router Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Router Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 ADSL Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Unsuccessful Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Change Password and Login Time-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Log Out Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Types of Logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Chapter 3 Wireless Settings Wireless Security Requirements and Recommendations . . . . . . . . . . . . . 36 Wireless Security Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Turn Off Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Disable SSID Broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Restrict Access by MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Wireless Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Add Clients (Devices) to Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 4| Contents N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700 User Manual Manual Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Wi-Fi Protected Setup (WPS) Method . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Wireless Settings Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Consider Every Device on Your Network . . . . . . . . . . . . . . . . . . . . . . . . 41 Configure Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Chapter 4 Security Settings Keyword Blocking of HTTP Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Delete Keyword or Domain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Specify Trusted Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Firewall Rules to Control Network Access . . . . . . . . . . . . . . . . . . . . . . . . . 49 Remote Computer Access Basics . . . .…

Text truncated - open the document above for the full version.

Chapter 9. Troubleshooting | 143 9 9.Troubleshooting Diagnosing and solving problems This chapter provides information to help you diagnose and solve problems you might have with your wireless modem router. If you do not find the solution here, check the NETGEAR support site at http://support.netgear.comfor product and contact information. This chapter contains the following sections: •Router Not On •No ISP Connection •TCP/IP Network Not Responding •Cannot Log in •Changes Not Saved •Firmware Needs to Be Reloaded •Incorrect Date or Time 144 | Chapter 9. Troubleshooting N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700 User Manual Router Not On When you turn the power on, the power, LAN, wireless, DSL, and Internet LEDs should light as described here. If they do not, refer to the sections that follow for help. 1.When power is first applied, the Power LED lights. 2.After approximately 10 seconds, other LEDs light as follows: a.The LAN ports LED lights when any local port is connected. b.The 2.4 GHz and 5 GHz Wireless LEDs light. c.The DSL LED lights when there is a link via the ADSL phone lines. d.The Internet LED lights to indicate a connection to the ISP. Power LAN ports DSL Internet 5 GHZ Wireless USB port Wireless On/Off button WPS On/Off button 2.4 GHz Wireless USB Figure 60. Front panel LEDs Power LED Is Off If the Power and other LEDs are off when your router is turned on: •Check that the power cord is correctly connected to your router and the power supply adapter is correctly connected to a functioning power outlet. •Check that you are using the 12-V DC power adapter supplied by NETGEAR for this product. Chapter 9. Troubleshooting | 145 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700 User Manual If the error persists, you could have a hardware problem and should contact NETGEAR Technical Support. Power LED Is Red When the router is turned on, it performs a power-on self-test. If the Power LED turns red after a few seconds or at any other time during normal operation, there is a fault within the router. If the Power LED turns red to indicate a router fault, turn the power off and on to see if the wireless modem router recovers. If the power LED is still red 1 minute after power-up: •Turn the power off and on one more time to see if the wireless modem router recovers. •Clear the router’s configuration to factory defaults as explained in Factory Settings on page 154. This sets the router’s IP address to 192.168.0.1. If the error persists, you could have a hardware problem and should contact NETGEAR Technical Support. LAN LED Is Off If the LAN LED does not light when the Ethernet connection is made, check the following: •The Ethernet cable connections are secure at the wireless modem router and at the hub or workstation. •The power is turned on to the connected hub or workstation. Wireless LEDs Are Off If the 2.4 GHz and 5 GHz Wireless LEDs do not light, the radios may be turned off. Press the Wireless On/Off button on its front panel to turn the radios back on. DSL or Internet LED Is Off If the DSL or Internet LED does not light, check to make sure you are using the correct cable. When connecting the ADSL or Ethernet WAN port, use the cables that were supplied with the wireless modem router. If the DSL or Internet LED is still off, this could mean that there is no ADSL or Fiber/Cable modem service or the cable connected to the ADSL or Ethernet WAN port is bad. See also DSL LED Is Off on page 146. 146 | Chapter 9. Troubleshooting N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700 User Manual No ISP Connection If your router cannot access the Internet, first check the ADSL connection, and then check the WAN TCP/IP connections. See Figure 4, Front panel LEDs on page 14 for the location of the LEDs. ADSL Link First determine whether you have a ADSL link with the service provider. The state of this connection is indicated by the DSL LED. DSL LED Is Green or Blinking Green You have a good ADSL connection. The service provider has connected your line correctly, and your wiring is correct. DSL LED Is Blinking Amber Your wireless modem router is attempting to make a ADSL connection with the service provider. The LED should turn green within several minutes. If the DSL LED does not turn green, disconnect all telephones on the line. If this solves the problem, reconnect the telephones one at a time and use a microfilter on each telephone as described in ADSL Microfilters on page 18. If you connect the microfilters correctly, you should be able to connect all your telephones. If disconnecting telephones does not result in a green DSL LED, there might be a problem with your wiring. If the telephone company has tested the ADSL signal at your network interface device (NID), you might have poor-quality wiring in your house. DSL LED Is Off First disconnect all telephones on the line. If this solves the problem, reconnect the telephones one at a time and use a microfilter on each telephone. If the microfilters are connected correctly, you should be able to connect all your telephones. If disconnecting telephones does not result in a green DSL LED, check for the following: •Check that the telephone company has made the connection to your line and tested it. •Verify that you are connected to the correct telephone line. If you have more than one phone line, be sure that you are connected to the line with the ADSL service. It could be necessary to use a swapper if your ADSL signal is on pins 1 and 4 or the RJ-11 jack. The wireless modem router uses pins 2 and 3. Chapter 9. Troubleshooting | 147 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700 User Manual Internet LED Is Red If the Internet LED is red, the device could not connect to the Internet. Verify the following: •Check that your log-in credentials are correct. See Log In to the N600 Modem Router on page 24 for more information. •Check that the information you entered on the Basic Settings screen is correc…

Text truncated - open the document above for the full version.

Page No. : 9 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Date: 2011/3/1 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY310100129 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 90 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 15 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 DoC Attestation Letter Date: 2011/3/1 We NETGEAR, Inc., as the grantee of this project FCC ID: PY310100129, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Power of Attorney Date: 2011/3/1 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / DGND3700 FCC ID: PY310100129 Product name: N600 Wireless Dual Band Gigabit VDSL2 Modem Router FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

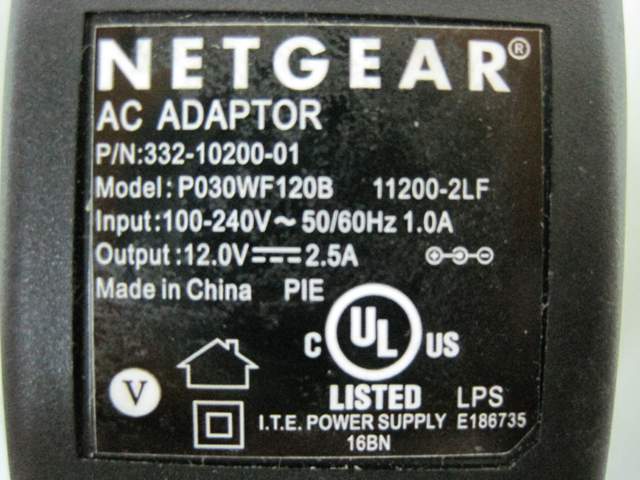

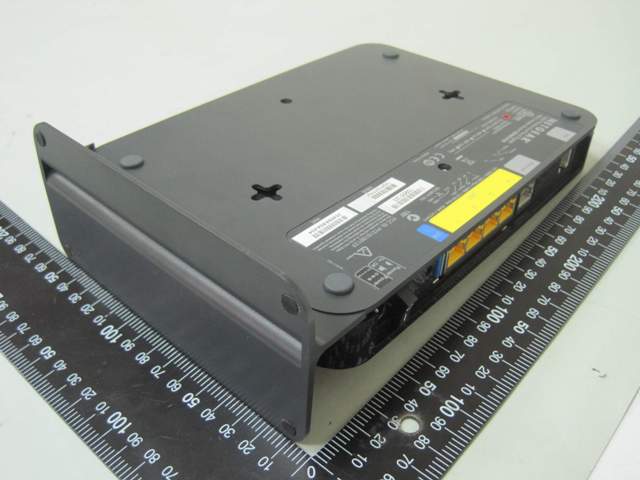

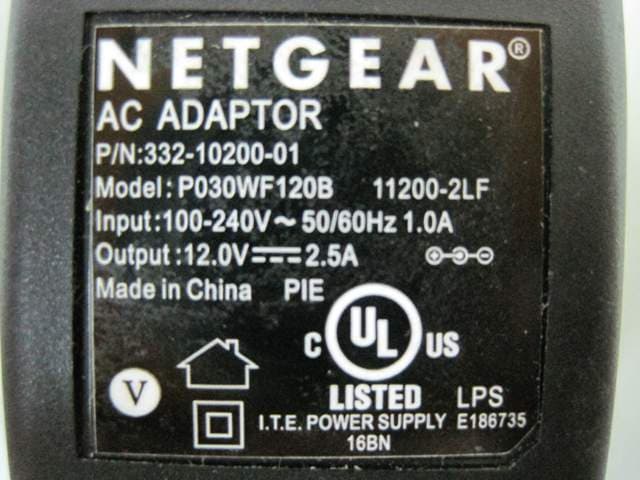

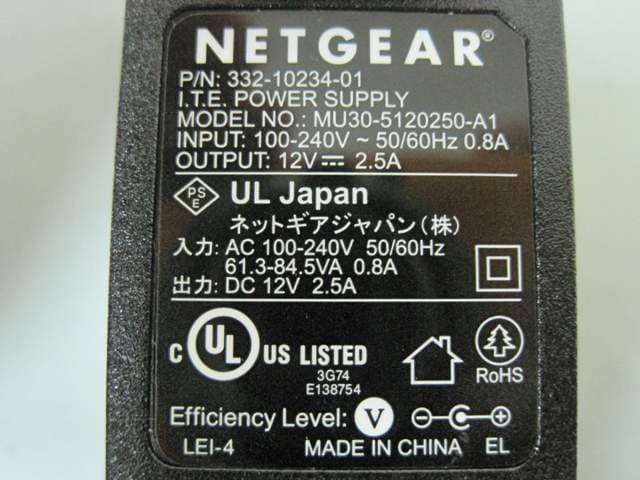

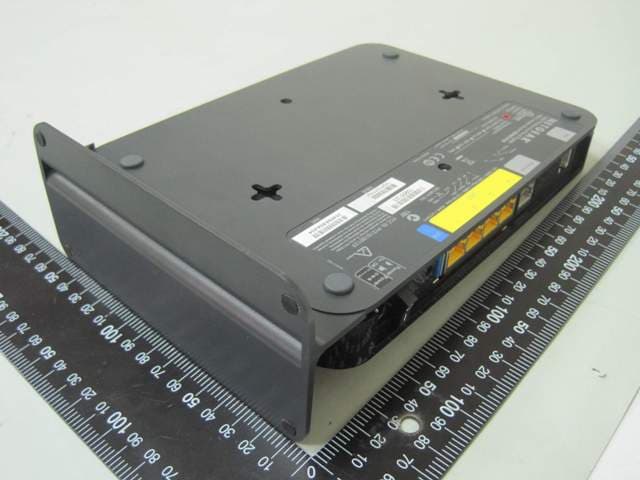

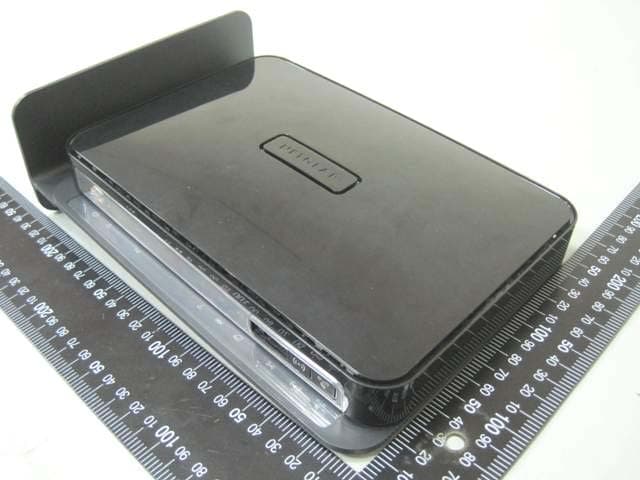

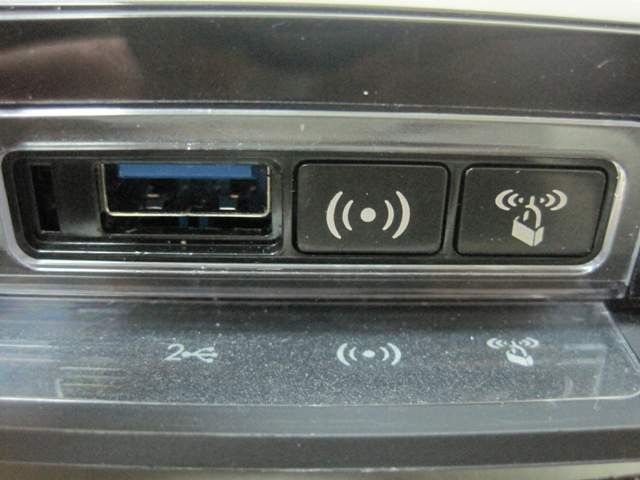

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 Adapter 1 Brand Name: NETGEAR Model No.: MU30-5120250-A1 P/N: 332-10234-01 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 Adapter 2 Brand Name: NETGEAR Model No.: P030WF120B 11200-2LF P/N: 332-10200-01 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 RJ-11 Cable SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 RJ-45 Cable

Label size: 17.5mm*4.5mm The label locates bottom side of EUT.

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 01, 2011 FAX : 886-2-2696-2255

Report No.: FR0D0633 FCC ID: PY310100129 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR0D0633 FCC ID: PY310100129 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR0D0633 FCC ID: PY310100129 Page No. : C3 of C3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a Ant. 1 + Ant. 2 : 16.96dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.4 2.1878 16.9600 49.6592 0.021625 1 Complies For 5GHz ISM Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a Ant. 1 + Ant. 2 : 26.77dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.4 2.1878 26.7654 474.8290 0.206770 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g Ant. 3 + Ant. 4 : 29.12 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.6 2.2909 29.1156 815.7645 0.371976 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHZ Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.206770 / 1 + 0.371976 / 1 = 0.578746, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR0D0633 FCC ID: PY310100129 Page No. : D1 of D6 Appendix D. Co-location Test Report Report No.: FR0D0633 FCC ID: PY310100129 Page No. : D2 of D6 1.1. Co-Location Measurement 1.1.1. Limit The emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 40 GHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Report No.: FR0D0633 FCC ID: PY310100129 Page No. : D3 of D6 1.1.3. Test Procedures 1. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The horn antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 6. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 7. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. Report No.: FR0D0633 FCC ID: PY310100129 Page No. : D4 of D6 1.1.4. Test Setup Layout For radiated emissions above 1000MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1.5m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1.5m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [6 dB]. 1.1.5. Test Deviation There is no deviation with the original standard. 1.1.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1.5m Report No.: FR0D0633 FCC ID: PY310100129 Page No. : D5 of D6 2. Results of Radiated Emissions for Co-located Temperature 21°C Humidity 57% Test Engineer Sean Ku Configurations 2.4GHz + 5 GHz TX Normal Link Test Result Pass Horizontal Report No.: FR0D0633 FCC ID: PY310100129 Page No. : D6 of D6 Vertical

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134-1911 FCC ID PY310100129 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name N600 Wireless Dual Band Gigabit VDSL2 Modem Router Brand Name NETGEAR Model Name DGND3700 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Nov. 18, 2010 Final Test Date Feb. 18, 2011 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR0D0633AB Report Format Version: 01 Page No. : i of ii FCC ID: PY310100129 Issued Date : Mar. 01, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. Peak Output Power Measurement ....................................................................................................................................................19 4.3. Power Spectral Density Measurement ..............................................................................................................................................26 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................34 4.5. Radiated Emissions Measurement ....................................................................................................................................................42 4.6. Band Edge Emissions Measurement .................................................................................................................................................68 4.7. Antenna Requirements .....................................................................................................................................................................81 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 82 6. TEST LOCATION.............................................................................................................................................. 84 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 85 APPENDIX A.…
