PY310300137Mobile Broadband 11n Wireless Router

May 2010 202-10577-01 v1.0 350 East Plumeria Drive San Jose, CA 95134 USA Mobile Broadband 11n Wireless Router MBR1000 User Manual 2 | Mobile Broadband 11n Wireless Router MBR1000 © 2010 NETGEAR, Inc.© 2010 by NETGEAR, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc. Part Number 202-10577-01 v1.0 Technical Support When you register your product at http://www.netgear.com/register, NETGEAR can provide you with faster expert technical support and timely notices of product and software upgrades. NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134 USA E-mail: [email protected] Website: http://www.netgear.com Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card. Trademarks NETGEAR, the NETGEAR logo, ProSafe, Smart Wizard, and Auto Uplink are trademarks or registered trademarks of NETGEAR, Inc. Microsoft, Windows, Windows NT, and Vista are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Revision History Publication Part NumberVersion Publish Date 202-10577-01v1.0May 2010 Table of Contents | 3 Table of Contents Chapter 1 Connecting to the Internet Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Router Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Router Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Router Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Router Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Logging In to Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Accessing the Configuration Assistant After Installation . . . . . . . . . . . . . . 11 Manually Configuring Your Internet Settings . . . . . . . . . . . . . . . . . . . . . . . 12 Chapter 2 Wireless Network Configuration Planning Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Wireless Placement and Range Guidelines . . . . . . . . . . . . . . . . . . . . . 17 Wireless Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Manually Configuring Your Wireless Settings . . . . . . . . . . . . . . . . . . . . . . 18 Configuring WEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Configuring WPA, WPA2, or WPA + WPA2 . . . . . . . . . . . . . . . . . . . . . 21 Using Push 'N' Connect (WPS) to Configure Your Wireless Network . . . . 22 WPS Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 WPS PIN Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Adding Wireless Computers that Do Not Support WPS . . . . . . . . . . . . 25 Wireless Guest Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Chapter 3 Protecting Your Network Protecting Access to Your Mobile Broadband 11n Wireless Router . . . . . 27 Changing the Built-In Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Changing the Administrator Login Time-out . . . . . . . . . . . . . . . . . . . . . 28 Blocking Sites and Keywords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Blocking Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Scheduling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Setting Your Time Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Scheduling Firewall Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Live Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Chapter 4 Managing Your Network Backing Up, Restoring, or Erasing Your Settings . . . . . . . . . . . . . . . . . . . 35 Backing Up the Configuration to a File . . . . . . . . . . . . . . . . . . . . . . . . . 35 Mobile Broadband 11n Wireless Router MBR1000 4 | Table of Contents Restoring the Configuration from a File . . . . . . . . . . . . . . . . . . . . . . . . .36 Erasing the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Upgrading the Router Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Router Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Showing Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Viewing Attached Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Viewing, Selecting, and Saving Logged Information . . . . . . . . . . . . . . .41 Examples of Log Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Enabling Security Event E-mail Notification . . . . . . . . . . . . . . . . . . . . . . . .44 Running Diagnostic Utilities and Rebooting the Router . . . . . . . . . . . . . . .45 Enabling Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Configuring Remote Management . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Page No. : 9 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Date: 2010/9/1 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY310300137 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000 NETGEAR, Inc.

Page No. : 14 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 DoC Attestation Letter Date: 2010/9/1 We NETGEAR, Inc., as the grantee of this project FCC ID: PY310300137, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Power of Attorney Date: 2010/9/1 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / MBR1210 FCC ID: PY310300137 Product name: Mobile Broadband 11n Wireless Router FCC grant contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler/ Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

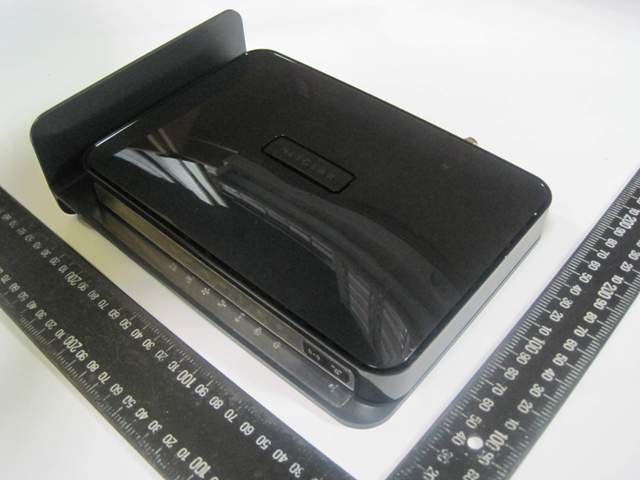

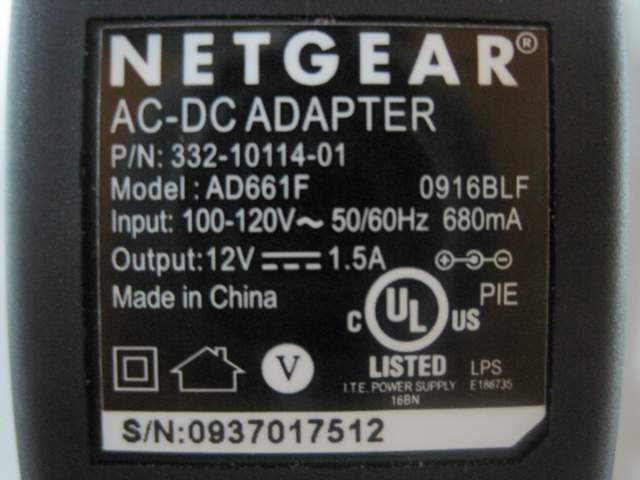

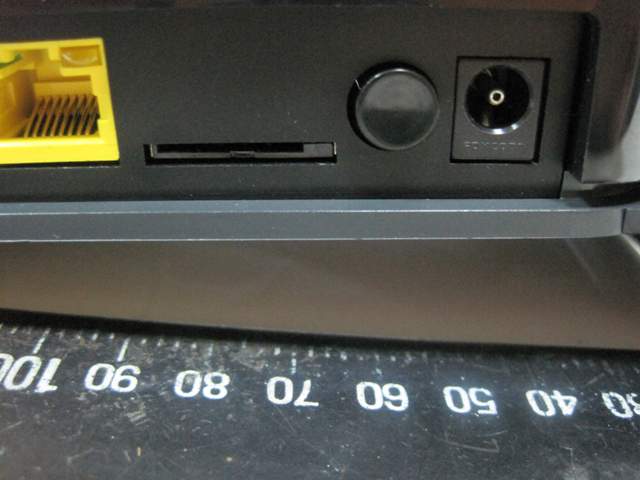

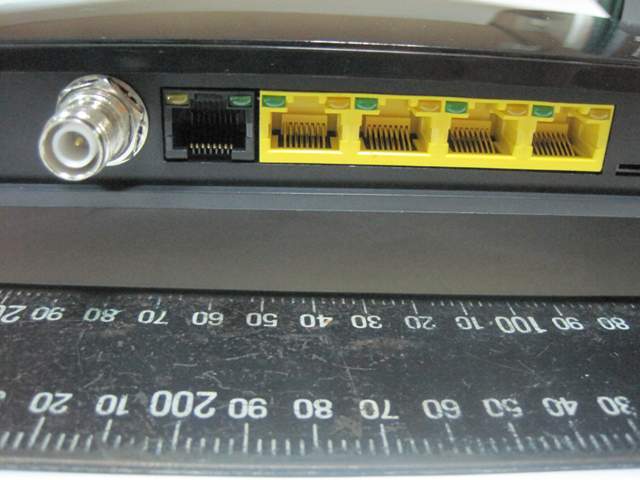

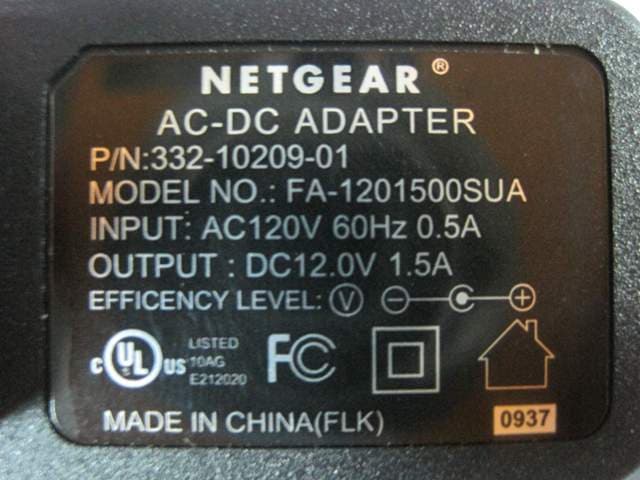

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 Adapter 1 Brand Name: NETGEAR P/N: 332-10209-01 Model No.: FA-1201500SUA SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 Adapter 2 Brand Name: NETGEAR P/N: 332-10114-01 Model No.: AD661F 0916BLF SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255

Label sample: Label size: 17.5 * 4.5 cm Label in Here

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 01, 2010 FAX : 886-2-2696-2255

Report No.: FR052625-01 FCC ID: PY310300137 Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure Report No.: FR052625-01 FCC ID: PY310300137 Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR052625-01 FCC ID: PY310300137 Page No. : C3 of C4 1.3. Calculated Result and Limit <For WLAN Function>: Antenna Type : Print Antenna Max Conducted Power for IEEE 802.11g Ant. 1 + Ant. 2: 29.32 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.5 1.7783 29.3181 854.6884 0.302523 1 Complies Report No.: FR052625-01 FCC ID: PY310300137 Page No. : C4 of C4 <For GSM 850 Function>: 3G Module, FCC ID: N7NMC8700, IC: 2417C-MC8700 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824.2 17.8300 19.9700 99.3116 0.019800 0.549 Complies 836.4 17.6400 19.7800 95.0605 0.018921 0.549 Complies 848.8 16.8000 18.9400 78.3430 0.015594 0.549 Complies CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.302523 / 1 + 0.019800 / 0.549 = 0.338589, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR052625-01 FCC ID: PY310300137 Page No. : D1 of D3 Appendix D. Co-location Report Report No.: FR052625-01 FCC ID: PY310300137 Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 24.5°C Humidity 56% Test Engineer Johnson Chang Configurations WLAN + GSM850 CH128 / Mode 2 Horizontal Report No.: FR052625-01 FCC ID: PY310300137 Page No. : D3 of D3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, CA 95134, USA FCC ID PY310300137 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name Mobile Broadband 11n Wireless Router Brand Name NETGEAR Model Name MBR1210 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Aug. 16, 2010 Final Test Date Aug. 31, 2010 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR052625-01 Report Format Version: 01 Page No. : iof ii FCC ID: PY310300137 Issued Date : Sep. 09, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................27 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................33 4.5. Radiated Emissions Measurement ....................................................................................................................................................39 4.6. Band Edge Emissions Measurement .................................................................................................................................................57 4.7. Antenna Requirements .....................................................................................................................................................................66 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 67 6. TEST LOCATION.............................................................................................................................................. 69 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 70 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A16 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B6 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE.............................................…

Text truncated - open the document above for the full version.

Report No.: FR052625-01 FCC ID: PY310300137 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR052625-01 FCC ID: PY310300137 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR052625-01 FCC ID: PY310300137 Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR052625-01 FCC ID: PY310300137 Page No. : 4 of 6 Test Configuration: 30MHz ~1GHz Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR052625-01 FCC ID: PY310300137 Page No. : 5 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR052625-01 FCC ID: PY310300137 Page No. : 6 of 6 Test Configuration: Co-location Test Mode: Mode 2 FRONT VIEW REAR VIEW
