PY310400149N300 WIRELESS ROUTER

202-10785-01 March 2011 v1.0 NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134 USA NETGEAR N300 Wireless Router JWNR2000v2 User Manual ii v1.0, March 2011 ©2011 by NETGEAR, Inc. All rights reserved. Product Registration, Support, and Documentation Register your product at http://www.netgear.com/register. Registration is required before you can use our telephone support service. Product updates and Web support are always available at http://www.netgear.com/support. Setup documentation is available on the CD, on the support website, and on the documentation website. When the wireless router is connected to the Internet, click the Knowledge Base or the Documentation link under Web Support on the main menu to view support information. Trademarks NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of NETGEAR. Inc. in the United States and/or other countries. Microsoft, Windows, and Windows NT are registered trademarks and Windows Vista is a trademark of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Certificate of the Manufacturer/Importer It is hereby certified that the N300 Wireless Router Model JWNR2000v2 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das N300 Wireless Router Model JWNR2000v2 gemäß der im BMPT-AmtsblVfg 243/ 1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Regulatory Compliance Information This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority. v1.0, March 2011 iii NOTE:This product's firmware limits operation to only the channels allowed in a particular Region or Country. Therefore, all options described in this user's guide may not be available in your version of the product. Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: •EN 60950-1: 2001 Safety of information technology equipment •EN 300 328 V1.7.1 (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive •EN 301 489-17 V1.2.1 (2002-08) and EN 301 489-1 V1.4.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries under the following conditions and/or with the following restrictions: •In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. •This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Česky [Czech] [NETGEAR Inc.] tímto prohlašuje, že tento [JWNR2000] je ve shode se základními požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES. Dansk [Danish] Undertegnede [NETGEAR Inc.] erklærer herved, at følgende udstyr [JWNR2000] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [NETGEAR Inc.], dass sich das Gerät [JWNR2000] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [NETGEAR Inc.] seadme [JWNR2000] vastavust direktiivi 1999/ 5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. EnglishHereby, [NETGEAR Inc.], declares that this [JWNR2000] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [NETGEAR I…

Text truncated - open the document above for the full version.

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 Date: 2011-01-19 General Declaration General Declaration General Declaration General Declaration FCC ID: PY310400149 We, Netgear Inc. declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies”. If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Mark Gandler / project manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected]

FCC ID: PY310400149 Date: 2011-01-19 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------- Mark Gandler/ project manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected] Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 AUTHORIZATION LETTER FCC ID: PY310400149 Date:2011/2/15 To whom it may concern: We, the undersigned UNetgear Inc.U hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part15C and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Mark Gandler / project manager UNetgear Inc.U TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected]

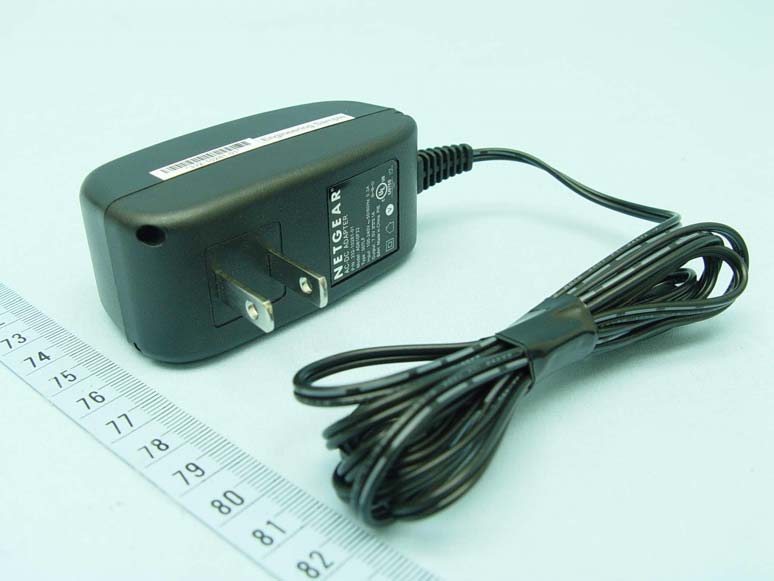

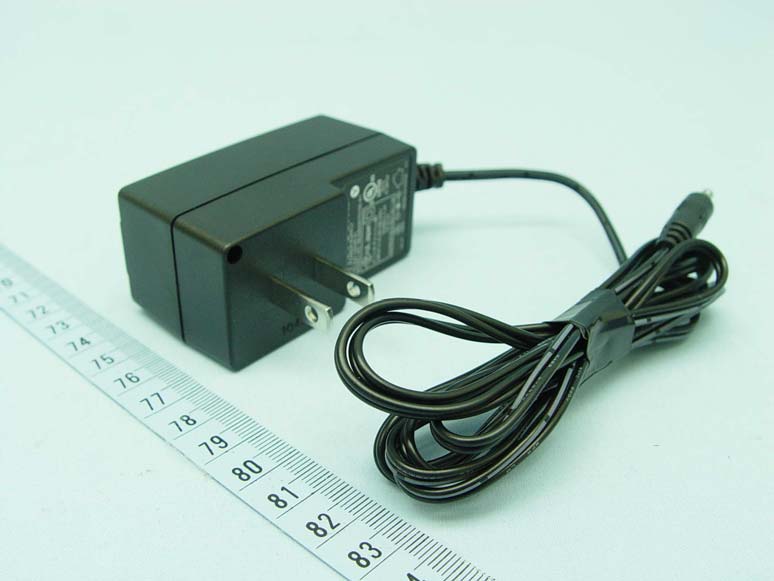

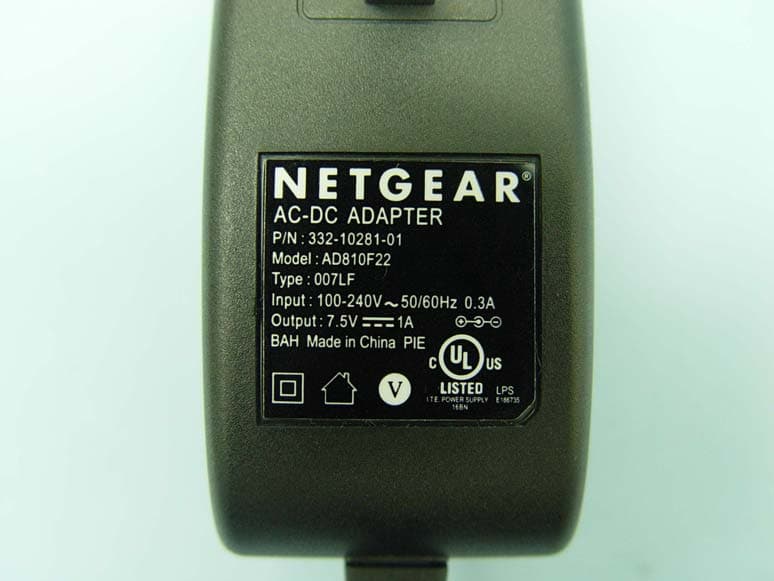

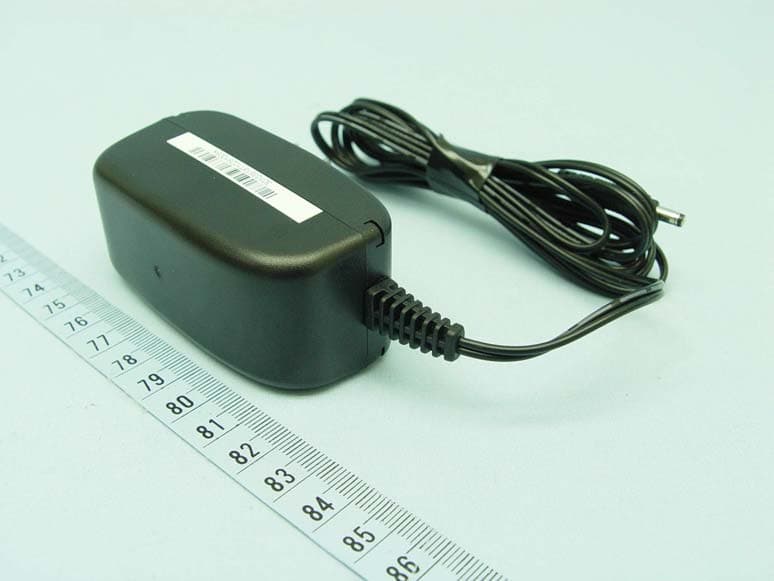

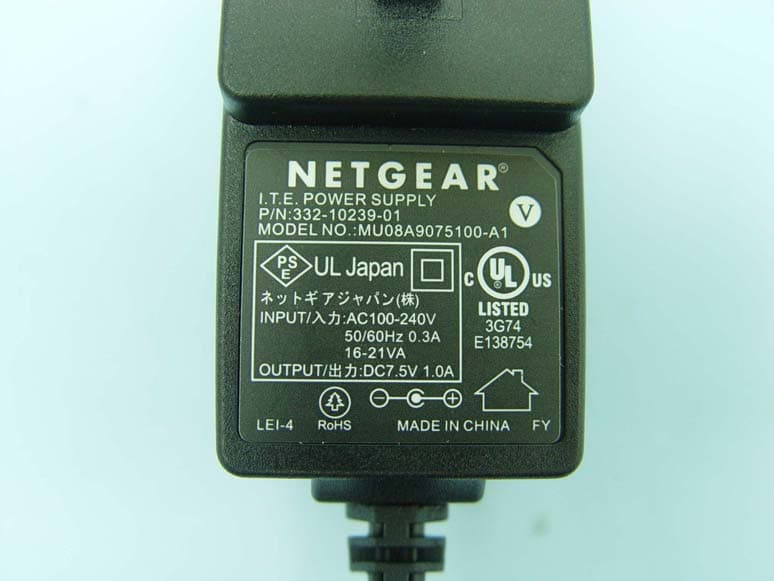

Page 1 CONSTRUCTION PHOTOS OF EUT FCC adapter Adapter model: MU08A9075100-A1 Page 2 Page 3 Adapter model: AD810F22 Page 4 PCB with ON/OFF switch Page 5 Page 6 PCB without ON/OFF switch Page 7

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE 01SSD-10425-021 of 1 AW, JWNR2000, V2H1, PLBLR HU 07FEB11R HUINITIAL DOCUMENT CREATION01 NETGEAR 490-10021-01 Enclosure Color for Ref. 6

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE 01SSD-10431-021 of 1 AW, JWNR2000, V2H1, PLBLR HU 07FEB11R HUINITIAL DOCUMENT CREATION01 NETGEAR 490-10021-01 Enclosure Color for Ref. 6

Page 8 PCB with ON/OFF switch Page 9 Page 10 Page 11 Page 12 PCB without ON/OFF switch Page 13 Page 14 Page 15

FCC ID: PY310400149 Report No.: RF991214C28 OPERATIONAL DESCRIPTION This device is a N300 WIRELESS ROUTER, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 7.5Vdc from the AC adapter. The antenna is used printed antenna without antenna connectors. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA991214C28 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA991214C28 MODEL NO.: JWNR2000v2 FCC ID: PY310400149 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, INC. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA991214C28 Report Format Version 4.0.0 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Jan. 19, 2011 Report No.: SA991214C28 Report Format Version 4.0.0 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MODULATION MODE FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 802.11b 2412-2462 19.4 2.77 20 0.033 1 802.11g 2412-2462 24.6 2.77 20 0.109 1 802.11n (20MHz) 2412-2462 24.7 2.77 20 0.111 1 802.11n (40MHz) 2422-2452 24.6 2.77 20 0.109 1

Report No.: RF991214C28 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF991214C28 MODEL NO.: JWNR2000v2 FCC ID: PY310400149 RECEIVED: Dec. 14, 2010 TESTED: Dec. 17, 2010 ~ Jan. 15, 2011 ISSUED: Jan. 19, 2011 APPLICANT: NETGEAR, INC. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF991214C28 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD...............................................................................................4 1. CERTIFICATION............................................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................................6 2.1 MEASUREMENT UNCERTAINTY.................................................................................6 3. GENERAL INFORMATION ............................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ..............................................................................7 3.2 DESCRIPTION OF TEST MODES ................................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...........................................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................12 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................12 4. TEST TYPES AND RESULTS .....................................................................................13 4.1 RADIATED EMISSION MEASUREMENT ...................................................................13 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................13 4.1.2 TEST INSTRUMENTS.................................................................................................14 4.1.3 TEST PROCEDURES .................................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD........................................................................15 4.1.5 TEST SETUP...............................................................................................................16 4.1.6 EUT OPERATING CONDITIONS ................................................................................16 4.1.7 TEST RESULTS ..........................................................................................................17 4.2 CONDUCTED EMISSION MEASUREMENT ..............................................................31 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................31 4.2.2 TEST INSTRUMENTS.................................................................................................31 4.2.3 TEST PROCEDURES .................................................................................................32 4.2.4 DEVIATION FROM TEST STANDARD........................................................................32 4.2.5 TEST SETUP...............................................................................................................33 4.2.6 EUT OPERATING CONDITIONS ................................................................................33 4.2.7 TEST RESULTS ..........................................................................................................34 4.3 6dB BANDWIDTH MEASUREMENT...........................................................................38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................................38 4.3.2 TEST INSTRUMENTS.................................................................................................38 4.3.3 TEST PROCEDURE....................................................................................................38 4.3.4 DEVIATION FROM TEST STANDARD........................................................................38 4.3.5 TEST SETUP...............................................................................................................39 4.3.6 EUT OPERATING CONDITIONS ................................................................................39 4.3.7 TEST RESULTS ..........................................................................................................40 4.4 MAXIMUM OUTPUT POWER .....................................................................................44 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT......................................44 4.4.2 INSTRUMENTS ...........................................................................................................44 4.4.3 TEST PROCEDURES .................................................................................................44 4.4.4 DEVIATION FROM TEST STANDARD........................................................................45 Report No.: RF991214C28 3 Report Format Version 4.0.0 4.4.5 TEST SETUP...............................................................................................................45 4.4.6 EUT OPERATING CONDITIONS .............................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Test Mode A 2 Test Mode B 3 RADIATED EMISSION TEST Test Mode A 4 Test Mode B
