PY311100156Wireless ADSL2+ Modem Router

NETGEAR JDGN1000 User Manual NETGEAR JDGN1000 User Manual i Contents 1 Safety Precautions .......................................................................................... 2 2 Overview ......................................................................................................... 2 2.1 Application .......................................................................................... 2 2.2 Features..............................................................................................2 2.3 Standards Compatibility and Compliance ............................................ 2 3 Hardware Description and Hardware Installation ............................................. 2 3.1 Hardware Description.......................................................................... 2 3.1.1 Front Panel ............................................................................... 2 3.1.2 Rear Panel ............................................................................... 2 3.2 Hardware Installation........................................................................... 2 3.2.1 Choosing the Best Location for Wireless Operation .................. 2 3.2.2 Connecting the Device.............................................................. 2 4 PC Network Configuration and Login ............................................................... 2 4.1 PC Network Configuration ................................................................... 2 4.2 Logging In to the DSL Router .............................................................. 2 5 Web-Based Management ................................................................................ 2 5.1 Setup Wizard....................................................................................... 2 5.2 Add WPS Client .................................................................................. 2 5.3 Setup .................................................................................................. 2 5.3.1 Adsl Settings............................................................................. 2 5.3.2 Basic Settings........................................................................... 2 5.3.3 Interface Grouping .................................................................... 2 5.3.4 Wireless Settings ...................................................................... 2 5.4 Content Filtering.................................................................................. 2 5.4.1 Logs ......................................................................................... 2 5.4.2 Block sites ................................................................................ 2 5.4.3 Block Services .......................................................................... 2 5.5 Maintenance ....................................................................................... 2 5.5.1 Router Status............................................................................ 2 5.5.2 Attached Devices...................................................................... 2 5.5.3 Backup Settings........................................................................ 2 5.5.4 Set Password ........................................................................... 2 NETGEAR JDGN1000 User Manual ii 5.5.5 Router Upgrade ........................................................................ 2 5.5.6 Logout ...................................................................................... 2 5.6 Advanced ............................................................................................ 2 5.6.1 Wireless Settings ...................................................................... 2 5.6.2 Wireless Repeating Function .................................................... 2 5.6.3 Port Forwarding / Port Triggering .............................................. 2 5.6.4 WAN Setup............................................................................... 2 5.6.5 LAN Setup ................................................................................ 2 5.6.6 QoS Setup ................................................................................ 2 5.6.7 Dynamic DNS ........................................................................... 2 5.6.8 Static Routes ............................................................................ 2 5.6.9 Remote Management ............................................................... 2 5.6.10 UPnP................................................................................... 2 NETGEAR JDGN1000 User Manual 1 1 Safety Precautions Read the following information carefully before operating the device. Please follow the following precaution items to protect the device from risks and damage caused by fire and electric power:
Use volume labels to mark the type of power.
Use the power adapter that is packed within the device package.
Pay attention to the power load of the outlet or prolonged lines. An overburden power outlet or damaged lines and plugs may cause electric shock or fire accident. Check the power cords regularly. If you find any damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid any damage caused by overheating to the device. The holes on the device are designed for heat dissipation to ensure that the device works normally. Do not cover these heat dissipation holes.
Do not put this device close to a place where a heat source exists or high temperature occurs. Avoid the device from direct sunshine.
Do not put this device close to a place where is over damp or watery. Do not spill any fluid on this device.
Do not connect this device to any PC or electronic product, unless our customer engineer or your broadband provider instructs you to do this, because any wrong connection may cause any power or fire risk.
Do not place this device on an unstable surface or support. NETGEAR JDGN1000 User Manual 2 2 Overview Th…

Text truncated - open the document above for the full version.

FCC statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

Netgear Inc. 350 East Plumeria Drive, San Jose, California, United States, 95134 Date: 2011-02-21 General Declaration General Declaration General Declaration General Declaration FCC ID: PY311100156 We, Netgear Inc. declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies”. If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Mark Gandler / Project Manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected]

FCC ID: PY311100156 Date: 2011-02-21 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------- Mark Gandler/ Project Manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected] Netgear Inc. 350 East Plumeria Drive, San Jose, California, United States, 95134

Netgear Inc. 350 East Plumeria Drive, San Jose, California, United States, 95134 AUTHORIZATION LETTER FCC ID: PY311100156 Date:2011/2/21 To whom it may concern: We, the undersigned UNetgear Inc.U hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part15C and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Mark Gandler / Project Manager Netgear Inc. TEL.: 408-907-8000 FAX: 408-907-8097 E-mail: [email protected]

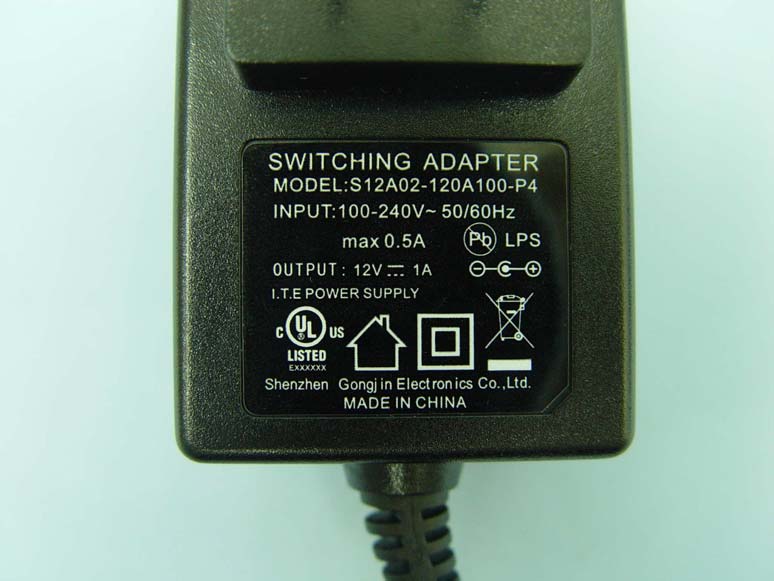

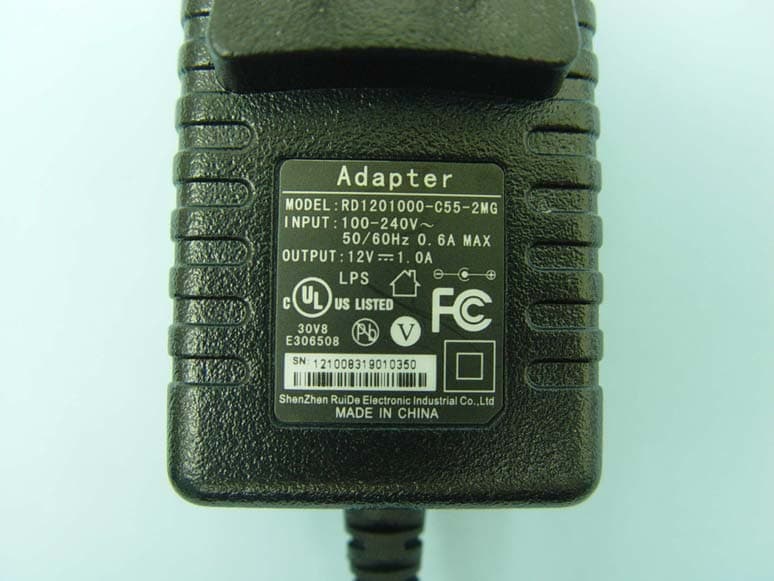

Page 1 CONSTRUCTION PHOTOS OF EUT FCC Adapter Model: S12A02-120A100-P4 Page 2 Page 3 FCC Adapter Model: RD1201000-C55-2MG Page 4 Page 5

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE 6 01AW-11281-031 of 1 AW, JDGN1000RUS, PLBLR HU 15APR11R HUINITIAL DOCUMENT CREATION 01 Pantone 430C NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 6. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 272-11128-03 FCC ID:PY311100156 US:5NHDL01BJDGN1000 Разработано NETGEAR Inc. в США. Сделано в Китае. JDGN1000 Серийный номер MAC-aдрес Беспроводной модем-маршрутизатор Доступ по умолчанию http://192.168.1.1 Имя пользователя: admin Пароль: password Электропитание: 12В макс. 1.0А

Page 6 Page 7 Page 8

FCC ID: PY311100156 Report No.: RF991227C33 Operational Description This device is a Wireless ADSL2+ Modem Router, which operates in 2.4GHz band; the maximum data rate could be up to 130Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 130Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc AC Adapter. The antenna type is Dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: RF991227C33 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF991227C33 MODEL NO.: JDGN1000 FCC ID: PY311100156 RECEIVED: Dec. 27, 2010 TESTED: Jan. 07 ~ Jan. 21, 2011 ISSUED: Jan. 25, 2011 APPLICANT: NETGEAR Inc. ADDRESS: 350 East Plumeria Drive, San Jose, California, United States, 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF991227C33 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD...............................................................................................4 1. CERTIFICATION............................................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................................6 2.1 MEASUREMENT UNCERTAINTY.................................................................................6 3. GENERAL INFORMATION ............................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ..............................................................................7 3.2 DESCRIPTION OF TEST MODES ................................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...........................................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................12 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................12 4. TEST TYPES AND RESULTS .....................................................................................13 4.1 RADIATED EMISSION MEASUREMENT ...................................................................13 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................13 4.1.2 TEST INSTRUMENTS.................................................................................................14 4.1.3 TEST PROCEDURES .................................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD........................................................................15 4.1.5 TEST SETUP...............................................................................................................16 4.1.6 EUT OPERATING CONDITIONS ................................................................................16 4.1.7 TEST RESULTS ..........................................................................................................17 4.2 CONDUCTED EMISSION MEASUREMENT ..............................................................29 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................29 4.2.2 TEST INSTRUMENTS.................................................................................................29 4.2.3 TEST PROCEDURES .................................................................................................30 4.2.4 DEVIATION FROM TEST STANDARD........................................................................30 4.2.5 TEST SETUP...............................................................................................................31 4.2.6 EUT OPERATING CONDITIONS ................................................................................31 4.2.7 TEST RESULTS ..........................................................................................................32 4.3 6dB BANDWIDTH MEASUREMENT...........................................................................36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................................36 4.3.2 TEST INSTRUMENTS.................................................................................................36 4.3.3 TEST PROCEDURE....................................................................................................36 4.3.4 DEVIATION FROM TEST STANDARD........................................................................36 4.3.5 TEST SETUP...............................................................................................................37 4.3.6 EUT OPERATING CONDITIONS ................................................................................37 4.3.7 TEST RESULTS ..........................................................................................................38 4.4 MAXIMUM OUTPUT POWER .....................................................................................41 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT......................................41 4.4.2 INSTRUMENTS ...........................................................................................................41 4.4.3 TEST PROCEDURES .................................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD........................................................................42 Report No.: RF991227C33 3 Report Format Version 4.0.0 4.4.5 TEST SETUP...............................................................................................................42 4…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) 2 CONDUCTED EMISSION TEST (TEST MODE B) 3 RADIATED EMISSION TEST (TEST MODE A) 4 RADIATED EMISSION TEST (TEST MODE B)
