PY311200167N300 WIRELESS ADSL2+ MODEM ROUTER

350 East Plumeria Drive San Jose, CA 95134 USA October 2011 202-10870-01 v1.0 N300 Wireless ADSL2+ Modem Router DGN2200v3 User Manual 2 N300 Wireless ADSL2+ Modem Router DGN2200v3 © 2011 NETGEAR, Inc. All rights reserved No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or for more information about the topics covered in this manual, visit the Support website at http://support.netgear.com Phone (US & Canada only): 1-888-NETGEAR Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/app/answers/detail/a_id/984 Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © 2011 NETGEAR, Inc. All rights reserved. Statement of Conditions To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use, or application of, the product(s) or circuit layout(s) described herein. Contents | 3 Contents Chapter 1 Hardware Setup Unpack Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Modem Router Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Position Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 ADSL Microfilters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 One-Line ADSL Microfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Two-Line ADSL Microfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Cable Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Verify the Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Chapter 2 Modem Router Setup Modem Router Setup Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . 18 Replace an Existing Modem and Router . . . . . . . . . . . . . . . . . . . . . . . . 18 Gather ISP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 NETGEAR Genie Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 View or Change Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Settings Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Log In to the Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Upgrade Modem Router Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Modem Router Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Manual Setup (Basic Settings) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 ADSL Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Unsuccessful Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Change Password and Login Time-Out . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Log Out Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Types of Logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Chapter 3 Wireless Settings Wireless Adapter Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Preset Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Security Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4 N300 Wireless ADSL2+ Modem Router DGN2200v3 Turn Off Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Disable SSID Broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Restrict Access by MAC Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Wireless Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Add Clients (Computers or Devices) to Your Network . . . . . . . . . . . . . . . . 31 Manual Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Wi-Fi Protected Setup (WPS) Method . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Wireless Settings Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Consider Every Device on Your Network . . . . . . . . . . . . . . . . . . . . . . . . 34 View or Change Wireless Settings . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Network Maintenance 61 N300 Wireless ADSL2+ Modem Router DGN2200v3 GUI Language Version. The currently selected language. Internet Port Settings MAC Address. The Ethernet MAC address of the DSL port. IP Address. The DSL port IP address. If no address is shown, the modem router cannot connect to the Internet. Network Type. The value depends on your ISP. IP Subnet Mask. The DSL port IP subnet mask. Gateway IP Address. The IP address used as a gateway to the Internet for computers configured to use DHCP. Domain Name Server. The modem router DNS server IP addresses. These addresses are usually obtained dynamically from the ISP. LAN Port (Local Ports) MAC Address. The modem router LAN port Ethernet MAC address. IP Address. The modem router LAN port IP address. The default is 192.168.0.1. DHCP. If Off, the modem router does not assign IP addresses to PCs on the LAN. If On, the modem router does assign IP addresses to PCs on the LAN. IP Subnet Mask. The IP subnet mask used by the modem router LAN. The default is 255.255.255.0. Modem ADSL Firmware Version. The version of the firmware. Modem Status. The connection status of the modem. DownStream Connection Speed. The modem receives data from the DSL line at this speed. UpStream Connection Speed. The modem transmits data to the DSL line at this speed. VPI. The Virtual Path Identifier setting. VCI. The Virtual Channel Identifier setting. Wireless Port See Wireless Settings Screen on page 33 for a more detailed description of these settings. Name (SSID). The Wi-Fi network name (service set ID) for the wireless network. Region. The country where the unit is set up for use. Network Maintenance 62 N300 Wireless ADSL2+ Modem Router DGN2200v3 Channel. The current channel, which determines the operating frequency. Mode. The current mbps setting. Wireless AP. Indicates if the access point feature is enabled. If disabled, the Wireless LED on the front panel is off. Broadcast Name. Indicates if the modem router is configured to broadcast its SSID. Show Statistics Click the Show Statistics button on the Router Status screen to display a screen similar to this: Port The statistics for the WAN (Internet), LAN (local), and wireless LAN (WLAN) ports. For each port, the screen displays the following: • Status. The link status of the port. • TxPkts. The number of packets transmitted since reset or manual clear. • RxPkts. The number of packets received since reset or manual clear. • Collisions. The number of collisions since reset or manual clear. • Tx B/s. The current line utilization—percentage of current bandwidth used. • Rx B/s. The average line utilization. • Up Time. The time elapsed since the last power cycle or reset. ADSL Link Downstream or Upstream The statistics for the upstream and downstream DSL link. These statistics are of interest to your technical support representative if you have problems obtaining or maintaining a connection. Network Maintenance 63 N300 Wireless ADSL2+ Modem Router DGN2200v3 • Connection Speed. Typically, the downstream speed is faster than the upstream speed. • Line Attenuation. The line attenuation increases the farther you are physically located from your ISP’s facilities. • Noise Margin. The signal-to-noise ratio, which is a measure of the quality of the signal on the line. • Poll Interval. The interval at which the statistics are updated in this window. Click the Stop button to freeze the display. Connection Status In the Router Status screen, click the Connection Status button to display a screen similar to this: • Connection Time. The time elapsed since the last connection to the Internet through the DSL port. • Connecting to sender. The connection status. • Negotiation. On or Off. • Authentication. On or Off. • Getting IP Address. The IP address assigned to the WAN port by the ISP. • Getting Network Mask. The network mask assigned to the WAN port by the ISP. View Attached Devices The Attached Devices screen shows all IP devices that the modem router has discovered on the local network. Network Maintenance 64 N300 Wireless ADSL2+ Modem Router DGN2200v3 Select Maintenance > Attached Devices. For each device, the table shows the IP address, the device name if available, and the Ethernet MAC address. Note that if the modem router is rebooted, the table data is lost until the modem router rediscovers the devices. To force the modem router to look for attached devices, click the Refresh button. Run Diagnostic Utilities The modem router has a diagnostics feature. Select Maintenance > Diagnostics to display the following screen. You can perform the following functions: • Ping an IP address or host name to test connectivity to see if you can reach a remote host. • Perform a DNS lookup to test if an Internet name resolves to an IP address to verify that the DNS server configuration is working. • Display the routing table to identify what other modem routers the modem router is communicating with. • Reboot the modem router to enable new network configurations to take effect or to clear problems with the modem router’s network connection. 65 6 6. USB Storage This chapter describes how to access and configure a USB storage drive attached to your modem router. Figure 8. USB port on rear panel. The USB port on the modem router can be used only to connect USB storage devices like flash drives or hard drives. Do not connect computers, USB modems, printers, CD drives, or DVD drives to the this USB port. This chapter includes the following sections: • USB Drive Requirements • You can enable the HTTP (via Internet) option on the Advanced USB Storage screen to share large files. This option supports downloading files only. • USB Storage Basic Settings • Edit a Network Folder • USB Storage Advanced Settings • Safely Remove USB Drive • Approved USB Devices (Advanced USB Settings) • Connect to the USB Drive from a Remote Computer • Connect to the USB Drive with Microsoft Network Settings USB Storage 66 N300 Wireless ADSL2+ Modem Router DGN2200v3…

Text truncated - open the document above for the full version.

Netgear Incorporated 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date:October 26, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID : PY311200167 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Signature: Name/Title: Mark Gandler/ Regulatory Compliance Manager Co TEL: 1-408-8903140 FAX: 1-408-9078097 Email: [email protected]

Netgear Incorporated 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date:October 26, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: PY311200167 , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature: Name/Title: Mark Gandler/ Regulatory Compliance Manager Co TEL: 1-408-8903140 FAX: 1-408-9078097 Email: [email protected]

Netgear Incorporated 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date:October 26, 2011 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. No.11, Wu-Gong 6 th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan(R.O.C.) Mr. Jason Lin Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: NETGEAR / DGN2200v3 FCC ID: PY311200167 Product Name: N300 Wireless ADSL2+ Modem Router Signature: Name/Title: Mark Gandler/ Regulatory Compliance Manager Co TEL: 1-408-8903140 FAX: 1-408-9078097 Email: [email protected]

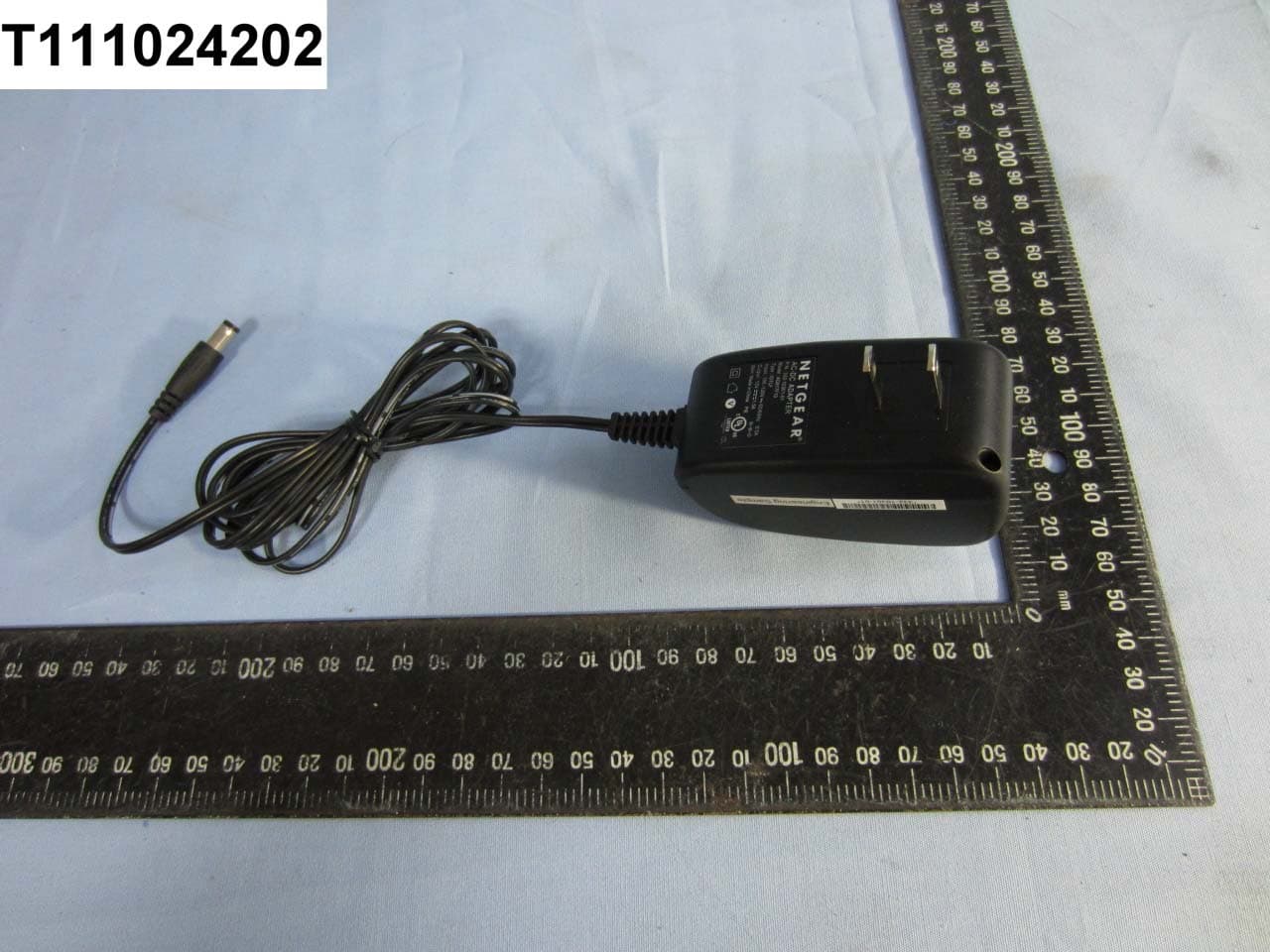

Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 1 / 15 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 2 / 15 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 3 / 15 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 4 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 5 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 6

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPDDATE 01AW-11639-011 of 1 AW, DGN2200NA, V3H1, PLBLR HU 07JUN11R HUINITIAL DOCUMENT CREATION01 Pantone Cool Gray 7C NETGEAR 490-10021-01 Pantone 285C Pantone 114C Pantone 200C Black 7 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS).

Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 7 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 8 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 9 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 10 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 11 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 12 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 13 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 14 Compliance Certification Services Inc. Report No.: T111024202 Date of Issue: November 4, 2011 A1 - 15

Part No : 6172019VWY REV: 0Where use: Maker : WHA YU INDUSTRIAL CO., LTD Maker P/N : C147-510363-A REV: X2 Part Name : ANTENNAVendor : WHA YUPlace/Origin : CHINA Part Description : ANTENNA C147-510363-A,105mm/1.8dBi/50Ohm/MHF/BK WYI Exem Contents or Instructions : *ٚ۶᧢ޓႊࠃছᆖ࠰ᓳࠀࢭᎁ৵ࡨױ᧢ޓ.Any change must be negotiated in advance, and execute the revision after SerComm's Approval. Final Approval :ԩ Conditional Approval : ԩ Temporary Approval : ԩ Attachments :ԩ Final disposition : Ϯ ApprovedREV ϭ Conditional Approved : ϭ Temporary approved : آᆖءֆ׹๺ױΔᣤᆃ਒ߦ. Prohibit from Copying without SerComm's permission. ܍!ᇡ!ਜ Approval Sheet May Hsu 04/23/2010 Ronnie Cheng 04/23/2010 PAO No : PAO-1001121 Page : 1 of 1 Date : 04 / 23 / 2010 RV120W Detailed specification is shown as attachment. In Charge (Name/Date) Checked By (Name/Date) Disposition Countersign ϭ electricalϭ dimensionalϭ visualϭ functionH/W EE ϭ electricalϭ dimensionalϭ visualϭ function ϮelectricalϮ dimensionalϮ visualϮ function PM EMI Component Mechanical PE Change history ( ᧢ޓಖᙕ ) Vendor is requested to supply samples again before Tony Chang 04/23/2010 Related Document ( ઌᣂ֮ٙ FILE No. ( ᒳᇆ ) (mm)/ (dd)/ (yy) ϭ sampleϮ specificationϭ drawingϭ other For purchasing to by pcs, for pilot Tony Chang 04/23/2010 poduction test. DISTRIBUTION :ϮCHUNANϮ SERNETϮVENDORϮR/D Dina Huang 04/23/2010 David Chiang 04/23/2010 PS Yang 04/23/2010 Ronnie Cheng 04/23/2010 ύድႝηިҽԖज़Ϧљ ЎҹᆅڋύЈวՉക April . 23 2010 Item Page 1.1 2.2 3.3~6 4.7~11 5.12~15 6.16~19 .....................
 ............... ..................... .....................
 ............... Contents Description  .................................... .................................... .....................     ...............     ............... Specification 1. Electrical Properties : 1.1 Frequency Range.................. 1.2 Impedance ..................... ... 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................2.0dBi (excluding cable loss ) 1.7 Cable Loss......... ............... 0.9dB Max. 1.8 Polarization..................... ...Linear ; Vertical 1.9 Admitted Power.................. 1.10 Cable.............................. ... 1.11 Connector........................... 2. Physical Properties : 2.1 Antenna Body................ ... ...TPE 2.2 Antenna Base................ ... ...PC 2.3 Antenna Base................ ... ...PC 2.4 Operating Temp. ............... ...-10к ~ +60к 2.5 Storage Temp. .................. ...-10к ~ +70к 2.6 Color .............................. Black -10 dB Max. ӥ˄ˁ˄ˆʳ˖˴˵˿˸ˎ˖̂˿̂̅ˍ ̊̅˴̌ ˠ ̨ ̇ʳˣ˿̈˺ RF Antenna Cable Assembly Omni-directional 1W 2.4GHz ~ 2.5GHz 50͈ Nominal 1.92:1 Max. 1 2 RF AntennaCable Assembly P/NO : C147-510363-ASPEC : 2.4~2.5GHzNO: 210570 2010.3.10 3 XY YZ XZ 0̓ Right Up Up 90̓ Back Back Right 180̓ Left Down Down 270̓ Front Front Left Z X Y DUTৱྒྷढ Gain Horn Antenna 4 4 ˥ ̇ʳ˔́̇˸́́˴ʳ˖˴˵˿˸ʳ˔̆̆˸̀˵˿̌ʳ ʳ P/NO : C147-510363-ASPEC : 2.4~2.5GHzNO:210 570 2010.3.10 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510363-A V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 ˥ ̇ʳ˔́̇˸́́˴ʳ˖˴˵˿˸ʳ˔̆̆˸̀˵˿̌ʳ ʳ P/NO : C147-510363-ASPEC : 2.4~2.5GHzNO:210 570 2010.3.10 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510363-A H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 6

Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 133 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT N300 Wireless ADSL2+ Modem Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 21.81 dBm (151.7050 mW) IEEE 802.11g mode: 24.71 dBm (295.8012 mW) IEEE 802.11n HT 20 MHz mode: 26.57 dBm (453.9416 mW) IEEE 802.11n HT 40 MHz mode: 26.75 dBm (473.1513 mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) MIMO: 2 dBi + 10 log (2) = 5.01 dBi (Numeric gain: 3.16) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 26.75dBm (473.1513mW) at 2422MHz (with 3.16 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 134 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 135 IEEE 802.11b mode: EUT output power = 151.7050 mW Numeric Antenna gain = 1.58 Æ Power density = 0.0476 mW / cm 2 IEEE 802.11g mode: EUT output power = 295.8012 mW Numeric Antenna gain = 1.58 Æ Power density = 0.09300 mW / cm 2 IEEE 802.11n HT 20 MHz mode: EUT output power = 453.9416 mW Numeric Antenna gain = 3.16 Æ Power density = 0.02854 mW / cm 2 IEEE 802.11n HT 40 MHz mode: EUT output power = 473.1513 mW Numeric Antenna gain = 3.16 Æ Power density = 0.29753 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 138 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-210 TEST REPORT For N300 Wireless ADSL2+ Modem Router Model: DGN2200v3 Trade Name: NETGEAR Issued to For FCC Netgear Incorporated 350 East Plumeria Drive San Jose, CA 95134 U.S.A. For IC NETGEAR INC. 350 East Plumeria Drive San Jose California 95134 United States Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: November 4, 2011 Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 4, 2011 Initial Issue ALL Jessica Ho Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................9 4.3 MEASUREMENT UNCERTAINTY .............................................................................................10 5. FACILITIES AND ACCREDITATIONS ........................................................................................11 5.1 FACILITIES .......................................................................................................................................11 5.2 EQUIPMENT......................................................................................................................................11 5.3 LABORATORY ACCREDITATIONS AND LISTING................................................................................11 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................13 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................13 6.2 SUPPORT EQUIPMENT ...............................................................................................................13 7. APPLICABLE RULES FOR INDUSTRY CANADA RSS-210 .....................................................14 8. FCC PART 15.247 REQUIREMENTS & RSS-210 REQUIREMENTS ....................................23 8.1 99% BANDWIDTH............................................................................................................................23 8.2 6DB BANDWIDTH.............................................................................................................................34 8.3 PEAK POWER....................................................................................................................................54 8.4 BAND EDGES MEASUREMENT ................................................................................................56 8.5 PEAK POWER SPECTRAL DENSITY....................................................................................................73 8.6 SPURIOUS EMISSIONS.................................................................................................................93 8.7 RADIATED EMISSIONS ............................................................................................................112 8.8 POWERLINE CONDUCTED EMISSIONS.............................................................................................130 APPENDIX I RADIO FREQUENCY EXPOSURE .............................................................................133 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...........................................................................136 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 4 1. TEST RESULT CERTIFICATION Applicant: For FCC Netgear Incorporated 350 East Plumeria Drive San Jose, CA 95134 U.S.A. For IC NETGEAR INC. 350 East Plumeria Drive San Jose California 95134 United States Manufacturer: For FCC Netgear Incorporated 350 East Plumeria Drive San Jose, CA 95134 U.S.A. For IC NETGEAR INC. 350 East Plumeria Drive San Jose California 95134 United States. Equipment Under…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 136 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Page 137 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: PY311200167 IC: 4054A-11200167 Report No.: T111024202 Pag…
