PY311400180N600 Wireless Dual Band Gigabit ADSL Modem Router

350 East Plumeria Drive San Jose, CA 95134 USA March 2012 202-10918-01 v1.0 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700v2 User Manual 2 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700v2 © 2012 NETGEAR, Inc. All rights reserved No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or for more information about the topics covered in this manual, visit the Support website at http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/app/answers/detail/a_id/984. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © 2011 NETGEAR, Inc. All rights reserved. Statement of Conditions To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use, or application of, the product(s) or circuit layout(s) described herein. 3 Contents Chapter 1 Hardware Setup Unpack Your New Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Position Your Wireless Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 ADSL Microfilters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 One-Line ADSL Microfilter (Not Included) . . . . . . . . . . . . . . . . . . . . . . . 17 Two-Line ADSL Microfilter (Included) . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Cable Your N600 Wireless Modem Router . . . . . . . . . . . . . . . . . . . . . . . . 19 Verify the Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Chapter 2 Get Started with NETGEAR Genie Prepare to Set Up the Wireless Modem Router . . . . . . . . . . . . . . . . . . . . . 22 Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . . 22 Gather ISP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Wireless Devices and Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . 22 Types of Logins and Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 NETGEAR Genie Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Use NETGEAR Genie after Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Upgrade Wireless Modem Router Firmware . . . . . . . . . . . . . . . . . . . . . . . 24 Wireless Modem Router Dashboard (Basic Home Screen) . . . . . . . . . . . . 25 Add Wireless Devices or Computers to Your Netw ork . . . . . . . . . . . . . . . . 26 Manual Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Wi-Fi Protected Setup (WPS) Method . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Chapter 3 Genie Basic Settings Internet Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Internet Basic Settings Screen Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Attached Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 ReadySHARE USB Storage and Printer . . . . . . . . . . . . . . . . . . . . . . . . . . 33 USB Storage (Basic Settings) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 ReadySHARE Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Wireless Settings Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Change WPA Security Option and Passphrase . . . . . . . . . . . . . . . . . . . 37 4 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700v2 Guest Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Guest Network Wireless Security Options . . . . . . . . . . . . . . . . . . . . . . . 39 Chapter 4 Genie Advanced Home Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 WPS Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 ADSL Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Change the…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: April 11, 2012 Subject: FCC Application for FCC ID: PY311400180 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Netgear Incorporated Address : 350 East Plumeria Drive San Jose California 95134 United States Signature : _________________________________ Name and Job Title. : Mark Gandler / Sr. Compliance Engineer E-mail : [email protected] Te l . : 408-907-8000

Date: April 23, 2012 Subject: Ad Hoc Mode Function Declaration FCC ID: PY311400180 To Whom it may concern, We, Netgear Incorporated, declare that the device (FCC ID: PY311400180) 1. is able to be operated on both master and client within the frequency bands a. 2412~2462MHz ；2422~2452MHz b. 5G Band 1: 5180~5240MHz ；5190~5230MHz c. 5G Band 4: 5745~5825MHz ；5755~5795MHz 2. Ad-hoc will be supported in 802.11bgn(2412~2462MHz) mode and 802.11a (Band1: 5180~5240MHz; Band4:5745~5825MHz) 3. is not able to operate in non-US/IC frequencies, country code selection will be disable for this device. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Netgear Incorporated Address : 350 East Plumeria Drive San Jose California 95134 United States Signature : _________________________________ Name and Job Title. : Mark Gandler / Sr. Compliance Engineer E-mail [email protected]

Date: April 11, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: PY311400180 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until September 18, 2012. 1. Internal Photographs 2. External Photographs 3. User’s manual Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Netgear Incorporated Address : 350 East Plumeria Drive San Jose California 95134 United States Signature : _________________________________ Name and Job Title. : Mark Gandler / Sr. Compliance Engineer E-mail : [email protected]

Date: 2012/4/11 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PY311400180 Product name: N600 Wireless Dual Band Gigabit ADSL MODEM ROUTER To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model DGND3700v2 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Netgear Incorporated Address : 350 East Plumeria Drive San Jose California 95134 United States Signature : _________________________________ Name and Job Title. : Mark Gandler / Sr. Compliance Engineer E-mail : [email protected] Te l . : 408-907-8000

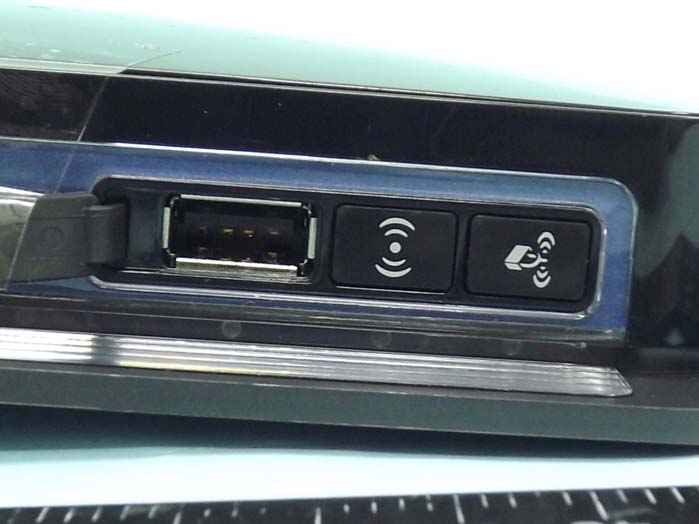

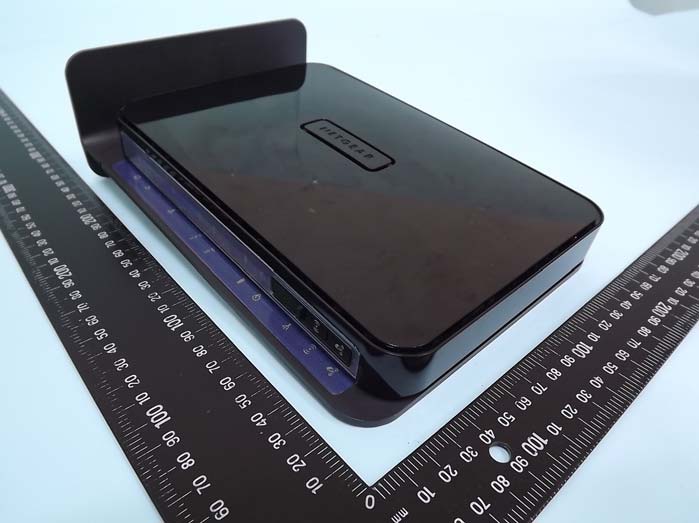

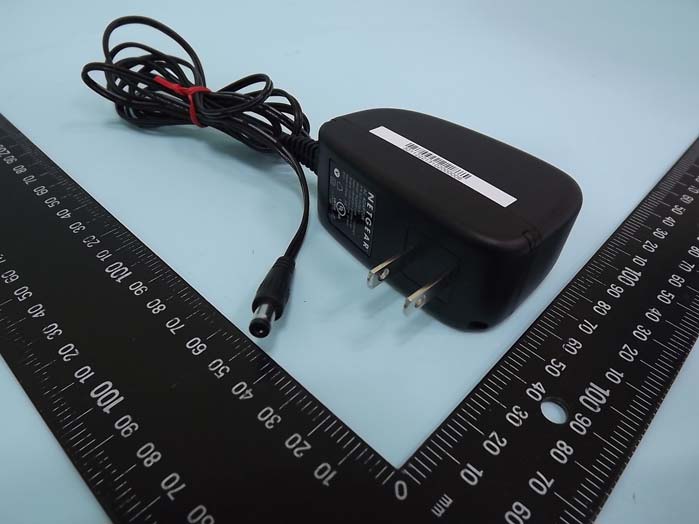

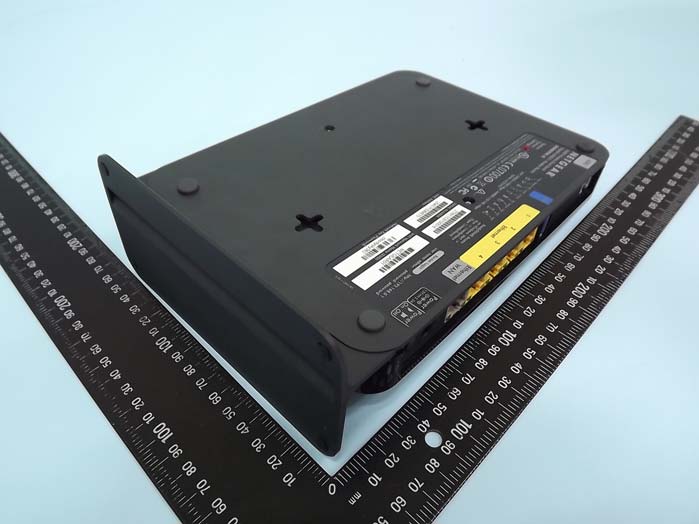

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B19 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B20 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055

45 175 87.5 15 2X R5 2X R1.5 6.5 9.5 19.8 2 R1.08 0.93 NOTES: 1. :#75白色特多龍，上打字用霧面PET，背壓克力膠,除料 5.所使用材質需符合Rohs 2.: 3.:+0mm,-0.2mm 4.:+0.2mm,-0.2mm 消銀龍/ Netgear DGND3700 1 1 1 1 01 2012.3.13 出紙方向 Pantone Cool Gray 7C NETGEAR 490-10021-01 Pantone 285C Pantone 114C Pantone 200C Black Pantone 144C 932ABL1472(272-11354-05)

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 5GHz Antenna FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B8 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B9 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 5GHz Antenna FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B10 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B11 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 2.4GHz Antenna FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B12 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B13 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 2.4GHz Antenna FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B14 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B15 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 5GHz WLAN Module Port 1 Port 2 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B16 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B17 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 2.4GHz WLAN Module Port 2 Port 1 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B18 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B19 OF B20 TEL : 886-3-327-3456 ISSUED DATE : Apr. 17, 2012 FAX : 886-3-318-0055

Page No. : 1 of 3 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 RF Exposure Evaluation Page No. : 2 of 3 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : 3 of 3 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1.3. Calculated Result and Limit Mobile Max Conducted Power for 2.4GHz Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.437 20 3 1.995262 26.50 446.6836 0.1774 Max Conducted Power for 5GHz Band 1 Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5.230 20 5.79 3.79315 14.55 28.5102 0.0215 Band 4 Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5.825 20 5.79 3.79315 25.23 333.4264 0.2517 **The antenna gain refer to report section 2.3 table.

Page No. : 1 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 Co-location Report Page No. : 2 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1 TEST RESULT 1.1 Radiated Emissions Measurement 1.1.1 Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2 Measuring Instruments and Setting Please refer to section 2 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band)1MHz / 1MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP Page No. : 3 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1.1.3 Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Page No. : 4 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1.1.4 Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade from 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 1.1.5 Test Deviation There is no deviation with the original standard. 1.1.6 EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m Page No. : 5 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1.1.7 Results of Radiated Emissions (9kHz~30MHz) Final Test Date Mar. 26, 2012 Test Site No. 03CH02-HY Temperature 23.3°C Humidity 61% Test Engineer Streak Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. Page No. : 6 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1.1.8 Results of Radiated Emissions (30MHz~1GHz) Final Test Date Mar. 26, 2012 Test Site No. 03CH02-HY Temperature 23.3°C Humidity 61% Test Engineer Streak Configuration WLAN 5GHz and 2.4GHz test Horizontal Page No. : 7 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Page No. : 8 of 11 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847 1.1.9 Results for Radiated Emissions (1GHz~10 th Harmonic) Final Test Date Mar. 27, 2012 Test Site No. 03CH02-HY Temperature 23.3°C Humidity 61% Test Engine…

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR230847AI FCC RADIO TEST REPORT According to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment :N600 Wireless Dual Band Gigabit ADSL MODEM ROUTER Brand Name :Netgear Model No. :DGND3700v2 Filing Type :New Application Applicant Manufacturer :Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. FCC ID :PY311400180 Received Date :Mar. 16, 2012 Final Test Date :Apr. 07, 2012 Statement Test result included is only for the 802.11a/n (5725~5850 MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Apr. 17, 2012 FAX : 886-3-318-0055 FCC ID : PY311400180 FCC TEST REPORT Report No. : FR230847AI Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Accessories ..............................................................................................................................................................................................4 2.3 Table for Filed Antenna ............................................................................................................................................................................4 2.4 Table for Carrier Frequencies ..................................................................................................................................................................5 2.5 Table for Test Modes ...............................................................................................................................................................................5 2.6 Table for Testing Locations ......................................................................................................................................................................5 2.7 Table for Supporting Units .......................................................................................................................................................................6 2.8 Table for Parameters of Test Software Setting ........................................................................................................................................6 2.9 EUT Operation during Test ......................................................................................................................................................................7 2.10 Test Configuration ....................................................................................................................................................................................7 3 TEST RESULT ......................................................................................................................................................... 9 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................9 3.2 Maximum Peak Output Power Measurement ........................................................................................................................................13 3.3 Power Spectral Density Measurement ...................................................................................................................................................16 3.4 6dB Spectrum Bandwidth Measurement ...............................................................................................................................................30 3.5 Radiated Emissions Measurement ........................................................................................................................................................55 3.6 Band Edge and Fundamental Emissions Measurement ........................................................................................................................95 3.7 Antenna Requirements ........................................................................................................................................................................108 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................ 109 5 TEST LOCATION ................................................................................................................................................. 111 6 TAF CERTIFICATE OF ACCREDITATION ......................................................................................................... 112 APPENDIX A. TEST PHOTOS ................................................................................................................................. A6 APPENDIX B. PHOTOGRAPHS OF EUT .............................................................................................................. B20 SPORTON International Inc. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Apr. 17, 2012 …

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR230847AC FCC RADIO TEST REPORT According to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment :N600 Wireless Dual Band Gigabit ADSL MODEM ROUTER Brand Name :Netgear Model No. :DGND3700v2 Filin g Type :New Application Applicant Manufacturer :Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. FCC ID :PY311400180 Received Date :Mar. 16, 2012 Final Test Date :Apr. 08, 2012 Statement Test result included is only for the 802.11b/g/n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Apr. 17, 2012 FAX : 886-3-318-0055 FCC ID : PY311400180 FCC TEST REPORT R…

Text truncated - open the document above for the full version.
