PY312100188R6300 WiFi Router

NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA April 2012 Technical Support Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at www.NETGEAR.com/register. Registration is required before you can use our telephone support service. Registration through our website is strongly recommended. Go to http://support.netgear.com for product updates and web support. GPL might be included in this product; to view the GPL license agreement, go to ftp://downloads.netgear.com/files/ GPLnotice.pdf. Dual Band 11ac WiFi Router R6300 Installation Guide Package Contents The box should contain the following items. If any items are incorrect, missing, or damaged, contact your NETGEAR dealer. Ethernet cable Power cord Dual Band WiFi Router Power adapter You can use this diagram to connect your router or follow the detailed instructions in this booklet. 1. Prepare your modem. 4. Connect 3. Power on the router. 5. Launch a browser. 2. Connect your modem. Unplug your modem. If it has a battery backup, remove the battery. Plug in your modem. Put the battery back in. Then cable the modem to the router Internet port. Modem Internet Router DSL or Cable a computer. Compliance Declarations of Conformity For complete DoC please visit the NETGEAR EU Declarations of Conformity website at: http://support.netgear.com/app/answers/detail/a_id/11621/. For GNU General Public License (GPL) related information, please visit http://support.netgear.com/app/answers/detail/a_id/2649 This symbol is placed in accordance with the European Union Directive 2002/96 on the Waste Electrical and Electronic Equipment (the WEEE Directive). If disposed of within the European Union, this product should be treated and recycled in accordance with the laws of your jurisdiction implementing the WEEE Directive. 1 Contents Install Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Prepare your modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Connect your modem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Power on the router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Connect a computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Launch a browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Preset Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Wireless Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Add Wireless Devices to the Network . . . . . . . . . . . . . . . . . . . . 7 WPS Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Manual Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Access the Router to Make More Changes . . . . . . . . . . . . . . . . 8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ReadySHARE Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ReadySHARE Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Other Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3 Install Your Router Make sure that your Internet service is active before you install the router. Follow steps 1 through 5. 1. Prepare your modem. a.Unplug your modem’s power. b. If the modem has a battery backup, remove its batteries. c. If your modem was already connected to another router, disconnect the cable between your modem and that router. Now your modem should be completely turned off, and cabled only to the wall jack for your Internet service. 2. Connect your modem. a.Plug in, then turn on your modem. (Replace the batteries if you removed them previously.) b. With the yellow Ethernet cable that came with the router, connect your modem to the Internet port of your router. 1 Internet DSL or cable Modem 2 a b Router Modem 4 3. Power on the router. a.Connect the power adapter to the router and plug the power adapter into an outlet. b. Before going to Step 4, wait for the wireless LED on the front panel of the router to turn on. If none of the LEDs on the front panel are on, press the Power On/Off button on the rear panel of the router. 4. Connect a computer. You can use an Ethernet cable (not included) or connect wirelessly. • Use the Ethernet cable to connect your computer to an Ethernet port on your router. • Or, connect wirelessly by using the preset wireless security settings located on the label on the bottom of the router. 3 a b On/Off Router Modem 4 Router Modem Computer 5 5. Launch a browser. If a web page does not open, close and reopen the browser and type http://routerlogin.net in the address bar, or see Troubleshooting on page 10. Preset Wireless Security This product has a unique WiFi network name (SSID) and network key (password). The default SSID and network key (password) are uniquely generated for every device, like a serial number, to protect and maximize your wireless security. This information is located on the label on the bottom of the product. NETGEAR recommends that you do not change the preset WiFi network name (SSID) and network key (password). If you do change the settings, the security SSID and password on the bottom of the product no longer apply. 5 6 Wireless Network Settings Record the default preset wireless settings that are printed on the label in the space below for easy reference. If you change the default settings, record them here for easy reference, and then store this booklet in a safe place: To retrieve or update your wireless password, type www.routerlogin.net in a web browser and log in using the default user name (admin) and password (password). Select Wireless Settings to locate your wireless password. WiFi Network Name (SSID): Network Key (Password): WiFi Network Name (SSID): Network Key (Password): 7 Add Wireless Devices to the Network Cho…

Text truncated - open the document above for the full version.

Page No. : 9 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Date: 2012/4/26 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312100188 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 15 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 DoC Attestation Letter Date: 2012/4/26 We NETGEAR, Inc., as the grantee of this project FCC ID: PY312100188, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911, USA Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911, USA Tel: +1 408 907 8000 Fax: +1 408 907 8097 Power of Attorney Date: 2012/4/26 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / R6300 FCC ID: PY312100188 Product name: R6300 WiFi Router FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911, USA Signature : ____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

This product is basic pre 802.11ac. It is only supported one 80MHz bandwidth channel within 5150~5250MHz & another 80MHz bandwidth channel within 5725~5850MHz(15.247). These two 80MHz bandwidth will not transmit simultaneously at any given time so that it will be not required PBA procedure in below . It is also listed channel - In KDB 644545 , Permit but ask (PBA) rule All devices that are capable of transmitting simultaneously in more than one Part-15 band between 5 and 6 GHz (i.e., in two or more of the four U-NII bands or in the 5.8 GHz 15.247 band and at least one U-NII band) are subject to Permit But Ask (PBA)1 provisions. This includes devices marketed as IEEE 802.11acTM or pre-ac. The below figure is the channels list and any two or more channels will NOT transmit simultaneously at any given time. Leo Huang /Sporton.

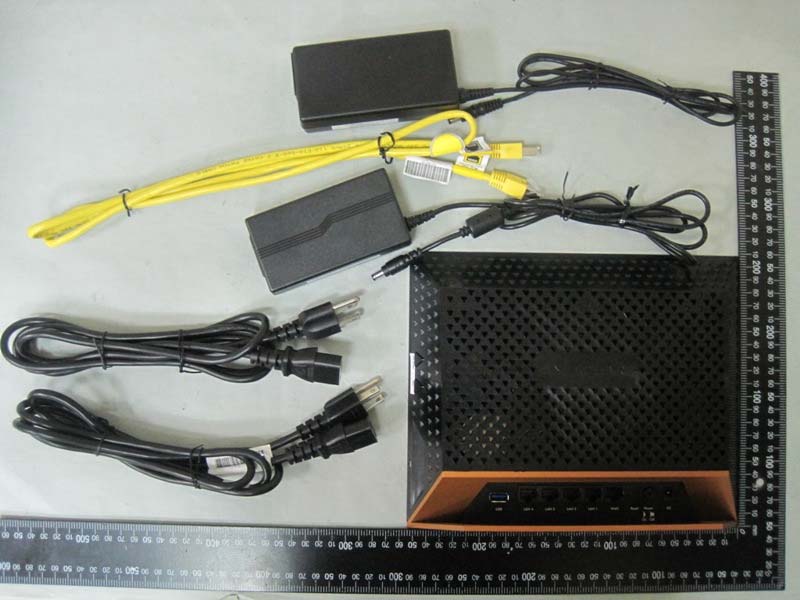

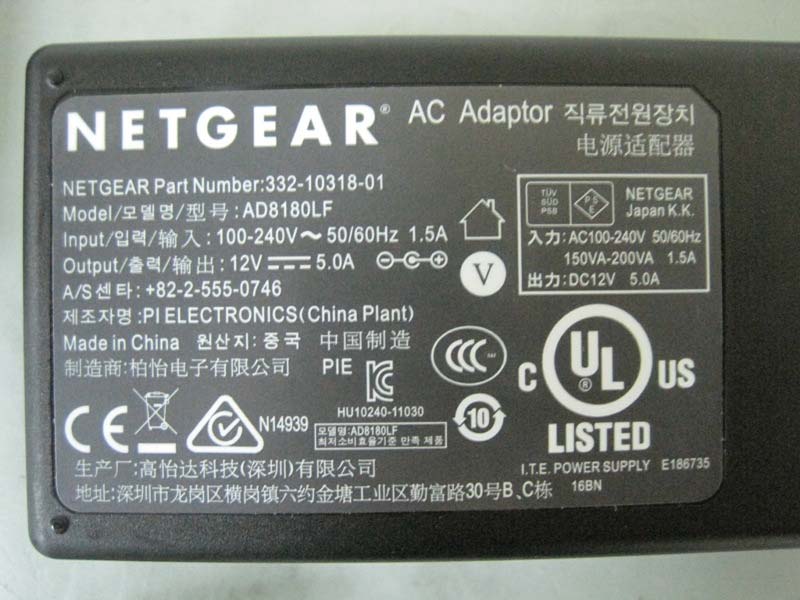

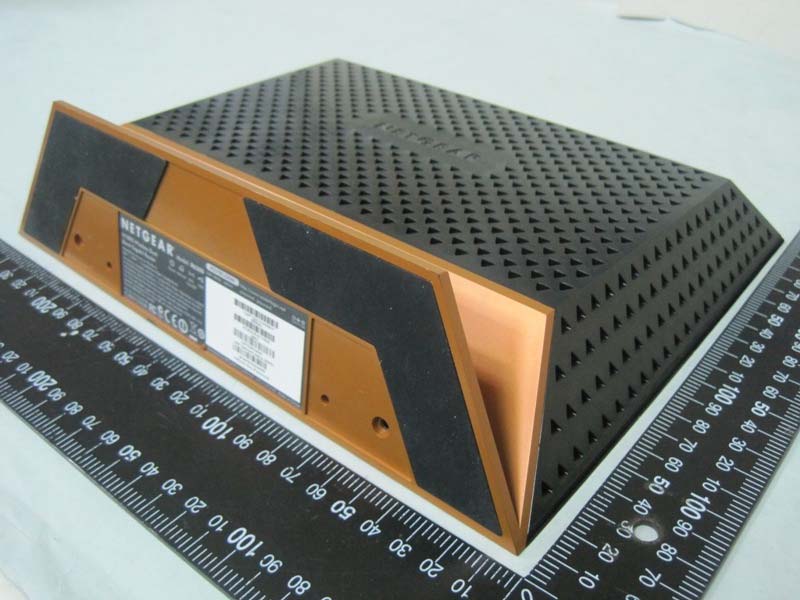

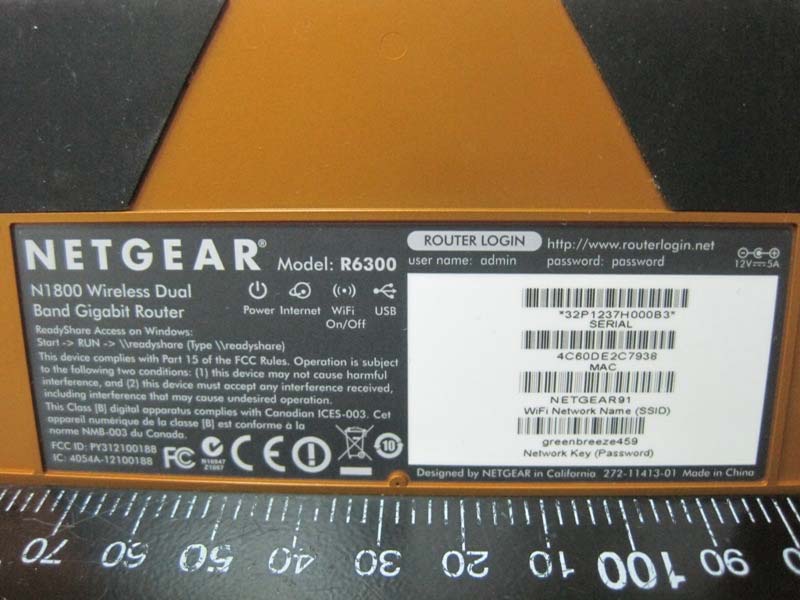

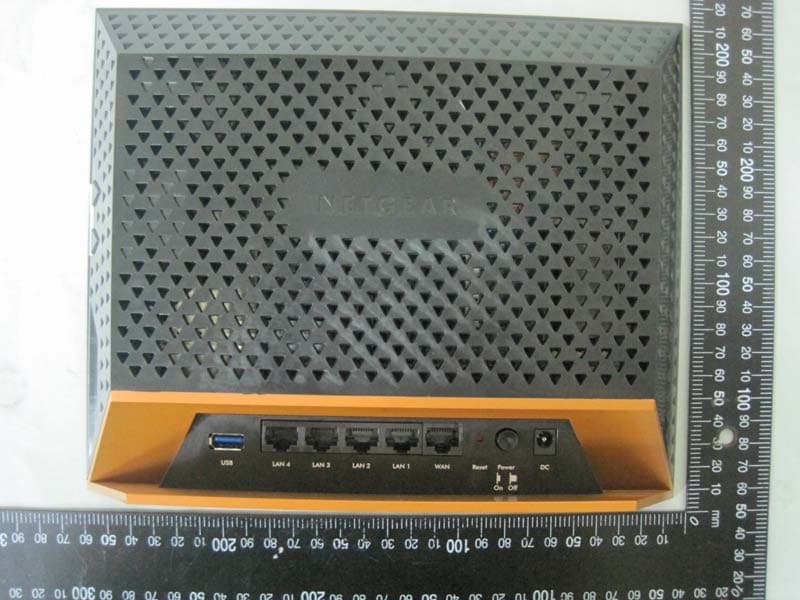

Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 1 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 2 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 3 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 4 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 5 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 6 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 7 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 8 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Adpater 1 Model: NU60-H120500-l1 P/N number: 332-10122-03 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 9 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 10 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Adpater 2 Model: AD8180LF P/N number: 332-10318-01 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 11 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 12 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 13 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 14 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 15 OF 15 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255

Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 1 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 2 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 3 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 4 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 5 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 6 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 7 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 8 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 9 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 10 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 11 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 12 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 13 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 14 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 15 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 16 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 17 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 18 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 19 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 20 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 21 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255 Report No.: 242515 SPORTON International Inc. PAGE NUMBER : 22 OF 22 TEL : 886-2-2696-2468 ISSUED DATE : May 3, 2012 FAX : 886-2-2696-2255

Report No.: FR242515 FCC ID: PY312100188 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR242515 FCC ID: PY312100188 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR242515 FCC ID: PY312100188 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n MCS020MHz : 16.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.23 2.6485 16.9212 49.2179 0.016606 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 26.70 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.97 7.8886 26.6954 467.2421 0.469540 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11bg: 28.54 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.22 5.2723 28.5388 714.3017 0.479747 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.469540 / 1 + 0.479747 / 1 =0.949287, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR242515 FCC ID: PY312100188 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR242515 FCC ID: PY312100188 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 22°C Humidity 61% Test Engineer Robert Chang Configurations 2.4G + 5G TX Horizontal Report No.: FR242515 FCC ID: PY312100188 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134-1911 FCC ID PY312100188 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name R6300 WiFi Router Brand Name NETGEAR Model Name R6300 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Mar. 29, 2012 Final Test Date Apr. 27, 2012 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR242515AA Report Format Version: 01 Page No. : i of ii FCC ID: PY312100188 Issued Date : May 03, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................19 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................27 4.4. Power Spectral Density Measurement ..............................................................................................................................................36 4.5. Peak Excursion Measurement ...........................................................................................................................................................45 4.6. Radiated Emissions Measurement ....................................................................................................................................................50 4.7. Band Edge Emissions Measurement .................................................................................................................................................65 4.8. Frequency Stability Measurement ....................................................................................................................................................71 4.9. Antenna Requirements .....................................................................................................................................................................73 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 74 6. TEST LOCATION.............................................................................................................................................. 76 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 77 …

Text truncated - open the document above for the full version.

Report No.: FR242515 FCC ID: PY312100188 Page No. : 1 of 6 Appendix A. Test Photos Report No.: FR242515 FCC ID: PY312100188 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR242515 FCC ID: PY312100188 Page No. : 3 of 6 SIDE VIEW Report No.: FR242515 FCC ID: PY312100188 Page No. : 4 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR242515 FCC ID: PY312100188 Page No. : 5 of 6 Test Configuration: 30MHz ~1GHz Test Mode : Mode 2 FRONT VIEW REAR VIEW Report No.: FR242515 FCC ID: PY312100188 Page No. : 6 of 6 Test Configuration: Above 1GHz Test Mode : Mode 2 FRONT VIEW REAR VIEW
