PY312200201WLAN 802.11 1x1 SB + BT3.0 SDIO Module for NeoTV Prime

WLAN 802.11 1x1 SB + BT3.0 SDIO Module for NeoTV Prime GTV100 User Manual N E T G E A R ￿ 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Pentium is trademark of Intel. All copyright reserved. 2 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 3 20cm between the radiator & your body. 4 IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: K倀倀R-DHSM ". If the size of the end product is larger than 8x10cm, the n the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 7 Table of Contents 1. INTRODUCTION 8 2. DRIVER/UTILITY INSTALLATION / UNINSTALLATION 8 3. CONNECTING TO AN EXISTING NETWORK 8 4. MODIFYING A WIRELESS NETWORK 9 4.1 MODIFYING GENERAL SETTINGS .............................................................................................. 9 4.2 MODIFYIN G SECURITY SETTINGS ............................................................................................ 10 5. WIFI / BT SPECIFICATIONS 12 APPENDIX A: FAQ ABOUT WLAN 14 8 1. Introduction Thank you for purchasing the WLAN 802.11 1x1 SB + BT3.0 SDIO Module for NeoTV Prime that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. System Requirements - 128 MB of RAM or later (recommended) - 300 MHz processor or higher 2. Driver/Utility Installation The driver should have been installed before the media box is shipped from the manufacturer. You can plu g this adapter to your media box and start using its network function without installing driver or util ity. 3. Connecting to an Existing Network 1. Use the remote control that came with your Blueray player to access the network configuration settings page. 2. Select the scanning wireless network function. The system starts to scan for available network. On this list, click Refresh to refresh the list at any time 3. Select the network you want to connect to. 4. If t…

Text truncated - open the document above for the full version.

Netgear Inc. 350 East Plumeria Drive,San Jose, CA 95134, USA Tel: (408) 890-3530 / Fax: (408) 907-8097 Confidential Letter Date: 2012/11/16 Federal Communications Commission Authorization and Evaluation Division FCC ID：PY312200201 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Netgear Inc. Applicant’s company address : 350 East Plumeria Drive,San Jose, CA 95134, USA Signature : _____________________________ Masood Abrishamcar Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : (408) 890-3530

Netgear Inc. 350 East Plumeria Drive,San Jose, CA 95134, USA Tel: (408) 890-3530 / Fax: (408) 907-8097 Power of Attorney Date: 2012/11/16 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / GTV100 FCC ID: PY312200201 Product name: WLAN 802.11 1x1 SB + BT3.0 SDIO Module for NeoTV Prime FCC Grantee contact person information. Applicant’s company name : Netgear Inc. Applicant’s company address : 350 East Plumeria Drive,San Jose, CA 95134, USA Signature : _____________________________ Masood Abrishamcar Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : (408) 890-3530

Netgear Inc. 350 East Plumeria Drive,San Jose, CA 95134, USA Tel: (408) 890-3530 / Fax: (408) 907-8097 Ad Hoc Mode Function Declaration Date: 2012/11/16 FCC ID：PY312200201 To Whom it may concern, We, the undersigned, declare that the EUT (Model Name: GTV100) doesn’t have Ad Hoc function on “non-US/Canada frequencies”. Regards, FCC Grantee contact person information. Applicant’s company name : Netgear Inc. Applicant’s company address : 350 East Plumeria Drive,San Jose, CA 95134, USA Signature : _____________________________ Masood Abrishamcar Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : (408) 890-3530

Page No. : 21 Module Approval Request Letter Subject: Module Approval Date: 2012/11/12 FCC ID: PY312200201 Dear Reviewer, We, Sporton International Inc., are authorized by Netgear Inc. to have their state-of-the-art WLAN 802.11 1x1 SB + BT3.0 SDIO Module for NeoTV Prime approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip 88W8787 BGA 120. 3. The requirement of power supply regulation: Power regulator has been integrated in chip 88W8787 BGA 120. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

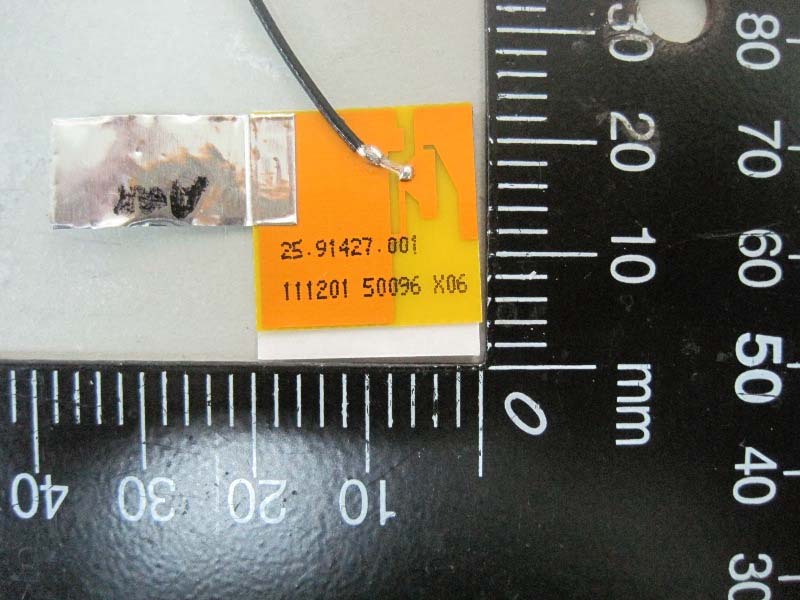

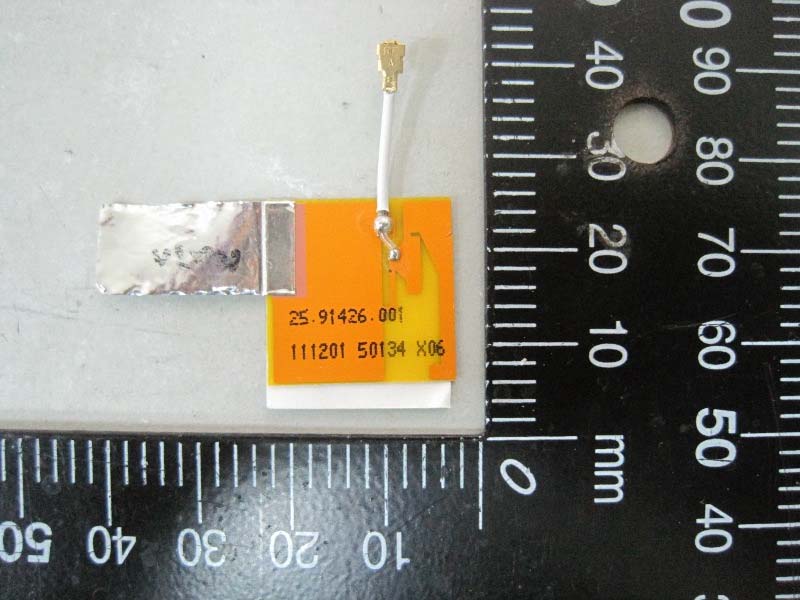

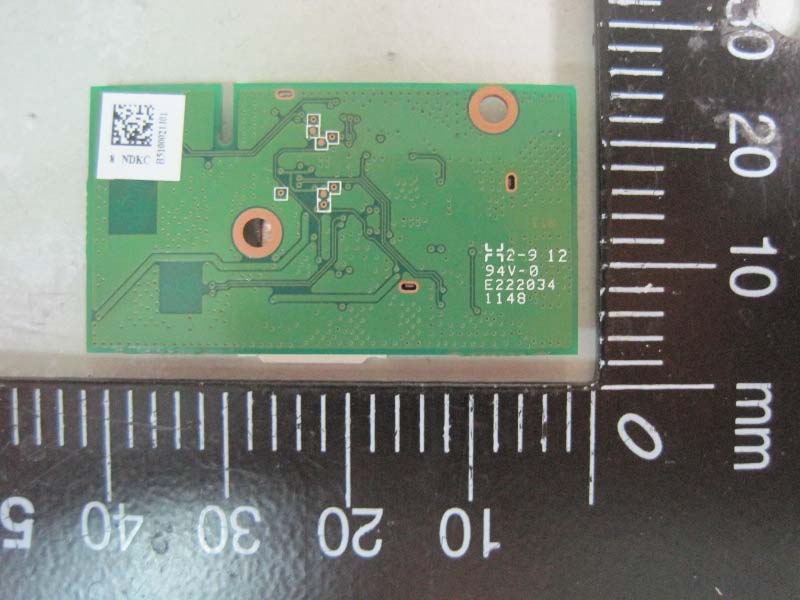

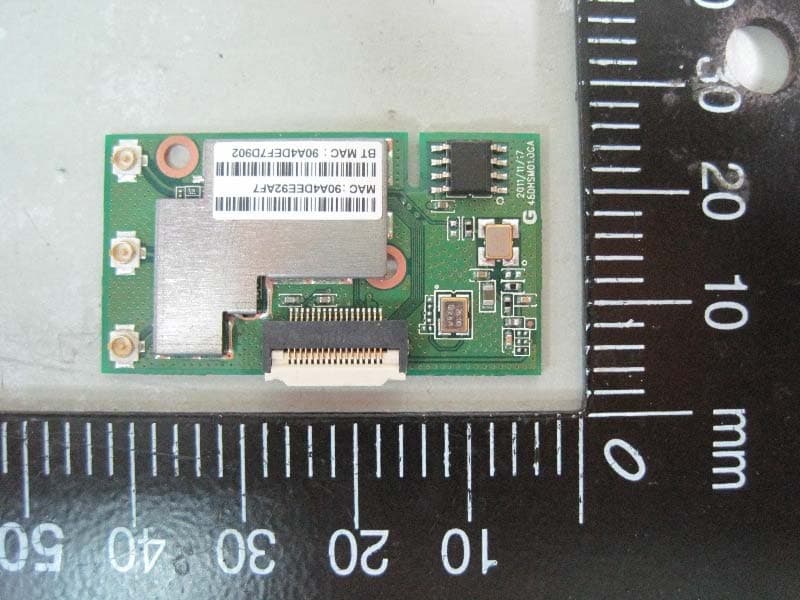

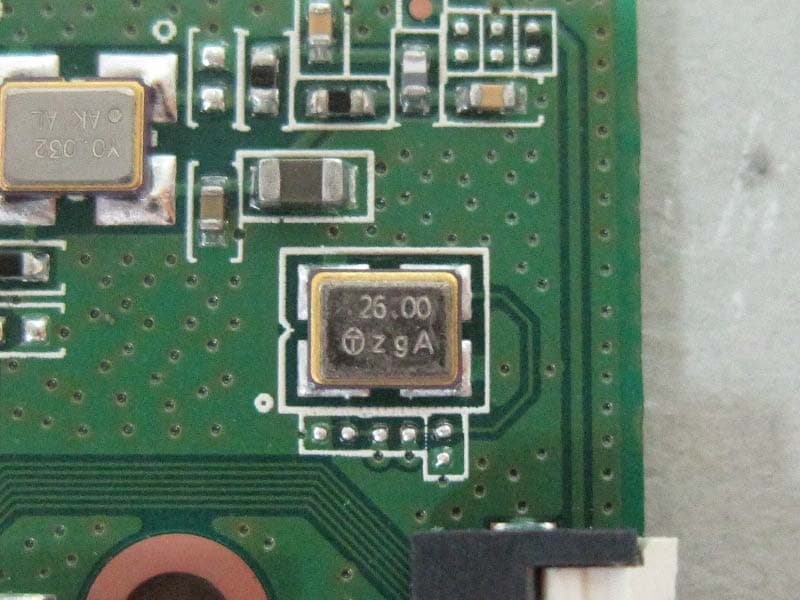

Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255 Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255 Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255 Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255 Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255 Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255 Report No.:EP221025-01 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 19, 2012 FAX : 886-2-2696-2255

Unit: mm

Report No.: FR221025-01 FCC ID: PY312200201 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR221025-01 FCC ID: PY312200201 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR221025-01 FCC ID: PY312200201 Page No. : B3 of B3 1.3. Calculated Result and Limit For WLAN Function: For 2.4GHz Band: Antenna type : PIFA Antenna Antenna Port : Ant. B Max Conducted Power for IEEE 802.11n : 15.58 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.83 1.2106 15.5800 36.1410 0.008709 1 Complies For Bluetooth Function: 3.0 Antenna type : PIFA Antenna Antenna Port : Ant. C Max Conducted Power for Connector : 0.45 dBm Antenna Gain (dBi) Antenna Gain (numeric) Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.41 1.3836 0.4500 1.1092 0.000305 1 Complies CONCULSION: Both of the WLAN and Bluetooth can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.008709 / 1 + 0.000305 / 1 = 0.009014, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Netgear Inc. Applicant Address 350 East Plumeria Drive,San Jose, CA 95134, USA FCC ID PY312200201 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Product Name WLAN 802.11 1x1 SB + BT3.0 SDIO Module for NeoTV Prime Brand Name NETGEAR Model Name GTV100 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 10, 2012 Final Test Date Oct. 25, 2012 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR221025-01 Report Format Version: 01 Page No. : iof ii FCC ID: PY312200201 Issued Date :Nov. 19, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 6 3.5. Table for Test Modes .................................................................................................................................................................................. 6 3.6. Table for Testing Locations........................................................................................................................................................................ 7 3.7. Table for Supporting Units ......................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 7 3.9. Test Configurations..................................................................................................................................................................................... 9 4. TEST RESULT......................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 12 4.2. Peak Output Power Measurement ....................................................................................................................................................... 16 4.3. Average Output Power Measurement................................................................................................................................................. 19 4.4. Power Spectral Density Measurement.................................................................................................................................................. 22 4.5. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 34 4.6. Radiated Emissions Measurement......................................................................................................................................................... 43 4.7. Band Edge Emissions Measurement...................................................................................................................................................... 61 4.8. Antenna Requirements ........................................................................................................................................................................... 74 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 75 6. TEST LOCATION.................................................................................................................................................. 77 7. TAF CERTIFICATE OF ACCREDITATION.............................................................................................................. 78 APPENDIX A. TEST PH…

Text truncated - open the document above for the full version.

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Netgear Inc. Applicant Address 350 East Plumeria Drive,San Jose, CA 95134, USA FCC ID PY312200201 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Product Name WLAN 802.11 1x1 SB + BT3.0 SDIO Module for NeoTV Prime Brand Name NETGEAR Model Name GTV100 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 10, 2012 Final Test Date Oct. 25, 2012 Submission Type Original Equipment Statement Test result included is only for the Bluetooth part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR221025-01 Report Format Version: 01 Page No. : i of ii FCC ID: PY312200201 Issued Date :Nov. 19, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 3 3.3. Table for Filed Antenna ............................................................................................................................................................................. 3 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 4 3.5. Table for Test Modes .................................................................................................................................................................................. 4 3.6. Table for Testing Locations........................................................................................................................................................................ 4 3.7. Table for Supporting Units ......................................................................................................................................................................... 5 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 5 3.9. Test Configurations..................................................................................................................................................................................... 6 4. TEST RESULT........................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 9 4.2. Maximum Peak Output Power Measurement..................................................................................................................................... 13 4.3. Hopping Channel Separation Measurement ...................................................................................................................................... 15 4.4. Number of Hopping Frequency Measurement................................................................................................................................... 23 4.5. Dwell Time Measurement........................................................................................................................................................................ 25 4.6. Radiated Emissions Measurement......................................................................................................................................................... 33 4.7. Band Edge Emissions Measurement...................................................................................................................................................... 42 4.8. Antenna Requirements ........................................................................................................................................................................... 48 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 49 6. TEST LOCATION.................................................................................................................................................. 51 7. TAF CERTIFICATE OF ACCREDITATION.............................................................................................................. 52 APPENDIX A. TEST PHOTOS..................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR221025-01 FCC ID: PY312200201 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR221025-01 FCC ID: PY312200201 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 60% Test Engineer Serway Li Configurations Ant. B + Ant. C Horizontal Report No.: FR221025-01 FCC ID: PY312200201 Page No. : C3 of C3 Vertial

Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A1 of A8 Appendix A. Test Photos Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A2 of A8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A3 of A8 SIDE VIEW Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A4 of A8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A5 of A8 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A6 of A8 SIZE VIEW Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A7 of A8 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR221025-01 FCC ID: PY312200201 Page No. : A8 of A8 REAR VIEW
