PY312300208Universal Dual Band Wi-Fi Extender

350 East Plumeria Drive San Jose, CA 95134 USA August 2012 202-11049-01 v1.0 Universal Dual Band WiFi Range Extender - Desktop/Wallplug WN3500RP User Manual 2 Universal Dual Band WiFi Range Extender - Desktop/Wallplug WN3500RP © 2012 All rights reserved No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of NETGEAR, Inc. NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © 2012 All rights reserved. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, get support online, or for more information, visit the Support website at http://support.netgear.com Phone (US & Canada only): 1-888-NETGEAR Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx Statement of Conditions To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that might occur due to the use, or application of, the product(s) or circuit layout(s). 3 Table of Contents Chapter 1 Getting Started Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Attach the Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 How the Extender Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 When to Use Your Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Positioning Your Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Connect a Computer to the Extender with an Ethernet Cable . . . . . . . . . . . 9 Log In to the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Use NETGEAR Genie to Set Up the Extender. . . . . . . . . . . . . . . . . . . . . . 11 Chapter 2 Extender Network Settings Connect the Extender to an Existing Network . . . . . . . . . . . . . . . . . . . . . . 14 Use WPS to Join the Extender’s Wireless Network . . . . . . . . . . . . . . . . . . 15 Extender Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Set Up WPA, WPA2, or WPA + WPA2. . . . . . . . . . . . . . . . . . . . . . . . . . 17 Set Up WEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Extender IP Address Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Show Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Attached Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Back Up and Manage Extender Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Set the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Advanced Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Chapter 3 Troubleshooting Smart Wizard FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Connecting to http://www.mywifiext.net . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Joining Wireless Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Appendix A Supplementary Information Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Appendix B Notification of Compliance 4 1 1. Getting Started This chapter covers the following topics: • Hardware Features • How the Extender Works • Connect a Computer to the Extender with an Ethernet Cable • Log In to the Extender • Use NETGEAR Genie to Set Up the Extender For more information about the topics covered in this manual, visit the support website at http://support.netgear.com. Getting Started 5 Universal Dual Band WiFi Range Extender - Desktop/Wallplug WN3500RP Hardware Features Front and Side Panels WPS button Power On/Off button Power On/Off LED Link Rate 2.4 GHz LED Link Rate 5 GHz LED Wireless Device to Extender LED WPS LED LEDsDescription Power • On. Power is supplied to the extender. • Off. Power is not supplied to the extender. Link Rate 2.4 GHz • Green. The wireless connection between the extender and the router is optimum. • Yellow. The wireless connection between the extender and the router is good. • Red. The wireless connection between the extender and the router is poor. Link Rate 5 GHz • Green. The wireless connection between the extender and the router is optimum. • Yellow. The wireless connection between the extender and the router is good. • Red. The wireless connection between the extender and the router is poor. Wireless Device to Extender • On. The extender is connected to a wireless computer or device. • Off. No wireless device or computer is connected to the extender. WPS • Blinking. A WPS-capable wireless computer or device is connecting to the …

Text truncated - open the document above for the full version.

Page No. : 15 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911 Tel: +1 408 907 8000 / Fax: +1 408 907 8097 DoC Attestation Letter Date: 2012/9/5 We NETGEAR, Inc., as the grantee of this project (FCC ID: PY312300208 / Brand Name: NETGEAR / Model No.: WN3500RP), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD282215, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911 Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 10 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911 Tel: +1 408 907 8000 / Fax: +1 408 907 8097 Date: 2012/9/5 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312300208 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911 Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

Page No. : 3 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134-1911 Tel: +1 408 907 8000 / Fax: +1 408 907 8097 Power of Attorney Date: 2012/9/5 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / WN3500RP FCC ID: PY312300208 Product name: Universal Dual Band Wi-Fi Extender FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134-1911 Signature : _____________________________ Job Title and Dept. : Mark Gandler / Compliance Manager E-Mail : [email protected] Tel. : +1 408 907 8000

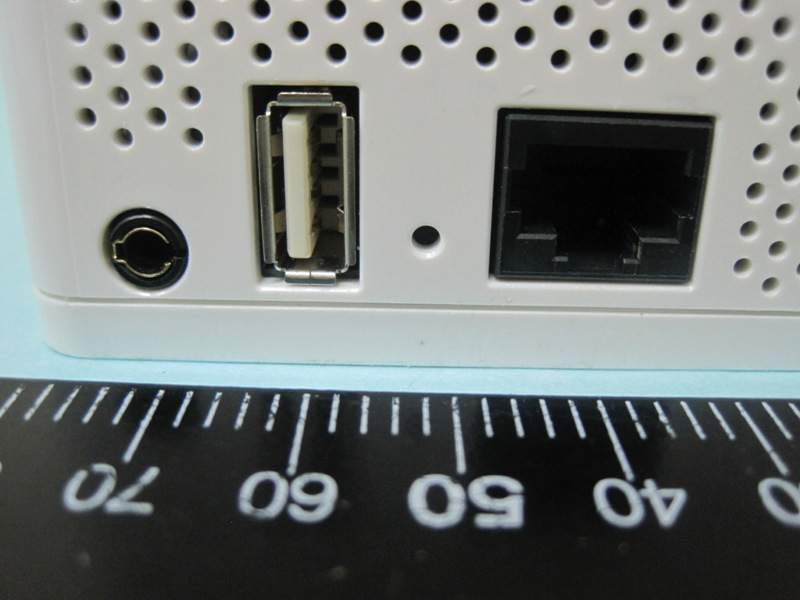

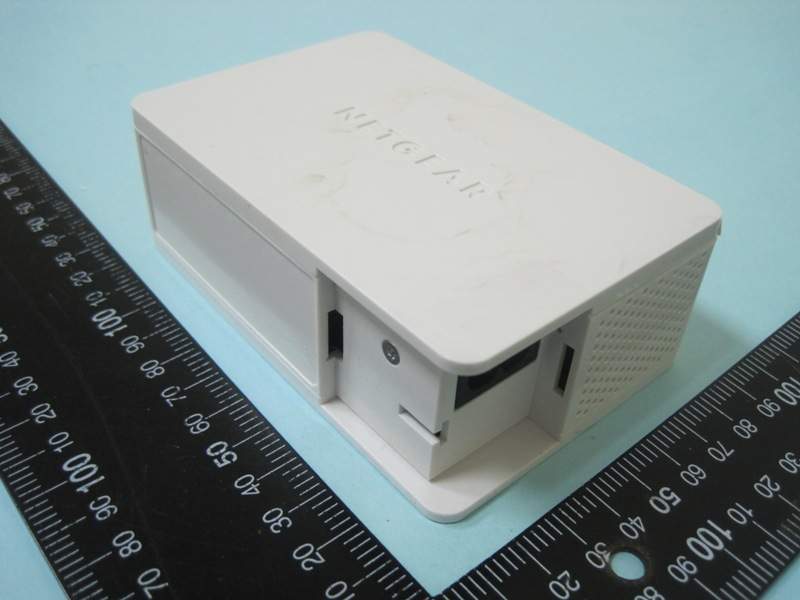

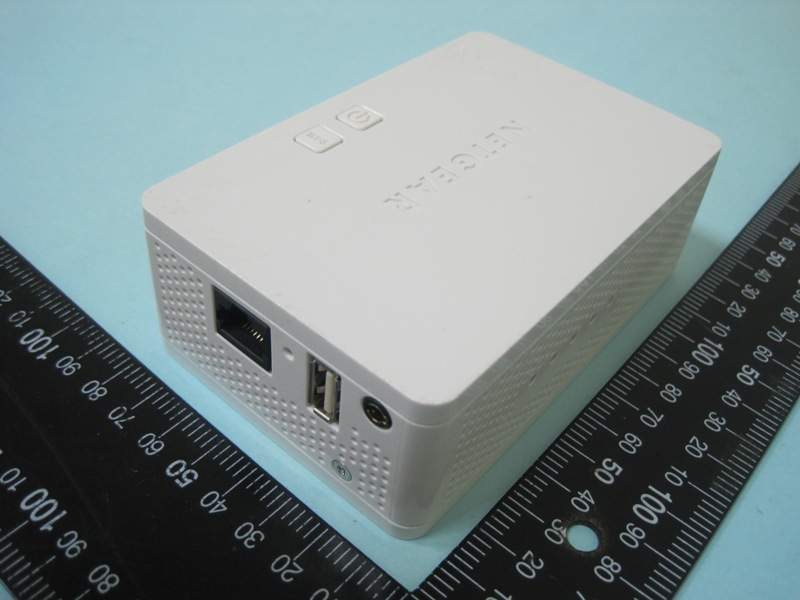

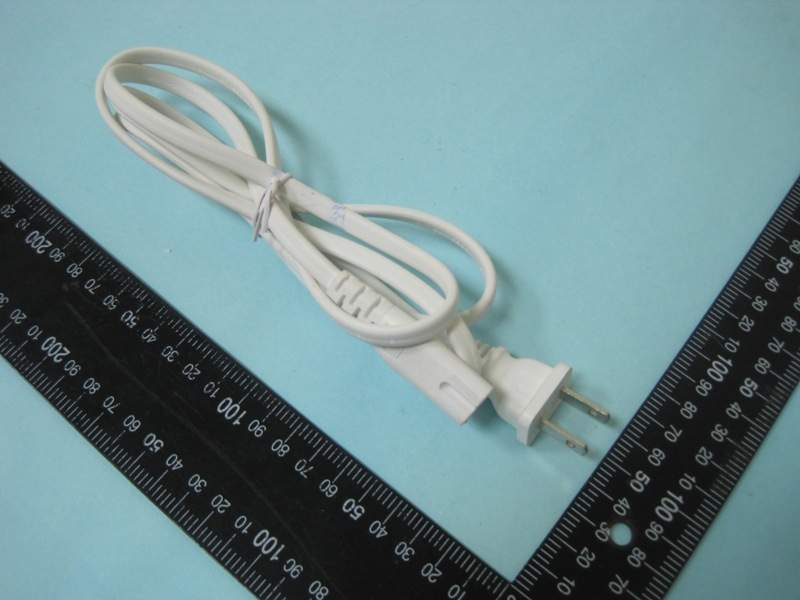

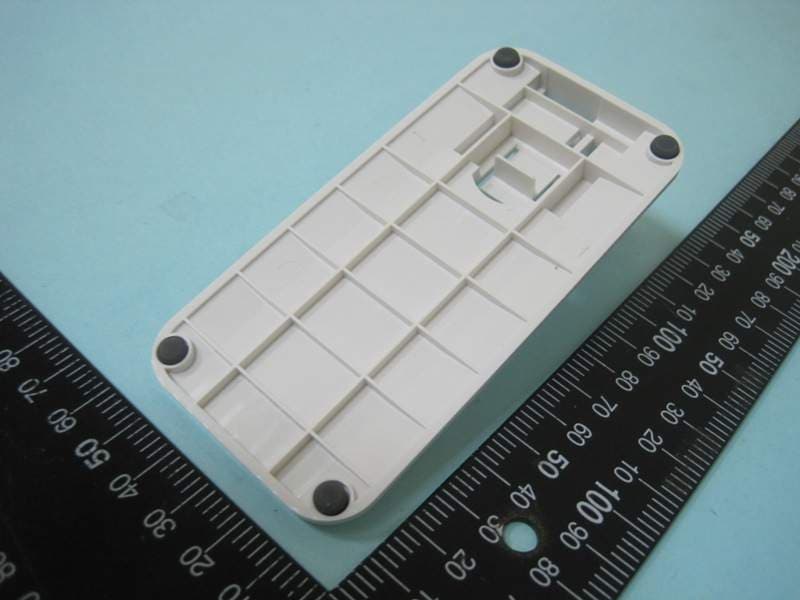

Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Cradle Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 FCC Plug Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 FCC Power Cable Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255

Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 1 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Photographs of EUT Power 1: LEI Power Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 2 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 3 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 4 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 5 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Power 2: Am Power Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 6 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 7 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 8 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 9 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 10 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 11 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 12 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 13 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 14 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 15 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 16 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 17 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 18 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 19 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 20 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 21 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 22 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 23 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 24 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 25 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 26 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255 Report No.:EP282215 SPORTON International Inc. PAGE NUMBER : 27 OF 27 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 05, 2012 FAX : 886-2-2696-2255

Report No.: FR282215 FCC ID: PY312300208 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR282215 FCC ID: PY312300208 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR282215 FCC ID: PY312300208 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: ETH2: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a : 16.83dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.95 3.9358 16.8305 48.2002 0.037760 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 23.84dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.95 3.9355 23.8371 241.9412 0.189522 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) For 2.4GHz Band: ETH1: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g: 24.48 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.40 2.1878 24.4761 280.2891 0.122055 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) ETH2: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g: 21.81 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.17 2.6122 21.8126 151.7945 0.078923 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.189522 / 1 + 0.122055 / 1 = 0.307275, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR282215 FCC ID: PY312300208 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR282215 FCC ID: PY312300208 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 25°C Humidity 57% Test Engineer Magic Lai Configurations 2.4G + 5G TX Horizontal Report No.: FR282215 FCC ID: PY312300208 Page No. : C3 of C3 Vertical

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134-1911 FCC ID PY312300208 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name Universal Dual Band Wi-Fi Extender Brand Name NETGEAR Model Name WN3500RP Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jul. 30, 2012 Final Test Date Aug. 16, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C and KDB 558074 – 20120118 & KDB662911 D01-20110404. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR282215AA Report Format Version: 01 Page No. : i of ii FCC ID: PY312300208 Issued Date :Sep. 05, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 6 3.3. Table for Filed Antenna ............................................................................................................................................................................. 7 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 8 3.5. Table for Test Modes .................................................................................................................................................................................. 9 3.6. Table for Testing Locations...................................................................................................................................................................... 11 3.7. Table for Supporting Units ....................................................................................................................................................................... 11 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 12 3.9. Test Configurations................................................................................................................................................................................... 14 4. TEST RESULT......................................................................................................................................................... 16 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 16 4.2. Peak Output Power Measurement ....................................................................................................................................................... 20 4.3. Average Output Power Measurement................................................................................................................................................. 25 4.4. Power Spectral Density Measurement.................................................................................................................................................. 30 4.5. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 48 4.6. Radiated Emissions Measurement......................................................................................................................................................... 59 4.7. Band Edge Emissions Measurement...................................................................................................................................................... 97 4.8. Antenna Requirements ......................................................................................................................................................................... 128 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................. 129 6. TEST LOCATION................................................................................................................................................ 131 7. TAF CERTIFICATE OF ACCREDITATION......................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR282215 FCC ID: PY312300208 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR282215 FCC ID: PY312300208 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR282215 FCC ID: PY312300208 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR282215 FCC ID: PY312300208 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR282215 FCC ID: PY312300208 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
