PY312300209Home Security

Installation Guide ASG1100 Lifestyle Gateway with ZigBeePackage Contents Gateway Ethernet cable Power adapter Connect the Gateway1. Verify the package contents. 2. Decide where to place the gateway.Note: For best WiFi coverage, identify a relatively central location within the premises. Ensure that the gateway can be conveniently wired to the broadband router and is close to an AC outlet. 3. Install the gateway in the proper orientation:• Mount vertically if most devices are on the same floor as the gateway. • Place horizontally (after removing the stand) if the devices and gateway occupy multiple floors. 4. Connect the cables:a. Connect an Ethernet cable from one of the open ports of the broadband router to the WAN Ether net port of the gateway. b. Pull wires gently to verify that ga teway connections are secure. c. Plug the power cord into the gateway and then plu g the power ada pter into an AC outlet. 5. Wait until the Power and Devices LEDs on the gateway become solid green (this could take a few minutes). 6. To begin the installation process, visit http://www.example.com and use installer credentials to log in to th e Example system. Horizontal mount Vertical mount Broadband router Gateway March 2013 NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. NETGEAR, Inc.350 East Plumeria DriveSan Jose, CA 95134 USA Technical SpecificationsSupportThank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com . You must register your product before you can use NETGEAR tele phone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com . NETGEAR recommends that you use only the official NETGEAR su pport resources. Power adapter • North America (input): 120V, 60 Hz, input • All regions (output): 12V DC @ 1A output 15W maximum Physical specifications • Dimensions: 8.5 by 5.75 by 1.3 in. (216 by 146 by 33 mm) • Weight: 0.95 lb (0.42 kg) Environmental • Operating temperature: 32° to 104°F (0° to 40°C) • Operating humidity: 90% maximum relative humidity, noncondensing • Electromagnetic emissions: Meets requirements of FCC Part 15 Class B. TroubleshootingUse the LEDs on the front of the gateway to determine its status and to troubleshoot its operation.To return the gateway to its factory settings, use the end of a paper clip or some other similar object to press and hold the Reset button on the back of the gateway for at least 15 seconds. All four LEDs simultaneously flash amber three times. The gateway resets and returns to the factory settings. LED Description Devices • Solid green : ZigBee sensors are paired with the gateway. No trouble detected. • Blinking green : The gateway is looking for Zig Bee sensors to pair with the gateway. •Amber : One or more ZigBee sensors report a trouble condition. •Off : No ZigBee sensor is paired with the gateway. WiFi • Solid green : WiFi cameras are connected to the gateway, but are not currently being viewed. • Blinking green : WiFi cameras are connected to the gateway and are currently being viewed. •Off : No WiFi camera is paired with gateway. Connection • Solid green : The gateway is activated and connected to the service provider. • Blinking amber : The gateway is not activated with the service provider and is not connected to the server, but is connected to the router. • Solid amber : The gateway is activated with the service provider and is connected to the router, but is not connected to the server. •Solid red : The gateway is not co nnected to the router. Power • Solid green : The gateway is powered on. • Blinking green : A firmware update is in progress. Do not unplug the gateway. • Off : The gateway is powered off. FCC Requirements for Opera tion in the United States FCC Information to UserThis product does not contain any user serviceable components and is to be used with approved antennas only. Any product change s or modifications will invalidate all applicable regulatory certifications and approvals.FCC Guidelines for Human ExposureThis equipment complies with FCC radiation exposure limits set fo rth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Declaration of ConformityWe, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the ASG1100 Lifestyl e Gateway with ZigBee complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equ ipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication s. This certification does not guarantee that interferen ce will not occur in a particular in stallation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipme nt off and on, the user is encouraged to try to correct the interference by one or more of the following me…

Text truncated - open the document above for the full version.

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 Power of Attorney Date: 2013/3/11 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Netgear / ASG1100 FCC ID: PY312300209 Product name: Home Security FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 Date: 2013/3/11 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312300209 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 DoC Attestation Letter Date: 2013/3/11 We NETGEAR, Inc., as the grantee of this project (FCC ID: PY312300209 / Brand Name: Netgear / Model No.: ASG1100), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD330126, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

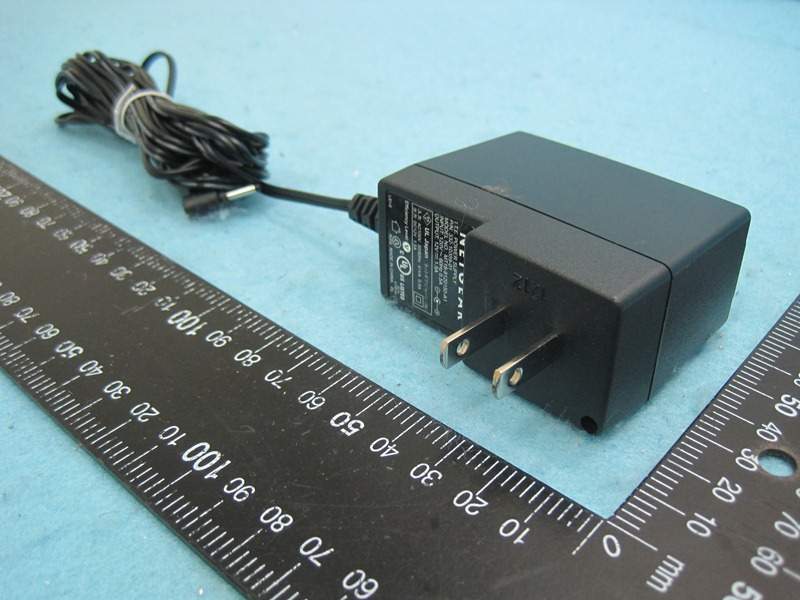

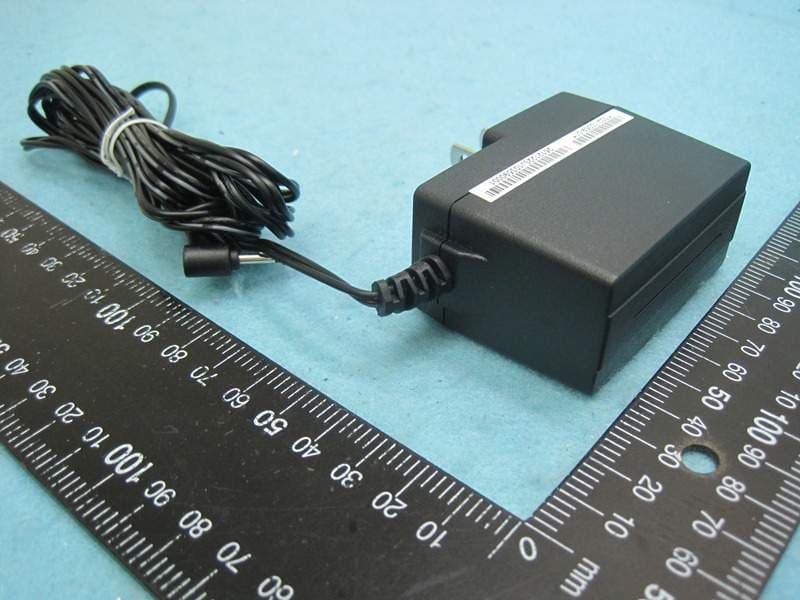

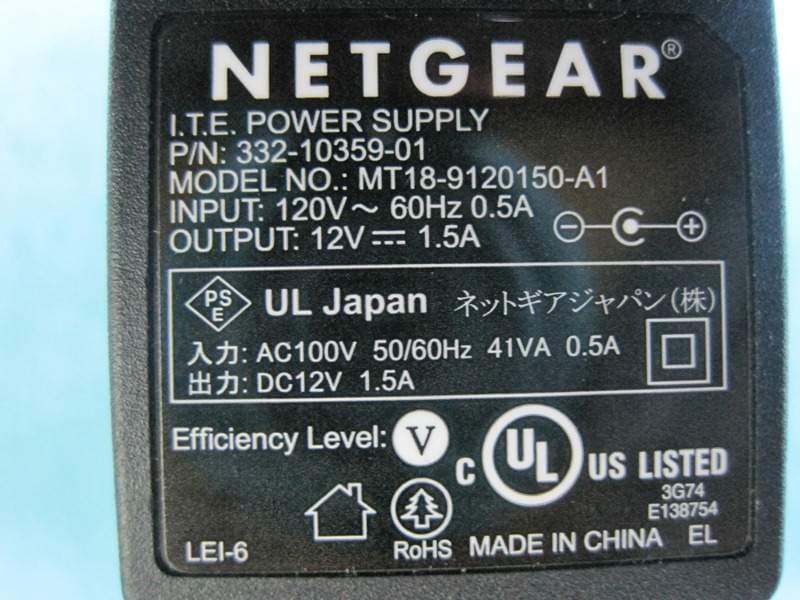

Report No.:330126 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:330126 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Adapter 1 Model No.: MT18-9120150-A1 P/N: 332-10359-01 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Adapter 2 Model No.: SAL018F1 NA 18.0W P/N: 332-10513-01 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255

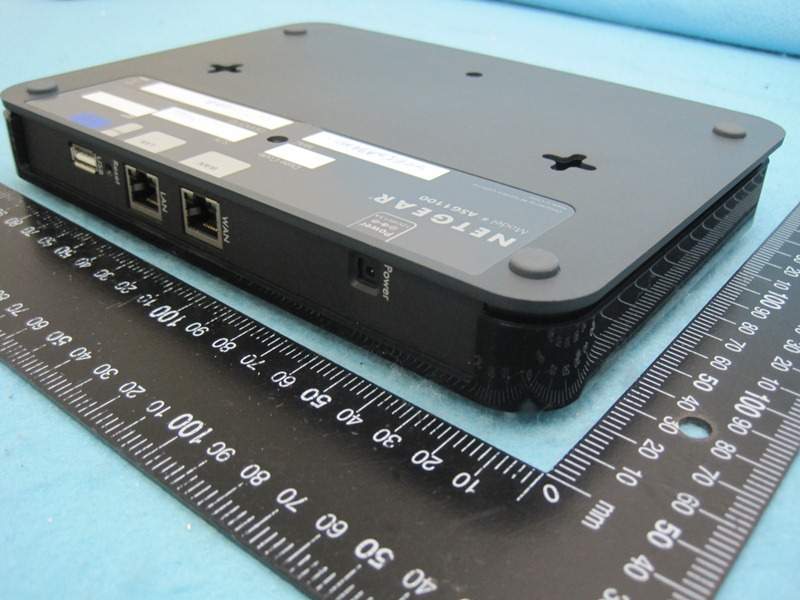

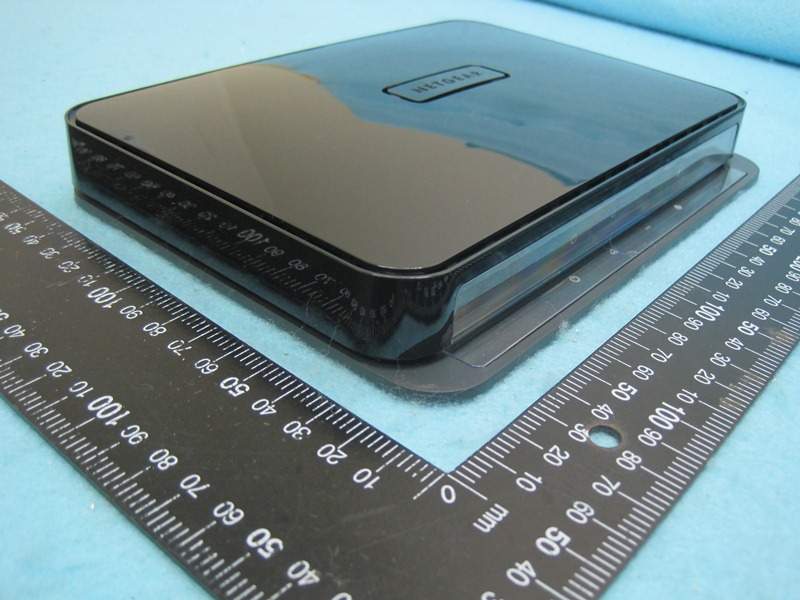

Report No.:330126 SPORTON International Inc. PAGE NUMBER : 1 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:330126 SPORTON International Inc. PAGE NUMBER : 2 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 3 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 4 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 5 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 6 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 7 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 8 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 9 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 10 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 11 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255 Report No.:330126 SPORTON International Inc. PAGE NUMBER : 12 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 20, 2013 FAX : 886-2-2696-2255

Report No.: FR330126 FCC ID: PY312300209 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR330126 FCC ID: PY312300209 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR330126 FCC ID: PY312300209 Page No. : B3 of B3 1.3. Calculated Result and Limit For WLAN Funtion: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11g : 20.62 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.01 2.5177 20.6212 115.3781 0.057819 1 Complies For Zigbee Funtion: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.15.4 ZigBee : 20.43 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.86 2.4322 20.4300 110.4079 0.053450 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and Zigbee can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.0578 / 1 + 0.0534 / 1 = 0.1112, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Netgear Incorporated Applicant Address 350 East Plumeria Drive San Jose, California 95134 United States FCC ID PY312300209 Manufacturer’s company Wistron Neweb Corporation Manufacturer Address NO.789 Yujinxiang Road,Comprehensive Free Trade Zone,Kunshan,320000,215300 China Product Name Home Security Brand Name Netgear Model Name ASG1100 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Mar. 01, 2013 Final Test Date Mar. 18, 2013 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR330126AA Report Format Version: 01 Page No. : iof ii FCC ID: PY312300209 Issued Date :Mar. 20, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 6 3.5. Table for Test Modes .................................................................................................................................................................................. 6 3.6. Table for Testing Locations........................................................................................................................................................................ 7 3.7. Table for Supporting Units ......................................................................................................................................................................... 8 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 8 3.9. Test Configurations..................................................................................................................................................................................... 9 4. TEST RESULT......................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 11 4.2. Maximum Conducted Output Power Measurement......................................................................................................................... 15 4.3. Power Spectral Density Measurement.................................................................................................................................................. 18 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 24 4.5. Radiated Emissions Measurement......................................................................................................................................................... 29 4.6. Emissions Measurement........................................................................................................................................................................... 47 4.7. Antenna Requirements ........................................................................................................................................................................... 61 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 62 6. TEST LOCATION.................................................................................................................................................. 64 APPENDIX A. TEST PHOTOS........................................................................................................................... A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................................B1 ~ B3 APPENDIX C. CO-LOCATION REPORT ..............................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Netgear Incorporated Applicant Address 350 East Plumeria Drive San Jose, California 95134 United States FCC ID PY312300209 Manufacturer’s company Wistron Neweb Corporation Manufacturer Address NO.789 Yujinxiang Road,Comprehensive Free Trade Zone,Kunshan,320000,215300 China Product Name Home Security Brand Name Netgear Model Name ASG1100 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2405~ 2475MHz Received Date Mar. 01, 2013 Final Test Date Mar. 18, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.15.4 ZigBee part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR330126AB Report Format Version: 01 Page No. : i of ii FCC ID: PY312300209 Issued Date :Mar. 20, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 3 3.3. Table for Carrier Frequencies ................................................................................................................................................................... 3 3.4. Table for Filed Antenna ............................................................................................................................................................................. 4 3.5. Table for Test Modes .................................................................................................................................................................................. 5 3.6. Table for Testing Locations........................................................................................................................................................................ 5 3.7. Table for Supporting Units ......................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 7 3.9. Test Configurations..................................................................................................................................................................................... 8 4. TEST RESULT......................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 10 4.2. Maximum Conducted Output Power Measurement......................................................................................................................... 14 4.3. Power Spectral Density Measurement.................................................................................................................................................. 16 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 19 4.5. Radiated Emissions Measurement......................................................................................................................................................... 21 4.6. Emissions Measurement........................................................................................................................................................................... 30 4.7. Antenna Requirements ........................................................................................................................................................................... 35 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 36 6. TEST LOCATION.................................................................................................................................................. 38 APPENDIX A. TEST PHOTOS........................................................................................................................... A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................................B1 ~ B3 APPENDIX C. CO-LOCATION REPORT......................................................................…

Text truncated - open the document above for the full version.

Report No.: FR330126 FCC ID: PY312300209 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR330126 FCC ID: PY312300209 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 24.5°C Humidity 57% Test Engineer Kenneth Huang Configurations WIFI + Zigbee Horizontal Report No.: FR330126 FCC ID: PY312300209 Page No. : C3 of C3 Vertial

Report No.: FR330126 FCC ID:PY312300209 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR330126 FCC ID:PY312300209 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode : Mode 2 FRONT VIEW REAR VIEW Report No.: FR330126 FCC ID:PY312300209 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR330126 FCC ID:PY312300209 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode : Mode 4 FRONT VIEW REAR VIEW Report No.: FR330126 FCC ID:PY312300209 Page No. : A5 of A5 Test Configuration: Above 1GHz Test Mode : Mode 4 FRONT VIEW REAR VIEW
