PY312300210N600 Wireless Dual Band Router

Security 61 N600 Wireless Dual Band Router WNDR3400v3 3. Click Add to add a service. The Block Services Setup screen displays: 4. From the Service Type list, select the application or service to allow or block. The list already displays several common services, but you are not limited to these choices. To add any additional services or applications that do not already appear, select User Defined. 5. If you know that the application uses either TCP or UDP, select the appropriate protocol. If you are not sure, select Both. 6. Enter the starting and ending port numbers. If the application uses a single port number, enter that number in both fields. 7. Select the radio button for the IP address configuration you want to block, and enter the IP addresses. Y ou can block the specified service for a single computer, a range of computers with consecutive IP addresses, or all computers on your network. 8. Click Add to enable your Block Services Setup selections. Schedule Blocking You can specify the days and time that you want to block Internet access. Security 62 N600 Wireless Dual Band Router WNDR3400v3 To schedule blocking: 1. Select Advanced > Security > Schedule to display the following screen: 2. Set up the schedule for blocking keywords and services. • Days to Block. Select days on which you want to apply blocking by selecting the appropriate check boxes, or select Every Day to select the check boxes for all days. • Time of Day to Block. Select a start and end time in 24-hour format, or select All Day for 24-hour blocking. 3. Select your time zone from the list. If you use daylight savings time, select the Automatically adjust for daylight savings time check box. 4. Click Apply to save your settings. Security Event Email Notifications To receive logs and alerts by email, provide your email information in the Email screen and specify which alerts you want to receive and how often. Security 63 N600 Wireless Dual Band Router WNDR3400v3 To set up email notifications: 1. Select Advanced > Security > Email to display the following screen: 2. To receive email logs and alerts from the router, select the Turn Email Notification On check box. 3. In the Your Outgoing Mail Server field, enter the name of your ISP’s outgoing (SMTP) mail server (such as mail.myISP.com). You might be able to find this information in the configuration screen of your email program. If you leave this field blank, log and alert messages are not sent by email. 4. Enter the email address to which logs and alerts are sent in the Send to This Email Address field. This email address is also used for the From address. If you leave this field blank, log and alert messages are not sent by email. 5. If your outgoing email server requires authentication, select the My Mail Server requires authentication check box. Fill in the User Name and Password fields for the outgoing email server . 6. You can have email alerts sent immediately when someone attempts to visit a blocked site, and you can specify that logs are sent automatically . If you select the Weekly, Daily , or Hourly option and the log fills up before the specified period, the log is automatically emailed to the specified email address. After the log is sent, the log is cleared from the router’s memory. If the router cannot email the log file, the log buffer might fill up. In this case, the router overwrites the log and discards its contents. 7. Click Apply to save your settings. 64 7 7. Administration Managing your network This chapter describes the router settings for administering and maintaining your router and home network. See also Remote Management on page 94 for information about upgrading or checking the status of your router over the Internet, and Traffic Meter on page 97 for information about monitoring the volume of Internet traffic passing through your router’s Internet port. This chapter includes the following sections: • Upgrade the Router Firmware • View Router Status • View Logs of Web Access or Attempted Web Access • Manage the Configuration File • Set Password Administration 65 N600 Wireless Dual Band Router WNDR3400v3 Upgrade the Router Firmware The router firmware (routing software) is stored in flash memory. You can update the firmware from the Administration menu on the Advanced tab. You might see a message at the top of the Genie screens when new firmware is available for your product. You can use the Check button on the Router Update screen to check and update to the latest firmware for your product if new firmware is available. To check for new firmware and update your router: 1. Select Advanced > Administration > Router Update to display the following screen: Click Check 2. Click Check. The router finds new firmware information if any is available. 3. Click Yes to update and locate the firmware you downloaded (the file ends in .img). WARNING! When uploading firmware to the router, do not interrupt the web browser by closing the window, clicking a link, or loading a new page. If the browser is interrupted, it could corrupt the firmware. When the upload is complete, your router restarts. The upgrade process typically takes about 1 minute. Read the new firmware release notes to determine whether or not you need to reconfigure the router after upgrading. Administration 66 N600 Wireless Dual Band Router WNDR3400v3 View Router Status To view router status and usage information, select Advanced Home, or select Administration > Router Status to display the following screen: Router Information Hardware Version. The router model. Firmware Version. The version of the router firmware. It changes if you upgrade the router firmware. GUI Language Version. The localized language of the user interface. LAN Port. • MAC Address. The Media Access Control address. This is the unique physical address being used by the Ethernet (LAN) port of the router. • IP Address . The IP address being used by the Ethernet (LAN) port of the router. The default is 192.168.1.1. • DHCP …

Text truncated - open the document above for the full version.

NETGEAR, Inc. 350 East Plumeria Drive,San Jose, CA 95134, USA Tel: (408) 890-3530 / Fax: 1(408)907 8097 Date: 2012/11/20 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312300210 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive,San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Compliance Manager E-Mail : [email protected] Tel. : (408) 890-3530

NETGEAR, Inc. 350 East Plumeria Drive,San Jose, CA 95134, USA Tel: (408) 890-3530 / Fax: 1(408)907 8097 DoC Attestation Letter Date: 2012/11/20 We NETGEAR, Inc., as the grantee of this project (FCC ID: PY312300210 / Brand Name: NETGEAR / Model No.: WNDR3400v3), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD2N1652, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive,San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Compliance Manager E-Mail : [email protected] Tel. : (408) 890-3530

NETGEAR, Inc. 350 East Plumeria Drive,San Jose, CA 95134, USA Tel: (408) 890-3530 / Fax: 1(408)907 8097 Power of Attorney Date: 2012/11/20 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / WNDR3400v3 FCC ID: PY312300210 Product name: N600 Wireless Dual Band Router FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive,San Jose, CA 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Compliance Manager E-Mail : [email protected] Tel. : (408) 890-3530

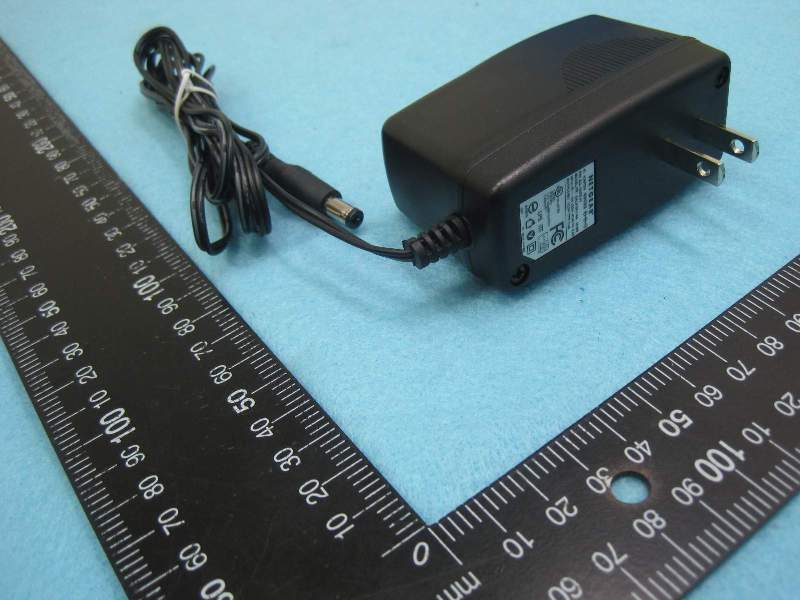

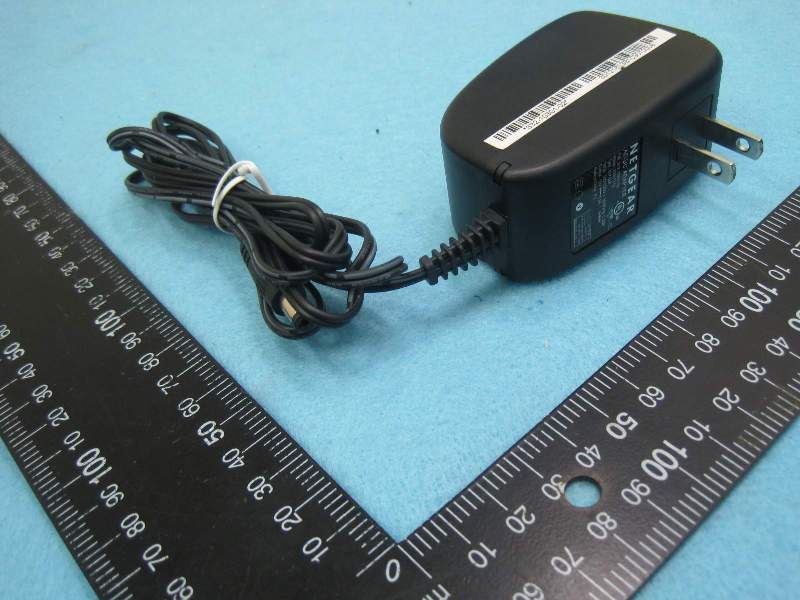

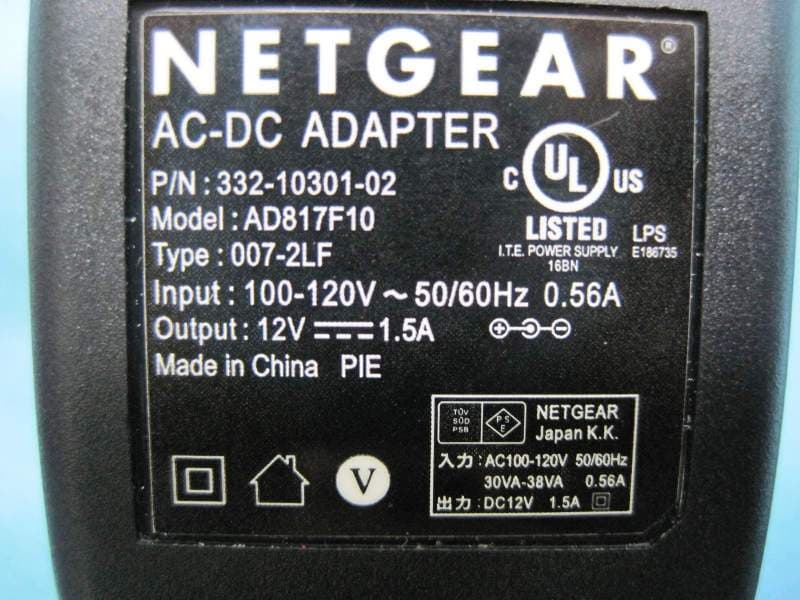

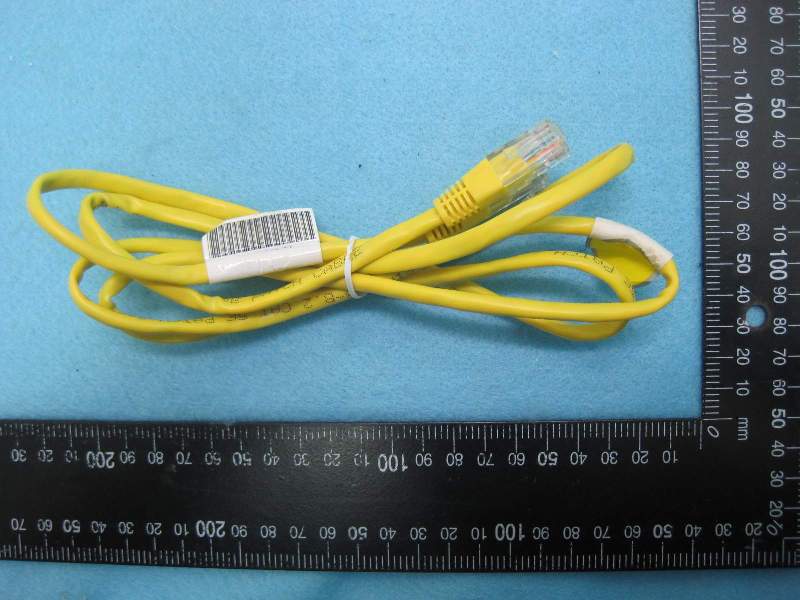

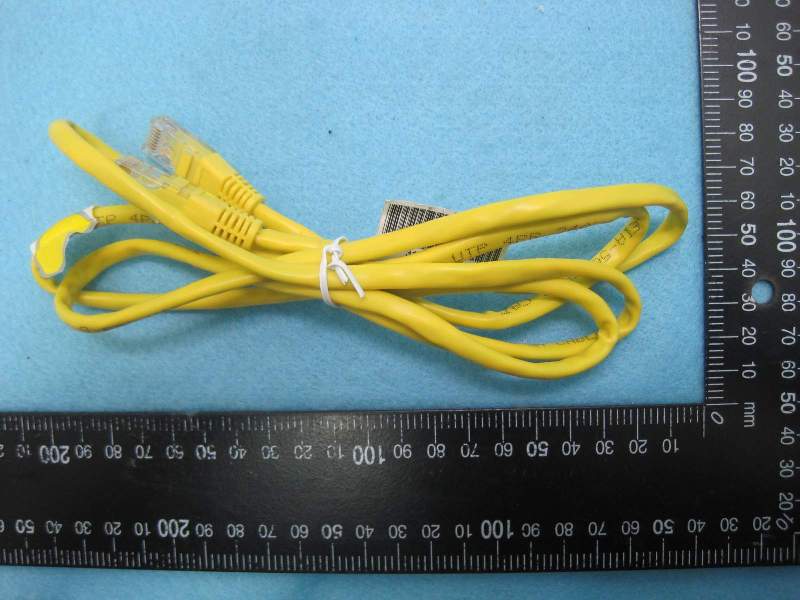

Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Adapter 1 Brand Name: NETGEAR Model Name: AD817F10 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Adapter 2 Brand Name: NETGEAR Model Name: SAL018F1 NA Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255

Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 1 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 2 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 3 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 4 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 5 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 6 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 7 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 8 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 9 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 10 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 11 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255 Report No.:2N1652 SPORTON International Inc. PAGE NUMBER : 12 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 04, 2012 FAX : 886-2-2696-2255

Report No.: FR2N1652 FCC ID: PY312300210 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR2N1652 FCC ID: PY312300210 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 60% Test Engineer Wen Chao Configurations 2.4G + 5G Horizontal Report No.: FR2N1652 FCC ID: PY312300210 Page No. : C3 of C3 Vertial

Report No.: FR2N1652 FCC ID: PY312300210 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR2N1652 FCC ID: PY312300210 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR2N1652 FCC ID: PY312300210 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: (15.407) Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n 40MHz : 16.99 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.48 2.2284 16.9900 50.0035 0.022179 1 Complies For 5GHz ISM Band: (15.247) Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n: 22.65 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.48 2.2284 22.6468 183.9426 0.081589 1 Complies For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g: 21.92 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.12 1.6293 21.9171 155.4926 0.050427 1 Complies CONCULSION: Both of the WLAN function and LTE function can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.081589/1+ 0.050427/1 = 0.132016, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134, USA FCC ID PY312300210 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name N600 Wireless Dual Band Router Brand Name NETGEAR Model Name WNDR3400v3 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Oct. 08, 2012 Final Test Date Nov. 16, 2012 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E and KDB 789033 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2N1652AB Report Format Version: 01 Page No. : i of ii FCC ID: PY312300210 Issued Date :Dec. 04, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION ..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 7 3.5. Table for Test Modes .................................................................................................................................................................................. 8 3.6. Table for Testing Locations........................................................................................................................................................................ 9 3.7. Table for Supporting Units ....................................................................................................................................................................... 10 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 11 3.9. Test Configurations ................................................................................................................................................................................... 12 4. TEST RESULT ......................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 15 4.2. 99% Occupied Bandwidth Measurement ............................................................................................................................................ 19 4.3. Maximum Conducted Output Power Measurement ......................................................................................................................... 27 4.4. Power Spectral Density Measurement .................................................................................................................................................. 32 4.5. Peak Excursion Measurement ................................................................................................................................................................ 38 4.6. Radiated Emissions Measurement ......................................................................................................................................................... 43 4.7. Band Edge Emissions Measurement ...................................................................................................................................................... 59 4.8. Frequency Stability Measurement ......................................................................................................................................................... 66 4.9. Antenna Requirements ........................................................................................................................................................................... 68 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 69 6. TEST LOCATION ...............................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR2N1652 FCC ID: PY312300210 Page No. : 1 of 5 Appendix A. Test Photos Report No.: FR2N1652 FCC ID: PY312300210 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR2N1652 FCC ID: PY312300210 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR2N1652 FCC ID: PY312300210 Page No. : 4 of 5 Test Mode: Mode 1 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR2N1652 FCC ID: PY312300210 Page No. : 5 of 5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
