PY312400216D6200 WiFi Modem Router

350 East Plumeria Drive San Jose, CA 95134 USA January 2013 CERTIFICATION DRAFT v1.0 D6200 WiFi Modem Router User Manual Note: This draft is a certification document and there might be some differences between this user manual and the actual unit. 2 D6200 WiFi Modem Router Support Thank you for choosing NETGEAR. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR web site. For product updates and web support, visit http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the li st of phone numbers at http://support.netgear.com/general/cont act/default.aspx. NETGEAR recommends that you use only the official NETGEAR support resources. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © NETGEAR All rights reserved. 3 Contents Chapter 1 Hardware Setup Unpack Your New Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Position Your Wireless Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ADSL Microfilters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 One-Line ADSL Microfilter (Not Included) . . . . . . . . . . . . . . . . . . . . . . . 19 Two-Line ADSL Microfilter (Included) . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Cable Your D6200 WiFi Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Verify the Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Chapter 2 Get Started with NETGEAR genie Prepare to Set Up the WiFi Modem Router . . . . . . . . . . . . . . . . . . . . . . . . 23 Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . . 23 Gather ISP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Wireless Devices and Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . 23 Types of Logins and Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 NETGEAR genie Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Use NETGEAR genie after Installat ion. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Upgrade WiFi Modem Router Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . 25 WiFi Modem Router Dashboard (BASIC Home Screen) . . . . . . . . . . . . . . 26 Add Wireless Devices or Computers to Your Network . . . . . . . . . . . . . . . . 27 Manual Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Wi-Fi Protected Setup (WPS) Method . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Chapter 3 NETGEAR genie BASIC Settings Internet Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Internet Basic Settings Screen Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Attached Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 ReadySHARE USB Storage and Printer . . . . . . . . . . . . . . . . . . . . . . . . . . 34 USB Storage (Basic Settings) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 ReadySHARE Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Wireless Settings Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 4 D6200 WiFi Modem Router Change WPA Security Option and Passphrase. . . . . . . . . . . . . . . . . . . 37 Guest Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Guest Network Wireless Securit y Options . . . . . . . . . . . . . . . . . . . . . . . 39 NETGEAR genie App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 NETGEAR genie Mobile App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Chapter 4 NETGEAR genie ADVANCED Home Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 WPS Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 VPN Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 ADSL Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Default DMZ Se…

Text truncated - open the document above for the full version.

96 9 9. Advanced Settings Fine-tuning your network This chapter describes the advanced features of your WiFi modem router. The information is for users with a solid understanding of networking concepts who want to set the WiFi modem router up for unique situations such as when remote access from the Internet by IP or domain name is needed. This chapter includes the following sections: •Advanced Wireless Settings •Wireless Repeating Function (WDS) •Port Forwarding and Triggering •Set Up Port Forwarding to Local Servers •Set Up Port Triggering •Dynamic DNS •Static Routes •Remote Management •USB Settings •Universal Plug and Play •IPv6 •Traffic Meter •ReadySHARE Cloud •Device Mode •VPN Policies Advanced Settings 97 D6200 WiFi Modem Router Advanced Wireless Settings Select ADVANCED > Advanced Setup > Wireless Settings to display the Advanced Wireless Settings screen: The following settings are available in this screen: •Enable Wireless Router Radio. Y ou can completely turn off the wireless portion of the WiFi modem router by clearing this check box. Select this check box again to enable the wireless portion of the WiFi modem router. When the wireless radio is disabled, other members of your household can use the WiFi modem router by connecting their computers to the WiFi modem router with an Ethernet cable. Note:The Fragmentation Length, CTS/RTS Threshold, and Preamble Mode options are reserved for wireless testing and advanced configuration only. Do not change these settings. •Turn off wireless signal by schedule. From the Advanced Wireless Settings screen (with the Enable Wireless Router Radio check box selected for the radio band you want to configure), click the Add a new period button to display the Turn off wireless signal by schedule screen. Advanced Settings 98 D6200 WiFi Modem Router You can use this feature to turn off the wireless signal from your WiFi modem router at times when you do not need a wireless connection. For example, you could turn it off for the weekend if you leave town. •WPS Settings. You can add WPS devices to your network. •AP Mode. Y ou can make the D6200 function as an access point. •Wireless Card Access List. From the Advanced Wireless Settings screen, click the Set Up Access List button to display the Wireless Card Access List screen. Advanced Settings 99 D6200 WiFi Modem Router From the Wireless Card Access List screen, click Add to display the Wireless Card Access Setup screen. On this screen, you can restrict access to your network to specific devices based on their MAC address. Advanced Settings 100 D6200 WiFi Modem Router Wireless Repeating Function (WDS) You can set the WiFi Modem Router up to be used as a wireless access point (AP). Doing this setup enables the WiFi modem router to act as a wireless repeater. A wireless repeater connects to another wireless WiFi modem router as a client where the network to which it connects becomes the ISP service. Wireless repeating is a type of Wireless Distribution System (WDS). A WDS allows a wireless network to be expanded through multiple access points instead of using a wired backbone to link them. The following figure shows a wireless repeating scenario. Repeater Base station access point access point Figure 12. Wireless repeating scenario Note:If you use the wireless repeating function, you need to select either WEP or None as a security option in the Wireless Settings screen. The WEP option displays only if you select the wireless mode Up to 54 Mbps in the Wireless Settings screen. Wireless Base Station. The WiFi modem router acts as the parent access point, bridging traffic to and from the child repeater access point, as well as handling wireless and wired local computers. To configure this mode, you have to know the MAC address of the child repeater access point. Wireless Repeater. The WiFi mod em router sends all traffic from its local wireless or wired computers to a remote access point. To configure this mode, you have to know the MAC address of the remote parent access point. Advanced Settings 101 D6200 WiFi Modem Router The D6200 WiFi modem router is always in dual-band concurrent mode, unless you turn off one radio. If you enable the wireless repeater in either radio band, the wireless base station or wireless repeater cannot be enabled in the other radio band. However, if you enable the wireless base station in either radio band and use the other radio band as a wireless WiFi modem router or wireless base station, dual-band concurrent mode is not affected. For you to set up a wireless network with WDS, the following conditions have to be met for both access points: •Bot h access points have to use the same SSID, wireless channel, an d encryption mode. •Both access points have to be on the same LAN IP subnet. That is, all the access point L AN IP addresses are in the same network. •All LAN devices (wired and wirele ss computers) have to be configured to operate in the same LAN network address range as the access points. Wireless Repeating Function Select ADVANCED > Advanced Setup > Wireless Repeating Function to view or change wireless repeater settings for the WiFi modem router. •Enable Wireless Repeating Function. Select the check box for the 2.4 GHz or 5 GHz network to use the wireless repeating function. •Disable Wireless Client Association. If your WiFi modem router is the repeater, sele cting this check box means that wireless clients cannot associate with it. Only LAN client associations are allowed. -If you are setting up a point-to-point bridge, select this check box. -If you want all client traffic to go through the other access point (repeater with wireless client association), leave this ch eck box cleared. Advanced Settings 102 D6200 WiFi Modem Router •Wireless MAC of this router. This field displays the MAC address for your WiFi modem router for your reference. You need to enter this MAC address in the corresponding Wireless Repeating Function screen of the other access point you are us…

Text truncated - open the document above for the full version.

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Tel: 408-890-3530 / Fax: 408-907-8097 Date: 2013/1/18 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312400216 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent Netgear Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : Netgear Inc. Applicant’s company address : 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Signature : _____________________________ Job Title and Dept. : M. Abrishamcar / Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Tel: 408-890-3530 / Fax: 408-907-8097 DoC Attestation Letter Date: 2013/1/18 We Netgear Inc., as the grantee of this project [FCC ID: PY312400216 / Brand Name: Netgear / Model No.: D6200xxxxx (The "X" in model name can be 0 to 9, A to Z or blank, for marking purpose)], would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD310915, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : Netgear Inc. Applicant’s company address : 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Signature : _____________________________ Job Title and Dept. : M. Abrishamcar /Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Tel: 408-890-3530 / Fax: 408-907-8097 Power of Attorney Date: 2013/1/18 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Netgear / D6200xxxxx (The "X" in model name can be 0 to 9, A to Z or blank, for marking purpose) FCC ID: PY312400216 Product name: D6200 WiFi Modem Router FCC Grantee contact person information. Applicant’s company name : Netgear Inc. Applicant’s company address : 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Signature : _____________________________ Job Title and Dept. : M. Abrishamcar / Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

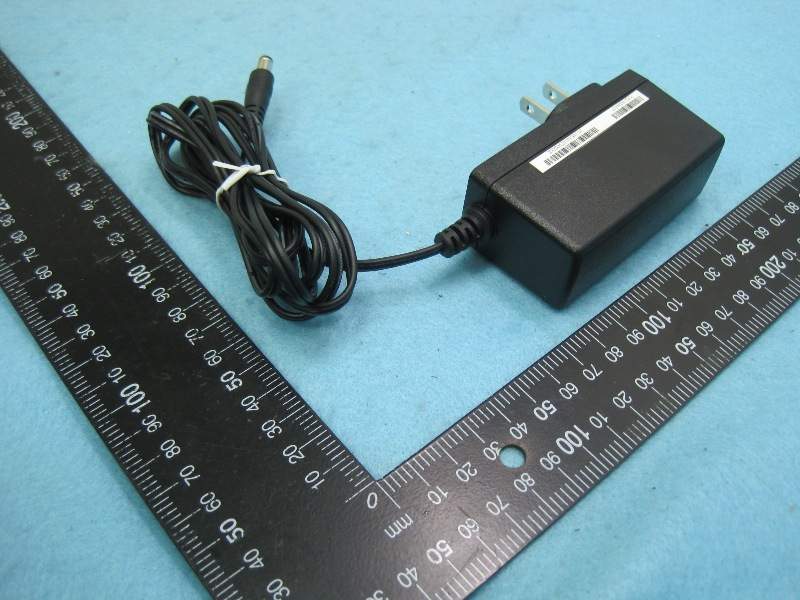

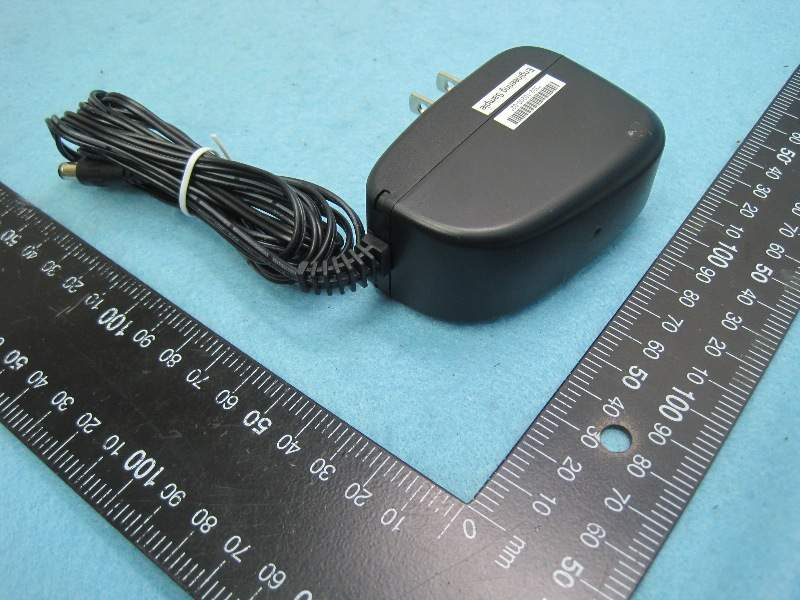

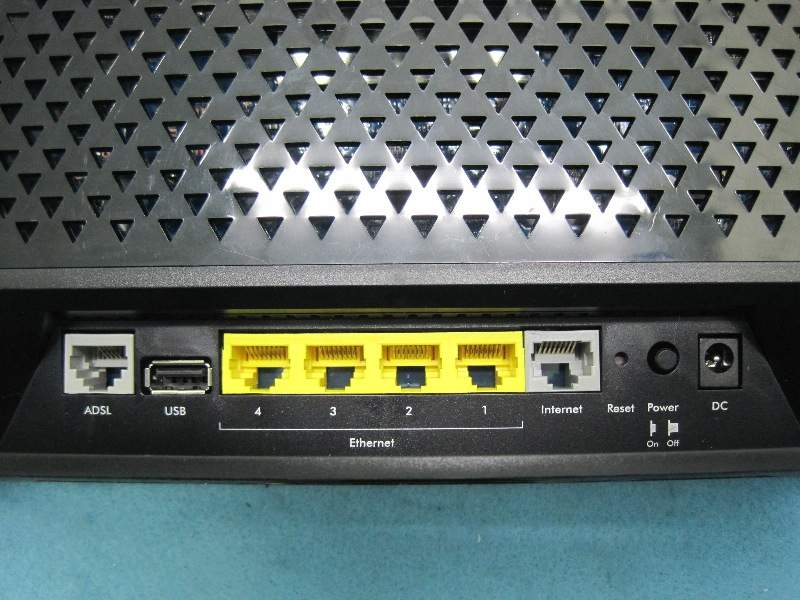

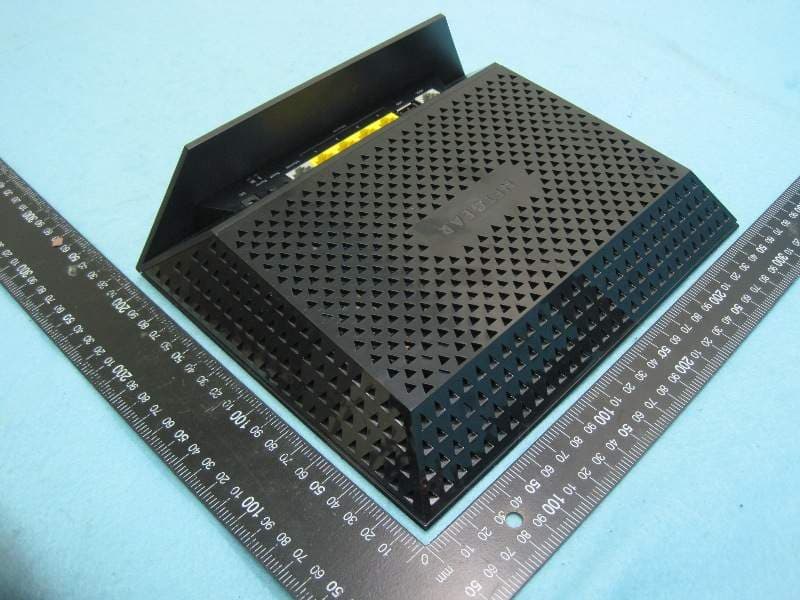

Report No.:310915 SPORTON International Inc. PAGE NUMBER : 1 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:310915 SPORTON International Inc. PAGE NUMBER : 2 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 3 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 4 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 5 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Adapter 1 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 6 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Adapter 2 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 7 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 8 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 DS RJ11 Cable HL RJ11 Cable Report No.:310915 SPORTON International Inc. PAGE NUMBER : 9 OF 9 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 RJ45 Cable Shield RJ45 Cable Non-Shield

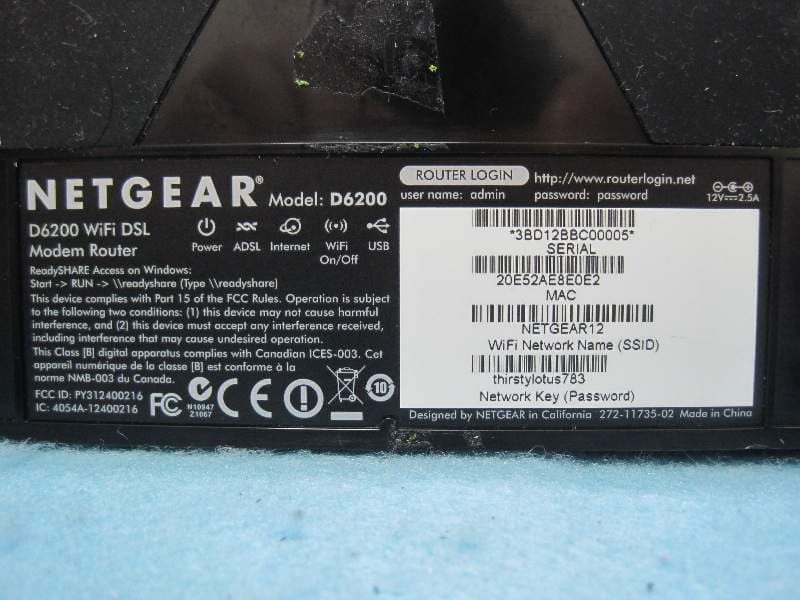

Label size: 95.5mm*33.5mm

Report No.:310915 SPORTON International Inc. PAGE NUMBER : 1 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:310915 SPORTON International Inc. PAGE NUMBER : 2 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 3 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 4 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 5 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 6 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 7 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 8 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 9 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 10 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 11 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 12 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255 Report No.:310915 SPORTON International Inc. PAGE NUMBER : 13 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 01, 2013 FAX : 886-2-2696-2255

Report No.: FR310915 FCC ID: PY312400216 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR310915 FCC ID: PY312400216 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR310915 FCC ID: PY312400216 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n HT20 : 16.93 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.87 2.4378 16.9309 49.3272 0.023935 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac VHT80 : 26.29 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.70 2.9512 26.2868 425.2871 0.249823 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n HT20 : 20.77 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.91 2.4604 20.7709 119.4226 0.058484 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.058484 / 1 + 0.249823 / 1 = 0.308307, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Netgear Inc. Applicant Address 350 East Plumeria Drive San Jose, CA 95134 U.S.A. FCC ID PY312400216 Manufacturer’s company Netgear Inc. Manufacturer Address 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Product Name D6200 WiFi Modem Router Brand Name Netgear Model Name D6200xxxxx (The "X" in model name can be 0 to 9, A to Z or blank, for marking purpose) Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jan. 09, 2013 Final Test Date Jan. 27, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02, KDB 662911 D01 v01r02 and KDB644545 D01 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR310915AB Report Format Version: 01 Page No. : i of ii FCC ID: PY312400216 Issued Date : Feb. 01, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................7 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................11 3.7. Table for Supporting Units .................................................................................................................................................................11 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................12 3.9. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 16 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................16 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................22 4.3. Power Spectral Density Measurement ..............................................................................................................................................26 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................35 4.5. Radiated Emissions Measurement ....................................................................................................................................................43 4.6. Band Edge Emissions Measurement .................................................................................................................................................75 4.7. Antenna Requirements .....................................................................................................................................................................95 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 96 6. TEST LOCATION.............................................................................................................................................. 98 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................................... B1 ~ B3 APPENDIX C. CO-LOCATION REPORT..............................................................................…

Text truncated - open the document above for the full version.

Report No.: FR310915 FCC ID: PY312400216 Page No. : 1 of 5 Appendix A. Test Photos Report No.: FR310915 FCC ID: PY312400216 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration Test Mode : Mode 1 ~ Mode 2 FRONT VIEW REAR VIEW Report No.: FR310915 FCC ID: PY312400216 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR310915 FCC ID: PY312400216 Page No. : 4 of 5 Test Configuration: 30MHz~1GHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR310915 FCC ID: PY312400216 Page No. : 5 of 5 Test Configuration: Above 1GHz / Mode 1 FRONT VIEW REAR VIEW
