Page No. : 2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 Power of Attorney Date: 2013/5/18 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / R6200v2 FCC ID: PY312400218 Product name: R6200 Smart WiFi Router FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : John Ramones / Director of Product Design and Regulations E-Mail : [email protected] Tel. : 408-890-3530

Page No. : 3 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 Date: 2013/5/18 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312400218 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : John Ramones / Director of Product Design and Regulations E-Mail : [email protected] Tel. : 408-890-3530

Page No. : 5 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 DoC Attestation Letter Date: 2013/5/18 We NETGEAR, Inc., as the grantee of this project (FCC ID: PY312400218 / Brand Name: NETGEAR / Model No.: R6200v2), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD351533, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : John Ramones / Director of Product Design and Regulations E-Mail : [email protected] Tel. : 408-890-3530

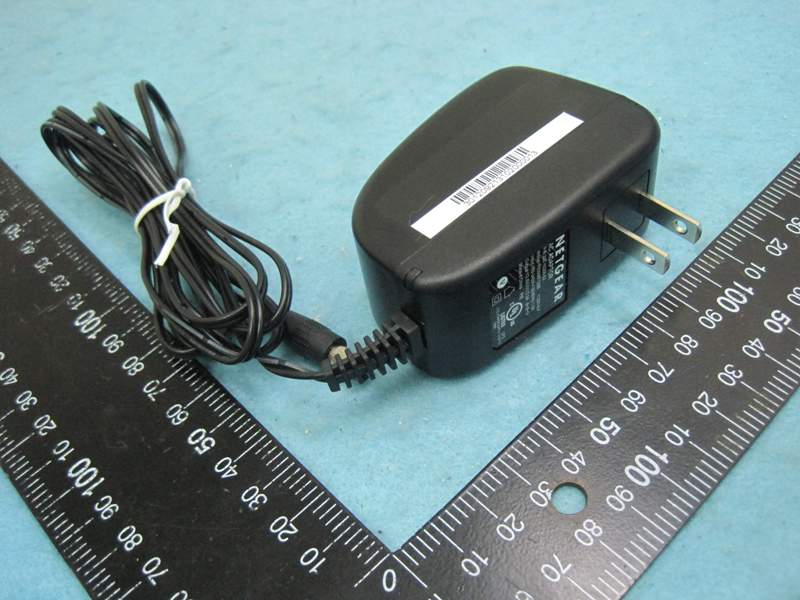

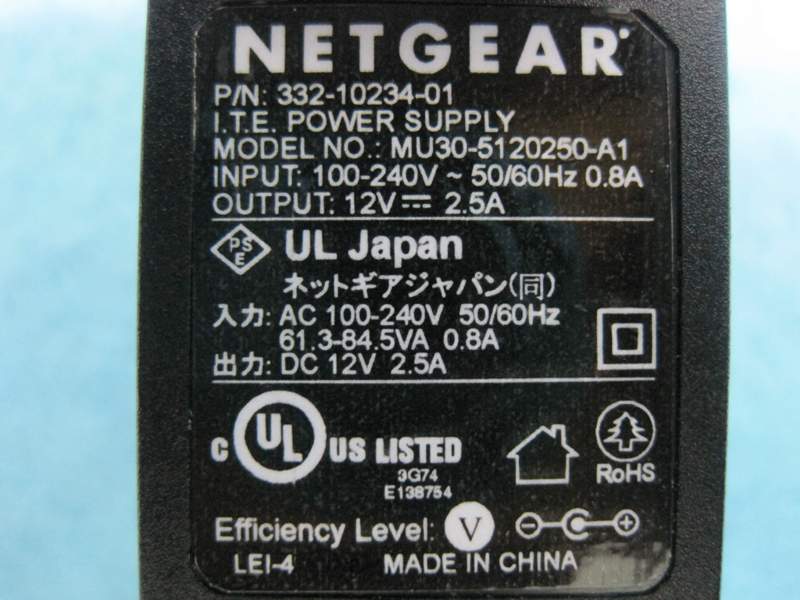

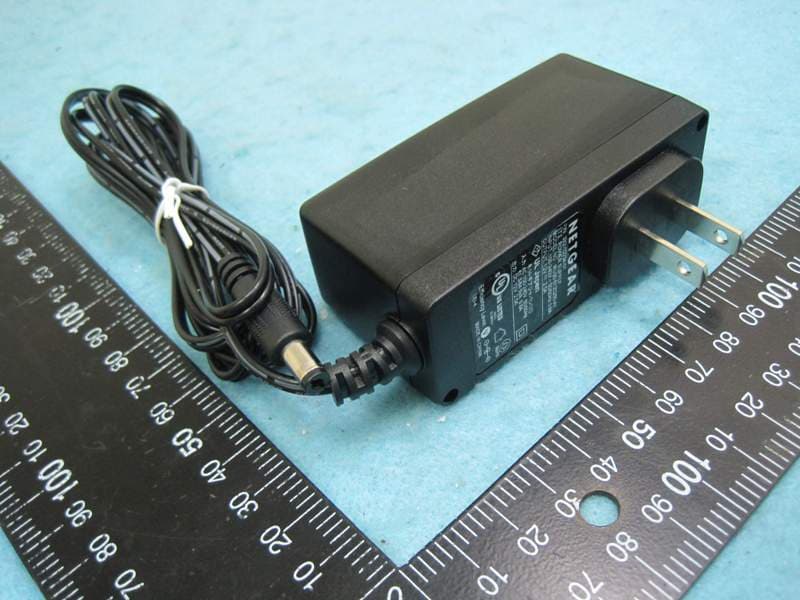

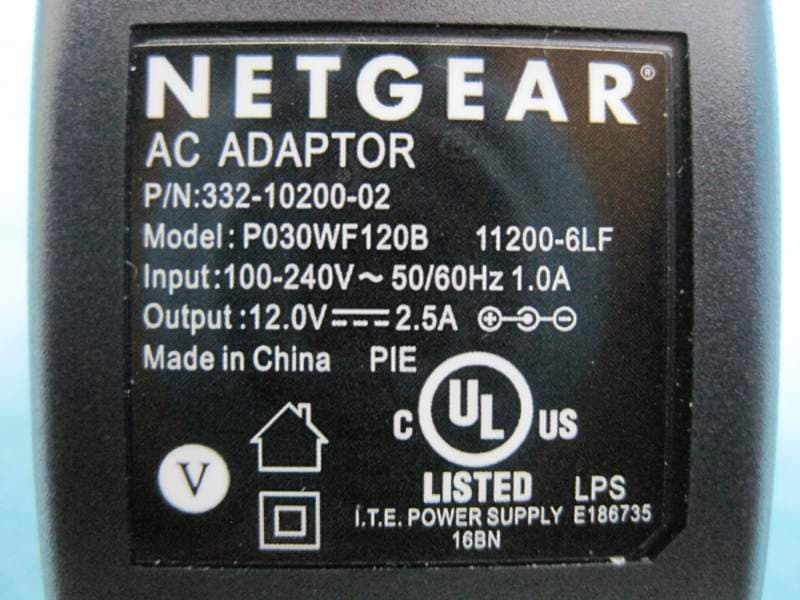

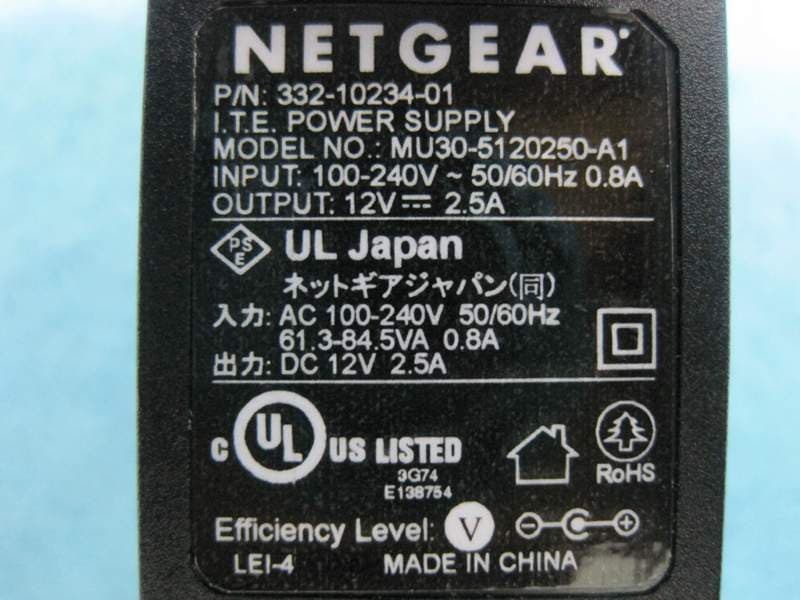

Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Adapter 1 Brand Name: NETGEAR Model No.: MU30-5120250-A1 P/N: 332-10234-01 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Adapter 2 Brand Name: NETGEAR Model No.: P030WF120B 11200-6LF P/N: 332-10200-02 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255

Label here

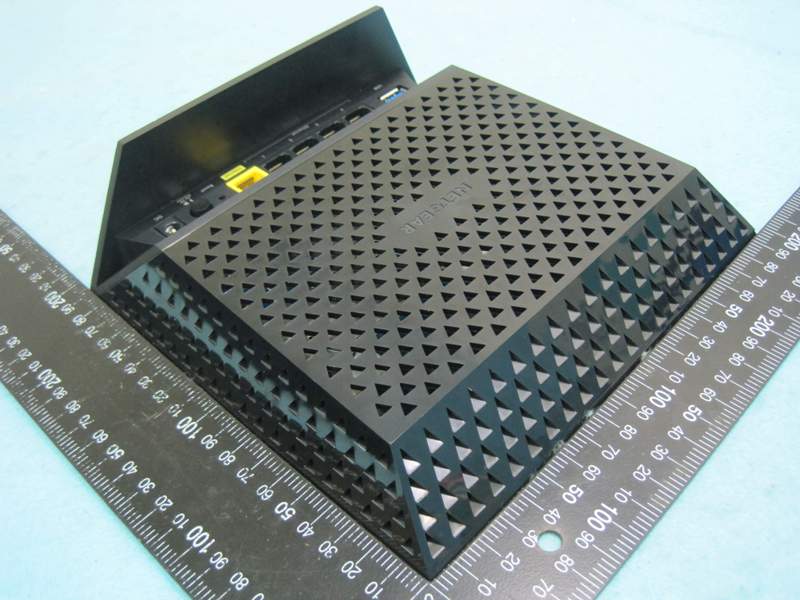

Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 1 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 2 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 3 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 4 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 5 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 6 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 7 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 8 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 9 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 10 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255 Report No.: 351533 SPORTON International Inc. PAGE NUMBER : 11 OF 11 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2013 FAX : 886-2-2696-2255

Report No.: FR351533 FCC ID: PY312400218 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR351533 FCC ID: PY312400218 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR351533 FCC ID: PY312400218 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac MCS0 40MHz : 16.89dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.32 3.4042 16.8869 48.8307 0.033087 1 Complies Note: Directional gain=GANT+10log(NANT/Nss) For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac MCS0 40MHz: 26.78dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.32 3.4042 26.7751 475.8935 0.322458 1 Complies Note: Directional gain=GANT+10log(NANT/Nss) For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g: 26.24 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.50 1.4125 26.2432 421.0413 0.118379 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.118379 / 1 + 0.322458 / 1 = 0.440837, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134, USA FCC ID PY312400218 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name R6200 Smart WiFi Router Brand Name NETGEAR Model No. R6200v2 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jan. 18, 2013 Final Test Date May 22, 2013 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB 789033 D01 v01r03 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR351533AA Report Format Version: 01 Page No. : i of ii FCC ID: PY312400218 Issued Date :May 28, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 6 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 7 3.5. Table for Test Modes .................................................................................................................................................................................. 8 3.6. Table for Testing Locations........................................................................................................................................................................ 9 3.7. Table for Supporting Units ....................................................................................................................................................................... 10 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 11 3.9. EUT Operation during Test ....................................................................................................................................................................... 12 3.10. Duty Cycle................................................................................................................................................................................................. 13 3.11. Test Configurations................................................................................................................................................................................... 16 4. TEST RESULT......................................................................................................................................................... 20 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 20 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement ..................................................................................................... 24 4.3. Maximum Conducted Output Power Measurement......................................................................................................................... 33 4.4. Power Spectral Density Measurement.................................................................................................................................................. 36 4.5. Peak Excursion Measurement ................................................................................................................................................................ 42 4.6. Radiated Emissions Measurement......................................................................................................................................................... 47 4.7. Band Edge Emissions Measurement...................................................................................................................................................... 62 4.8. Frequency Stability Measurement......................................................................................................................................................... 68 4.9. Antenna Requirements ......................................................................…

Text truncated - open the document above for the full version.

Report No.: FR351533 FCC ID: PY312400218 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR351533 FCC ID: PY312400218 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 60% Test Engineer Serway Li Configurations 2.4G + 5G TX Horizontal Report No.: FR351533 FCC ID: PY312400218 Page No. : C3 of C3 Vertial

Report No.: FR351533 FCC ID: PY312400218 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR351533 FCC ID: PY312400218 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR351533 FCC ID: PY312400218 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR351533 FCC ID: PY312400218 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR351533 FCC ID: PY312400218 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
