PY312400219R6250 Smart WiFi Router

350 East Plumeria Drive San Jose, CA 95134 USA March 2013 v1.0 R6250 Smart WiFi Router User Manual 2 R6250 Smart WiFi Router Support Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. ©2013 NETGEAR, Inc. All rights reserved. 3 Contents Chapter 1 Hardware Setup Unpack Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Front and Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Chapter 2 Getting Started Router Setup Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . .13 Gather ISP Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Wireless Devices and Security Settings. . . . . . . . . . . . . . . . . . . . . . . . .13 Types of Logins and Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 NETGEAR genie Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Use NETGEAR genie after Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Dashboard (Basic Home Screen). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Join Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Manual Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Wi-Fi Protected Setup (WPS) Method . . . . . . . . . . . . . . . . . . . . . . . . . .17 NETGEAR genie App and Mobile genie App . . . . . . . . . . . . . . . . . . . . . . .18 Chapter 3 NETGEAR genie Basic Settings Internet Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Internet Setup Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Wireless Settings Screen Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Change the Wireless Security Option. . . . . . . . . . . . . . . . . . . . . . . . . . .27 Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 View Attached Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Chapter 4 NETGEAR genie Advanced Home NETGEAR genie Advanced Home Screen . . . . . . . . . . . . . . . . . . . . . . . .31 Internet Connection Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 4 R6250 Smart WiFi Router Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 LAN Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 LAN Setup Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 The Role of the Router as a DHCP Server. . . . . . . . . . . . . . . . . . . . . . .37 Address Reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 WPS Wizard for WiFi Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Quality of Service (QoS) Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 WMM QoS for Wireless Multimedia Applications . . . . . . . . . . . . . . . . . .39 Set Up QoS for Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Chapter 5 USB Storage Connect a USB Storage Device to the Router . . . . . . . . . . . . . . . . . . . . . .45 Safely Remove a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 File-Sharing Scenarios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 Share Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 Store Files in a Central Location for Printing . . . . . . . . . . . . . . . . . . . . .48 Share Large Files over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 View a USB Device Attached to the Router . . . . . . . . . . . . . . . . . . . . . . . .49 USB Storage Device Network and Access Settings. . . . . . . . . . . . . . . . . .50 Available Network Folde…

Text truncated - open the document above for the full version.

Page No. : 3 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 Date: 2013/3/5 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312400219 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

Page No. : 2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 Power of Attorney Date: 2013/3/5 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / R6250 FCC ID: PY312400219 Product name: R6250 Smart WiFi Router FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

Page No. : 5 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3530 / Fax: 408-907-8097 DoC Attestation Letter Date: 2013/3/5 We NETGEAR, Inc., as the grantee of this project (FCC ID: PY312400219 / Brand Name: NETGEAR / Model No.: R6250), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD322315, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _____________________________ Job Title and Dept. : Masood Abrishamcar / Regulatory Complinace Manager E-Mail : [email protected] Tel. : 408-890-3530

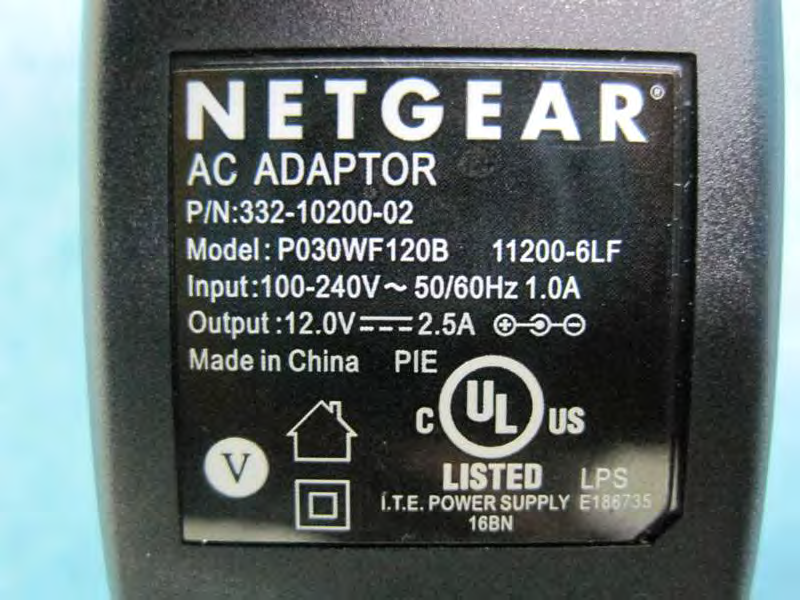

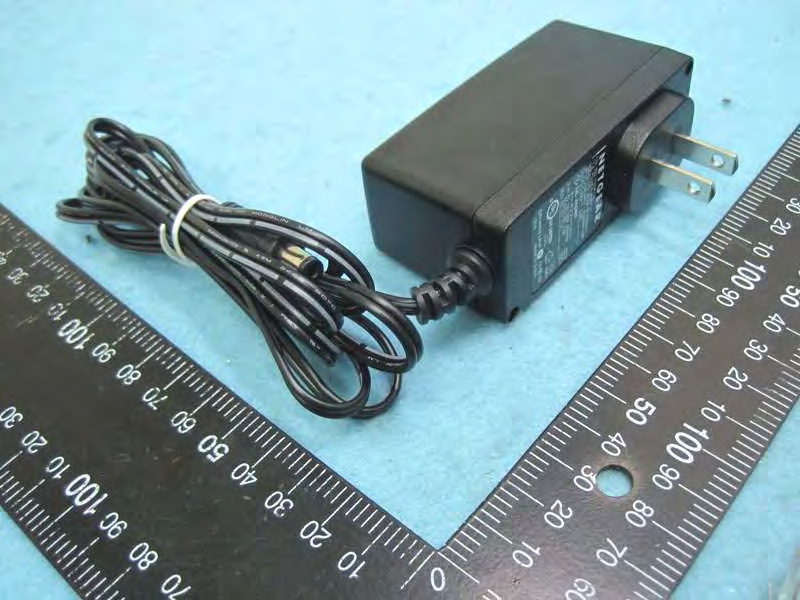

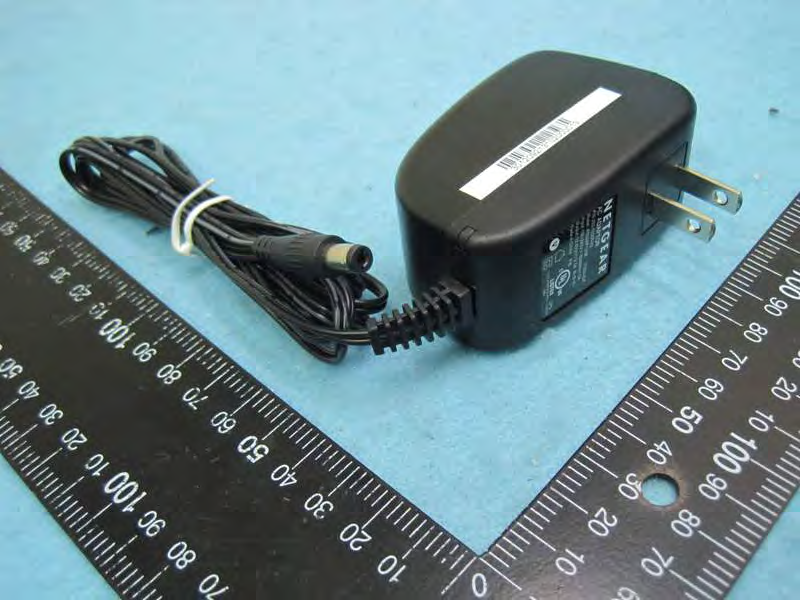

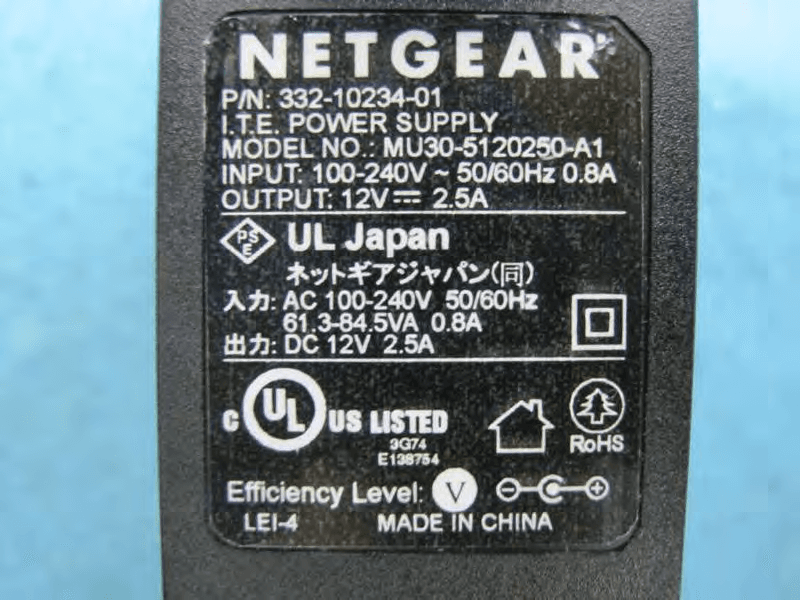

Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 14, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 14, 2013 FAX : 886-2-2696-2255 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 14, 2013 FAX : 886-2-2696-2255 Power Adapter 1 Model No. MU30-5120250-A1 P/N No. 332-10234-01 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 14, 2013 FAX : 886-2-2696-2255 Power Adapter 2 Model No. P030WF120B 11200-6LF P/N No. 332-10200-02 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 14, 2013 FAX : 886-2-2696-2255 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 14, 2013 FAX : 886-2-2696-2255 RJ-45 Cable (Shielded, 1.3m)

Label Size: 12*15*3 cm

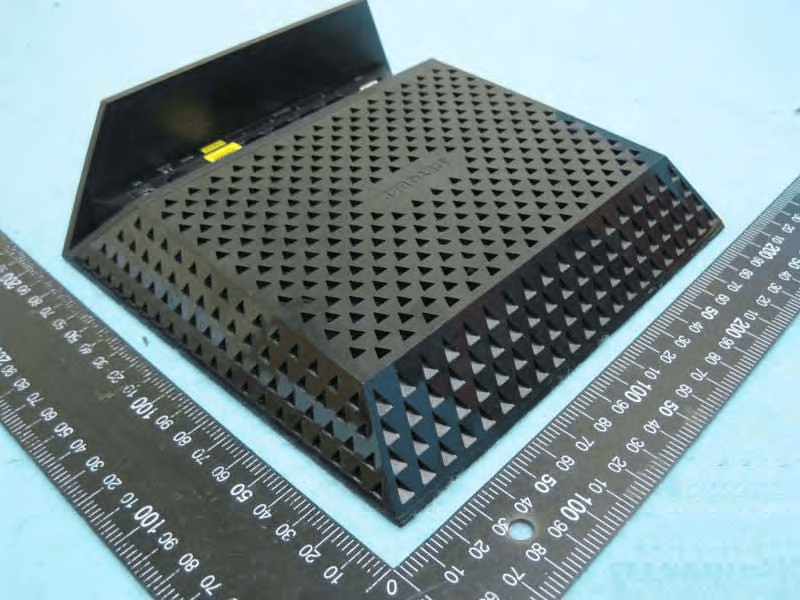

Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.: 322315 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255

Report No.: FR322315 FCC ID: PY312400219 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR322315 FCC ID: PY312400219 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR322315 FCC ID: PY312400219 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n MCS0 40MHz: 16.90 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.00 1.9953 16.9042 49.0252 0.019470 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac MCS0 VHT 20MHz: 27.19 dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.56 3.5975 27.1922 523.8625 0.375118 1 Complies Note: Directional gain=GANT+10log(NANT/Nss) For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g: 26.24 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.50 1.4125 26.2432 421.0413 0.118379 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.118379 / 1 + 0.375118 / 1 = 0.493497, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134, USA FCC ID PY312400219 Manufacturer’s company Ambit Microsystems (Shanghai) Ltd. Manufacturer Address No. 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China Product Name R6250 Smart WiFi Router Brand Name NETGEAR Model Name R6250 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jan. 07, 2013 Final Test Date Feb. 19, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR322315AA Report Format Version: 01 Page No. : i of ii FCC ID: PY312400219 Issued Date :Mar. 14, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 6 3.3. Table for Filed Antenna ............................................................................................................................................................................. 7 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 8 3.5. Table for Test Modes .................................................................................................................................................................................. 9 3.6. Table for Testing Locations...................................................................................................................................................................... 11 3.7. Table for Supporting Units ....................................................................................................................................................................... 11 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 12 3.9. Test Configurations................................................................................................................................................................................... 14 4. TEST RESULT......................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 17 4.2. Maximum Conducted Output Power Measurement......................................................................................................................... 23 4.3. Power Spectral Density Measurement.................................................................................................................................................. 27 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 37 4.5. Radiated Emissions Measurement......................................................................................................................................................... 45 4.6. Emissions Measurement........................................................................................................................................................................... 77 4.7. Antenna Requirements ........................................................................................................................................................................... 98 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 99 6. TEST LOCATION................................................................................................................................................ 101 APPENDIX A. TEST PHOTOS........................................................................................................................... A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................................B1 ~ B3 APPENDIX C. CO-LOCATION REPORT ........…

Text truncated - open the document above for the full version.

Report No.: FR322315 FCC ID: PY312400219 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR322315 FCC ID: PY312400219 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 24.5°C Humidity 60% Test Engineer Jim Huang Configurations Normal Link / EUT + Power Adapter 2 Horizontal Report No.: FR322315 FCC ID: PY312400219 Page No. : C3 of C3 Vertial

Report No.: FR322315 FCC ID: PY312400219 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR322315 FCC ID: PY312400219 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1. FRONT VIEW REAR VIEW Report No.: FR322315 FCC ID: PY312400219 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR322315 FCC ID: PY312400219 Page No. : A4 of A5 Test Configuration: 30 MHz ~ 1 GHz / Test Mode: Mode 2. FRONT VIEW REAR VIEW Report No.: FR322315 FCC ID: PY312400219 Page No. : A5 of A5 Test Configuration: Above 1 GHz / Test Mode: Mode 2. FRONT VIEW REAR VIEW
