PY312400223AC1750 WiFi Cable Modem Router

Installation AC1750 WiFi Cable Modem Router Model C6300 1. Connect a coaxial cable. Use a coaxial cable that is provided by your cable company to connect the cable port on the modem router to a cable wall outlet or a line splitter. Note: If Charter is your cable Internet service provider (ISP), Charter recommends connecting your modem router directly to a cable wall outlet. If you must use a splitter, use a splitter that is rated at 3.5 dBmv. Package Contents 2. Connect the power adapter. Connect the power adapter to the modem router, and plug the power adapter into an electrical outlet. The Power LED lights green. If the Power LED does not light, press the Power On/Off button. 4. Log in to the modem router. Launch a web browser. The modem router menu displays. If you do not see the modem router menu, enter http://routerlogin.net or http://192.168.0.1 in the address fi eld of the web browser. Then enter admin for the user name and password for the password. 5. Set up your Internet serivce. For information about how to set up your Internet service, see the other side of this installation guide. 6. Get the genie app. Download the free genie app from www.NETGEAR.com/genie. Easily share media, fi les, and printers on the network from your smartphone, tablet, or laptop. 3. Connect a computer to the modem router. Use an Ethernet cable to connect a computer to the Ethernet port on the modem router. You can also connect with WiFi. Use the WiFi network name and password on the modem router label. Modem router Ethernet cablePower adapter Coaxial cable (not included) Power adapter Power On/Off button Modem router Ethernet cable March 2014 Netgear, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. Set Up Your Internet Service 1. Contact your cable ISP and inform them that you are installing a new modem router that you bought from a retail store. Provide your cable ISP with the modem router’s model number, which is C6300. Note: The modem router is certifi ed by all major cable ISPs. You can also visit your cable ISP’s website and follow the onscreen instructions to set up your Internet service. Cable ISPContact Information Cablevision www.cablevision.com www.optimum.com/contactus.jsp Charter 1-888-438-2427 https://install.charter.com Comcast 1-800-COMCAST (1-800-266-2278) https://www.comcast.com/activate Cox 1-877-891-2899 ww2.cox.com Optimum http://play.optimum.net https://www.optimum.net/support/phone-list Time Warner Cable 1-800-892-2253 http://www.timewarnercable.com Note: Your cable ISP’s contact information might change. You can also fi nd the contact number in your monthly Internet service billing statement. 2. When asked, provide the modem router’s serial number and MAC address on the product label on the modem router. 3. Wait for your cable ISP to confi rm that your modem router is active. 4. If you do not have an Internet connection with the modem router, ask your cable ISP to look for your modem router online, then do one of the following depending on what your cable ISP tells you about your modem router: • If the modem router is not visible, your cable ISP can give you instructions to verify why the modem router does not connect with your high-speed Internet service. • If the modem router is visible to your cable ISP, reboot the modem router. Try checking your online status again. Join the Modem Router’s WiFi Network To connect your computer or WiFi device (such as a smartphone or gaming device) to your modem router’s WiFi network, you can use either the manual method or Wi-Fi Protected Setup (WPS) method. Manual Method 1. Open the soft ware utility that manages your WiFi connections on the computer or WiFi device that you want to connect to your modem router. This utility scans for all wireless networks in your area. 2. Find and select your modem router’s WiFi network name (SSID). The SSID is on the product label. 3. Enter the modem router’s password (or your custom password if you changed it) and click the Connect button. The password is on the modem router label. 4. Repeat Step 1 through Step 3 to add other computers or WiFi devices. WPS Method If your computer or WiFi device supports WPS, you can use WPS to join the modem router’s WiFi network. Note: WPS does not support WEP security. If you are using WEP security, use the manual method. 1. Press the WPS button on the modem router. 2. Within two minutes, on your computer or WiFi device, press its WPS button or click its onscreen WPS button. Note: For help with the WPS button on your computer or WiFi device, check the instructions or online help that came with that computer or WiFi device. Some older equipment cannot use WPS. The WPS LED on the modem router lights solid green and the computer or WiFi device connects to your modem router. 3. Repeat this process to add other computers or WiFi devices. Support Thank you for selecting NETGEAR products. Aft er installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. NETGEAR recommends that you use only the offi cial NETGEAR support resources. For regulatory compliance information, visit http://www.netgear.com/about/regulatory/. See the regulatory compliance document before connecting the power supply.

Notification of Compliance Regulatory Compliance Information This document includes user requirements for operating NETGEAR products in accordance with national laws including usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable national regulatory authority. The NETGEAR product firmware limits operation to only the channels allowed in a particular region or country. Therefore, all options described in this document may not be available in your version of the product. This document applies to both Class A and Class B devices: x Class A devices are intended to be used in a commercial or industrial environment. They are not intended to be used in a residential home or be available for general public use. x Class B devices are intended to be used in a residential setting, and may also be used in commercial and industrial applications. Examples of Class B devices are telephones, personal computers, and residential data gateways. x Fuses should only be installed by service personnel. x NETGEAR recommends the use of 26 AWG or larger gauge phone line cords. Europe – EU Declaration of Conformity This section applies to products bearing the CE or CE! mark: Products bearing the CE or CE! mark comply with the following EU directives: x EMC Directive 2004/108/EC x Low Voltage Directive 2006/95/EC x Ecodesign Directive 2009/125/EC x RoHS Directive 2011/65/EU If the product has telecommunications functionality, it also complies with the requirement of the following EU directive: x R&TTE Directive 1999/5/EC Compliance with these directives implies conformity to harmonized European standards that are noted in the EU Declaration of Conformity. The EU CE Declaration of Conformity may be found at http://support.netgear.com/app/answers/detail/a_id/11621/. Caution for installing this equipment outdoors: (Valid in all EU member states, EFTA states, and Switzerland.) Be aware that outdoor installations require special attention and will only be handled by trained and qualified installation personnel. No one from the general public is permitted to install NETGEAR wireless products outdoors when external antennas, power and grounding must be installed for use. Particular attention has to be given allowed operational frequencies. Contact NETGEAR for instructions on how to contact an installer for outdoor operations if this product requires the special considerations for outdoor installations. For detailed iformation concerning installations in France, the user should contact the national spectrum authority in France (http://www.arcep.fr/ ) The following paragraphs apply to WN2500RP: This device is a 2.4GHz and 5GHz wideband transmission system (transceiver), intended for indoor use only in all EU member states, EFTA states, and Switzerland. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for applying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10mW EIRP in the frequency range of 2454-2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Warning NETGEAR Class A products that may be utilized in domestic/residential environments may cause radio interference in which case the user may be required to take adequate measures. FCC Requirements for Operation in the United States Information in this section applies to products bearing the FCC mark (or statement): FCC Information to User This NETGEAR product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals. The following statement applies to these products: x C6300 x WN2500RP x C6300XB3 x WN3000RPv2 x EX6100 x WN3500RP x EX6200 x HMNC100 x STS7000 x VEGN2200 x WN370 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures . FCC Guidelines for Human Exposure This NETGEAR product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that this product complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions: x The device may not cause harmful interference, and x The device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions The NETGEAR product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods: x Reorient or relocate the receiving antenna. x Increase the separation between the equipment and the rece…

Text truncated - open the document above for the full version.

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 4088903657 / Fax: 4089078097 Confidential Letter Date: 2014/3/3 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY312400223 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 4088903657

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 4088903657 / Fax: 4089078097 DoC Attestation Letter Date: 2014/3/3 We NETGEAR, Inc., as the grantee of this project (FCC ID: PY312400223 / Brand Name: NETGEAR / Model No.: C6300), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD371750-01, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 4088903657

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 4088903657 / Fax: 4089078097 Power of Attorney Date: 2014/3/3 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / C6300 FCC ID: PY312400223 Product name: AC1750 WiFi Cable Modem Router FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 4088903657

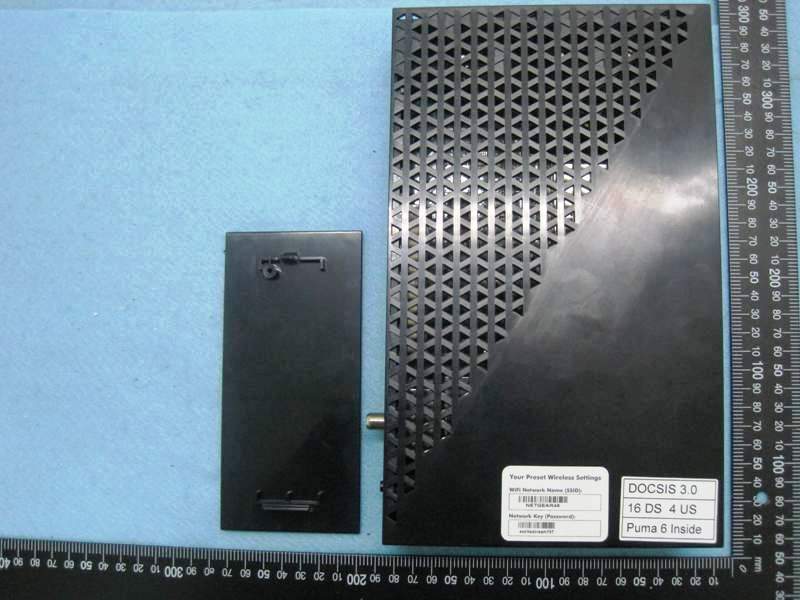

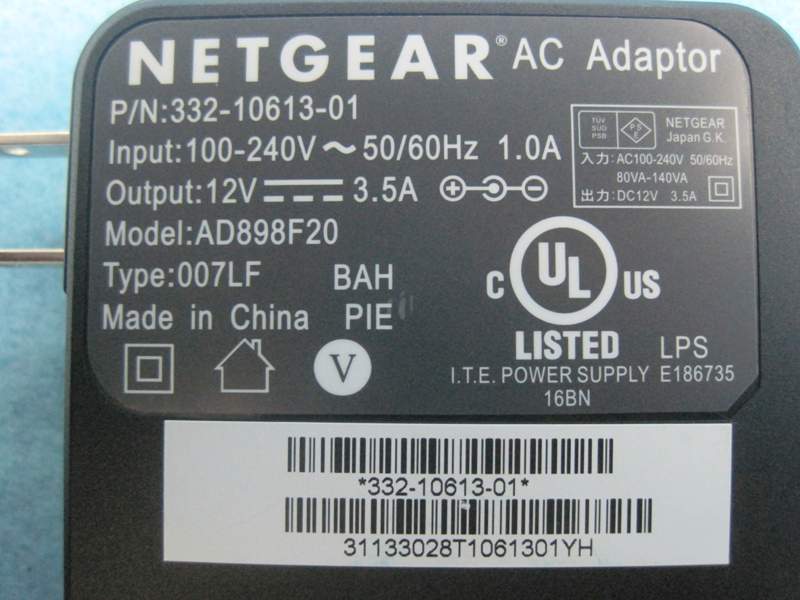

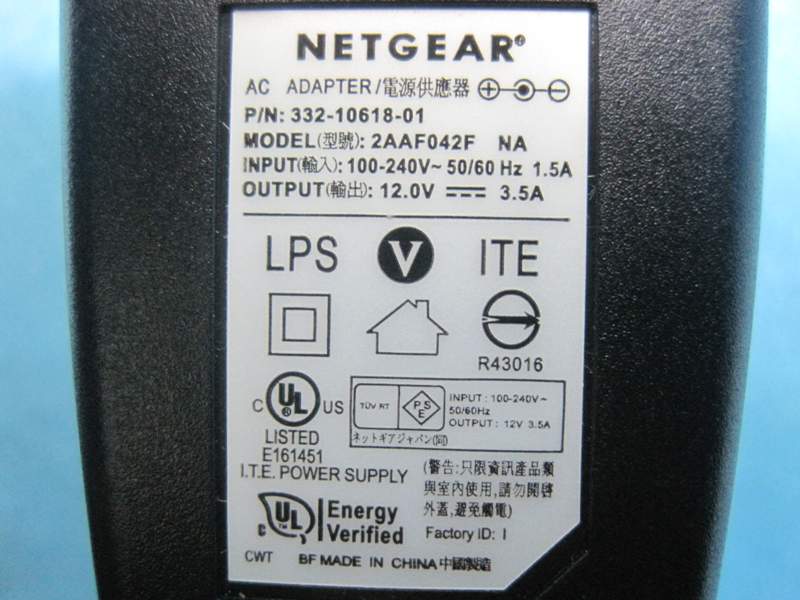

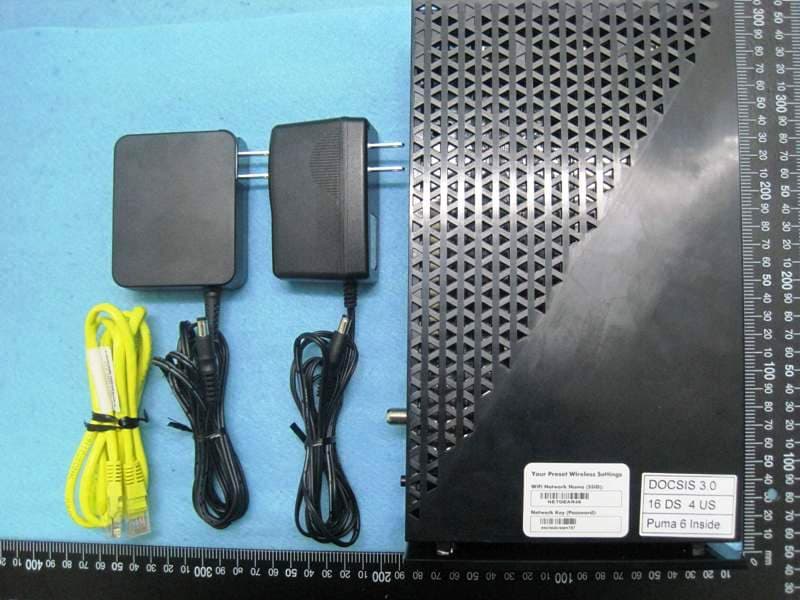

Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Adapter 1 Model No.: AD898F20 P/N: 332-10613-01 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Adapter 2 Model No.: 2AAF042F NA P/N: 332-10618-01 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 RJ-45 Cable

Label size: 3.8x27 cm SHEET: AUTHOR: TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE 01AW-12572-011 of 1 R HU 14FEB14 R HUINITIAL DOCUMENT CREATION01 Pantone 877C Black 7 AW, PLBL,C6300 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 8. PRINT LABEL BACK BLACK WITHOUT ANY FRONT ARTWORK TRACES. Made in China 272-11989-01 AC1750 WiFi Cable Modem Router Model: C6300 http://routerlogin.net username: admin password: password Router Login Designed by NETGEAR in California 16 DS 4 US DOCSIS 3.0 Password (Network Key) FCC ID: PY312400223 IC: 4054A-12400222 Contains: FCC ID: PY314100255 IC: 4054A-14100255 MAC SERIAL WiFi Network Name (SSID) WPS Wi-Fi On/O Power Down Stream Up Stream Internet Ethernet USB This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS-standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

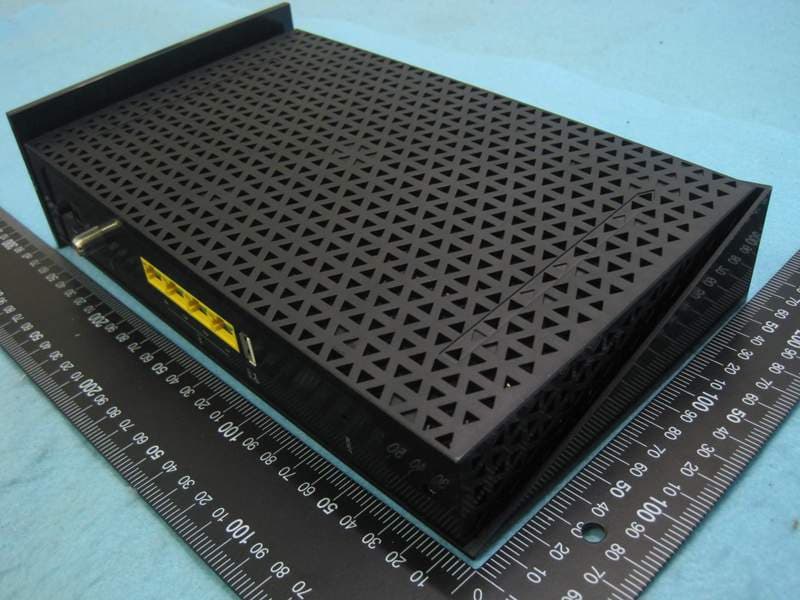

Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 1 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 2 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 3 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 4 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 5 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 6 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 7 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 8 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 9 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 10 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 11 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 12 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 13 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 14 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 15 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 16 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 17 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973 Report No.: 371750-01 SPORTON International Inc. PAGE NUMBER : 18 OF 18 TEL : 886-3-327-3456 ISSUED DATE : Mar. 24, 2014 FAX : 886-3-327-0973

Report No.: FR371750-01 FCC ID: PY312400223 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR371750-01 FCC ID: PY312400223 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR371750-01 FCC ID: PY312400223 Page No. : B3 of B3 1.3. Calculated Result and Limit For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b: 29.17 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.10 2.0417 29.1660 825.2730 0.335388 1 Complies For 5GHz radio module For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11ac VHT 40 : 16.73 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.00 2.5119 16.7298 47.0959 0.023547 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a : 28.66 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.00 2.5119 28.6552 733.7104 0.366839 1 Complies Note: This device contains transmitter module FCC ID: PY314100255. CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.335388 / 1 + 0.366839 / 1 = 0.702227, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134, USA FCC ID PY312400223 Product Name AC1750 WiFi Cable Modem Router Brand Name NETGEAR Model No. C6300 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jul. 17, 2013 Final Test Date Oct. 16, 2013 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01, KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR371750-01 Report Format Version: 01 Page No. : i of ii FCC ID: PY312400223 Issued Date : Mar. 19, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. EUT Operation during Test .................................................................................................................................................................11 3.10. Duty Cycle ........................................................................................................................................................................................12 3.11. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................21 4.3. Power Spectral Density Measurement ..............................................................................................................................................24 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................34 4.5. Radiated Emissions Measurement ....................................................................................................................................................39 4.6. Emissions Measurement ....................................................................................................................................................................58 4.7. Antenna Requirements .....................................................................................................................................................................76 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 77 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 79 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ...............…

Text truncated - open the document above for the full version.
