PY312400225R6100 WiFi Router, R6000 WiFi Router

350 East Plumeria Drive San Jose, CA 95134 USA March 2013 v1.0 R6000 WiFi Router User Manual NOTE: This document is for certification purposes. Images are for position only and may differ from the actual product. 2 R6000 WiFi Router Support Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. ©2013 NETGEAR, Inc. All rights reserved. 3 Contents Chapter 1 Hardware Setup Unpack Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Front and Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Chapter 2 Getting Started Router Setup Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . . 13 Gather ISP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Wireless Devices and Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . 13 Types of Logins and Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 NETGEAR genie Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Use NETGEAR genie after Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Dashboard (Basic Home Screen). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Join Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Manual Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Wi-Fi Protected Setup (WPS) Method . . . . . . . . . . . . . . . . . . . . . . . . . . 17 NETGEAR genie App and Mobile genie App . . . . . . . . . . . . . . . . . . . . . . . 18 Chapter 3 NETGEAR genie Basic Settings Internet Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Internet Setup Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Wireless Settings Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Change the Wireless Security Option. . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 View Attached Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Chapter 4 NETGEAR genie Advanced Home NETGEAR genie Advanced Home Screen . . . . . . . . . . . . . . . . . . . . . . . . 31 Internet Connection Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4 R6000 WiFi Router Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 LAN Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 LAN Setup Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 The Role of the Router as a DHCP Server. . . . . . . . . . . . . . . . . . . . . . . 37 Address Reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 WPS Wizard for WiFi Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Quality of Service (QoS) Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 WMM QoS for Wireless Multimedia Applications . . . . . . . . . . . . . . . . . . 39 Set Up QoS for Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Chapter 5 USB Storage Connect a USB Storage Device to the Router . . . . . . . . . . . . . . . . . . . . . . 45 Safely Remove a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 File-Sharing Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Share Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Store Files in a Central Location for Printing . . . . . . . . . . . . . . . . . . . . . 48 Share Large Files over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 View a USB Device Attached to the Router …

Text truncated - open the document above for the full version.

350 East Plumeria Drive San Jose, CA 95134 USA March 2013 v1.0 R6100 WiFi Router User Manual NOTE: This document is for certification purposes. Images are for position only and may differ from the actual product. 2 R6100 WiFi Router Support Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. ©2013 NETGEAR, Inc. All rights reserved. 3 Contents Chapter 1 Hardware Setup Unpack Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Front and Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Chapter 2 Getting Started Router Setup Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . . 13 Gather ISP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Wireless Devices and Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . 13 Types of Logins and Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 NETGEAR genie Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Use NETGEAR genie after Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Dashboard (Basic Home Screen). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Join Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Manual Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Wi-Fi Protected Setup (WPS) Method . . . . . . . . . . . . . . . . . . . . . . . . . . 17 NETGEAR genie App and Mobile genie App . . . . . . . . . . . . . . . . . . . . . . . 18 Chapter 3 NETGEAR genie Basic Settings Internet Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Internet Setup Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Wireless Settings Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Change the Wireless Security Option. . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 View Attached Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Chapter 4 NETGEAR genie Advanced Home NETGEAR genie Advanced Home Screen . . . . . . . . . . . . . . . . . . . . . . . . 31 Internet Connection Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4 R6100 WiFi Router Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 LAN Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 LAN Setup Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 The Role of the Router as a DHCP Server. . . . . . . . . . . . . . . . . . . . . . . 37 Address Reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 WPS Wizard for WiFi Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Quality of Service (QoS) Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 WMM QoS for Wireless Multimedia Applications . . . . . . . . . . . . . . . . . . 39 Set Up QoS for Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Chapter 5 USB Storage Connect a USB Storage Device to the Router . . . . . . . . . . . . . . . . . . . . . . 45 Safely Remove a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 File-Sharing Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Share Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Store Files in a Central Location for Printing . . . . . . . . . . . . . . . . . . . . . 48 Share Large Files over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 View a USB Device Attached to the Router …

Text truncated - open the document above for the full version.

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: 2013/4/26 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PY312400225 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization o the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : ____________________ Name and Job Title. : John Ramones / Director of Product Design and Regulations E-mail : [email protected] Te l . : 408-890-3530

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: April 26, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: PY312400225 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2013/10/20 ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : ________________________ Name and Job Title. : John Ramones / Director of Product Design and Regulations E-mail : [email protected] Te l . : 408-890-3530

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: April 26, 2013 Subject: Ad Hoc Mode Function Declaration To whom it may concern, We, NETGEAR, Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: PY312400225 Regards, Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : ________________________ Name and Job Title. : John Ramones / Director of Product Design and Regulations E-mail : [email protected] Te l . : 408-890-3530

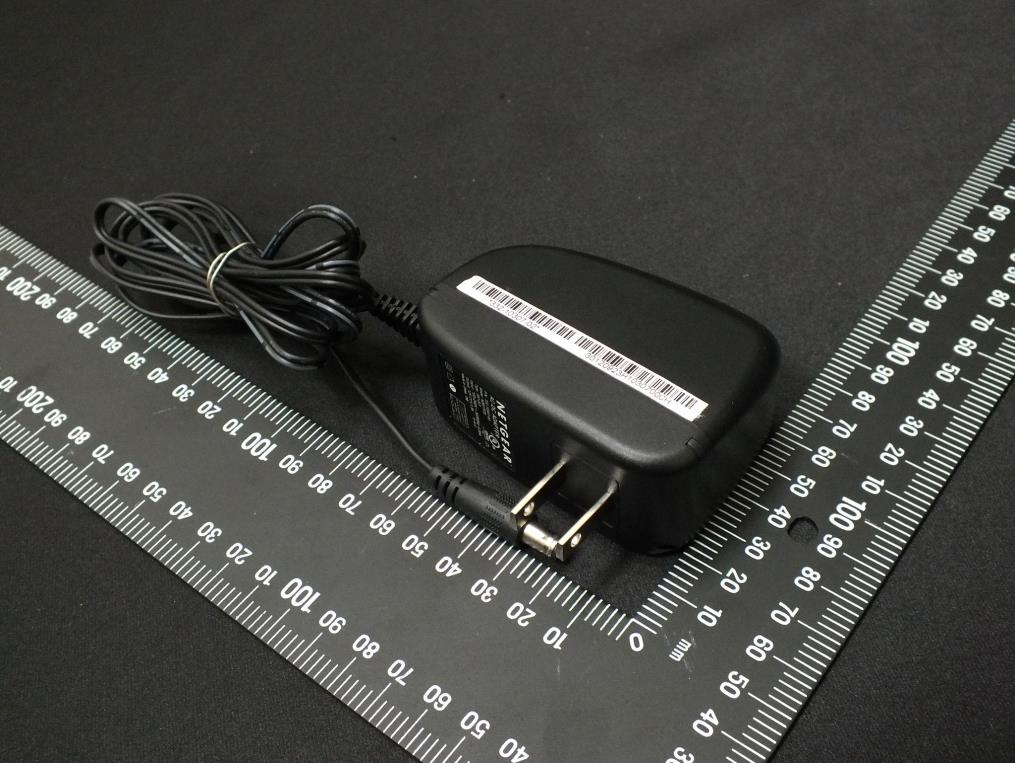

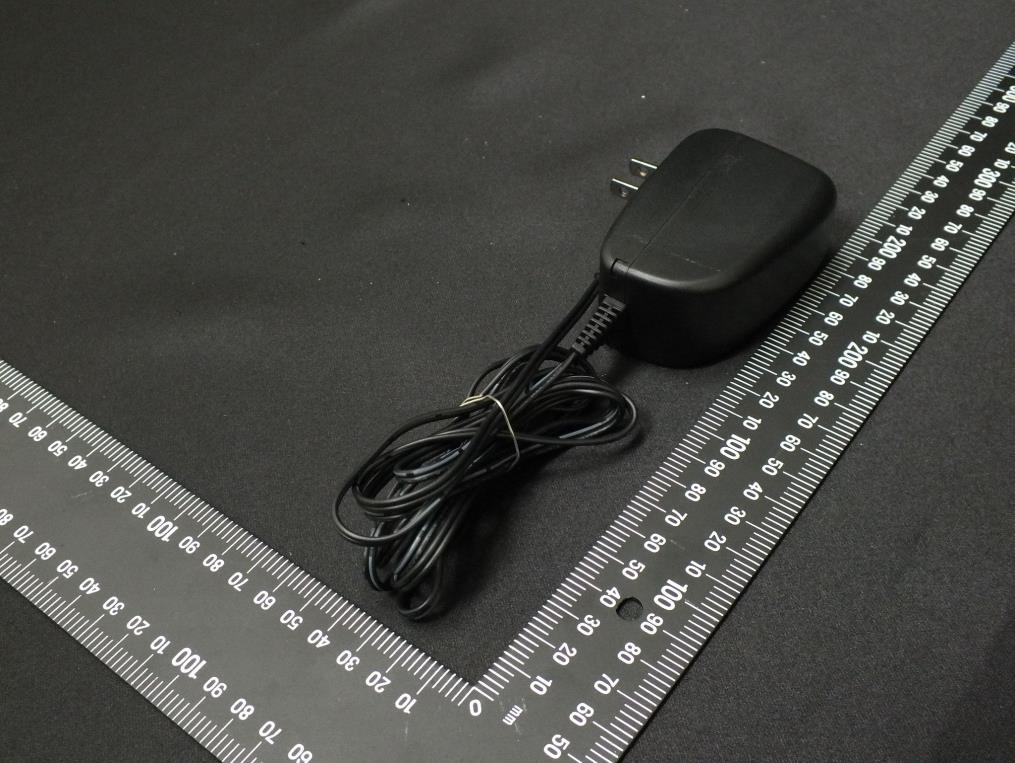

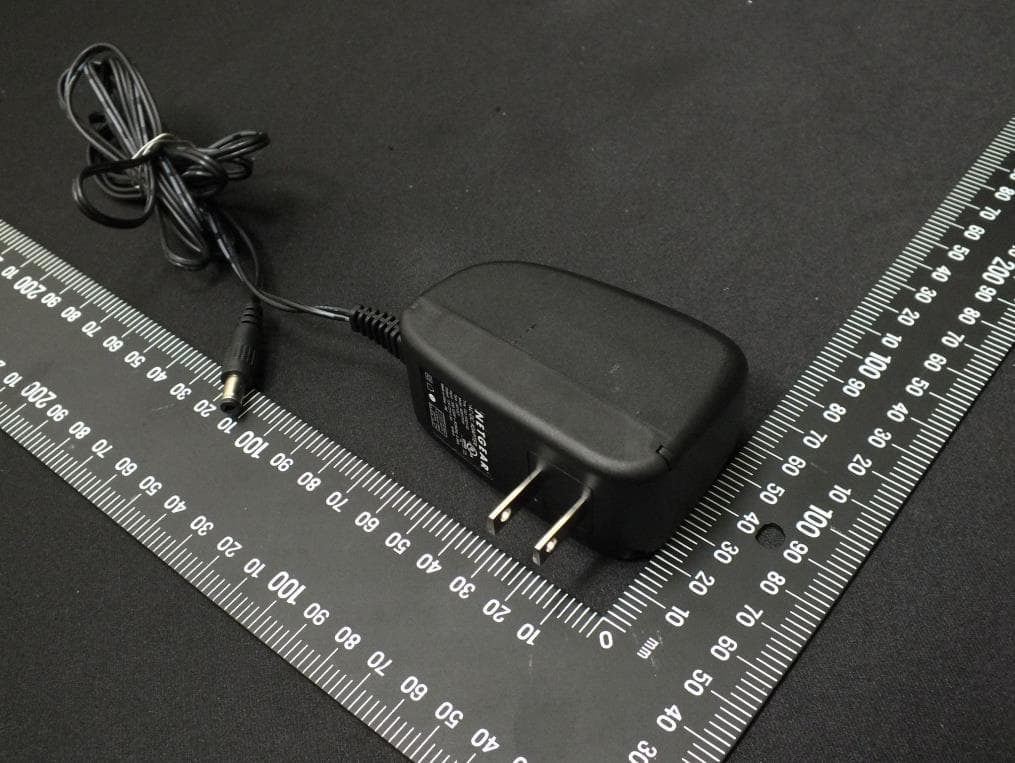

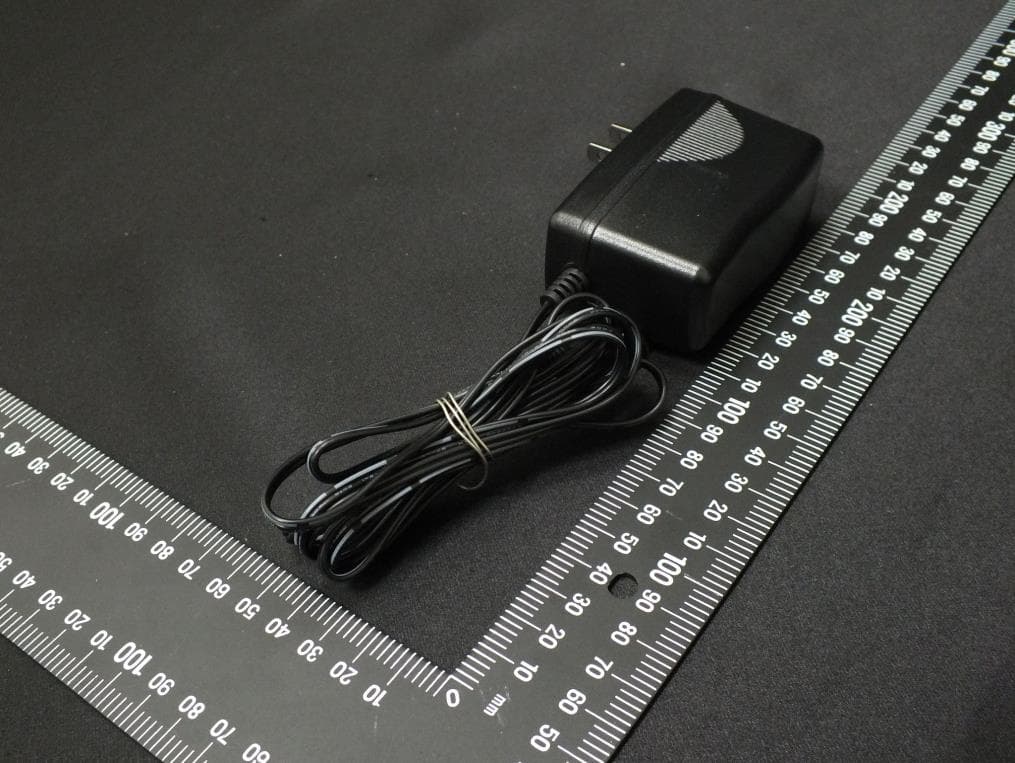

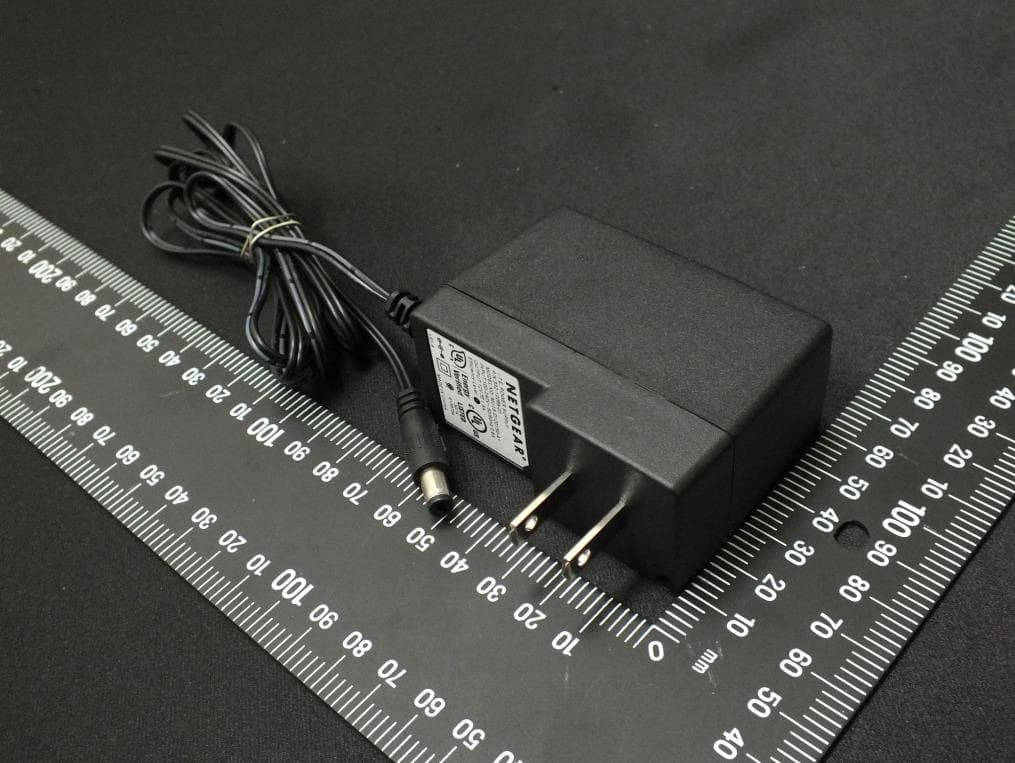

FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B1 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 Appendix B. Photographs of EUT FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B2 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B3 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B4 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B5 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B6 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B7 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B8 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B9 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B10 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPDDATE 01AW-12489-011 of 1 AW, R6000, V1H1, PLBLT TSAO 13MAR13T TSAOINITIAL DOCUMENT CREATION01 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 7 Pantone 877C Black White SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPDDATE 01AW-12242-011 of 1 AW, R6100, V1H1, PLBLT TSAO 29JAN13J MATHESONINITIAL DOCUMENT CREATION01 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 7 Pantone 877C Black White label location

FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B11 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B12 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B13 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B14 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B15 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B16 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B17 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B18 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B19 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B20 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B21 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B22 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B23 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B24 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B25 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B26 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330625 SPORTON International Inc. Page No. : B27 of B27 TEL : 886-3-327-3456 Issued Date : Apr. 22, 2013 FAX : 886-3-327-0973

Operational Description FCC ID : PY312400225 The device is a Wireless router which operates at 2.4 and 5GHz band. It supports 11a/b/g/HT20/HT40 and 11ac VHT20/VHT40/VHT80. WPS bottom is embed to link with other Wi-Fi devices. 1 Internet port and 4 Ethernet ports are supports for user to build internal network and connect to internet. RF chips are AR9334 and QCA9880. AR9334 supports 2.4GHz band and QCA9880 supports 5GHz. RF ma i n chip AR9334 , QCA9880 Os ci llating fre quency 40 MHz Ante nna type Pri nte d Ope ra ting frequency ra nge 2412~2462 , 5180~5240 , 5745~5825 Modul ation type DBPSK/DQPSK/CCK BPSK/QPSK/16QAM/64QAM/256QAM Worki ng voltage 12Vdc Cha nnel frequency of 2.4GHz band Mode Channel Frequency (MHz) Mode Channel Frequency (MHz) 11b/g/n 20 1 2412 11 n 40 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 9 2452 10 2457 11 2462 Operational Description Cha nnel frequency of 5GHz band Mode Channel Frequency (MHz) Mode Channel Frequency (MHz) 11a /HT20/VHT20 36 5180 HT40 / VHT40 38 5190 40 5200 46 5230 44 5220 151 5755 48 5240 159 5795 149 5745 153 5765 157 5785 161 5805 165 5825 Mode Channel Frequency (MHz) VHT80 42 5210 155 5775

RF Exposure Report Report No. : FR330625-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FR330625-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FR330625-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location For model: R6100 / R6000 2400-2483.5 b 2412-2462 1-11 [11] 2 25.93 Yes 2400-2483.5 g 2412-2462 1-11 [11] 2 23.56 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 23.65 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 18.12 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode Chain- Port 1 Chain- Port 2 Chain- Port 3 Chain- Port 4 Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) b 23.02 22.81 - - 25.93 1.8 27.73 0.118 g 20.46 20.64 - - 23.56 1.8 25.36 0.068 n (HT20) 20.54 20.73 - - 23.65 1.8 25.45 0.070 n (HT40) 14.82 15.39 - - 18.12 1.8 19.92 0.020 Maximum Permissible Exposure Limit (mW/cm²) 1 RF Exposure Report Report No. : FR330625-01 SPORTON INTERNATIONAL INC. Page No. : 4 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure-(5.8G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location For model: R6100 5725-5850 a 5745-5825 149-165 [5] 2 29.77 Yes 5725-5850 n(HT20) 5745-5825 149-165 [5] 2 29.93 Yes 5725-5850 n(HT40) 5755-5795 151-159 [2] 2 29.44 Yes 5725-5850 ac(VHT20) 5745-5825 149-165 [5] 2 29.74 Yes 5725-5850 ac(VHT40) 5755-5795 151-159 [2] 2 29.30 Yes 5725-5850 ac(VHT80) 5775 155 [1] 2 22.05 Yes For model: R6000 5725-5850 a 5745-5825 149-165 [5] 1 29.56 Yes 5725-5850 n(HT20) 5745-5825 149-165 [5] 1 29.31 Yes 5725-5850 n(HT40) 5755-5795 151-159 [2] 1 29.12 Yes 5725-5850 ac(VHT20) 5745-5825 149-165 [5] 1 29.32 Yes 5725-5850 ac(VHT40) 5755-5795 151-159 [2] 1 29.21 Yes 5725-5850 ac(VHT80) 5775 155 [1] 1 20.42 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: RF output power specifies that Maximum Peak Conducted Output Power for ac(VHT80) only. Note 3: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF Exposure Report Report No. : FR330625-01 SPORTON INTERNATIONAL INC. Page No. : 5 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) For model: R6100 Modulation Mode Chain- Port 1 Chain- Port 2 Chain- Port 3 Chain- Port 4 Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) a 27.03 26.48 - - 29.77 2.7 32.47 0.351 n(HT20) 26.95 26.88 - - 29.93 2.7 32.63 0.365 n(HT40) 26.56 26.29 - - 29.44 2.7 32.14 0.326 ac(VHT20) 26.94 26.51 - - 29.74 2.7 32.44 0.349 ac(VHT40) 26.42 26.15 - - 29.30 2.7 32.00 0.315 ac(VHT80) 19.23 18.85 - - 22.05 2.7 24.75 0.0…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR330625 SPORTON INTERNATIONAL INC. Page No. : 1 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions t…
