PY313200228802.11abgn ac Dual Band Wireless-N Adapter

350 East Plumeria Drive San Jose, CA 95134 USA July 2013 802.11ac USB WiFi Adapter (A6100) User Manual Note:This document is for certification purposes. Images are for position only and may differ from the actual product. 2 802.11ac USB WiFi Adapter (A6100) Support Thank you for choosing NETGEAR. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx. NETGEAR recommends that you use only the official NETGEAR support resources. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © NETGEAR, Inc. All rights reserved. 3 Contents Chapter 1 Set Up Your Wireless USB Adapter USB Adapter Placement and Performance . . . . . . . . . . . . . . . . . . . . . . . . . 5 Attach the USB Adapter to Your Computer . . . . . . . . . . . . . . . . . . . . . . . 5 NETGEAR genie Desktop Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 NETGEAR genie Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Join a Wireless Network with NETGEAR genie . . . . . . . . . . . . . . . . . . . . . . 7 Network Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Join a Network or Connect to a Different Network . . . . . . . . . . . . . . . . . . 9 Join a Hidden Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Install a Standalone Driver without NETGEAR genie. . . . . . . . . . . . . . . . . 13 Chapter 2 Maintenance Other Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Sent/Receive Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Remove the genie Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Frequently Asked Questions (FAQs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Appendix A Technical Specifications and Factory Default Settings Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Appendix B Notification of Compliance 4 1 1. Set Up Your Wireless USB Adapter This chapter describes how to set up the 802.11ac USB WiFi Adapter (A6100) and includes the following sections: •USB Adapter Placement and Performance •NETGEAR genie Desktop Icon •NETGEAR genie Home •Join a Wireless Network with NETGEAR genie •Install a Standalone Driver without NETGEAR genie For help installing your USB adapter, see the installation guide that came in the package. The installation is also available at the NETGEAR Download Center at downloadcenter.netgear.com. Note:For more information about the topics covered in this manual, visit the support website at support.netgear.com. Note:Firmware updates with new features and bug fixes are made available from time to time on downloadcenter.netgear.com. Some products can regularly check the site and download new firmware, or you can check for and download new firmware manually. If the features or behavior of your product do not match what is described in this guide, you might need to update your firmware. Set Up Your Wireless USB Adapter 5 802.11ac USB WiFi Adapter (A6100) USB Adapter Placement and Performance You can position the USB adapter to best suit your own environment and to ensure maximum performance. Attach the USB Adapter to Your Computer To attach the USB adapter directly: Connect the USB directly into a USB port on your computer. NETGEAR genie Desktop Icon When you install your USB adapter, the NETGEAR genie icon appears in the Windows system tray and on the desktop. You can click this icon to open NETGEAR genie to make changes or connect to a different wireless network. The color of the icon indicates the strength of your wireless connection: White. 3–5 bars (strong connection) Yellow. 1–2 bars (weak connection) Red. 0 (zero) bars (no connection) If you remove your USB adapter, NETGEAR genie is not available, and the icon is not displayed. When you insert the USB adapter again, the icon returns. Set Up Your Wireless USB Adapter 6 802.11ac USB WiFi Adapter (A6100) NETGEAR genie Home When you launch NETGEAR genie, the Home screen displays. This screen shows you at a glance if you are connected to a network, and if you have Internet access. The following options are available: •Select Language. If more than one language is available, you can select a language from this drop-down list. NETGEAR genie screens are displayed in the language that you select. •Home button. The currently selected Home screen. You can click the Home button to return here from a different scr…

Text truncated - open the document above for the full version.

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: 2013/5/13 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PY313200228 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization o the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _________________________________ Name and Job Title. : John Ramones / Director of Product Design and Regulations E-mail : [email protected] Te l . : 408-890-3530

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: May 13, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: PY313200228 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test set up photographs Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _________________________________ Name and Job Title. : John Ramones / Director of Product Design and Regulations E-mail : [email protected] Te l . : 408-890-3530

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: July 9, 2013 Subject: FCC Application for FCC ID: PY313200228 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp..(report number: FD350802) Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _________________________________ Name and Job Title. : John Ramones / Director of Product Design and Regulations E-mail : [email protected] Tel. : 408-890-3530

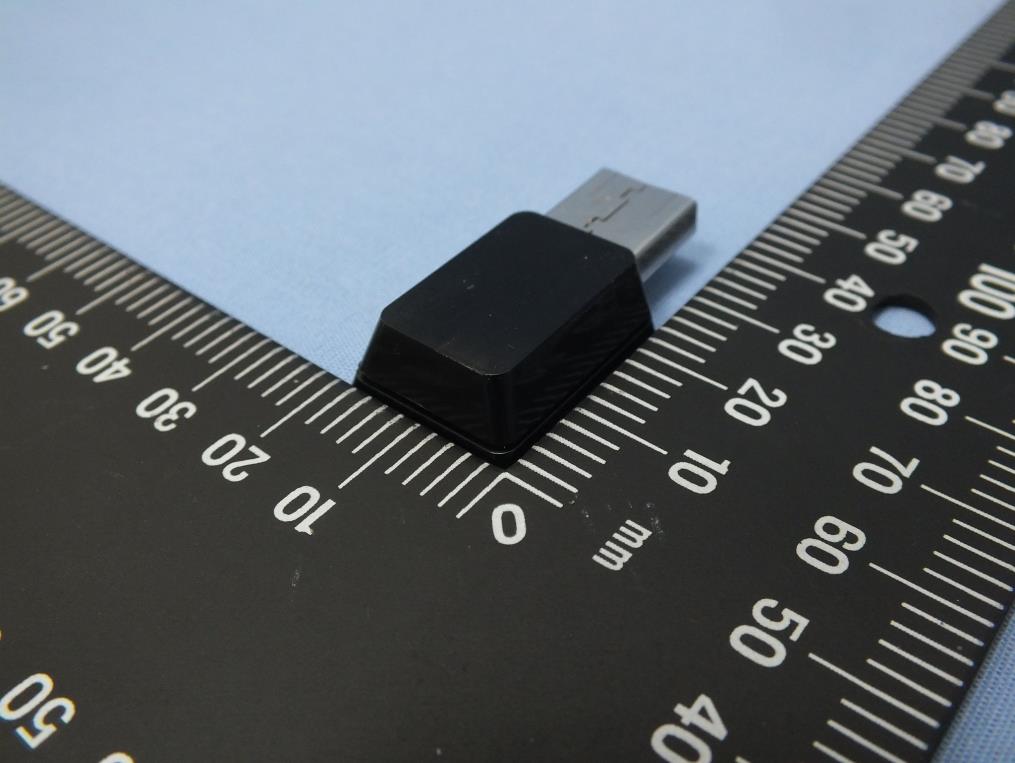

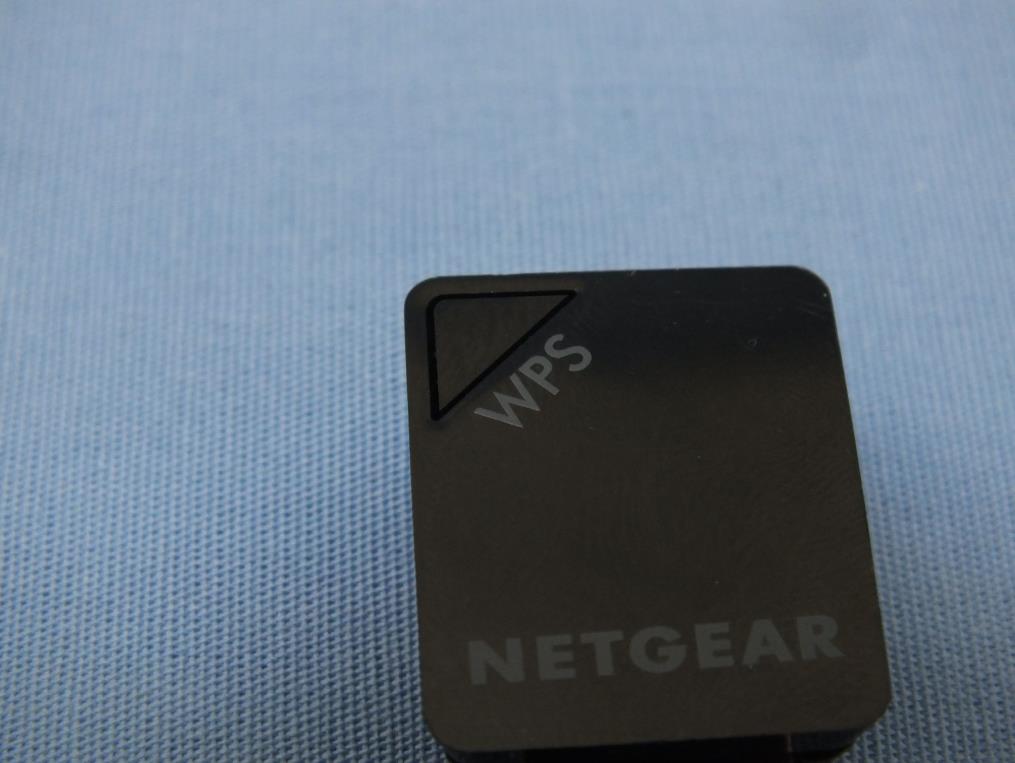

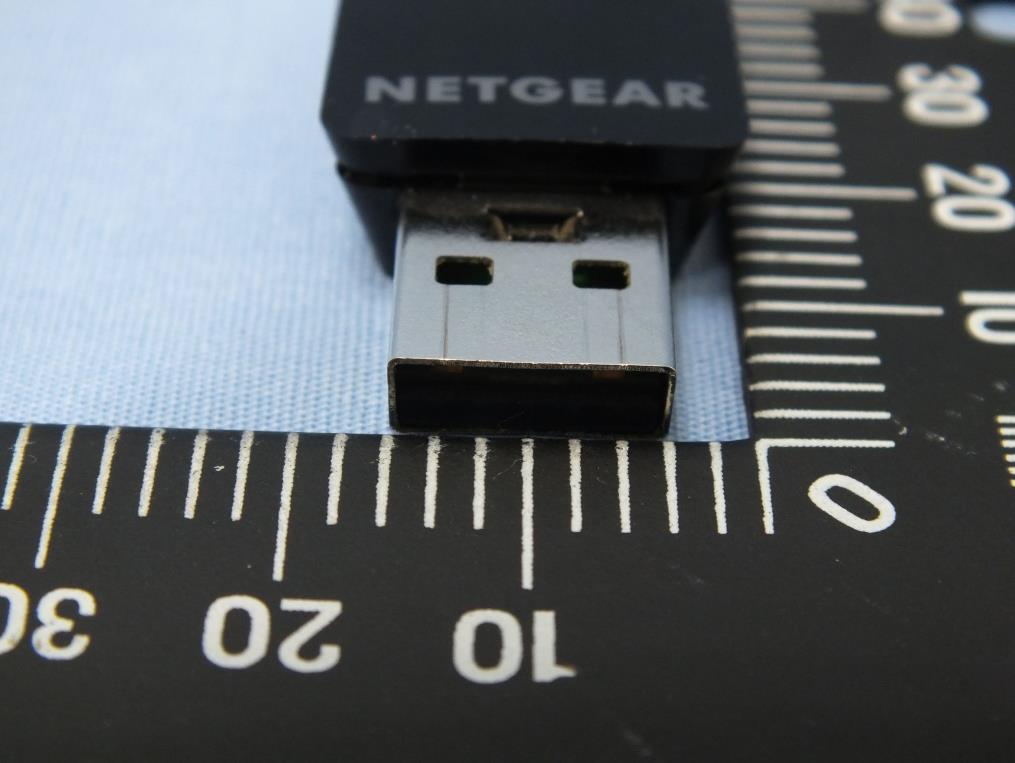

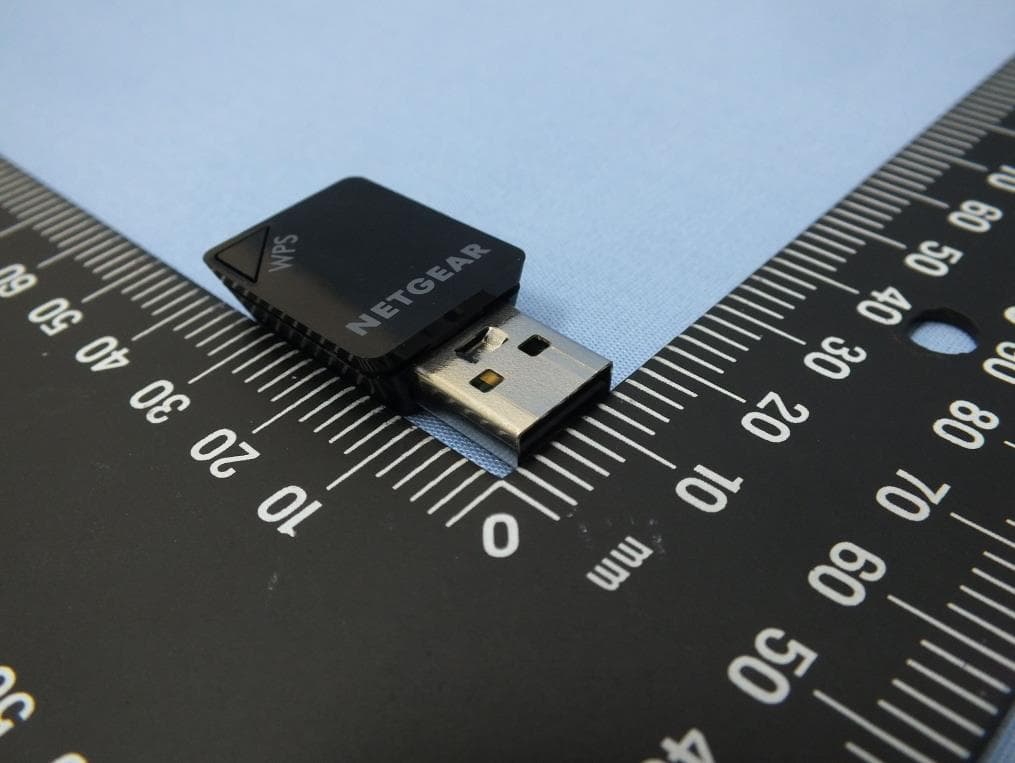

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 350802 Page No. : 1 of 7 Photographs of EUT International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 350802 Page No. : 2 of 7

Models Name/Part Name/ Artwork Number/ Artwork Rev./ Unit:mm USB 00 Designed/Date/ 26 Apr. ‘13Camille Liu XXX A6100V1-R DELTA NETWORKS, INC. THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA NETWORKS. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION . Graphic Layout Scale/ 1:1 Dimensions/ WIDTH HEIGHT 37 mm x 20 mm Model:A6100 S/N: MAC: IC: 4054A-13200228 FCC ID: PY313200228 Made in China Model:A6100 S/N: MAC: IC: 4054A-13200228 FCC ID: PY313200228 Made in China

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 350802 Page No. : 3 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 350802 Page No. : 4 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 350802 Page No. : 5 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 350802 Page No. : 6 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Project No.: 350802 Page No. : 7 of 7

Operational Description Page 1 / 2 FCC ID : PY313200228 IC : 4054A-13200228 The device is an 802.11 ac USB WiFi Adapter which operates at 2.4 and 5GHz band. It supports 802.11 a / b /g / HT20 / HT40 / VHT 20 / VHT40 / VHT 80 without 80+80 MHz mode. This device is not capable of transmitting simultaneously in more than one Part 15 band between 5 and 6 GHz and therefore not subject to the PBA as defined in KDB 644545. RF main chip is RT8811AU RF ma i n chip RTL8811AU Os ci llating fre quency 40 MHz Ante nna type PI FA Ope ra ting frequency ra nge 2412~2462 MHz 5180~5240 MHz 5260~5320 MHz 5500~5700 MHz 5745~5825 MHz Modul ation type DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM,256QAM Worki ng voltage 5Vdc Cha nnel frequency of 2.4GHz band Mode Channel Frequency (MHz) Mode Channel Frequency (MHz) 11b/g/HT20 1 2412 HT40 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 9 2452 10 2457 11 2462 Operational Description Page 2 / 2 Cha nnel frequency of 5GHz band Mode Channel Frequency (MHz) Mode Channel Frequency (MHz) 11a HT20 VHT20 36 5180 HT40 VHT40 38 5190 40 5200 46 5230 44 5220 54 5270 48 5240 62 5310 52 5260 102 5510 56 5280 110 5550 60 5300 134 5670 64 5320 151 5755 100 5500 159 5795 104 5520 108 5540 Mode Channel Frequency (MHz) 112 5560 VHT80 42 5210 116 5580 58 5290 132 5660 106 5530 136 5680 155 5775 140 5700 149 5745 153 5765 157 5785 161 5805 165 5825

SPORTON INTERNATIONAL INC. Page Number : 1 of 37 TEL : 886-3-327-3456 Report Issued Date : Jul. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY313200228 FCC SAR Test Report Report No. : FA350409 FCC SAR Test Report APPLICANT : NETGEAR, Inc. EQUIPMENT : 802.11abgn ac Dual Band Wireless-N Adapter BRAND NAME : NETGEAR MODEL NAME : A6100 FCC ID : PY313200228 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Jul. 09, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 37 TEL : 886-3-327-3456 Report Issued Date : Jul. 15, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY313200228 FCC SAR Test Report Report No. : FA350409 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 6 3.3 Applied Standard .................................................................................................................................................... 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. System Verification Procedures .................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup ............................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/22 System Check_Body_2450MHz_130622 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130622 Medium parameters used: f = 2450 MHz; σ = 1.947 S/m; ε r = 51.611; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 18.1 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.098 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 28.5 W/kg SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.18 W/kg Maximum value of SAR (measured) = 17.8 W/kg 0 dB = 17.8 W/kg = 12.50 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/21 System Check_Body_5200MHz_130621 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130621 Medium parameters used: f = 5200 MHz; σ = 5.138 mho/m; ε r = 47.493; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(4.27, 4.27, 4.27); Calibrated: 2013/6/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/5/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=100mW/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 17.3 mW/g Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4m m Reference Value = 67.370 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 29.533 mW/g SAR(1 g) = 7.31 mW/g; SAR(10 g) = 2.01 mW/g Maximum value of SAR (measured) = 18.2 mW/g 0 dB = 18.2 mW/g = 25.20 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/21 System Check_Body_5300MHz_130621 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130621 Medium parameters used: f = 5300 MHz; σ = 5.27 mho/m; ε r = 47.255; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(4.12, 4.12, 4.12); Calibrated: 2013/6/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/5/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=100mW/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 17.9 mW/g Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4m m Reference Value = 45.994 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 28.518 mW/g SAR(1 g) = 7.22 mW/g; SAR(10 g) = 2.01 mW/g Maximum value of SAR (measured) = 17.3 mW/g 0 dB = 17.3 mW/g = 24.76 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/21 System Check_Body_5600MHz_130621 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130621 Medium parameters used: f = 5600 MHz; σ = 5.653 mho/m; ε r = 46.801; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(3.81, 3.81, 3.81); Calibrated: 2013/6/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/5/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=100mW/Area Scan (71x71x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 18.3 mW/g Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4m m Reference Value = 43.991 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 33.749 mW/g SAR(1 g) = 7.34 mW/g; SAR(10 g) = 2.02 mW/g Maximum value of SAR (measured) = 18.6 mW/g 0 dB = 18.6 mW/g = 25.39 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/7/9 System Check_Body_5800MHz_130709 DUT: D5GHzV2-SN:1006 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130709 Medium parameters used: f = 5800 MHz; σ = 6.113 S/m; ε r = 47.156; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(4.06, 4.06, 4.06); Calibrated: 2012/9/28; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 18.5 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 40.568 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 38.2 W/kg SAR(1 g) = 6.88 W/kg; SAR(10 g) = 1.86 W/kg Maximum value of SAR (measured) = 17.8 W/kg 0 dB = 17.8 W/kg = 12.50 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/22 #173_WLAN2.4GHz_802.11b 1Mbps_Horizontal Up_0.5cm_Ch6 DUT: 350409 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130622 Medium parameters used: f = 2437 MHz; σ = 1.928 S/m; ε r = 51.663; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch6/Area Scan (51x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.42 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 25.225 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 2.31 W/kg SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.496 W/kg Maximum value of SAR (measured) = 1.38 W/kg 0 dB = 1.38 W/kg = 1.40 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/22 #176_WLAN2.4GHz_802.11b 1Mbps_Horizontal Up_0.5cm_Ch6;Repeat DUT: 350409 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130622 Medium parameters used: f = 2437 MHz; σ = 1.928 S/m; ε r = 51.663; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch6/Area Scan (51x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.36 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 24.778 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 2.27 W/kg SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.483 W/kg Maximum value of SAR (measured) = 1.36 W/kg 0 dB = 1.36 W/kg = 1.34 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/22 #174_WLAN2.4GHz_802.11b 1Mbps_Horizontal Up_0.5cm_Ch1 DUT: 350409 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130622 Medium parameters used: f = 2412 MHz; σ = 1.893 S/m; ε r = 51.781; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch1/Area Scan (51x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.43 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 25.242 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.493 W/kg Maximum value of SAR (measured) = 1.41 W/kg 0 dB = 1.41 W/kg = 1.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/22 #175_WLAN2.4GHz_802.11b 1Mbps_Horizontal Up_0.5cm_Ch11 DUT: 350409 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130622 Medium parameters used: f = 2462 MHz; σ = 1.964 S/m; ε r = 51.57; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (51x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.38 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 24.753 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.490 W/kg Maximum value of SAR (measured) = 1.39 W/kg 0 dB = 1.39 W/kg = 1.43 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/22 #177_WLAN2.4GHz_802.11b 1Mbps_Horizontal Down_0.5cm_Ch6 DUT: 350409 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130622 Medium parameters used: f = 2437 MHz; σ = 1.928 S/m; ε r = 51.663; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch6/Area Scan (51x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.519 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 14.405 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.808 W/kg SAR(1 g) = 0…

Text truncated - open the document above for the full version.
