PY313300240Home Security Touchscreen

STS7000 Home Security Touch Screen Installation Guide Note: This document is for certification purposes. Images are for position only and might differ from the actual product. 2 Package Contents Touch Screen 12V power adapter USB adapter Stand 3 Hardware Features The Touch Screen includes a stand and controls as shown here. •Stand. To put the Touch Screen in an upright position, position the device in the stand. 4 •12V power adapter input. To recharge the battery or to run on electricity instead of the battery, plug the power cord into the 12V power adapter input. Configure the Touch Screen To configure the touch screen for use with a wireless network: 1.Plug the USB adapter into the USB port on the back of the T ouch Screen. 5 2.Connect the adapter to the gateway device LAN port with an Ethernet cable. 3.Plug the power adapter into the 12V power adapter input. 6 Add the Touch Screen To add the Touch Screen to your wireless network: 1.Open your web browser. 2.In the address bar, type: https://www.example.com. A sign-in screen displays. 3.Type your user name and password. 4.Click Sign In. 7 The following screen displays. 8 5.Click the System tab. 6.Click Manage Devices. For the Manage Devices option to appear, your gateway needs to be connected to the Internet. 9 The Manage Devices Assistant screen displays. 10 7.Click Touch Screens. 8.From the drop-down list, select NETGEAR 7" Touch Screen (HSS101). 9.Click Continue. 11 The Name Devices screen displays. 10.Enter a name for your Touch Screen. 11.Type the MAC ID. 12 The MAC ID appears inside the back of the Touch Screen and contains 12 characters, either numbers or the letters A–F. 70F3958CA95A SOV6D2800002X01 67D1258CA05B Note: The placement of the MAC ID label might differ from the MAC ID location depicted in Step Two of the Touch Screen Assistant. 12.Click Continue. 13 The Connect Device screen displays. 14 13.Click Continue. 15 Wait while the Touch Screen is added to your wireless network. Adding the touch screen can take up to two minutes. 14.To add an additional Touch Screen, click Add Another. 15.When you have added all the touch screens, click Finish. 16 16.Disconnect the Ethernet cable from the USB adapter. 17.Disconnect the USB adapter from the Touch Screen. 18.Move the Touch Screen and power supply to your desired location. 19.Plug the power adapter into the 12V power adapter input. It might take up to 5 minutes to connect to the wireless network. If the touch screen does not connect, see Troubleshooting. 17 Troubleshooting This section provides information about troubleshooting your Touch Screen. •Dark screen. The screen is blank (dark). Reason. The Touch Screen is set to night mode. Resolution. To change the mode, tap the screen. The screen is dark except the logo, time, and a message that security information is not available from this device. Reason. The connection between the Touch Screen and the gateway is lost. Resolution. To display technical information about your Touch Screen, tap the logo in the top-left corner, then, in the screen that displays, tap Version Information. •WiFi Connection. Lost or intermittent WiFi connection. Reasons. -If the microwave oven is on, it can disrupt WiFi service. -2.4 GHz cordless telephones can interfere with the Touch Screen’s WiFi connection because they operate at the same frequency as other devices on a LAN. -A 2.4 GHz wireless gaming adapter is nearby. -A 2.4 GHz baby monitor is nearby. 18 -The Touch Screen is too far from the gateway. Resolutions. -The Touch Screen must be within 50 feet of the gateway. If the Touch Screen is mounted outside the range of the wireless network, consider including the Model WN2000RPT- 111NAS Wi-Fi Extender for increased range. -Turn off the microwave oven. No need to unplug it. -If you determine that your cordless phone is interfering, you can: •Change the location of the Touch Screen or the base of the cordless phone. •Switch the channel on the access point. If that does not work, try another channel. •Operate the phone with the antenna lowered, if that is an option. •Use a phone that is not a 2.4 GHz phone. Support Contact your Internet service provider for technical support . Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. Compliance For the current EU Declaration of Conformity, visit: http://support.netgear.com/app/answers/detail/a_id/11621/. September 2013

Notification of Compliance Regulatory Compliance Information This document includes user requirements for operating NETGEAR products in accordance with national laws including usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable national regulatory authority. The NETGEAR product firmware limits operation to only the channels allowed in a particular region or country. Therefore, all options described in this document may not be available in your version of the product. This document applies to both Class A and Class B devices:  Class A devices are intended to be used in a commercial or industrial environment. They are not intended to be used in a residential home or be available for general public use.  Class B devices are intended to be used in a residential setting, and may also be used in commercial and industrial applications. Examples of Class B devices are telephones, personal computers, and residential data gateways.  Fuses should only be installed by service personnel.  NETGEAR recommends the use of 26 AWG or larger gauge phone line cords. Europe – EU Declaration of Conformity This section applies to products bearing the CE or CE! mark: Products bearing the CE or CE! mark comply with the following EU directives:  EMC Directive 2004/108/EC  Low Voltage Directive 2006/95/EC  Ecodesign Directive 2009/125/EC  RoHS Directive 2011/65/EU If the product has telecommunications functionality, it also complies with the requirement of the following EU directive:  R&TTE Directive 1999/5/EC Compliance with these directives implies conformity to harmonized European standards that are noted in the EU Declaration of Conformity. The EU CE Declaration of Conformity may be found at http://support.netgear.com/app/answers/detail/a_id/11621/. Caution for installing this equipment outdoors: (Valid in all EU member states, EFTA states, and Switzerland.) Be aware that outdoor installations require special attention and will only be handled by trained and qualified installation personnel. No one from the general public is permitted to install NETGEAR wireless products outdoors when external antennas, power and grounding must be installed for use. Particular attention has to be given allowed operational frequencies. Contact NETGEAR for instructions on how to contact an installer for outdoor operations if this product requires the special considerations for outdoor installations. For detailed iformation concerning installations in France, the user should contact the national spectrum authority in France (http://www.arcep.fr/ ) The following paragraphs apply to WN2500RP: This device is a 2.4GHz and 5GHz wideband transmission system (transceiver), intended for indoor use only in all EU member states, EFTA states, and Switzerland. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for applying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10mW EIRP in the frequency range of 2454-2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Warning NETGEAR Class A products that may be utilized in domestic/residential environments may cause radio interference in which case the user may be required to take adequate measures. FCC Requirements for Operation in the United States Information in this section applies to products bearing the FCC mark (or statement): FCC Information to User This NETGEAR product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals. The following statement applies to these products:  C6300XB3  EX6100  EX6200  STS7000  VEGN2200  WN370  WN2500RP  WN3000RPv2  WN3500RP This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. FCC Guidelines for Human Exposure This NETGEAR product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that this product complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions:  The device may not cause harmful interference, and  The device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions The NETGEAR product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the…

Text truncated - open the document above for the full version.

Page No. : 1 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 Confidential Letter Date: 2014/1/24 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY313300240 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Tune-up Proceudre 5. BOM List Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657

Page No. :2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 Declaration of label location Letter Date: 2013/12/9 FCC ID：PY313300240 To Whom it may concern, We, the undersigned, the label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657

Page No. :2 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 Power of Attorney Date: 2013/12/9 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / STS7000 FCC ID: PY313300240 Product name: Home Security Touchscreen Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657

Page No. :7 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 Restricted band Declaration Letter Date: 2013/12/9 FCC ID：PY313300240 We, the undersigned, attest that this device does not support operation in the 5600 - 5650 MHz Band. The firmware on the device restricts the operation in this frequency band and does not utilize the channels in this band. Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657

Page No. :5 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 Ad Hoc Mode Function Declaration Date: 2013/12/9 FCC ID：PY313300240 To whom it may concern: We, NETGEAR, Inc., declare that the EUT (Model Name: STS7000) doesn’t have Ad Hoc function on “non-US/ Canada frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Sincerely, Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657

Page No. :6 NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 TPC Declaration Letter Date: 2013/12/9 FCC ID：PY313300240 To Whom it may concern, We, NETGEAR, Inc., declare that the EUT (Model Name: STS7000) is slave device and channel used is defined by master device. The requirement of Uniform Spreading is not applicable for equipment. Currently, the software and associated drivers to support TPC are built into the device firmware. Regards, Note: The registered grantee contact is not available, David Kayis signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657

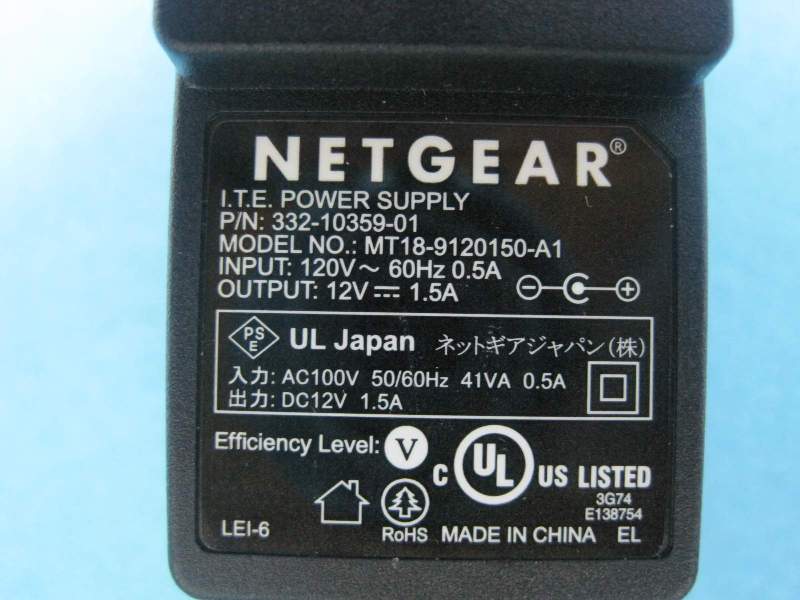

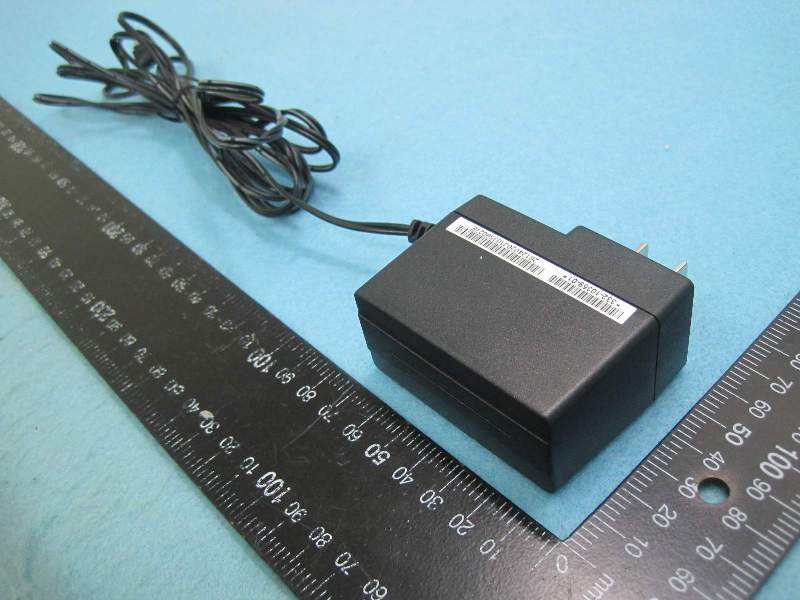

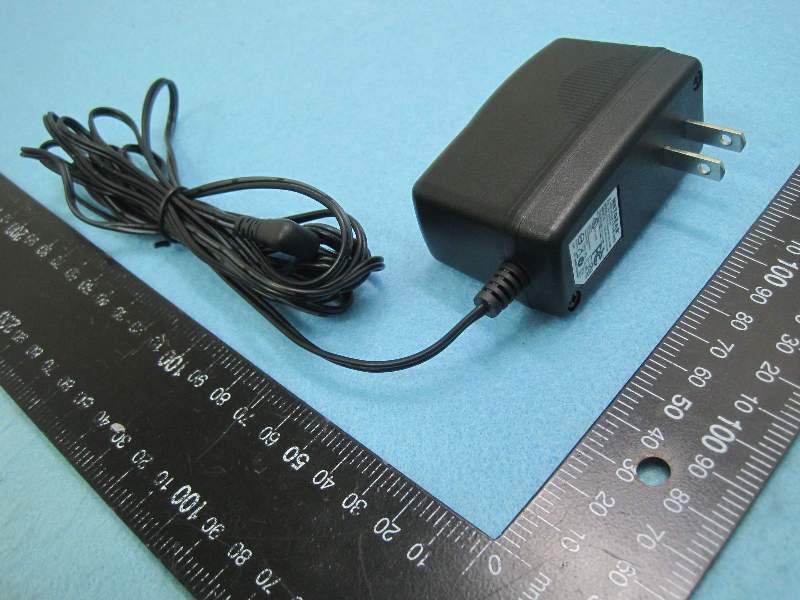

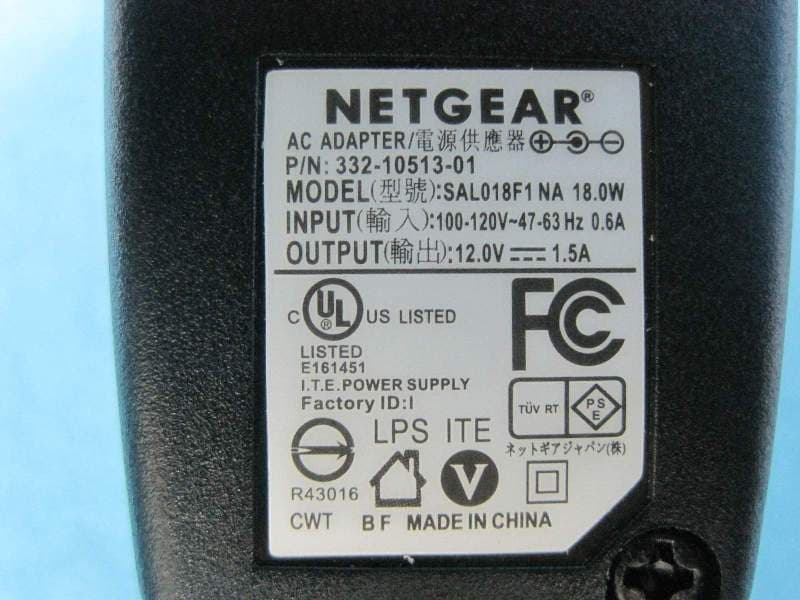

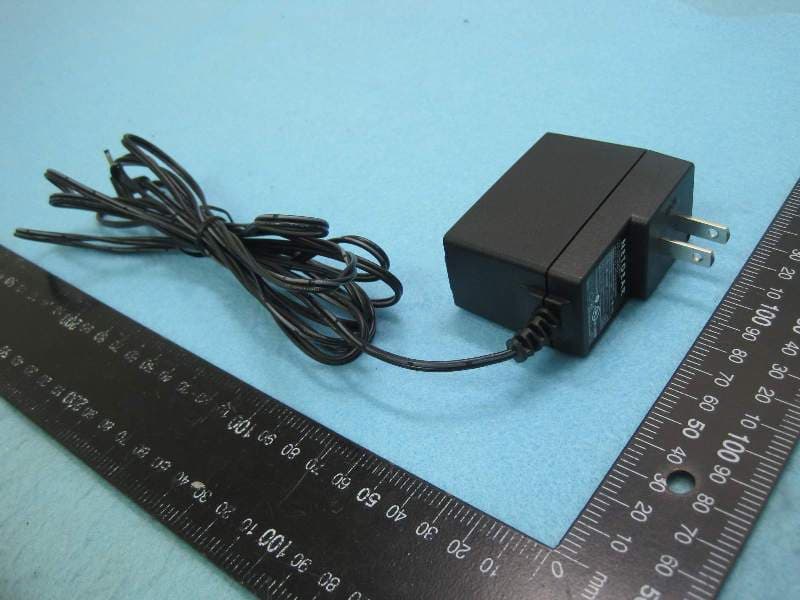

Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 Photographs of EUT Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 Adapter 1 Model No.: SAL018F1 NA P/N: 332-10513-01 Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 Adapter 2 Model No.: MT18-9120150-A1 P/N: 332-10359-01 Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 Mini USB2.0 Ethernet Dongle Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973 Charge Station Report No.: 391107 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 19, 2013 FAX : 886-3-327-0973

Unit: mm

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 System Check_Body_2450MHz_131028 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_131028 Medium parameters used: f = 2450 MHz; σ = 1.904 S/m; ε r = 51.836; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(6.69, 6.69, 6.69); Calibrated: 2013/6/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.3 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.2 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 29.4 W/kg SAR(1 g) = 13.6 W/kg; SAR(10 g) = 6.31 W/kg Maximum value of SAR (measured) = 20.8 W/kg 0 dB = 20.8 W/kg = 13.18 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/26 System Check_Body_5200MHz_131026 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_131026 Medium parameters used: f = 5200 MHz; σ = 5.279 S/m; ε r = 48.534; ρ = 1000 kg/m 3 23.722.7 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(4.24, 4.24, 4.24); Calibrated: 2013/6/20; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 18.3 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 45.168 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 34.0 W/kg SAR(1 g) = 7.01 W/kg; SAR(10 g) = 1.92 W/kg Maximum value of SAR (measured) = 17.5 W/kg 0 dB = 17.5 W/kg = 12.43 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 System Check_Body_5200MHz_131028 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_131028 Medium parameters used: f = 5200 MHz; σ = 5.162 S/m; ε r = 48.492; ρ = 1000 kg/m 3 23.522.5 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(4.24, 4.24, 4.24); Calibrated: 2013/6/20; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 17.9 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 45.168 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 33.2 W/kg SAR(1 g) = 6.86 W/kg; SAR(10 g) = 1.88 W/kg Maximum value of SAR (measured) = 17.1 W/kg 0 dB = 17.1 W/kg = 12.33 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/26 System Check_Body_5300MHz_131026 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_131026 Medium parameters used: f = 5300 MHz; σ = 5.418 S/m; ε r = 48.319; ρ = 1000 kg/m 3 23.722.7 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(4.05, 4.05, 4.05); Calibrated: 2013/6/20; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.1 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 44.352 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 35.5 W/kg SAR(1 g) = 7.11 W/kg; SAR(10 g) = 1.93 W/kg Maximum value of SAR (measured) = 17.7 W/kg 0 dB = 17.7 W/kg = 12.48 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 System Check_Body_5300MHz_131028 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_131028 Medium parameters used: f = 5300 MHz; σ = 5.301 S/m; ε r = 48.29; ρ = 1000 kg/m 3 23.522.5 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(4.05, 4.05, 4.05); Calibrated: 2013/6/20; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.6 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 48.885 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 33.2 W/kg SAR(1 g) = 7.51 W/kg; SAR(10 g) = 1.97 W/kg Maximum value of SAR (measured) = 19.5 W/kg 0 dB = 19.5 W/kg = 12.90 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/26 System Check_Body_5600MHz_131026 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: MSL_5G_131026 Medium parameters used: f = 5600 MHz; σ = 5.849 S/m; ε r = 47.666; ρ = 1000 kg/m 3 23.722.7 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(4, 4, 4); Calibrated: 2013/6/20; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); S…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 #53_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0cm_Ch1 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_131028 Medium parameters used: f = 2412 MHz; σ = 1.855 S/m; ε r = 51.932; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(6.69, 6.69, 6.69); Calibrated: 2013/6/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch1/Area Scan (51x161x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.43 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.423 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.90 W/kg SAR(1 g) = 0.803 W/kg; SAR(10 g) = 0.433 W/kg Maximum value of SAR (measured) = 1.42 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.423 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.724 W/kg; SAR(10 g) = 0.393 W/kg Maximum value of SAR (measured) = 1.25 W/kg 0 dB = 1.25 W/kg = 0.97 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 #54_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0cm_Ch6 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_131028 Medium parameters used: f = 2437 MHz; σ = 1.887 S/m; ε r = 51.868; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(6.69, 6.69, 6.69); Calibrated: 2013/6/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch6/Area Scan (51x161x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.34 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.957 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.61 W/kg SAR(1 g) = 0.799 W/kg; SAR(10 g) = 0.424 W/kg Maximum value of SAR (measured) = 1.23 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.957 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 0.754 W/kg; SAR(10 g) = 0.408 W/kg Maximum value of SAR (measured) = 1.19 W/kg 0 dB = 1.19 W/kg = 0.76 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 #55_WLAN2.4GHz_802.11b 1Mbps_Bottom Face_0cm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_131028 Medium parameters used: f = 2462 MHz; σ = 1.92 S/m; ε r = 51.791; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(6.69, 6.69, 6.69); Calibrated: 2013/6/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (51x161x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.43 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.196 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.792 W/kg; SAR(10 g) = 0.419 W/kg Maximum value of SAR (measured) = 1.31 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.196 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.728 W/kg; SAR(10 g) = 0.396 W/kg Maximum value of SAR (measured) = 1.24 W/kg 0 dB = 1.24 W/kg = 0.93 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 #56_WLAN2.4GHz_802.11b 1Mbps_Edge 1_0cm_Ch1 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_131028 Medium parameters used: f = 2412 MHz; σ = 1.855 S/m; ε r = 51.932; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(6.69, 6.69, 6.69); Calibrated: 2013/6/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/1/17 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch1/Area Scan (51x161x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.82 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.480 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 0.936 W/kg; SAR(10 g) = 0.461 W/kg Maximum value of SAR (measured) = 1.79 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.480 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 2.12 W/kg SAR(1 g) = 0.872 W/kg; SAR(10 g) = 0.438 W/kg Maximum value of SAR (measured) = 1.63 W/kg 0 dB = 1.63 W/kg = 2.12 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/10/28 #62_WLAN2.4GHz_802.11b 1M…
