350 East Plumeria Drive San Jose, CA 95134 USA September 2013 WiFi Cable Modem Router C3700 User Manual Note:This document is for certification purposes only. Images are for position only and might differ from the actual product. 2 WiFi Cable Modem Router C3700 Support Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. 3 Contents Chapter 1 Connect to the Modem Router Gateway Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Gateway Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Power Supply Manufacturers and Models . . . . . . . . . . . . . . . . . . . . . . . .9 Gateway Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Position Your Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Log In to Your Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 View the Modem Router Home Screens . . . . . . . . . . . . . . . . . . . . . . . . . .11 Basic Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Advanced Home Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Join the Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Chapter 2 NETGEAR genie Basic Settings Cable Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 View or Configure Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . .16 Wireless Screen Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Network Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Voice Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Chapter 3 NETGEAR genie Advanced Home Internet Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Wireless Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 LAN Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 LAN Setup Screen Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Use the Router as a DHCP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Address Reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Chapter 4 Security Keyword Blocking of HTTP Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Block Services (Port Filtering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Schedule Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Chapter 5 Administration View Modem Router Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Cable Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Internet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 4 WiFi Cable Modem Router C3700 Wireless Settings (2.4 GHZ and 5 GHz). . . . . . . . . . . . . . . . . . . . . . . . .36 Router Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Network Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Back Up Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Set Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 View Event Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Ping Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Traceroute Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 DS Throughput Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 US Throughput Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 Wireless Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Chapter 6 Advanced Settings Advanced Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Wireless Card Access List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Port Forward…
Text truncated - open the document above for the full version.
NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 Power of Attorney Date: 2013/9/4 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / C3700 FCC ID: PY313300241 Product name: WiFi Cable Modem Router Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657
NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 Confidential Letter Date: 2013/9/4 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID:PY313300241 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657
NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 408-890-3657 / Fax: 408-907-8097 DoC Attestation Letter Date: 2013/9/4 We NETGEAR, Inc., as the grantee of this project (FCC ID: PY313300241 / Brand Name: NETGEAR / Model No.: C3700), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sproton report No.: FD372430, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, Note: The registered grantee contact is not available, David Kay is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Signed for John Ramones Name and Job Title : John Ramones / Director of Product Design E-Mail : [email protected] Tel. : 408-890-3657

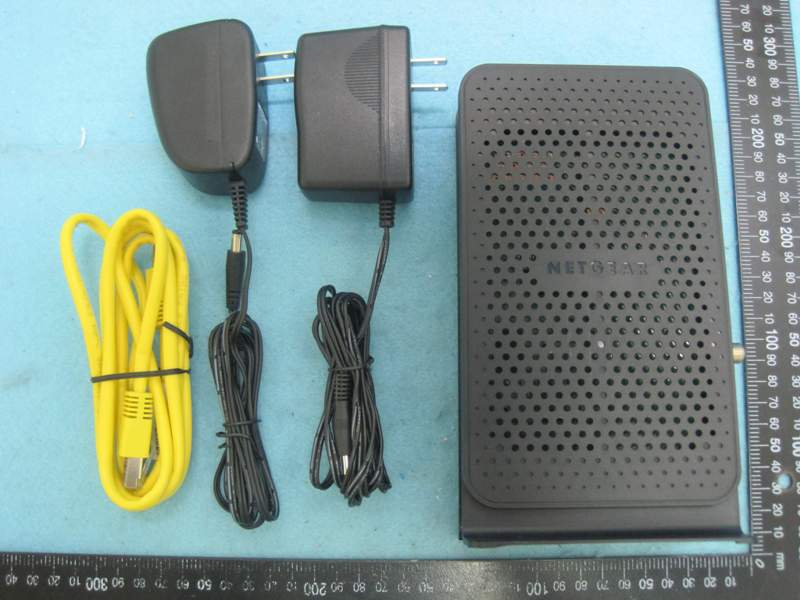

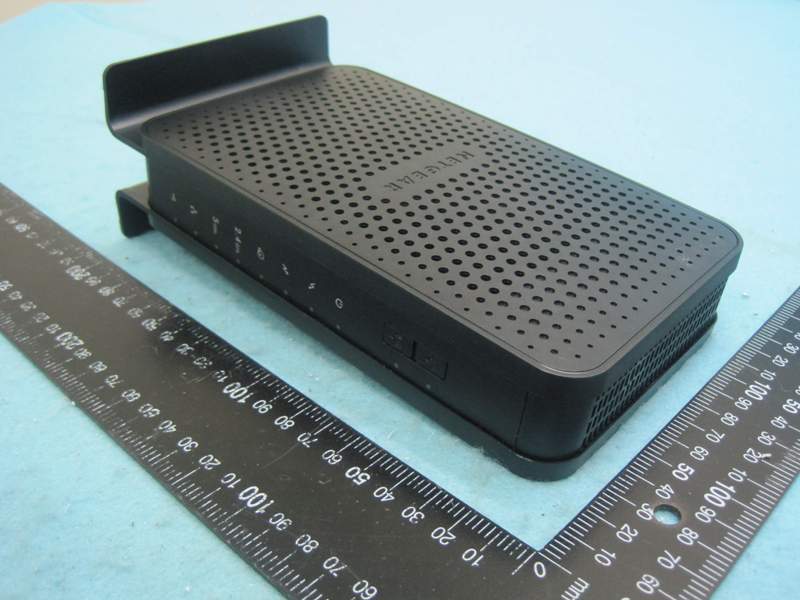

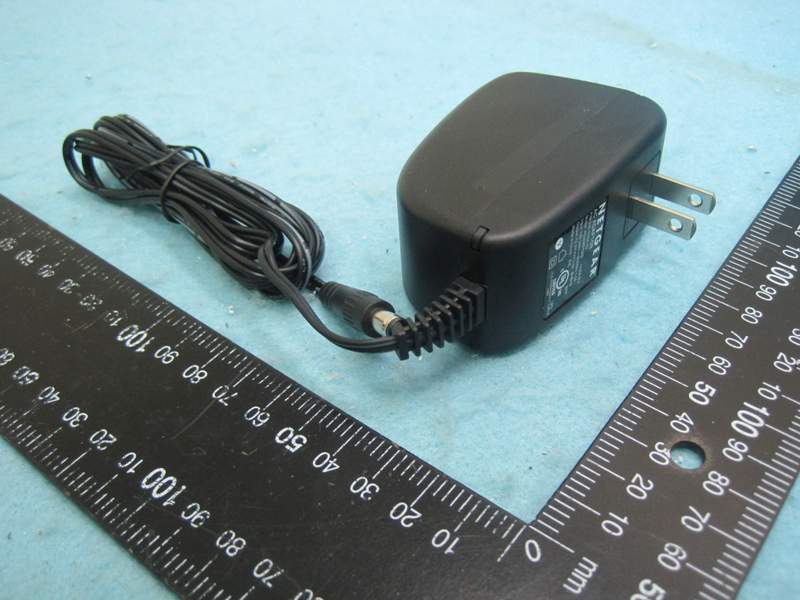

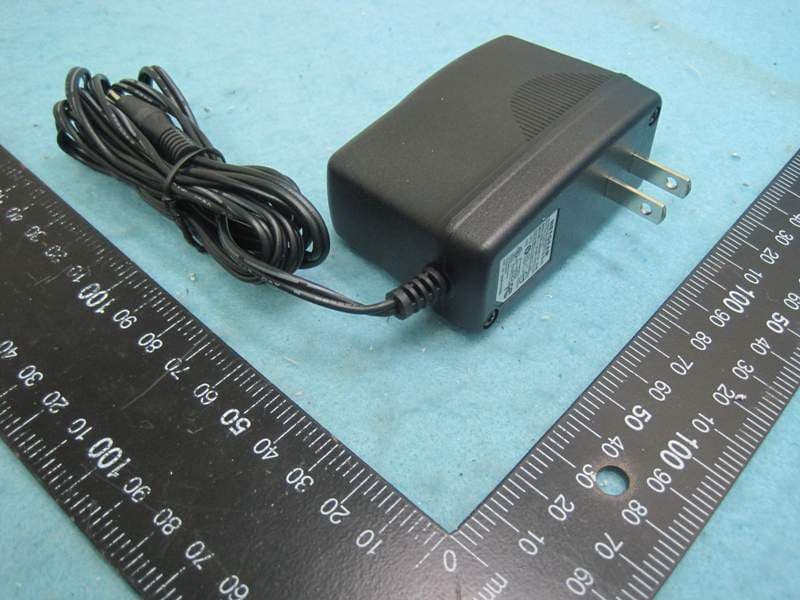

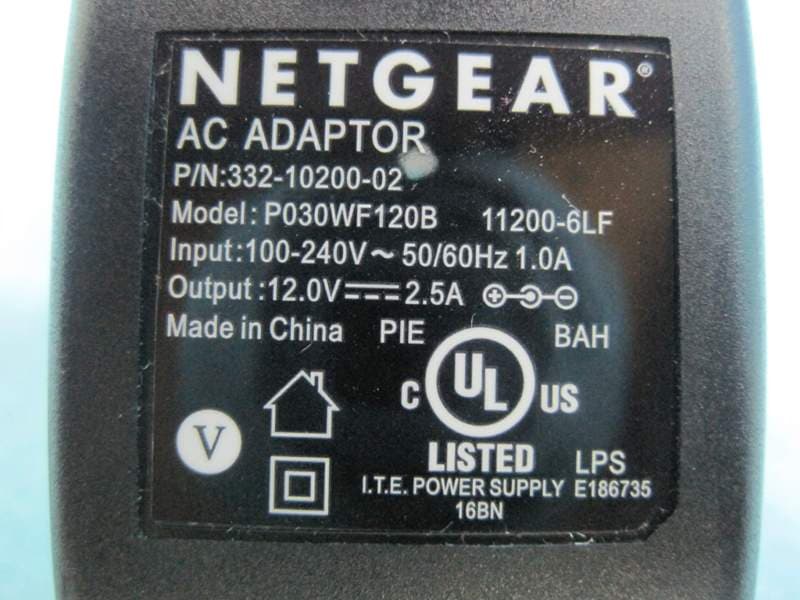

Report No.:372430 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Photographs of EUT Report No.:372430 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Adapter 1 Brand: NETGEAR Model: P030WF120B 11200-6LF P/N: 332-10200-02 Report No.:372430 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Adapter 2 Brand: NETGEAR Model: SAS030F1 NA 30.0W P/N: 332-10451-01 Report No.:372430 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 RJ-45 Cable
Label size: 10.5 x 2.2 (cm) Label location
Report No.:372430 - 1 -SPORTON International Inc. PAGE NUMBER : 1 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Photographs of EUT Report No.:372430 - 2 -SPORTON International Inc. PAGE NUMBER : 2 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 3 -SPORTON International Inc. PAGE NUMBER : 3 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 4 -SPORTON International Inc. PAGE NUMBER : 4 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 5 -SPORTON International Inc. PAGE NUMBER : 5 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 6 -SPORTON International Inc. PAGE NUMBER : 6 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 7 -SPORTON International Inc. PAGE NUMBER : 7 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 8 -SPORTON International Inc. PAGE NUMBER : 8 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 9 -SPORTON International Inc. PAGE NUMBER : 9 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 10 -SPORTON International Inc. PAGE NUMBER : 10 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 11 -SPORTON International Inc. PAGE NUMBER : 11 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 12 -SPORTON International Inc. PAGE NUMBER : 12 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 13 -SPORTON International Inc. PAGE NUMBER : 13 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085 Report No.:372430 - 14 -SPORTON International Inc. PAGE NUMBER : 14 OF 14 TEL : 886-3-656-9065 ISSUED DATE : Sep. 12, 2013 FAX : 886-3-656-9085
Report No.: FR372430 FCC ID: PY313300241 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR372430 FCC ID: PY313300241 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR372430 FCC ID: PY313300241 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a : 16.99 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.60 1.8197 16.9854 49.9502 0.018092 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n20: 25.43dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.60 1.8197 25.4320 349.2977 0.126516 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11g: 21.14 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.30 1.6982 21.1430 130.1068 0.043980 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.126516 / 1 + 0.043980 / 1 = 0.170496, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.
SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Ph: 886-3-656-9065 / FAX: 886-3-656-9085 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134, USA FCC ID PY313300241 Product Name WiFi Cable Modem Router Brand Name NETGEAR Model No. C3700 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Jul. 08, 2013 Final Test Date Aug. 30, 2013 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB 789033 D01 v01r03, KDB 662911 D01 v02 The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR372430AB Report Format Version: 01 Page No. : i of ii FCC ID: PY313300241 Issued Date : Sep. 12, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. EUT Operation during Test .................................................................................................................................................................10 3.10. Duty Cycle ........................................................................................................................................................................................11 3.11. Test Configurations ...........................................................................................................................................................................13 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................19 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................27 4.4. Power Spectral Density Measurement ..............................................................................................................................................30 4.5. Peak Excursion Measurement ...........................................................................................................................................................36 4.6. Radiated Emissions Measurement ....................................................................................................................................................41 4.7. Band Edge Emissions Measurement .................................................................................................................................................54 4.8. Frequency Stability Measurement ....................................................................................................................................................59 4.9. Antenna Requirements .....................................................................................................................................................................61 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 62 6. TEST LOCATION............…
Text truncated - open the document above for the full version.
Report No.: FR372430 FCC ID: PY313300241 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR372430 FCC ID: PY313300241 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 25.6°C Humidity 56% Test Engineer Magic Lai Test Mode Mode 1. EUT with stand up Horizontal Report No.: FR372430 FCC ID: PY313300241 Page No. : C3 of C3 Vertial
Report No.: FR372430 FCC ID: PY313300241 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR372430 FCC ID: PY313300241 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR372430 FCC ID: PY313300241 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR372430 FCC ID: PY313300241 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR372430 FCC ID: PY313300241 Page No. : A5 of A5 Test Configuration: Above 1GHz Test Mode: Mode 1 FRONT VIEW REAR VIEW
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.18 GHz - 5.24 GHz | 50.00 mW |
