PY314100251Universal WiFi Range Extender

350 East Plumeria Drive San Jose, CA 95134 USA January 2014 202-XXXXX-01 WN3000RPv2 WiFi Range Extender User Manual 2 WN3000RPv2 WiFi Range Extender Support Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx. Compliance For regulatory compliance information, visit http://www.netgear.com/about/regulatory. Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. 3 WN3000RPv2 WiFi Range Extender Contents Chapter 1 Get to Know Your Extender Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Extender Side and Bottom Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 How the Extender Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 When to Use Your Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Chapter 2 Install Your Extender Place the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Find the Best Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Extender Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Cable a Computer or Device to the Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . 14 Chapter 3 Manage the Extender Network and Settings Log In to the Extender After Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Change the admin Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Set Up Password Recovery for admin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Use the Smart Setup to Connect the Extender to a Network . . . . . . . . . . . . . . 19 Use the WPS Wizard for WiFi Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 View or Change Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 View or Change the WPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Set Up a Wireless Access List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Manage Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Chapter 4 Monitor and Maintain the Extender Recover the admin Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Back Up the Extender Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Restore Saved Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Return the Extender to Its Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Use the Factory Reset Button to Restore Factory Settings . . . . . . . . . . . . . . 31 Erase the Extender Settings and Return to Factory Settings . . . . . . . . . . . . . 32 Update the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 View Wired and Wireless Network Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Chapter 5 FAQs and Troubleshooting FAQs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Cannot Log In to the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Cannot Join the Extender WiFi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 4 WN3000RPv2 WiFi Range Extender Appendix A Supplemental Information Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 5 1 1. Get to Know Your Extender This chapter covers the following topics: •Front Panel •Extender Side and Bottom Panels •How the Extender Works •NETGEAR recommends that you connect to the extender only when your WiFi network connection is poor. Data traffic routed through the extender is inherently slower than traffic routed directly from the network. When to Use Your Extender For more information about the topics covered in this manual, visit the support website at http://support.netgear.com. Firmware updates with new features and bug fixes are made available from time to time on downloadcenter.netgear.com. Some products can regularly check the site and download new firmware, or you can check for and download new firmware manually. If the features or behavior of your product do not match what is described in this guide, you might need to update your firmware. Get to Know Your Extender 6 WN3000RPv2 WiFi Range Extender Front Panel The front panel has LEDs. Client Router Power LED WPS LED Arrow LED Arrow LED Router Link Client Link LED LED Figure 1. Extender front panel Table 1. LEDs LEDDescription Router Link LED The connection between the extender and the router or access point. • Solid green. Best connection. • Solid amber. Good connection…

Text truncated - open the document above for the full version.

Notification of Compliance Regulatory Compliance Information This document includes user requirements for operating NETGEAR products in accordance with national laws including usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable national regulatory authority. The NETGEAR product firmware limits operation to only the channels allowed in a particular region or country. Therefore, all options described in this document may not be available in your version of the product. This document applies to both Class A and Class B devices:  Class A devices are intended to be used in a commercial or industrial environment. They are not intended to be used in a residential home or be available for general public use.  Class B devices are intended to be used in a residential setting, and may also be used in commercial and industrial applications. Examples of Class B devices are telephones, personal computers, and residential data gateways. Europe – EU Declaration of Conformity This section applies to products bearing the CE or CE! mark: Products bearing the CE or CE! mark comply with the following EU directives:  EMC Directive 2004/108/EC  Low Voltage Directive 2006/95/EC  Ecodesign Directive 2009/125/EC  RoHS Directive 2011/65/EU If the product has telecommunications functionality, it also complies with the requirement of the following EU directive:  R&TTE Directive 1999/5/EC Compliance with these directives implies conformity to harmonized European standards that are noted in the EU Declaration of Conformity. The EU CE Declaration of Conformity may be found at http://support.netgear.com/app/answers/detail/a_id/11621/. Caution for installing this equipment outdoors: (Valid in all EU member states, EFTA states, and Switzerland.) Be aware that outdoor installations require special attention and will only be handled by trained and qualified installation personnel. No one from the general public is permitted to install NETGEAR wireless products outdoors when external antennas, power and grounding must be installed for use. Particular attention has to be given allowed operational frequencies. Contact NETGEAR for instructions on how to contact an installer for outdoor operations if this product requires the special considerations for outdoor installations. For detailed information concerning installations in France, the user should contact the national spectrum authority in France (http://www.arcep.fr/ ) The following paragraphs apply to WN2500RP: This device is a 2.4GHz and 5GHz wideband transmission system (transceiver), intended for indoor use only in all EU member states, EFTA states, and Switzerland. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for aupplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10mW EIRP in the frequency range of 2454-2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Warning NETGEAR Class A products that may be utilized in domestic/residential environments may cause radio interference in which case the user may be required to take adequate measures. FCC Requirements for Operation in the United States Information in this section applies to products bearing the FCC mark (or statement): FCC Information to User This NETGEAR product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals. The following statement applies to these products:  EX6100  EX6200  VEGN2200  WN370  WN2500RP  WN3000RPv2  WN3500RP This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. FCC Guidelines for Human Exposure This NETGEAR product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that this product complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions:  The device may not cause harmful interference, and  The device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions The NETGEAR product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected.  Consult the dealer or an experienced…

Text truncated - open the document above for the full version.

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: January 23, 2014 Subject: Ad Hoc Mode Function Declaration To whom it may concern, We, NETGEAR, Inc. declare that the WN3000RPv2 does not support any non-US channels and country code selection in all the operational modes. Reference FCC ID: PY314100251 Regards, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 408-890-3657

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: 2014/1/21 Power of Attorney To whom it may concern: I, the undersigned, John Ramones , hereby authorize the person listed below to act in behalf of me to sign all related documents for Netgear’s FCC application. Name: David Kay / Regulatory Compliance Manager Tel: +1 408 890 3657 E-mail: [email protected] Sincerely, Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _________________________________ Name and Job Title. : John Ramones / Director of Product Design and Regulations E-mail : [email protected] Te l . : 408-890-3657

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: January 23, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: PY314100251 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _________________________________ Name and Job Title. : David Kay / Regulatory Compliance Manager E-mail : [email protected] Te l . : 408-890-3657

Netgear Inc. 350 East Plumeria Drive San Jose, CA 95134 U.S.A. Date: 2014/1/23 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PY314100251 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of this application for equipment authorization of the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : _________________________________ Name and Job Title. : David Kay / Regulatory Compliance Manager E-mail : [email protected] Te l . : 408-890-3657

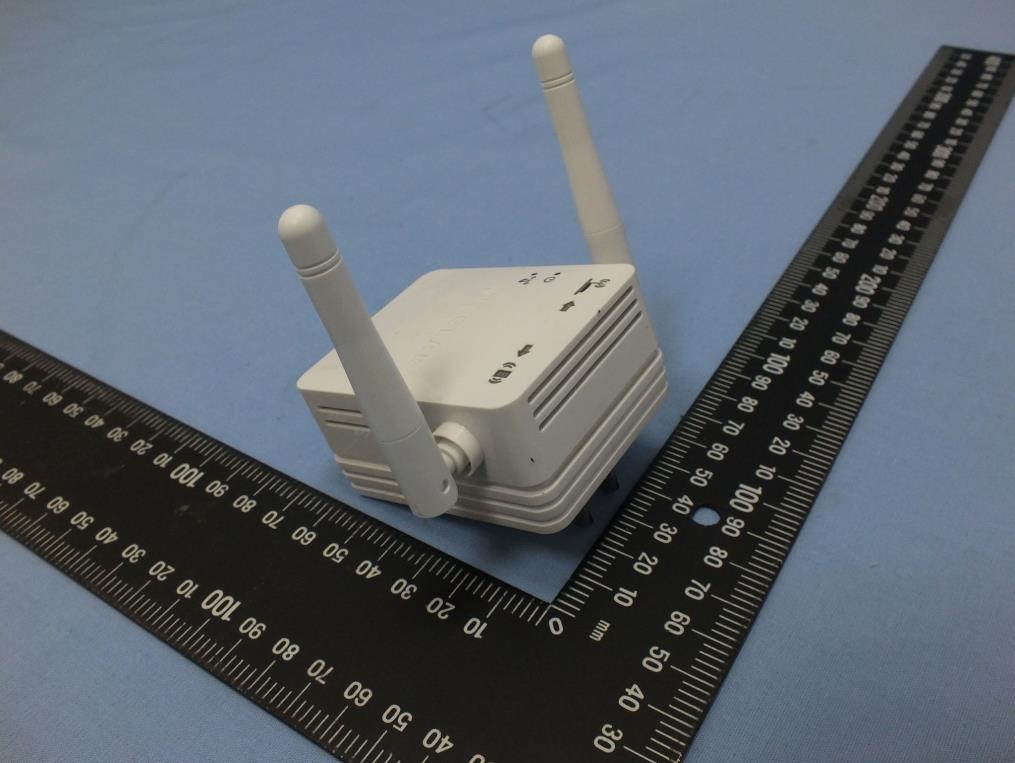

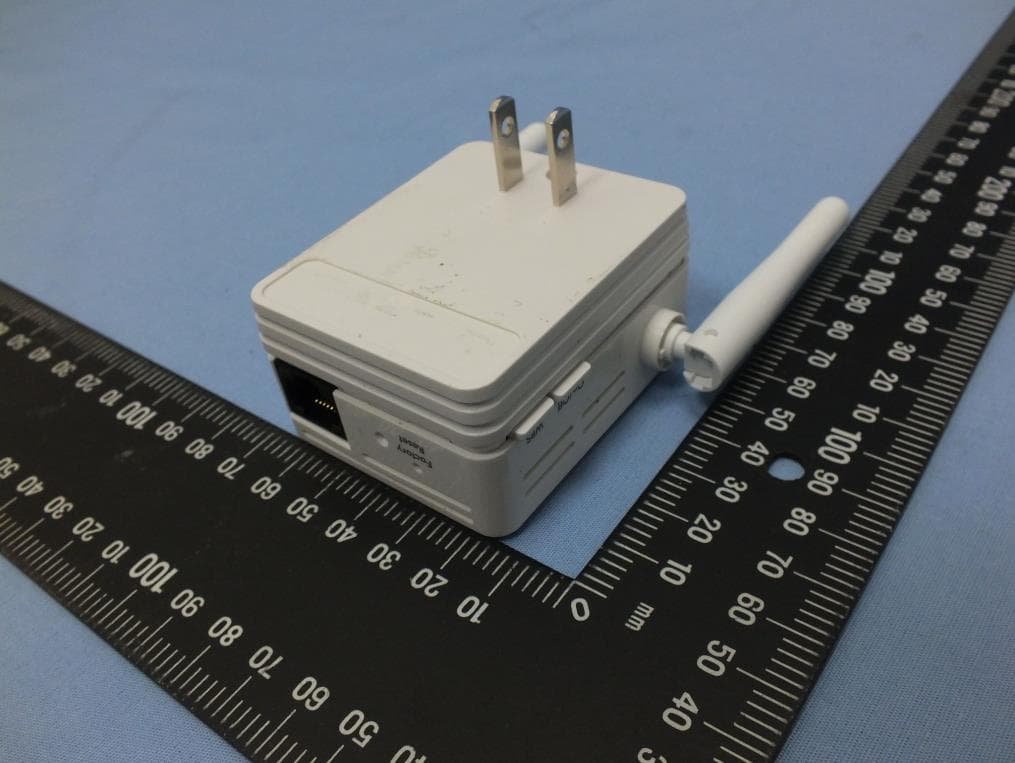

Project No.: EP391801 Page No. : 1 of 9 Photographs of EUT Project No.: EP391801 Page No. : 2 of 9

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE Pantone Cool Gray 11C 01AW-12717-011 of 1 AW, WN3000RPv2, V1, PLBLA RAGHUPATHY A RAGHUPATHYINITIAL DOCUMENT CREATION 01 7 30AUG13 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. SCALE IS 2:1 3. INK COLOR IS SHOWN TO THE RIGHT. 4. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 5. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 6. See NTGR DOC-00112 for SN standard. 7. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 8. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 272-12090-01 Universal WiFi Range Extender Model: WN3000RPv2 INDOOR USE ONLY, 100-240V 0.1A, 50-60Hz WPS PIN SERIAL MAC http://www.mywifiext.net User Name: admin Password: password Default Access FCC ID: PY314100251 IC: 4054A-14100251 Client Link Direction Arrows Router Link WPS Power Made in Taiwan Made in China Back Label location

Project No.: EP391801 Page No. : 3 of 9 Project No.: EP391801 Page No. : 4 of 9 Project No.: EP391801 Page No. : 5 of 9 Project No.: EP391801 Page No. : 6 of 9 Project No.: EP391801 Page No. : 7 of 9 Project No.: EP391801 Page No. : 8 of 9 Project No.: EP391801 Page No. : 9 of 9

FCC RF Exposure Report FCC ID : PY314100251 Equipment : Universal WiFi Range Extender Model No. : WN3000RPv2 Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Nov. 25, 2013 Tested Date : Nov. 25 ~ Dec. 08, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA391801 Page : 1 of 5 Report Version: Rev. 02 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA391801 Page : 2 of 5 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FA391801 Rev. 01 Initial issue Jan. 09, 2014 FA391801 Rev. 02 Modified FCC ID (page 1) Jan. 23, 2014 Report No.: FA391801 Page : 3 of 5 Report Version: Rev. 02 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 23.93 2.38 20 0.085 1 Report No.: FA391801 Page : 4 of 5 Report Version: Rev. 02 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw . Linkou Kwei Shan Te l : 886-3-271-8666 Te l : 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══ Report No.: FA391801 Page : 5 of 5 Report Version: Rev. 02

FCC Test Report FCC ID : PY314100251 Equipment : Universal WiFi Range Extender Model No. : WN3000RPv2 Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 15.247 Received Date : Nov. 25, 2013 Tested Date : Nov. 25 ~ Dec. 08, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR391801 Page : 1 of 60 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 11 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ........................................................................................................ 13 3.1 Conducted Emissions ........................................................................................................................... 13 3.2 6dB and Occupied Bandwidth .............................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 23 3.6 Emissions in non-restricted frequency bands ...................................................................................... 51 4 TEST LABORATORY INFORMATION ............................................................................................... 60 Report No.: FR391801 Page : 2 of 60 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR391801 Rev. 01 Initial issue Jan. 09, 2014 FR391801 Rev. 02 Modified FCC ID (page 1) Jan. 23, 2014 Report No.: FR391801 Page : 3 of 60 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.197 MHz 57.56 (Margin -6.2dB) – QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50 MHz 53.90 (Margin -0.1 dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 11b: 23.93 11g: 23.70 HT20: 23.66 HT40: 18.58 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR391801 Page : 4 of 60 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11 ] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11 ] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11 ] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Model Type Gain (dBi) Connector Remark 401-10096-01 Dipole 2.13 U.FL --- 401-10095-01 Dipole 2.38 U.FL --- 1.1.3 EUT Operational Condition Power Supply Type I/P: 100-240 Vac, 50-60Hz , 0.3A, Report No.: FR391801 Page : 5 of 60 Report Version: Rev. 02 1.1.4 Accessories N/A 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 --- --- 11 2462 --- --- 1.1.6 Test Tool and Duty Cycle Test tool MT7620 QA, Ver 1.0.6.0 Duty Cycle Of Test Signal (%) 100.00% - IEEE 802.11b 99.01% - IEEE 802.11g 98.95% - IEEE 802.11n (HT20) 98.31% - IEEE 802.11n (HT40) Duty Factor 0.00 - IEEE 802.11b 0.04 - IEEE 802.11g 0.05- IEEE 802.11n (HT20) 0.07 - IEEE 802.11n (HT40) Report No.: FR391801 Page : 6 of 60 Report Version: Rev. 02 1.1.7 Power Setting Mod…

Text truncated - open the document above for the full version.

Report No.: FR391801 Page: : 1 of 2 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR391801 Page: : 2 of 2 Report Version: Rev. 01 Radiated Emission Test
