PY314200274AC1200 Smart WiFi Router with External Antennas

Notification of Compliance Regulatory Compliance Information This document includes user requirements for operating NETGEAR products in accordance with national laws including usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable national regulatory authority. The NETGEAR product firmware limits operation to only the channels allowed in a particular region or country. Therefore, all options described in this document may not be available in your version of the product. This document applies to both Class A and Class B devices:  Class A devices are intended to be used in a commercial or industrial environment. They are not intended to be used in a residential home or be available for general public use.  Class B devices are intended to be used in a residential setting, and may also be used in commercial and industrial applications. Examples of Class B devices are telephones, personal computers, and residential data gateways.  Fuses should only be installed by service personnel.  NETGEAR recommends the use of 26 AWG or larger gauge phone line cords. Europe – EU Declaration of Conformity This section applies to products bearing the CE or CE! mark: Products bearing the CE or CE! mark comply with the following EU directives:  EMC Directive 2004/108/EC  Low Voltage Directive 2006/95/EC  Ecodesign Directive 2009/125/EC  RoHS Directive 2011/65/EU If the product has telecommunications functionality, it also complies with the requirement of the following EU directive:  R&TTE Directive 1999/5/EC Compliance with these directives implies conformity to harmonized European standards that are noted in the EU Declaration of Conformity. The EU CE Declaration of Conformity may be found at http://support.netgear.com/app/answers/detail/a_id/11621/. Caution for installing this equipment outdoors: (Valid in all EU member states, EFTA states, and Switzerland.) Be aware that outdoor installations require special attention and will only be handled by trained and qualified installation personnel. No one from the general public is permitted to install NETGEAR wireless products outdoors when external antennas, power and grounding must be installed for use. Particular attention has to be given allowed operational frequencies. Contact NETGEAR for instructions on how to contact an installer for outdoor operations if this product requires the special considerations for outdoor installations. For detailed iformation concerning installations in France, the user should contact the national spectrum authority in France (http://www.arcep.fr/ ) The following paragraphs apply to WN2500RP: This device is a 2.4GHz and 5GHz wideband transmission system (transceiver), intended for indoor use only in all EU member states, EFTA states, and Switzerland. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for applying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10mW EIRP in the frequency range of 2454-2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Warning NETGEAR Class A products that may be utilized in domestic/residential environments may cause radio interference in which case the user may be required to take adequate measures. FCC Requirements for Operation in the United States Information in this section applies to products bearing the FCC mark (or statement): FCC Information to User This NETGEAR product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals. The following statement applies to these products:  C6300  GS605v5  WNR2010  D6000  GS608v4  WNR2020  D6010  HMNC100  WNR614  D3600  JNR1010v2  WNR618  D3610  JR6150  VZC3010  D6200V2  JWNR2000v5  VZC3030  EX2700  JWNR2010v5  EX6100  R6050  EX6200  R6220  FS205v2  R7500  FS208v2  R8000  FS305v2  STS7000  FS308v2  VEGN2200  FS605v4  WN370  FS608v4  WN2500RP  GS205v2  WN3000RPv2  GS208v2  WN3500RP  GS305  WNDR3400v3  GS308v2  WN1000v4 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. FCC Guidelines for Human Exposure The NETGEAR product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum distance of 20cm between the radiator and your body. The following statement applies to this product:  C6300XB3 This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The device should be installed and operated with minimum distance of 25cm between the radiator and your body. The following statement applies to this product:  R8000 This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The device should be installed and operated with minimum distance of 30cm between the radiator and your body. FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that this product complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions:  The device may not cause harmful interference, and  The device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions The NETGEAR product has been test…

Text truncated - open the document above for the full version.

Quick Start AC1200 WiFi Dual Band Gigabit Router Model R6220 1. Prepare your modem. Unplug your modem’s power. Remove the battery, if present. Package Contents 2. Connect your modem. Plug in your modem. Put the battery back in. Then cable the modem to the router’s yellow Internet port. 4. Connect a computer. Use an Ethernet cable to connect your computer to the Ethernet port on the router. You can also use WiFi to connect. To connect with WiFi, use the WiFi network name and password on the product label. 5. Log in to the router. Launch a web browser. NETGEAR genie displays. If you do not see genie, enter www.routerlogin.net in the address field of the web browser. When prompted, enter admin for the user name and password for the password. Follow the genie steps to connect to the web. 6. Get the genie app. Download the free genie app from www.NETGEAR.com/genie. Easily share media, files, and printers on the network from your smartphone, tablet, or laptop. 3. Power on the router. The Power LED lights solid green. If the Power LED does not light, press the Power On/Off button. Wait for the WiFi LED to light solid green. Modem Internet Power adapter (varies by region) Ethernet cable Ethernet cable Router DSL or cable Power On/Off button Ethernet cable (not included) Router Power adapter 7. Get the user manual. You can get the user manual online at http://downloadcenter.netgear.com or through a link in the router’s user interface. July 2014 NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. WiFi Network Name and Password The preset WiFi network name (SSID) and password (network key) are unique to your router, like a serial number. Because the router automatically uses WiFi security, you don’t need to set it up. The WiFi settings are on the product label. NETGEAR recommends that you use the preset WiFi settings because you can check the label if you forget them. NETGEAR genie lets you change these settings. If you do so, write down the new WiFi settings and store them in a safe place. Write the WiFi settings here for easy reference: WiFi network name (SSID) Network key (password) Join the WiFi Network To connect your computer or WiFi device (such as a smartphone or gaming device) to your router’s WiFi network, you can use either the manual method or the Wi-Fi Protected Setup (WPS) method. Manual Method 1. Open the software utility that manages your WiFi connections on the computer or WiFi device that you want to connect to your router. This utility scans for all wireless networks in your area. 2. Find and select your router’s WiFi network name (SSID). The SSID is on the product label. 3. Enter the router’s password (or your custom password if you changed it) and click the Connect button. The password is on the product label. 4. Repeat Step 1 through Step 3 to add other computers or WiFi devices. WPS Method If your computer or WiFi device supports WPS, you can use WPS to join the modem router’s WiFi network. For help with the WPS button on your computer or WiFi device, check the instructions or online help that came with that computer or WiFi device. Some older equipment cannot use WPS. Note: WPS does not support WEP security. If you are using WEP security, use the manual method. 1. Press the WPS button on the router. 2. Within two minutes, on your computer or WiFi device, press its WPS button or click its onscreen WPS button. The computer or WiFi device connects to your router’s WiFi network. 3. Repeat this process to add other computers or WiFi devices to the network. Share a USB Device on the WiFi Network ReadySHARE lets you access and share a USB storage device that’s connected to the router USB port from a computer that is connected to your router’s WiFi network. Access a USB Device from a Windows Computer 1. Insert your USB device into the USB port on the router. 2. Select Start > Run. 3. Enter \\readyshare in the dialog box. 4. Click the OK button. The USB device displays. Access a USB Device from a Mac 1. Insert your USB device into the USB port on the router. 2. Select Go > Connect to Server. 3. Enter smb://readyshare as the server address. 4. Click the Connect button. The USB device displays. Share a USB Printer on the WiFi Network The ReadySHARE Printer utility lets you share a USB printer that is connected to the USB port on your router. You can share this USB printer among the Windows and Mac computers on your network. To set up ReadySHARE printer, download the NETGEAR USB Control Center utility from www.netgear.com/readyshare and install it on your computer. Support Thank you for purchasing this NETGEAR product. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. NETGEAR recommends that you use only the official NETGEAR support resources. For the current EU Declaration of Conformity, visit http://support.netgear.com/app/answers/detail/a_id/11621/. For regulatory compliance information, visit http://www.netgear.com/about/regulatory/. See the regulatory compliance document before connecting the power supply.

NETGEAR Inc. 350 East Plumeria Drive San Jose, California 95134 USA Date: 2014/9/10 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PY314200274 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization o the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : NETGEAR Inc. Address : 350 East Plumeria Drive San Jose, California 95134 USA Signature : _________________________________ Name and Job Title. : David Kay / Regulatory Compliance Manager E-mail : [email protected] Tel. : 408-890-3657

NETGEAR Inc. 350 East Plumeria Drive San Jose, California 95134 USA Date: September 10, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: PY314200274 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : NETGEAR Inc. Address : 350 East Plumeria Drive San Jose, California 95134 USA Signature : _________________________________ Name and Job Title. : David Kay / Regulatory Compliance Manager E-mail : [email protected] Tel. : 408-890-3160

NETGEAR Inc. 350 East Plumeria Drive San Jose, California 95134 USA Date: September 10, 2014 Subject: Ad Hoc Mode Function Declaration To whom it may concern, We, NETGEAR, Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: PY314200274 IC : 4054A-14200274 Regards, Applicant’s company name : NETGEAR Inc. Applicant’s company address : 350 East Plumeria Drive San Jose, California 95134 USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 408-890-3657

NETGEAR Inc. 350 East Plumeria Drive San Jose, California 95134 USA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: September 10, 2014 Subject: FCC Application for FCC ID: PY314200274 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp..(report number: FD480702) Applicant’s company name : NETGEAR Inc. Applicant’s company address : 350 East Plumeria Drive San Jose, California 95134 USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 408-890-3657

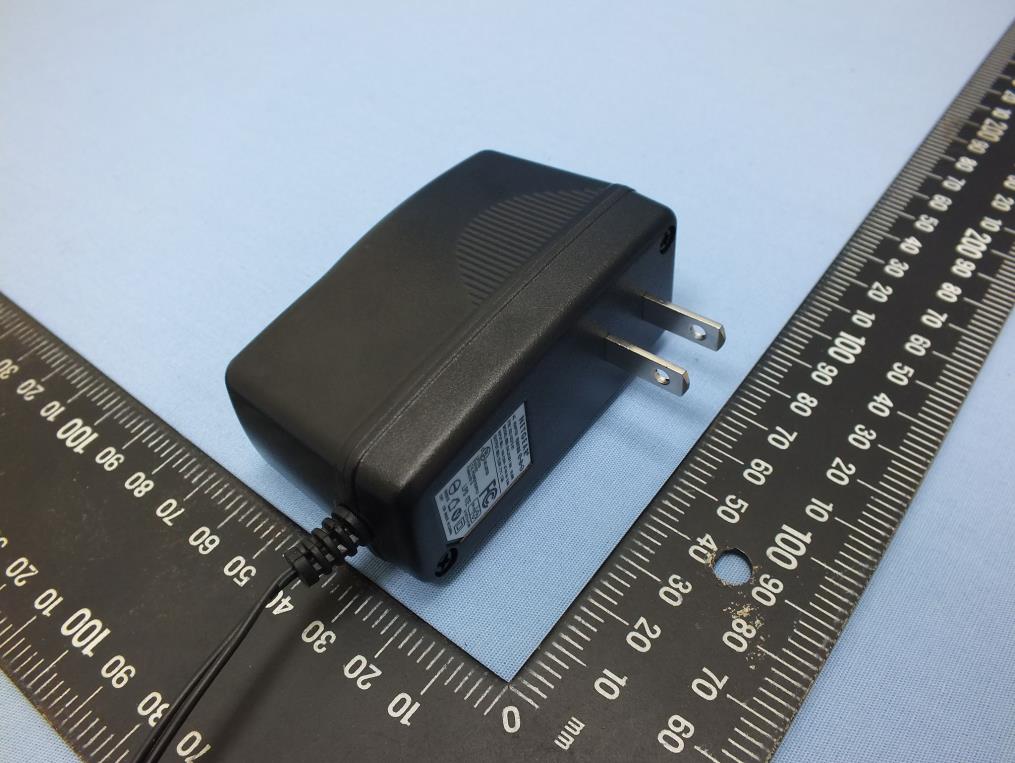

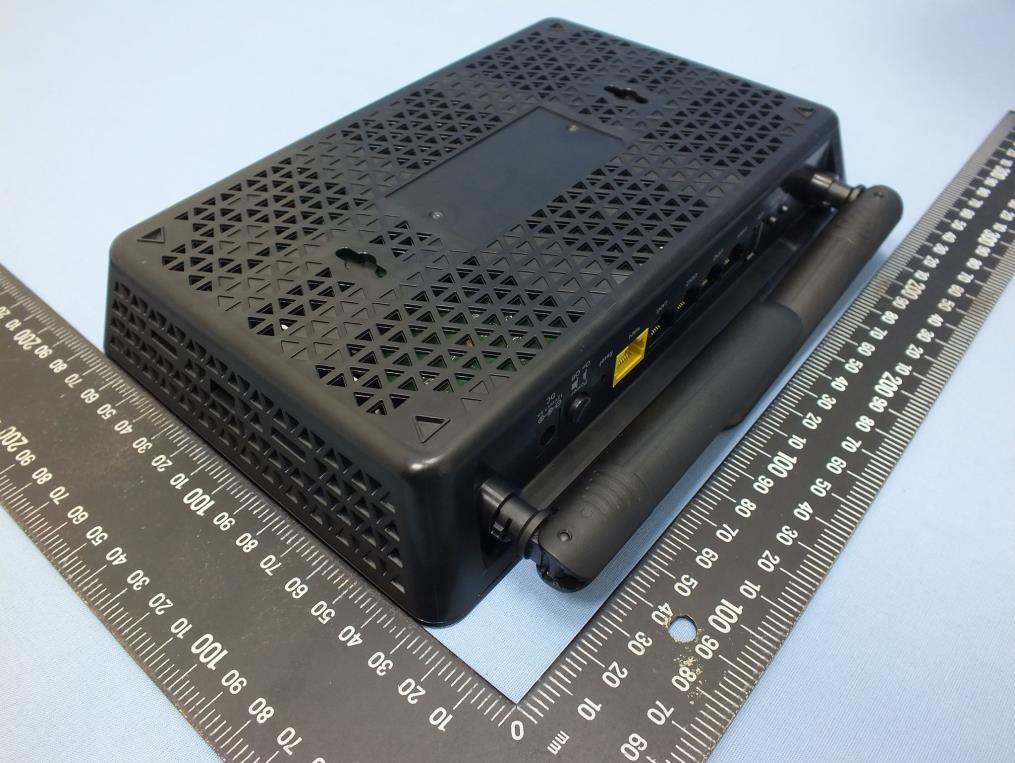

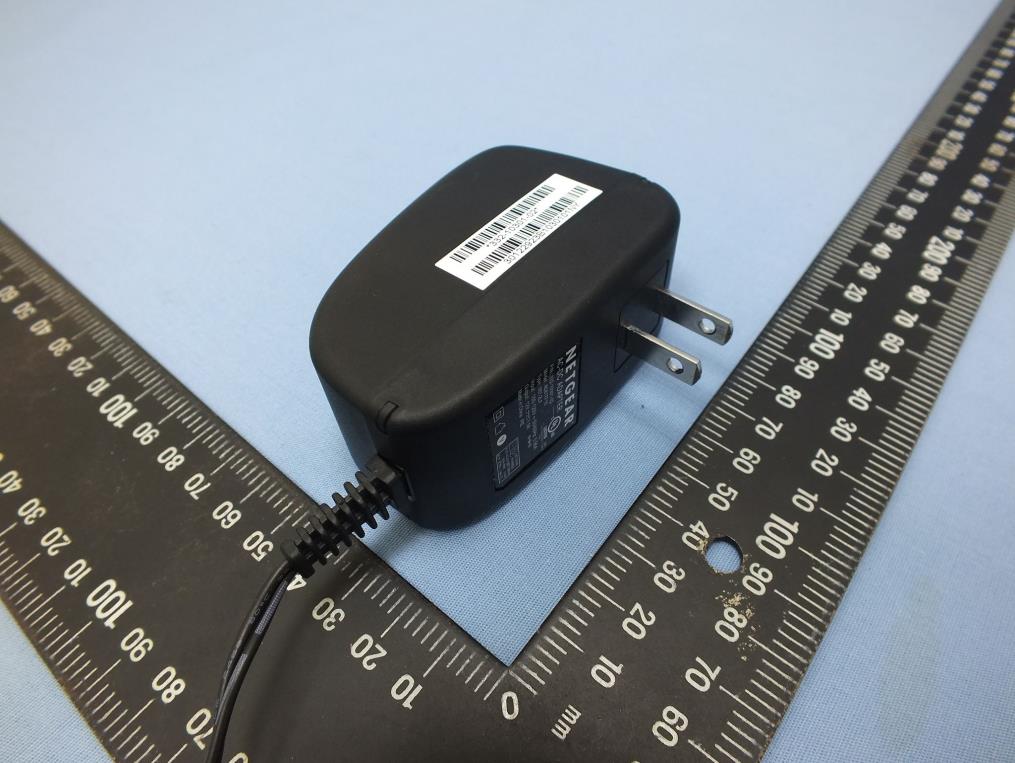

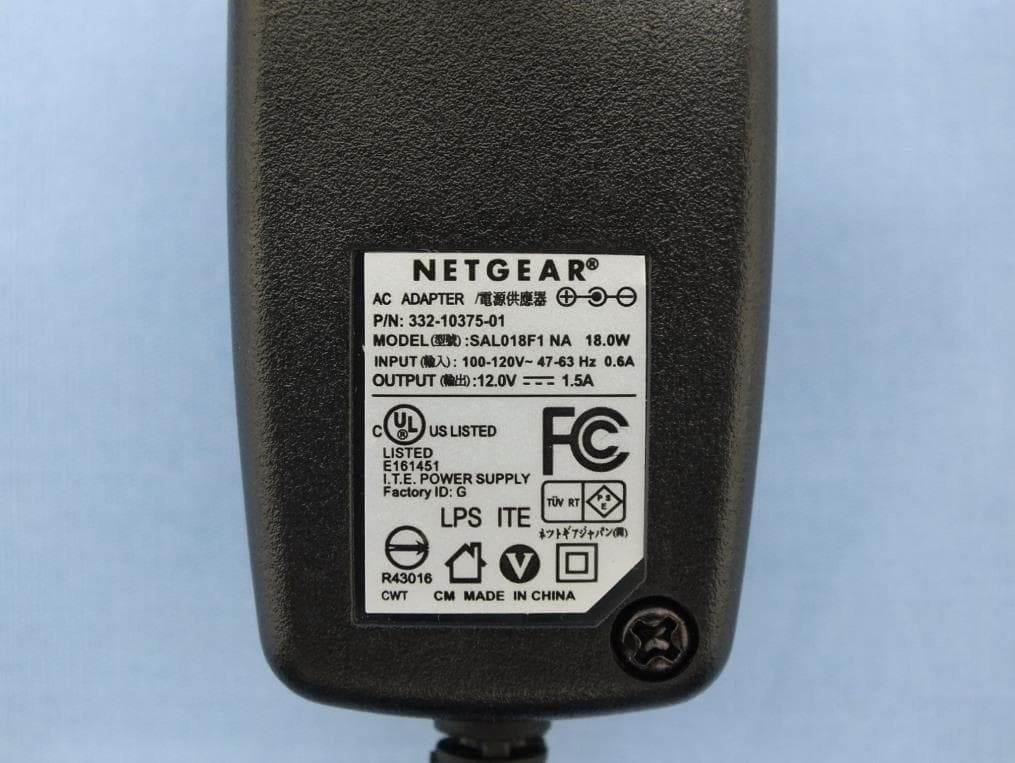

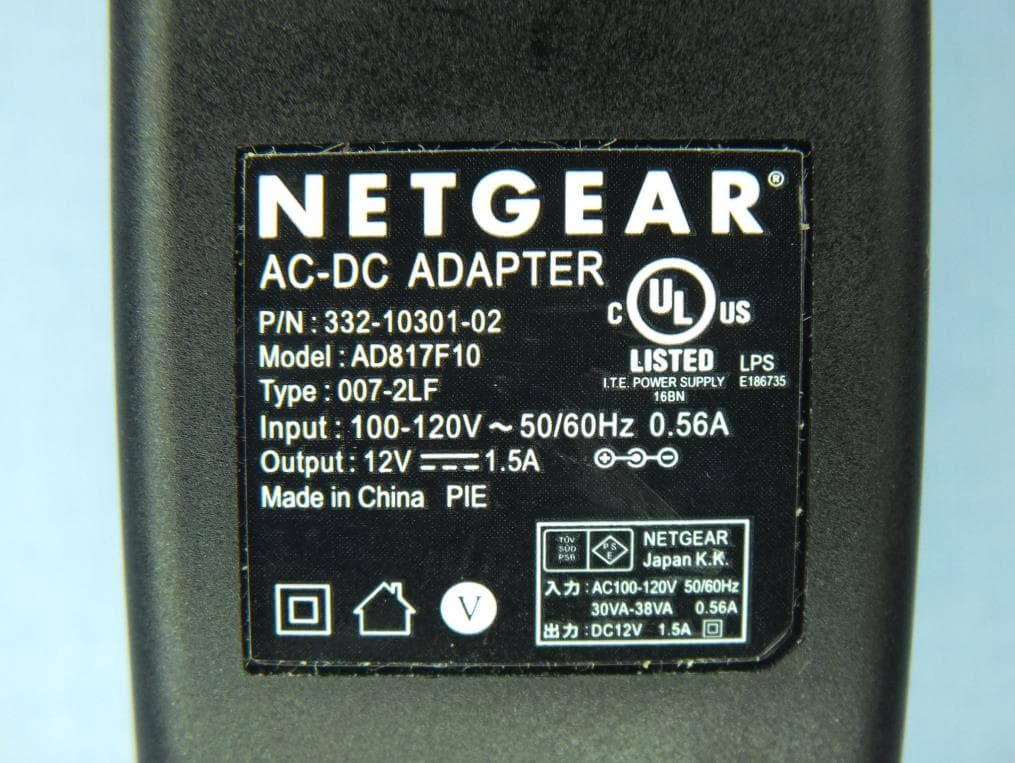

Project No.: 480702 Page No. : 1 of 15 Photographs of EUT Project No.: 480702 Page No. : 2 of 15 Project No.: 480702 Page No. : 3 of 15 Project No.: 480702 Page No. : 4 of 15 Project No.: 480702 Page No. : 5 of 15 Project No.: 480702 Page No. : 6 of 15

02AW-12960-011 of 1 AW,PLBL,R6220,V1M HUMPHREY 13MAR14Bong LeeINITIAL DOCUMENT CREATION01 20JUN14M HUMPHREYUPDATE TO PLBL REQUEST FORM02 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. NTGR SN and MAC addres s barcode to be encoded AIM USS Code39 and include printed charac ters below barcodes. 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). PANTONE 877C BLACK SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPDDATE R-NZ

Project No.: 480702 Page No. : 7 of 15 Project No.: 480702 Page No. : 8 of 15 Project No.: 480702 Page No. : 9 of 15 Project No.: 480702 Page No. : 10 of 15 Project No.: 480702 Page No. : 11 of 15 Project No.: 480702 Page No. : 12 of 15 Project No.: 480702 Page No. : 13 of 15 Project No.: 480702 Page No. : 14 of 15 Project No.: 480702 Page No. : 15 of 15

Report No.: FA480702 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : PY314200274 Equipment : AC1200 Smart WiFi Router with External Antennas Model No. : R6220 Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 07, 2014 Tested Date : Aug. 27 ~ Sep. 05, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA480702 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA480702 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA480702 Rev. 01 Initial issue Sep. 22, 2014 Report No.: FA480702 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA480702 Page : 5 of 6 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 24.39 3.48 20 0.122 1 5180~5240 23.36 3.09 20 0.088 1 5745~5825 26.48 3.56 20 0.201 1 MPE Evaluation of Simultaneous Transmission 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1, PD = Power density MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.122 / 1 + 0.201 / 1 = 0.323 < 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA480702 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR480702AC Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : PY314200274 Equipment : AC1200 Smart WiFi Router with External Antennas Model No. : R6220 Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 15.247 Received Date : Aug. 07, 2014 Tested Date : Aug. 27 ~ Sep. 09, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR480702AC Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 50 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR480702AC Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR480702AC Rev. 01 Initial issue Sep. 22, 2014 Report No.: FR480702AC Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.154MHz 51.33 (Margin -4.45dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50MHz 53.90 (Margin -0.10dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Max Power [dBm]: 24.39 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR480702AC Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Antenna Gain (dBi) 2400~2483.5MHz 5150~5250 MHz 5725~5850 MHz 1 R6220 Dipole I-PEX 3.48 3.09 3.56 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from AC adapter Report No.: FR480702AC Page : 6 of 63 Report Version: Rev. 01 1.1.4 Accessories Accessories No. Equipment Description 1 AC Adapter 1 Brand Name: NETGEAR Model Name: AD817F10 Power Rating: I/P: 100-120Vac, 50-60Hz, 0.56A O/P: 12Vdc, 1.5A Power Line: 1.8m non-shielded cable w/o core 2 AC Adapter 2 Brand Name: NETGEAR Model Name: SAL018F1 NA Power Rating: I/P: 100-120Vac, 47-63Hz, 0.6A O/P: 12Vdc, 1.5A Power Line: 1.8m non-shielded cable w/o core 3 RJ45 cable 1 Brand Name: Nienyi Industrial Corporation Model Name: SMDR02GB0010 1.5m non-shielded w/o core. 4 RJ45 cable 2 Brand Name: D & S Model Name: NYA2667 1.5m non-shielded w/o core. 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency…

Text truncated - open the document above for the full version.

Report No.: FR480702AI Page : 1 of 54 Report Version: Rev. 01 FCC Test Report FCC ID : PY314200274 Equipment : AC1200 Smart WiFi Router with External Antennas Model No. : R6220 Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 15.247 Received Date : Aug. 07, 2014 Tested Date : Aug. 27 ~ Sep. 09, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR480702AI Page : 2 of 54 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List .......................…

Text truncated - open the document above for the full version.
