PY314200277DTS, NII N900 Wireless Dual Band Gigabit Router

Notification of Compliance Regulatory Compliance Information This document includes user requirements for operating NETGEAR products in accordance with national laws including usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable national regulatory authority. The NETGEAR product firmware limits operation to only the channels allowed in a particular region or country. Therefore, all options described in this document may not be available in your version of the product. This document applies to both Class A and Class B devices:  Class A devices are intended to be used in a commercial or industrial environment. They are not intended to be used in a residential home or be available for general public use.  Class B devices are intended to be used in a residential setting, and may also be used in commercial and industrial applications. Examples of Class B devices are telephones, personal computers, and residential data gateways.  Fuses should only be installed by service personnel.  NETGEAR recommends the use of 26 AWG or larger gauge phone line cords. Europe – EU Declaration of Conformity This section applies to products bearing the CE or CE! mark: Products bearing the CE or CE! mark comply with the following EU directives:  EMC Directive 2004/108/EC  Low Voltage Directive 2006/95/EC  Ecodesign Directive 2009/125/EC  RoHS Directive 2011/65/EU If the product has telecommunications functionality, it also complies with the requirement of the following EU directive:  R&TTE Directive 1999/5/EC Compliance with these directives implies conformity to harmonized European standards that are noted in the EU Declaration of Conformity. The EU CE Declaration of Conformity may be found at http://support.netgear.com/app/answers/detail/a_id/11621/. Caution for installing this equipment outdoors: (Valid in all EU member states, EFTA states, and Switzerland.) Be aware that outdoor installations require special attention and will only be handled by trained and qualified installation personnel. No one from the general public is permitted to install NETGEAR wireless products outdoors when external antennas, power and grounding must be installed for use. Particular attention has to be given allowed operational frequencies. Contact NETGEAR for instructions on how to contact an installer for outdoor operations if this product requires the special considerations for outdoor installations. For detailed iformation concerning installations in France, the user should contact the national spectrum authority in France (http://www.arcep.fr/ ) The following paragraphs apply to WN2500RP: This device is a 2.4GHz and 5GHz wideband transmission system (transceiver), intended for indoor use only in all EU member states, EFTA states, and Switzerland. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for applying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10mW EIRP in the frequency range of 2454-2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Warning NETGEAR Class A products that may be utilized in domestic/residential environments may cause radio interference in which case the user may be required to take adequate measures. FCC Requirements for Operation in the United States Information in this section applies to products bearing the FCC mark (or statement): FCC Information to User This NETGEAR product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals. The following statement applies to these products:  C6300  GS608v4  WN370  D6000  HMNC100  WN1000v4  D6010  JNR1010v2  WN2500RP  D3600  JR6150  WN3000RPv2  D3610  JWNR2000v5  WN3500RP  D6200V2  JWNR2010v5  WNA1000Mv2  EX2700  R6050  WNDR3400v3  EX6100  R6200v3  WNDR3700v5  EX6200  R6220  WNR2010  FS205v2  R7500  WNR2020  FS605v4  R8000  WNR614  GS205v2  STS7000  WNR618  GS208v2  VEGN2200  GS305  VMB3000  GS308v2  VMC3010  GS605v5  VMC3030 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. FCC Guidelines for Human Exposure The NETGEAR product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum distance of 20cm between the radiator and your body. The following statement applies to this product:  C6300XB3 This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The device should be installed and operated with minimum distance of 25cm between the radiator and your body. The following statement applies to this product:  R8000 This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The device should be installed and operated with minimum distance of 30cm between the radiator and your body. FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that this product complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions:  The device may not cause harmful interference, and  The device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions The NETGEAR product has bee…

Text truncated - open the document above for the full version.

Quick Start N900 WiFi Router Model WNDR4500v3 1. Prepare and connect your modem. Unplug your modem’s power. If your modem uses a battery backup, remove the battery. Plug in your modem. If your modem uses a battery backup, put the battery back in. Then cable the modem to the router’s yellow Internet port. Package Contents 2. Power on the router. Wait for the Power LED to light solid green. If the Power LED does not light, press the Power On/Off button. Wait for the 2.4 GHz LED to light solid green. 4. Log in to the router. Launch a web browser. NETGEAR genie displays. If you do not see genie, enter www.routerlogin.net in the address field of the web browser. When prompted, enter admin for the user name and password for the password. Follow the genie steps to connect to the Internet. 5. Get the genie app. Download the free genie app from www.NETGEAR.com/genie. Easily share media, files, and printers on the network from your smartphone, tablet, or laptop. 3. Connect a device. Use an Ethernet cable to connect your computer to a LAN port on the router. You can also use WiFi to connect your WiFi device to the router. To connect with WiFi, use the WiFi network name and password on the white label on the router. Modem Internet Power adapter (varies by region) Ethernet cable Ethernet cable Router DSL or cable Power On/Off button Ethernet cable (not included) Router Power adapter October 2014 NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. WiFi Network Name and Password The preset WiFi network name (SSID) and password (network key) are unique to your router, like a serial number. Because the router automatically uses WiFi security, you don’t need to set it up. The WiFi settings are on the white label on the router. NETGEAR recommends that you use the preset WiFi settings because you can check the label if you forget them. NETGEAR genie lets you change these settings. If you do so, write down the new WiFi settings and store them in a safe place. Find the preset WiFi settings on your router and record them here: WiFi network name (SSID) Network key (password) If you change the WiFi settings, write the new settings here for easy reference and store this booklet in a safe place. WiFi network name (SSID) Network key (password) Join the WiFi Network To connect your computer or WiFi device (such as a smartphone or gaming device) to your router’s WiFi network, you can use either the manual method or the Wi-Fi Protected Setup (WPS) method. Manual Method 1. Open the software utility that manages your WiFi connections on the computer or WiFi device that you want to connect to your router. This utility scans for all wireless networks in your area. 2. Find and select your router’s WiFi network name (SSID). The SSID is on the product label. 3. Enter the router’s password (or your custom password if you changed it) and click the Connect button. The password is on the product label. 4. Repeat Step 1 through Step 3 to add other computers or WiFi devices. WPS Method If your computer or WiFi device supports WPS, you can use WPS to join the modem router’s WiFi network. For help with the WPS button on your computer or WiFi device, check the instructions or online help that came with that computer or WiFi device. Some older equipment cannot use WPS. Note: WPS does not support WEP security. If you are using WEP security, use the manual method. 1. Press the WPS button on the router. 2. Within two minutes, on your computer or WiFi device, press its WPS button or click its onscreen WPS button. The computer or WiFi device connects to your router’s WiFi network. 3. Repeat this process to add other computers or WiFi devices to the network. Support Thank you for purchasing this NETGEAR product. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. NETGEAR recommends that you use only the official NETGEAR support resources. You can get the user manual online at http://downloadcenter.netgear.com or through a link in the product’s user interface. For the current EU Declaration of Conformity, visit http://support.netgear.com/app/answers/detail/a_id/11621/. For regulatory compliance information, visit http://www.netgear.com/about/regulatory/. See the regulatory compliance document before connecting the power supply.

Netgear Incorporated 350 East Plumeria Driver San Jose California, United Sates 95134 TEL: 408-890-3657 FAX: 408-907-8097 Declaration for no non-US channel operation December 23, 2014 We, BUFFALO INC. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: PY314200277 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- David, Kay / Regulatory Compliance Manager Tel: 4088903657 Fax: 4089078097 E-mail: [email protected]

Netgear Incorporated 350 East Plumeria Driver San Jose California, United Sates 95134 TEL: 408-890-3657 FAX: 408-907-8097 Date: 2014-12-23 FCC ID: PY314200277 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- David, Kay / Regulatory Compliance Manager Tel: 4088903657 Fax: 4089078097 E-mail: [email protected]

Netgear Incorporated 350 East Plumeria Driver San Jose California, United Sates 95134 TEL: 408-890-3570 FAX: 408-907-8097 Date: 2014-12-23 FCC ID: PY314200277 IC ID: 4054A-14200277 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned, hereby authorize Andrea Hsia / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC/ IC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Andrea Hsia / Senior Specialist of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- David, Kay / Regulatory Compliance Manager Tel: 4088903657 Fax: 4089078097 E-mail: [email protected]

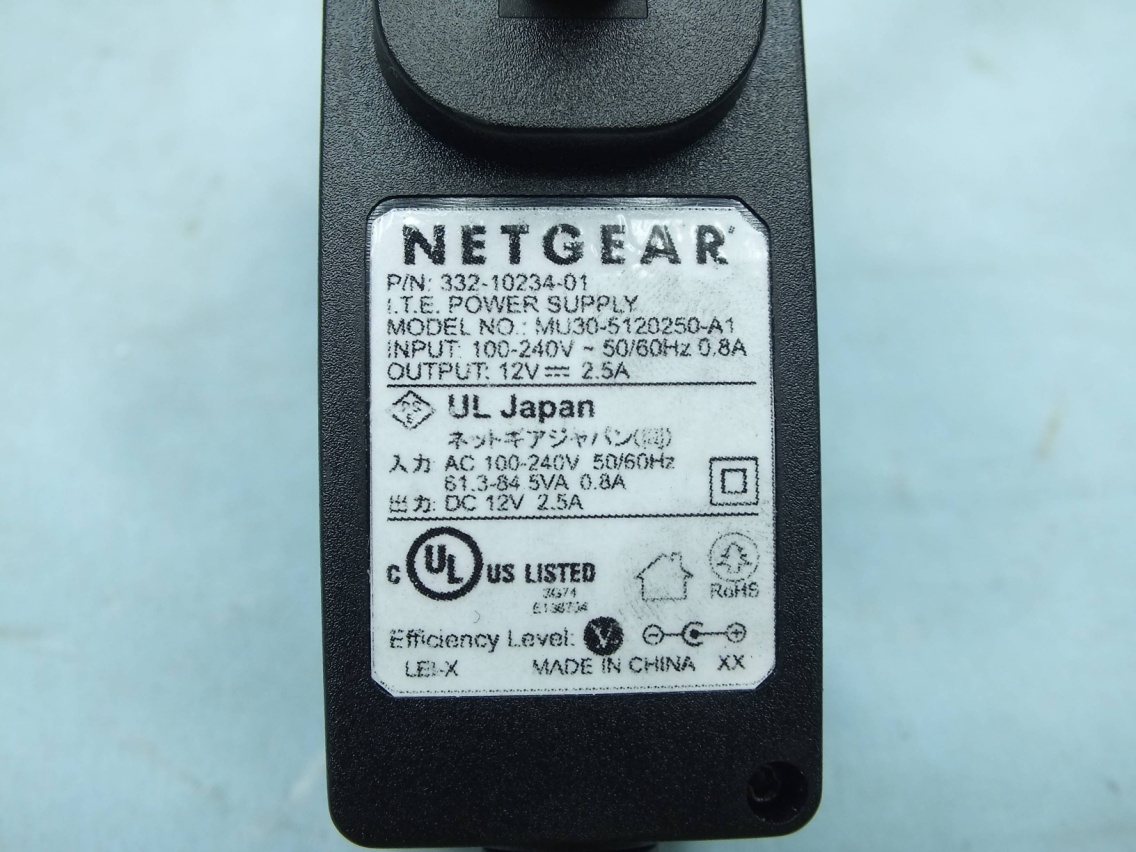

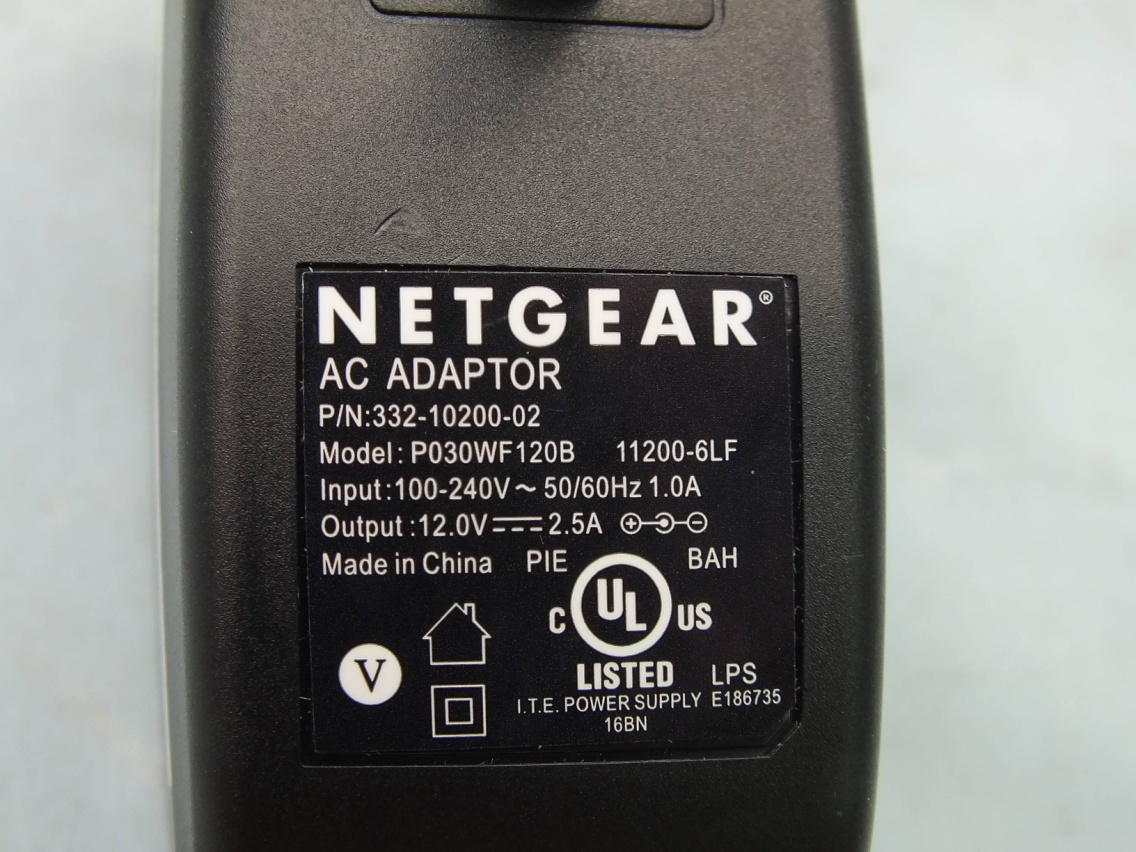

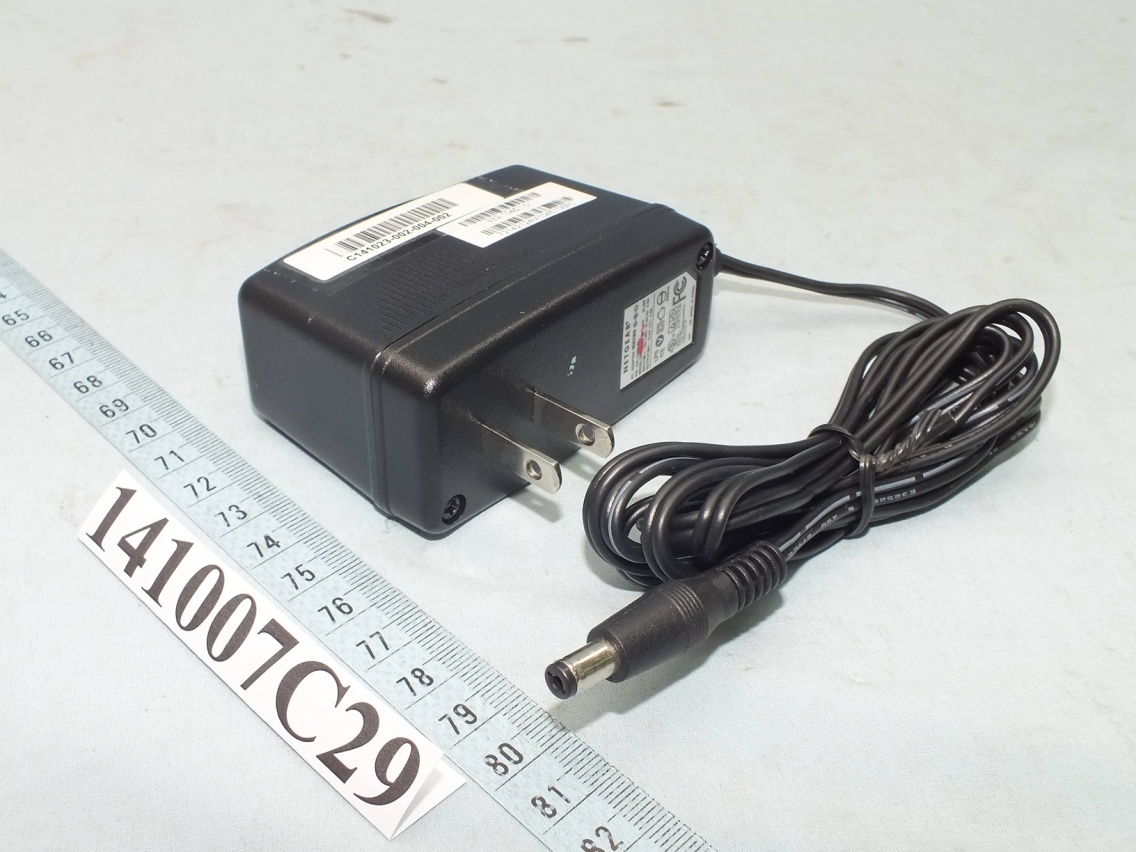

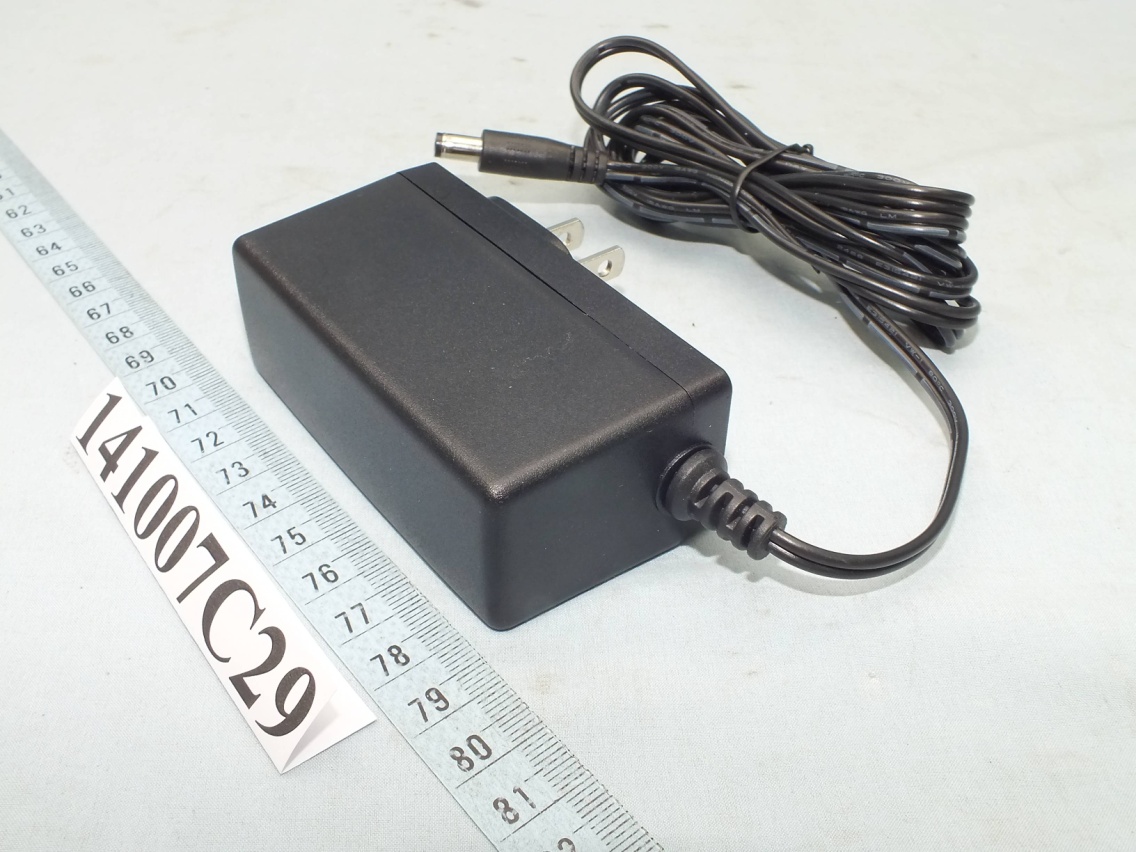

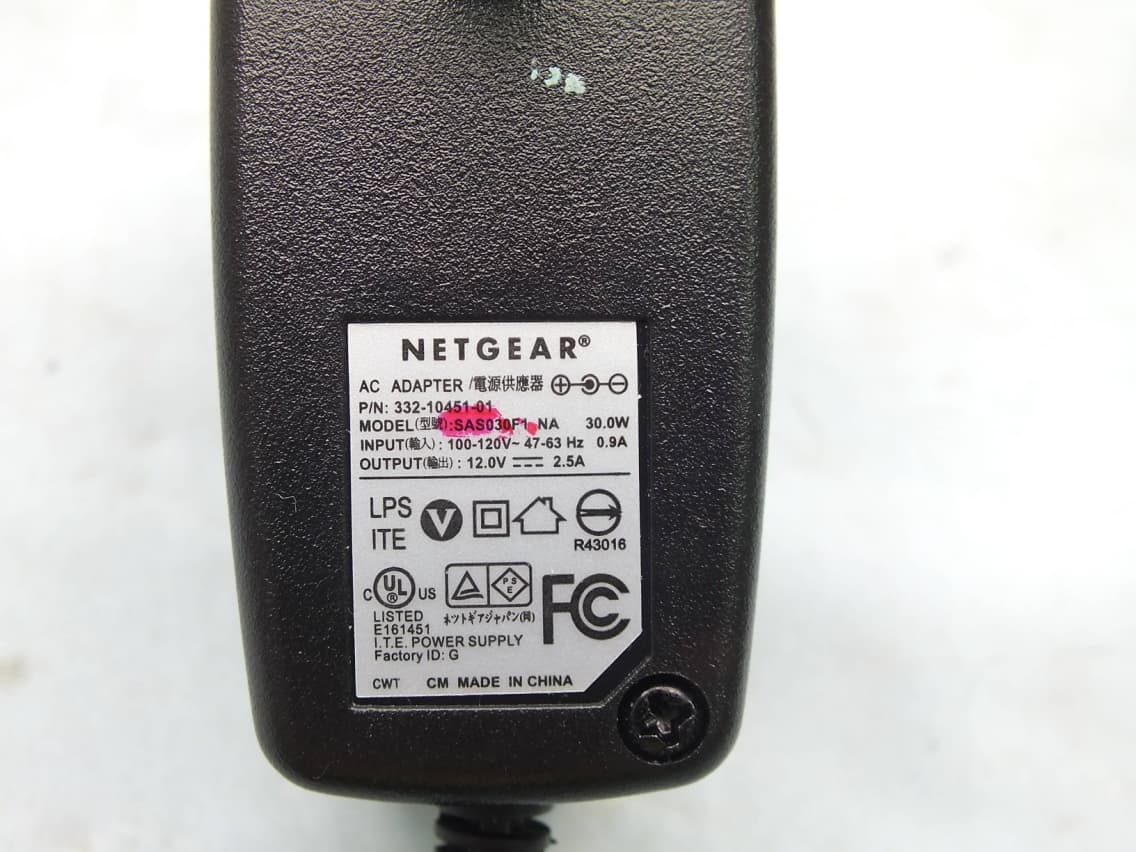

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

Page 9 Page 10 Page 11 Page 12 Page 13

Report No.: SA141007C29 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA141007C29 MODEL NO.: WNDR4500v3 FCC ID: PY314200277 RECEIVED: Oct. 07, 2014 TESTED: Oct. 14 ~ Nov. 12, 2014 ISSUED: Nov. 21, 2014 APPLICANT: NETGEAR INC. ADDRESS: 350 East Plumeria Drive, San Jose, CA 95134, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA141007C29 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 6 Report No.: SA141007C29 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA141007C29 Original release. Nov. 21, 2014 Report No.: SA141007C29 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: N900 Wireless Dual Band Gigabit Router MODEL: WNDR4500v3 BRAND: Netgear APPLICANT: NETGEAR INC. TESTED: Oct. 14 ~ Nov. 12, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment (Model: WNDR4500v3) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Nov. 21, 2014 Celine Chou / Specialist APPROVED BY : , DATE : Nov. 21, 2014 Ken Liu / Senior Manager Report No.: SA141007C29 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 25cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA141007C29 6 of 6 Report Format Version 5.0.0 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 27.85 7.90 25 0.479 1 5180-5240 27.79 7.90 25 0.472 1 5745-5825 27.82 7.90 25 0.475 1 NOTE: 2.4GHz Band: Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /3]= 7.90dBi 5.0GHz Band: Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /3]= 7.90dBi CONCULSION: Both of the 2.4 and 5GHz can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4G + WLAN 5.0G = 0.479 + 0.475 = 0.954 Therefore, the maximum calculation of this situation is 0.954, which is less than the “1” limit.

Report No.: RF141007C29 1 of 112 Report Format Version 5.2.1 FCC TEST REPORT (15.247) REPORT NO.: RF141007C29 MODEL NO.: WNDR4500v3 FCC ID: PY314200277 RECEIVED: Oct. 07, 2014 TESTED: Oct. 14 ~ Dec. 26, 2014 ISSUED: Dec. 27, 2014 APPLICANT: NETGEAR INC. ADDRESS: 350 East Plumeria Drive, San Jose, CA 95134, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF141007C29 2 of 112 Report Format Version 5.2.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 16 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 18 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 18 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 19 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 20 4.1.2 TEST INSTRUMENTS ............................................................................................... 21 4.1.3 TEST PROCEDURES ............................................................................................... 22 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 22 4.1.5 TEST SETUP ............................................................................................................. 23 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 24 4.1.7 TEST RESULTS ........................................................................................................ 25 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 40 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 40 4.2.2 TEST INSTRUMENTS ............................................................................................... 40 4.2.3 TEST PROCEDURES ............................................................................................... 41 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 41 4.2.5 TEST SETUP ............................................................................................................. 41 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 41 4.2.7 TEST RESULTS ........................................................................................................ 42 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 48 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 48 4.3.2 TEST SETUP ............................................................................................................. 48 4.3.3 TEST INSTRUMENTS ............................................................................................... 48 4.3.4 TEST PROCEDURE .................................................................................................. 48 4.3.5 DEVIATION FROM TEST STANDARD...................................................................... 48 4.3.6 EUT OPERATING CONDITIONS ...…

Text truncated - open the document above for the full version.

Report No.: RF141007C29-1 1 of 51 Report Format Version 5.3.0 FCC TEST REPORT (15.407) REPORT NO.: RF141007C29-1 MODEL NO.: WNDR4500v3 FCC ID: PY314200277 RECEIVED: Oct. 07, 2014 TESTED: Oct. 14 ~ Dec. 26, 2014 ISSUED: Dec. 27, 2014 APPLICANT: NETGEAR INC. ADDRESS: 350 East Plumeria Drive, San Jose, CA 95134, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF141007C29-1 2 of 51 Report Format Version 5.3.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 4 1. CERTIFICATION ......................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .............................................................................. 6 3. GENERAL INFORMATION .......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 7 3.2 DESCRIPTION OF TEST MODES .............................................................................. 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 10 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 12 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 13 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 13 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 14 4. TEST TYPES AND RESULTS ................................................................................... 15 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 15 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 15 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............. 15 4.1.3 TEST INSTRUMENTS ............................................................................................... 16 4.1.4 TEST PROCEDURES ............................................................................................... 17 4.1.5 DEVIATION FROM TEST STANDARD ..................................................................... 17 4.1.6 TEST SETUP............................................................................................................. 18 4.1.7 EUT OPERATING CONDITION ................................................................................ 19 4.1.8 TEST RESULTS ........................................................................................................ 20 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 31 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 31 4.2.2 TEST INSTRUMENTS ............................................................................................... 31 4.2…

Text truncated - open the document above for the full version.
