PY314300286Wireless AC750 DSL Modem Router

Installation Package Contents D3600/D3610 Wireless N600 DSL Modem Router D6000/D6010 Wireless AC750 DSL Modem Router You can connect the modem router either to a DSL service or to a cable or fiber modem. Choose one connection method only. Do not use both. Connect the Modem Router to a DSL Service 1. Connect the modem router to the Internet. a. Install an ADSL microfilter between the phone line and the phone. b. Use a phone cable to connect the microfilter to the gray DSL port on the modem router. For additional information about connecting to a DSL service, see the other side of this installation guide. 2. Power on the modem router. Connect the power adapter to the modem router and plug it into an electrical outlet. Wait for the Power LED to light green. 3. Connect a computer. Use an Ethernet cable to connect your computer to any yellow Ethernet port on the modem router. You can also use WiFi to connect. To connect with WiFi, use the WiFi network name and password on the product label. 4. Log in to the modem router. Launch a web browser. NETGEAR genie displays. If you do not see genie: In the address field of the web browser, enter www.routerlogin. net. When prompted, enter admin for the user name and password for the password. 2. Power on the modem router. Connect the power adapter to the modem router and plug it into an electrical outlet. Wait for the Power LED to light green. 3. Connect a computer. Use an Ethernet cable to connect your computer to any yellow Ethernet port on the modem router. You can also use WiFi to connect. To connect with WiFi, use the WiFi network name and password on the product label. 4. Log in to the modem router. Launch a web browser. NETGEAR genie displays. If you do not see genie: In the address field of the web browser, enter www.routerlogin. net. When prompted, enter admin for the user name and password for the password. 5. In genie, change the default connection method. a. Select BASIC > xDSL from the NETGEAR genie menu. b. From the Physical WAN Type menu, select Ethernet WAN. c. Click the Apply button. Modem router Ethernet cablePhone cable Power adapter (varies by region) ADSL microfilter (varies by region) DSL Internet Modem router Cable or fiber modem Cable or fiber Internet Power adapter ADSL microfilter Ethernet cable to Ethernet port next to DSL port Phone cable to DSL port Connect the Modem Router to a Cable or Fiber Modem 1. Connect the modem router to the Internet. Use an Ethernet cable to connect the cable or fiber modem to the yellow Ethernet port next to the gray DSL port on the modem router. (Do not use another Ethernet port fort this connection.) April 2014 NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. Beta document Information for DSL Service You can connect directly to a DSL line or to a fiber or cable modem. If you are connecting to a DSL line, make sure that your DSL service is active before you install the modem router. You need the following information to install your DSL modem and connect to the Internet: • DSL user name and password. This information is included in the welcome letter your DSL ISP sent you when you signed up for your service. Record your DSL Internet service account user name and password. • Your telephone number or DSL account number. If you do not have voice service, you can use your DSL account number in place of a phone number. If you do not know or cannot locate your DSL user name and password, call your DSL Internet service provider (ISP). Be specific when speaking with your DSL Internet service provider. For example, you could say, “I need my DSL service user name and password. Can you help me?” Note: If your provider says that they do not support NETGEAR services, tell them that you need only your DSL user name and password; you do not need support. Join the Modem Router’s WiFi Network To connect your computer or WiFi device (such as a smartphone or gaming device) to your modem router’s WiFi network: 1. Open the software utility that manages your WiFi connections on the computer or WiFi device that you want to connect to your modem router. This utility scans for all wireless networks in your area. 2. Find and select your modem router’s WiFi network name (SSID). The SSID is on the product label. 3. Enter the modem router’s password (or your custom password if you changed it) and click the Connect button. The password is on the product label. 4. Repeat Step 1 through Step 3 to add other computers or WiFi devices. WiFi Network Name and Password This product has a unique WiFi network name (SSID) and network key (password). The default SSID and password are uniquely generated for every device, like a serial number, to protect and maximize your wireless security. This information is on the product label. NETGEAR recommends that you use the preset WiFi settings because you can check the router label if you forget them. NETGEAR genie lets you change these settings if you want. If you do so, write down the new WiFi settings and store them in a safe place. Support Thank you for purchasing this NETGEAR product. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. NETGEAR recommends that you use only the official NETGEAR support resources. You can get the user manual online at http://downloadcenter.netgear.com or through a link in the product’s user interface. For the current EU Declaration of Conformity, visit http://support.net…

Text truncated - open the document above for the full version.

NETGEAR Inc. 350 East Plumeria Drive San Jose, California 95134 USA Date: 2014/7/16 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PY314300286 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization o the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : NETGEAR Inc. Address : 350 East Plumeria Drive San Jose, California 95134 USA Signature : _________________________________ Name and Job Title. : David Kay / Regulatory Compliance Manager E-mail : [email protected] Tel. : 408-890-3160

NETGEAR Inc. 350 East Plumeria Drive San Jose, California 95134 USA Date: July 16, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: PY314300286 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : NETGEAR Inc. Address : 350 East Plumeria Drive San Jose, California 95134 USA Signature : _________________________________ Name and Job Title. : David Kay / Regulatory Compliance Manager E-mail : [email protected] Tel. : 408-890-3160

NETGEAR Inc. 350 East Plumeria Drive San Jose, California 95134 USA Date: July 16, 2014 Subject: Ad Hoc Mode Function Declaration To whom it may concern, We, NETGEAR, Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: PY314300286 IC : 4054A-14300286 Regards, Applicant’s company name : NETGEAR Inc. Applicant’s company address : 350 East Plumeria Drive San Jose, California 95134 USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 408-890-3160

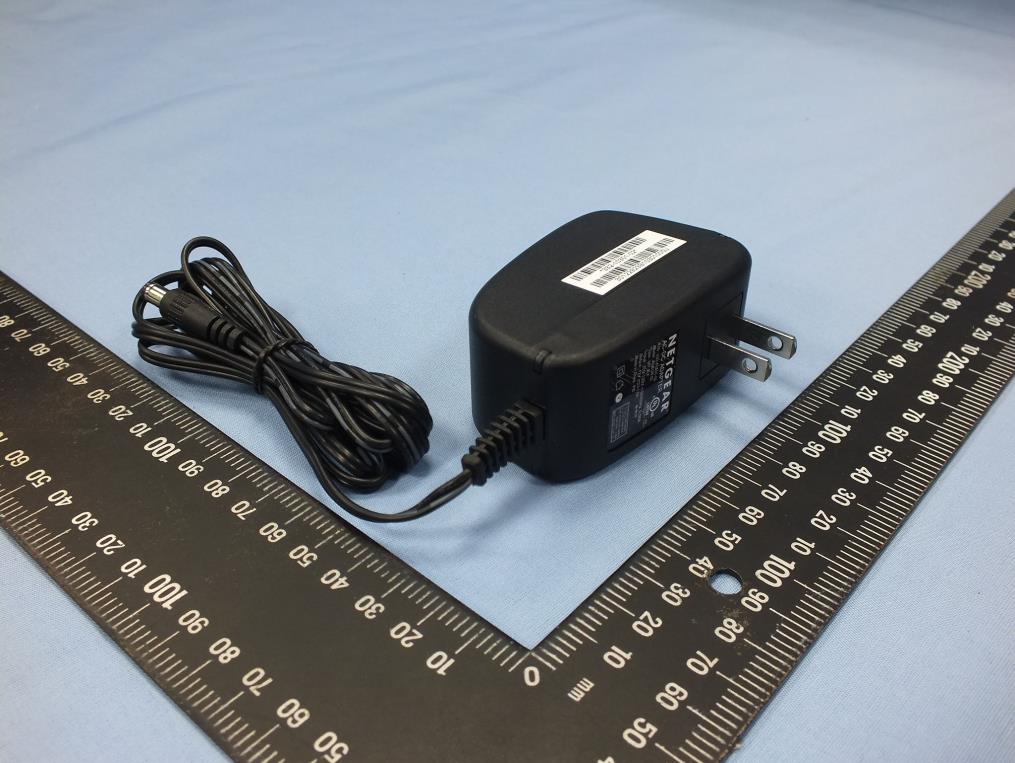

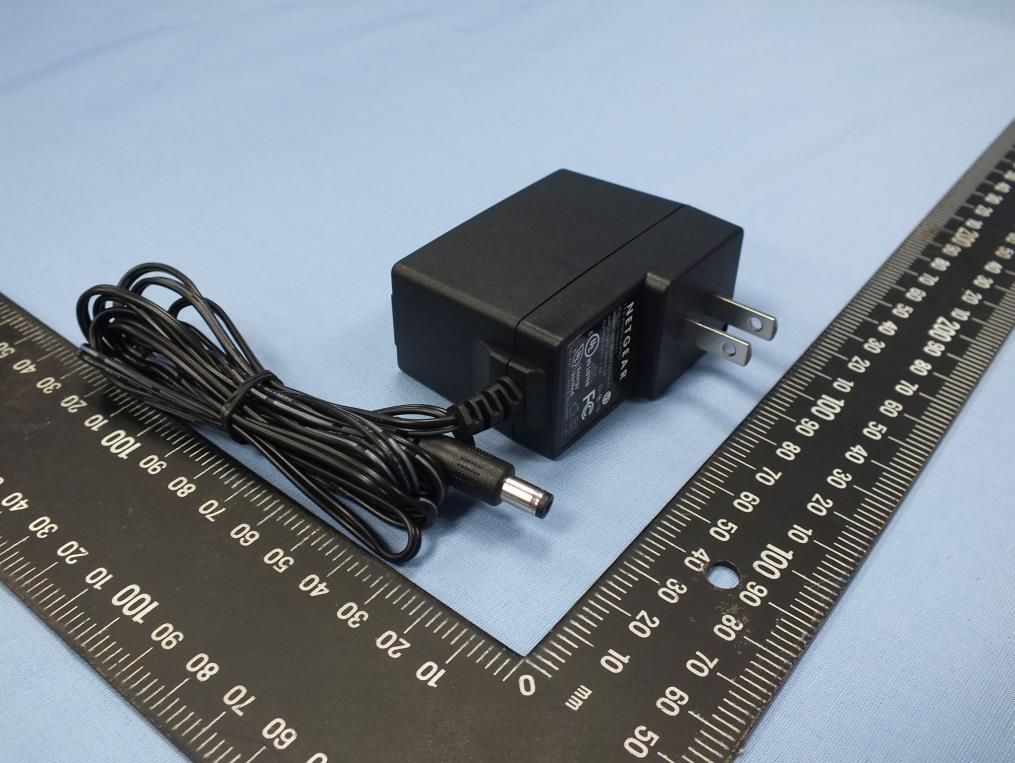

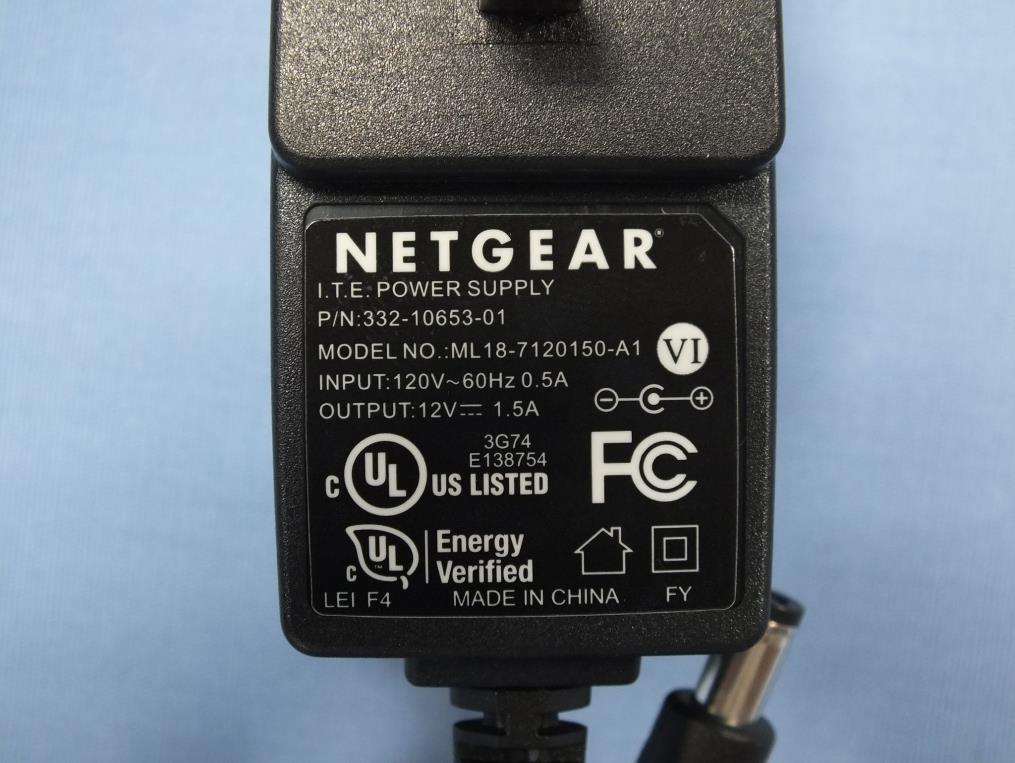

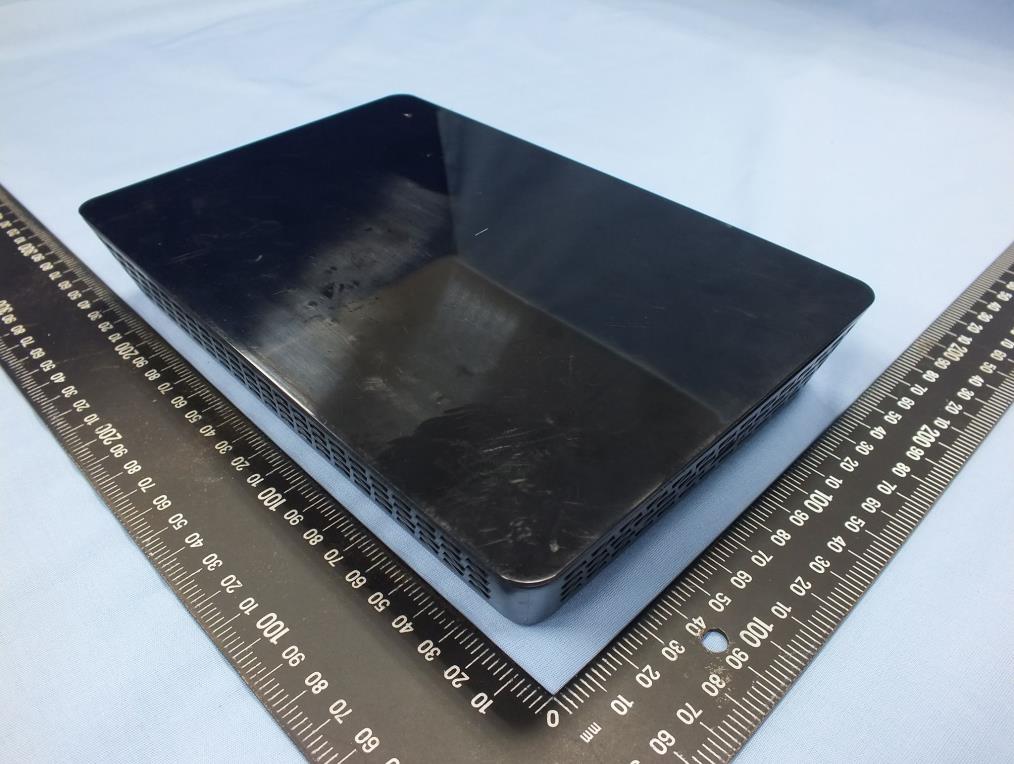

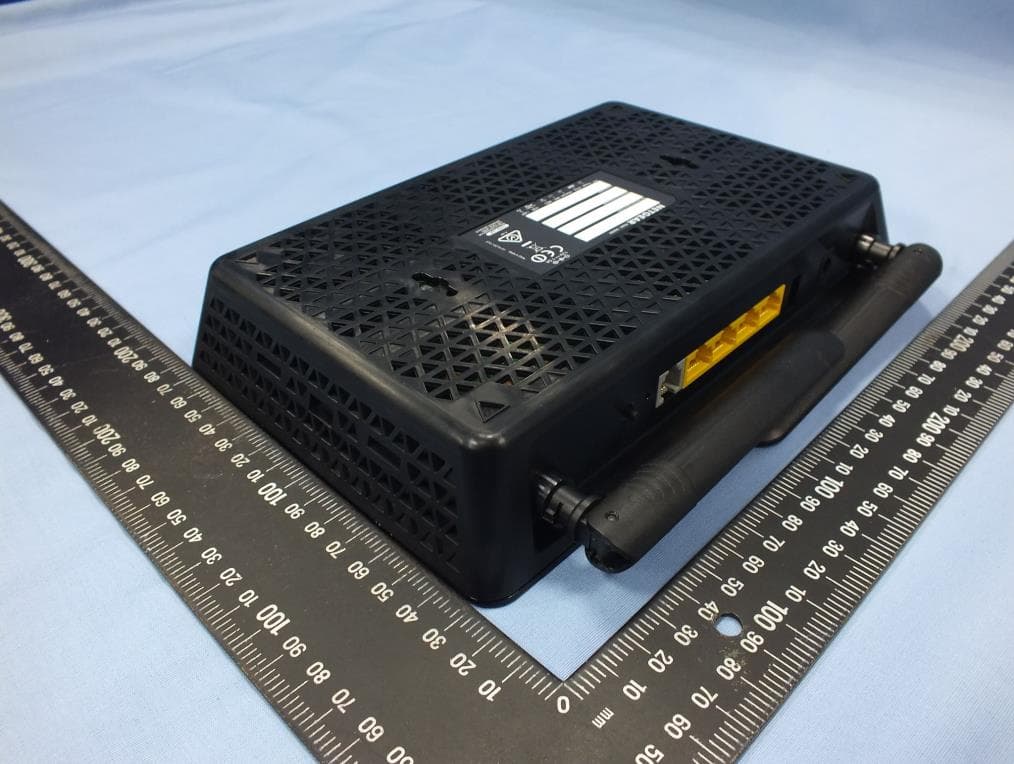

Project No.: EP462301 Page No. : 1 of 15 Photographs of EUT Project No.: EP462301 Page No. : 2 of 15 Project No.: EP462301 Page No. : 3 of 15 Project No.: EP462301 Page No. : 4 of 15 Project No.: EP462301 Page No. : 5 of 15

01AW-12893-021 of 1 AW,PLBL,D6000,V2M HUMPHREY 18JUL14M HUMPHREYINITIAL DOCUMENT CREATION01 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). PANTONE 877C BLACK SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPDDATE 01AW-12894-021 of 1 AW,PLBL,D6010,V2M HUMPHREY 18JUL14M HUMPHREYINITIAL DOCUMENT CREATION01 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). PANTONE 877C BLACK SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPDDATE Back Label location

Project No.: EP462301 Page No. : 6 of 15 Project No.: EP462301 Page No. : 7 of 15 Project No.: EP462301 Page No. : 8 of 15 Project No.: EP462301 Page No. : 9 of 15 Project No.: EP462301 Page No. : 10 of 15 Project No.: EP462301 Page No. : 11 of 15 Project No.: EP462301 Page No. : 12 of 15 Project No.: EP462301 Page No. : 13 of 15 Project No.: EP462301 Page No. : 14 of 15 Project No.: EP462301 Page No. : 15 of 15

Report No.: FA462301 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : PY314300286 Equipment : Wireless AC750 DSL Modem Router Model No. : D6000, D6010 (for marketing purpose only.) Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Jun. 17, 2014 Tested Date : Jun. 19 ~ Jul. 30, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA462301 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA462301 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA462301 Rev. 01 Initial issue Aug. 21, 2014 Report No.: FA462301 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 25.48 3.59 20 0.161 1 5180~5240 18.61 4.15 20 0.038 1 5745~5825 19.79 4.23 20 0.050 1 CONCULSION: Both of the WLAN 2.4G & 5G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5G = 0.161 / 1 + 0.050 / 1 = 0.211 Therefore, the maximum calculation of this situation is 0.92, which is less than the “1” limit. Report No.: FA462301 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR462301AC Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : PY314300286 Equipment : Wireless AC750 DSL Modem Router Model No. : D6000, D6010 (for marketing purpose only.) Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 15.247 Received Date : Jun. 17, 2014 Tested Date : Jun. 19 ~ Jul. 30, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR462301AC Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 50 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR462301AC Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR462301AC Rev. 01 Initial issue Aug. 21, 2014 Report No.: FR462301AC Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.484MHz 41.42 (Margin -4.85dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2385.15MHz 53.83 (Margin -0.17dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Max Power [dBm]: 25.48 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR462301AC Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Gain (dBi) 1 90VEAA15 G06 dipole N/A 3.59 2 90VEAA15 G07 dipole N/A 3.53 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from AC adapter Report No.: FR462301AC Page : 6 of 63 Report Version: Rev. 01 1.1.4 Accessories Accessories No. Equipment Description 1 AC Adapter 1 Brand Name: NETGEAR Model Name: ML18-7120150-A1 P/N: 332-10653-01 Power Rating: I/P: 120Vac, 60Hz, 0.5A O/P: 12Vdc, 1.5A Power Line: 1.85m non-shielded cable w/o core 2 AC Adapter 2 Brand Name: NETGEAR Model Name: AD817F10 P/N: 332-10301-02 Power Rating: I/P: 100-120Vac, 50-60Hz, 0.56A O/P: 12Vdc, 1.5A Power Line: 1.85m non-shielded cable w/o core 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 …

Text truncated - open the document above for the full version.

Report No.: FR462301AI Page : 1 of 56 Report Version: Rev. 01 FCC Test Report FCC ID : PY314300286 Equipment : Wireless AC750 DSL Modem Router Model No. : D6000, D6010 (for marketing purpose only.) Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 15.247 Received Date : Jun. 17, 2014 Tested Date : Jun. 19 ~ Jul. 30, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR462301AI Page : 2 of 56 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 24 3.6 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 46 4 TEST LABORATORY INFORMATION ............................................................................................... 56 Report No.: FR462301AI Page : 3 of 56 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR462301AI Rev. 01 Initial issue Aug. 21, 2014 Report No.: FR462301AI Page : 4 of 56 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.396MHz 41.94 (Margin -6.01dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 11490.00MHz 53.89 (Margin -0.11dB) – AV [dBuV/m at 3m]: 11650.00MHz 53.89 (Margin -0.11dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Max Power [dBm]: 27.22 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR462301AI Page : 5 of 56 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 1 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 1 MCS 0-7 5725-5850 n (HT40) 5755-5795 151-159 [2] 1 MCS 0-7 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 1 MCS 0-8 5725-5850 ac (VHT40) 5755-5795 151-159 [2] 1 MCS 0-9 5725-5850 ac (VHT80) 5775 155 [1] 1 MCS 0-9 Note 1: RF output power specifies that Maximum Peak Conducted Output Power.. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Gain (dBi) 1 90VEAA15 G06 dipole I-PEX 4.23 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 12Vdc from AC adapter Report No.: FR462301AI Page : 6 of 56 Report Version: Rev. 01 1.1.4 Accessories Accessories No. Equipment Description 1 AC Adapter 1 Brand Name: NETGEAR Model Name: ML18-7120150-A1 P/N: 332-10653-01 Power Rating: I/P: 120Vac, 60Hz, 0.5A O/P: 12Vdc, 1.5A Power Line: 1.85m non-shielded cable w/o core 2 AC Adapter 2 Brand Name: NETGEAR Model Name: AD817F10 P/N: 332-10301-02 Power Rating: I/P: 100-120Vac, 50-60Hz, 0.56A O/P: 12Vdc, 1.5A Power Line: 1.85m non-shielded cable w/o core 1.1.5 Channel List Frequency band (MHz) 5725~5850 802.11 a / HT20 / VHT20 HT40 / VHT40 Channel Frequency(MHz) Channel Frequency(MHz) 149 5745 151 5755 153 5765 159 5795 157 5785 VHT80 161 5805 155 5775 165 58…

Text truncated - open the document above for the full version.

Report No.: FR462301 Page : 1 of 16 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : PY314300286 Equipment : Wireless AC750 DSL Modem Router Model No. : D6000, D6010 (for marketing purpose only.) Brand Name : NETGEAR Applicant : NETGEAR, Inc. Address : 350 East Plumeria Drive, San Jose, California 95134, USA Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Jun. 17, 2014 Tested Date : Jul. 18 ~ Jul. 30, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR462301 Page : 2 of 16 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION ....................................................................................................…

Text truncated - open the document above for the full version.
