PY314300288AC2350 Smart WiFi Router

Installation Nighthawk X4 AC2350 Smart WiFi Router Model R7500 Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. Compliance For the current EU Declaration of Conformity, visit: http://support.netgear.com/app/answers/detail/a_id/11621/. For regulatory compliance information, visit: http://www.netgear.com/about/regulatory/. See the regulatory compliance document before connecting the power supply. Package Contents The box contains the following items. In some regions, a resource CD is included in the package. Installation Video To view the Nighthawk installation video, visit http://www.netgear.com/R7500_vid1 or use this QR code: NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134 USA July 2014 AC2350 Smart WiFi Router Ethernet cable Power adapter Antennas (4) Support Thank you for purchasing this NETGEAR product. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. NETGEAR recommends that you use only the official NETGEAR support resources. You can get the user manual online at http://downloadcenter.netgear.com or through a link in the product’s user interface. 1. Attach the antennas. To determine where to attach the antennas, match the labels on the antennas with the labels on the router. Attach the antennas on the threaded antenna posts. Position the antennas for the best WiFi performance. NETGEAR recommends that you position all of the antennas vertically, as shown. 2. Prepare your modem. Unplug your modem’s power. If it has a battery backup, remove the battery. 3. C onnect your modem. Plug in your modem. Put the battery back in. Then cable the modem to the yellow Internet port on the router. 4. Power on the router. The Power LED lights amber and then turns white when the router is ready. 5. C onnect a computer. You can use an Ethernet cable or connect with WiFi. To connect with WiFi, use the WiFi network name and password on the product label. 6. L og in to the router. Launch a web browser. NETGEAR genie displays. If you do not see genie, enter www.routerlogin.net in the address field of the web browser. When prompted, enter admin for the user name and password for the password. 7. Get the genie app. Download the free genie app from www.NETGEAR.com/genie. Easily share media, files, and printers on the network from your smartphone, tablet, or laptop. 8. Get the user manual. Y ou can get the user manual online at http://downloadcenter.netgear.com or through a link in the product’s user interface. Ethernet cable Router Ethernet cable DSL or cable Internet Modem Power adapter You can use this diagram to connect your router or follow the detailed instructions in this booklet. 1 Contents Install Your Router .......................................................................................................2 LEDs ................................................................................................................................6 WiFi Network Name and Password .........................................................................7 Join the WiFi Network ................................................................................................8 View or Change the Router Settings ......................................................................9 Prioritize with Quality of Service ..........................................................................12 Share a USB Drive on the Network.......................................................................14 ReadySHARE Vault Backup App .............................................................................16 Share a USB Printer ...................................................................................................17 More Premium Features ..........................................................................................18 NETGEAR genie App .................................................................................................20 2 Install Your Router Make sure that your Internet service is active before you install your router. ¾To install your router: 1. Attach the antennas. a. To determine where to attach the antennas, match the labels on the antennas with the labels on the router. b. Align the ant ennas with the antenna posts on the router. c. Attach the antennas on the threaded antenna posts. d. Position the antennas for the best WiFi performance. NETGEAR recommends that you position all of the antennas vertically, as shown. 3 2. Prepare your modem. a. Unplug your modem’s power. b. If the modem has a battery backup, remove its batteries. c. If your modem w as already connected to another router, disconnect the cable between your modem and that router. Make sure that your modem is turned off and is cabled only to the wall jack for your Internet service. 3. C onnect your modem. a. Plug in, then turn on your modem. b. If you removed the batteries, replace them. c. With the yellow Ethernet cable that came with the router, connect your modem to the yellow Internet port on your router. Modem DSL or cable Internet Router Ethernet cable Modem Internet DSL or cable 4 4. Add power to the router. a. Connect the power adapter to the router and plug the power adapter into an outlet. b. Wait for the Power LED on the front panel to light amber and turn white. If no LEDs are lit, press the Power On/Off button on the rear panel of the router. 5. Connect a computer. You can use an Ethernet cable or connect with WiFi: • For a wired connection, use an Ethern…

Text truncated - open the document above for the full version.

Notification of Compliance Regulatory Compliance Information This document includes user requirements for operating NETGEAR products in accordance with national laws including usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable national regulatory authority. The NETGEAR product firmware limits operation to only the channels allowed in a particular region or country. Therefore, all options described in this document may not be available in your version of the product. This document applies to both Class A and Class B devices:  Class A devices are intended to be used in a commercial or industrial environment. They are not intended to be used in a residential home or be available for general public use.  Class B devices are intended to be used in a residential setting, and may also be used in commercial and industrial applications. Examples of Class B devices are telephones, personal computers, and residential data gateways.  Fuses should only be installed by service personnel.  NETGEAR recommends the use of 26 AWG or larger gauge phone line cords. Europe – EU Declaration of Conformity This section applies to products bearing the CE or CE! mark: Products bearing the CE or CE! mark comply with the following EU directives:  EMC Directive 2004/108/EC  Low Voltage Directive 2006/95/EC  Ecodesign Directive 2009/125/EC  RoHS Directive 2011/65/EU If the product has telecommunications functionality, it also complies with the requirement of the following EU directive:  R&TTE Directive 1999/5/EC Compliance with these directives implies conformity to harmonized European standards that are noted in the EU Declaration of Conformity. The EU CE Declaration of Conformity may be found at http://support.netgear.com/app/answers/detail/a_id/11621/. Caution for installing this equipment outdoors: (Valid in all EU member states, EFTA states, and Switzerland.) Be aware that outdoor installations require special attention and will only be handled by trained and qualified installation personnel. No one from the general public is permitted to install NETGEAR wireless products outdoors when external antennas, power and grounding must be installed for use. Particular attention has to be given allowed operational frequencies. Contact NETGEAR for instructions on how to contact an installer for outdoor operations if this product requires the special considerations for outdoor installations. For detailed iformation concerning installations in France, the user should contact the national spectrum authority in France (http://www.arcep.fr/ ) The following paragraphs apply to WN2500RP: This device is a 2.4GHz and 5GHz wideband transmission system (transceiver), intended for indoor use only in all EU member states, EFTA states, and Switzerland. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for applying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10mW EIRP in the frequency range of 2454-2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Warning NETGEAR Class A products that may be utilized in domestic/residential environments may cause radio interference in which case the user may be required to take adequate measures. FCC Requirements for Operation in the United States Information in this section applies to products bearing the FCC mark (or statement): FCC Information to User This NETGEAR product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals. The following statement applies to these products:  A6210  JWNR2010v5  WN3500RP  C6300  R6050  WNR2010  D6200V2  R7500  WNR2020  EX6100  STS7000  WNR614  EX6200  VEGN2200  WNR618  HMNC100  WN370  JR6150  WN2500RP  JWNR2000v5  WN3000RPv2 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. FCC Guidelines for Human Exposure The NETGEAR product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. The following statement applies to this product:  C6300XB3 This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. The device should be installed and operated with minimum distance of 25 cm between the radiator and your body. FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that this product complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the following two conditions:  The device may not cause harmful interference, and  The device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions The NETGEAR product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular…

Text truncated - open the document above for the full version.

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 4088903160 / Fax: 4089078097 Confidential Letter Date: 2014/7/29 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：PY314300288 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent NETGEAR, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 4088903657

NETGEAR, Inc. 350 East Plumeria Drive, San Jose, California 95134, USA Tel: 4088903160 / Fax: 4089078097 Power of Attorney Date: 2014/7/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: NETGEAR / R7500 FCC ID: PY314300288 Product name: AC2350 Smart WiFi Router FCC Grantee contact person information. Applicant’s company name : NETGEAR, Inc. Applicant’s company address : 350 East Plumeria Drive, San Jose, California 95134, USA Signature : Name and Job Title : David Kay / Regulatory Compliance Manager E-Mail : [email protected] Tel. : 4088903657

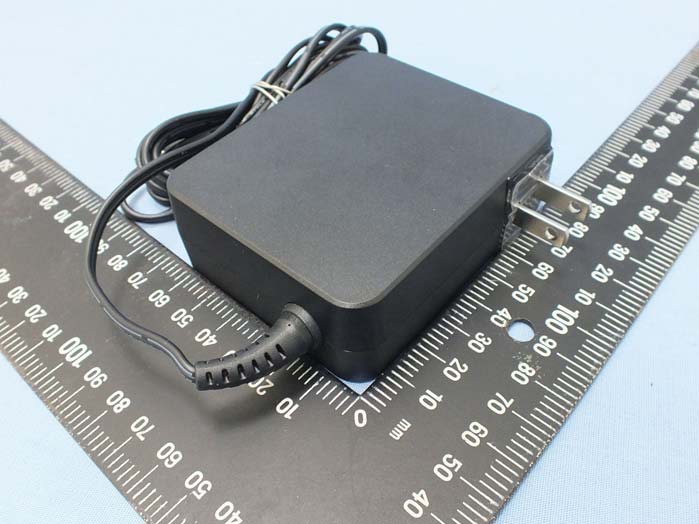

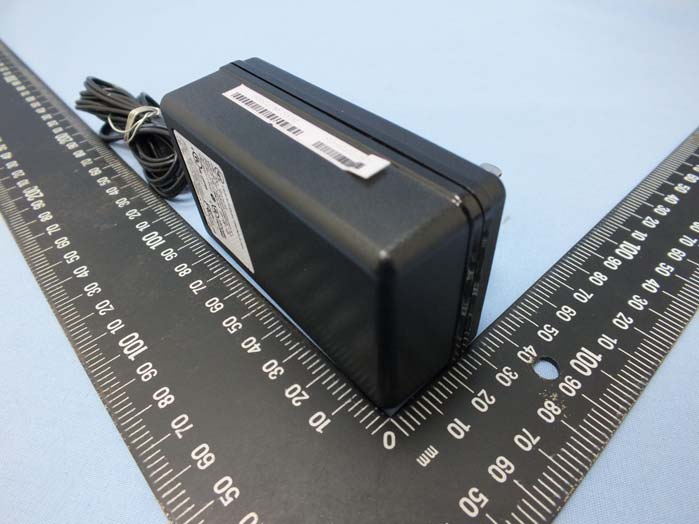

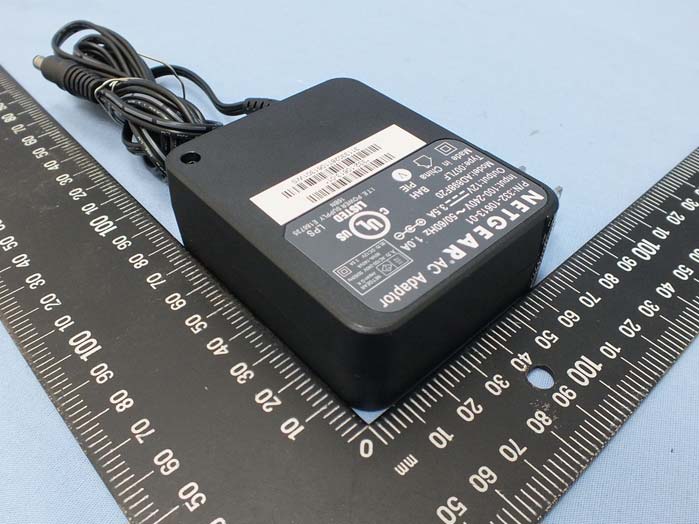

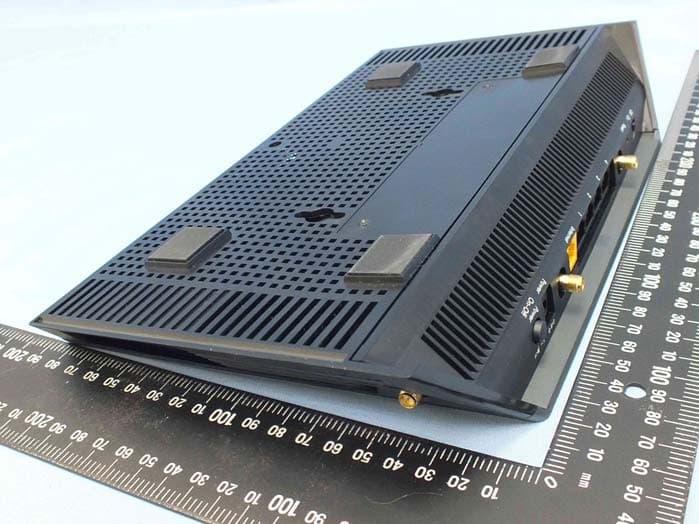

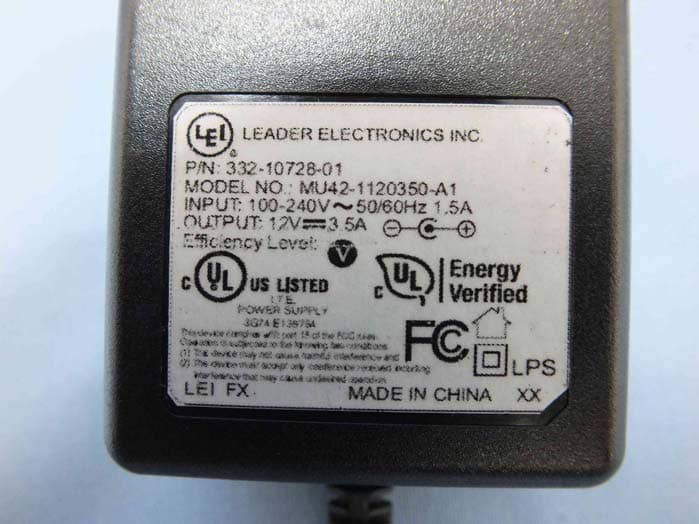

Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 1 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 2 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 3 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 4 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Antenna Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 5 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 6 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Adapter 1 Model No.: AD898F20 P/N: 332-10613-01 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 7 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 8 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Adapter 2 Model No.: MU42-1120350-A1 P/N: 332-10728-01 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 9 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973

Label size: 15 * 4 cm

Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 1 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Photographs of EUT USB 3.0 with absorber Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 2 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 3 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 4 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 5 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 6 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 7 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 8 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 9 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 10 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 11 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 12 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 13 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 14 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 15 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 USB 3.0 with shielded Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 16 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 17 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 18 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973 Report No.: 433001-03 SPORTON International Inc. PAGE NUMBER : 19 OF 19 TEL : 886-3-327-3456 ISSUED DATE : Jul. 31, 2014 FAX : 886-3-327-0973

Report No.: FR433001-03 FCC ID: PY314300288 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR433001-03 FCC ID: PY314300288 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR433001-03 FCC ID: PY314300288 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 VHT20: 27.36 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 8.32 6.7920 27.3600 544.5027 0.736123 1 Complies Note: For 5GHz ISM Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 VHT80: 27.03 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 8.92 7.7983 27.0334 505.0509 0.783945 1 Complies Note: For 2.4GHz Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11g: 29.07 dBm Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 1.10 1.2882 29.0744 808.0511 0.207200 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.207200 / 1 + 0.783945 / 1 = 0.991145, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR433001-03 FCC ID: PY314300288 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR433001-03 FCC ID: PY314300288 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 57% Test Engineer James Chou Configurations 2.4G + 5G Horizontal Report No.: FR433001-03 FCC ID: PY314300288 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company NETGEAR, Inc. Applicant Address 350 East Plumeria Drive, San Jose, California 95134, USA FCC ID PY314300288 Product Name AC2350 Smart WiFi Router Brand Name NETGEAR Model No. R7500 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Mar. 30, 2014 Final Test Date Jul. 28, 2014 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR433001-03AB Report Format Version: Rev. 01 Page No. : ii of ii FCC ID: PY314300288 Issued Date : Jul. 31, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. EUT Operation during Test .................................................................................................................................................................11 3.10. Duty Cycle ........................................................................................................................................................................................11 3.11. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................19 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................30 4.4. Power Spectral Density Measurement ..............................................................................................................................................33 4.5. Radiated Emissions Measurement ....................................................................................................................................................43 4.6. Band Edge Emissions Measurement .................................................................................................................................................66 4.7. Frequency Stability Measurement ....................................................................................................................................................75 4.8. Antenna Requirements .....................................................................................................................................................................77 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 78 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 80 APPENDIX A. TEST PHOTO…

Text truncated - open the document above for the full version.

Report No.: FR433001-03 FCC ID: PY314300288 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR433001-03 FCC ID: PY314300288 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR433001-03 FCC ID: PY314300288 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR433001-03 FCC ID: PY314300288 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Mode 1 FRONT VIEW REAR VIEW Report No.: FR433001-03 FCC ID: PY314300288 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
