PY314400298AC750 WiFi Range Extender

Boost your exiting WiFi Overview NETGEAR AC750 WiFi Range Extender boosts your existing network range & speed, delivering AC dual band WiFi up to 750 Mbps. It works with any standard WiFi router & is ideal for HD video streaming & gaming. Get the connectivity you need for iPads®, smartphones, laptops & more. • Dual band WiFi up to 750Mbps • Supports new 802.11ac & b/g/n WiFi devices • External antennas for better performance PAGE 1 OF 4 RANGE DUAL BAND AC750 AC750 WiFi Range Extender—802.11ac Dual Band Gigabit Data Sheet EX6100 Simultaneous Dual Band WiFi Extend 2.4 & 5GHz WiFi up to 750Mbps & reduce interference. FastLane™ Technology Use both WiFi bands to establish one super high-speed connection; ideal for HD streaming & gaming. More WiFi Standards Create faster access for 802.11 b/g/n & ac WiFi devices. Gigabit Ethernet Port Connect a wired device like Blu-ray® player, game console, smart TV or streaming player to your WiFi network. External Antennas For better WiFi coverage & more speed. Two WiFi Modes Extender mode to boost existing WiFi. Access Point mode to create new AC WiFi access. AC750 WiFi Range Extender—802.11ac Dual Band Gigabit Data Sheet EX6100 PAGE 2 OF 4 Smart LED indicators help find the best extender placement for optimal WiFi coverage while displaying real-time, extender network status. Easy, secured connection at the push of a button for either WiFi Range Extender mode or Access Point mode setup. Existing WiFi Sometimes your router does not provide the WiFi coverage you need. WiFi Range Extender Boosts the range of your existing WiFi & creates a stronger signal in hard-to-reach areas. Network Connections Secure Connection (WPS) Power on/off Extender or Access Point mode switch Gigabit Ethernet port Wall plug Smart LED indicators WiFi Range Extenders boost your existing WiFi & deliver greater wireless speed, range & connectivity you desire for iPads®, smartphones, laptops & more. AC750 WiFi Range Extender—802.11ac Dual Band Gigabit Data Sheet EX6100 PAGE 3 OF 4 WiFi Analytics App How strong is your WiFi signal? Use the NETGEAR WiFi Analytics app & get advanced analytics to optimize your existing or newly extended WiFi network. Check your network status, WiFi signal strength, identify crowded WiFi channels & much more! Here’s what you can do with the WiFi Analytics App! • Get a network status overview • Check WiFi signal strength • Measure WiFi channel interference • Keep track of WiFi strength by location • and more... Scan to install app © 2013 NETGEAR, Inc. NETGEAR, and the NETGEAR logo, are trademarks and/or registered trademarks of NETGEAR, Inc. and/or subsidiaries in the United States and/or other countries. Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. Other brand names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s). Information is subject to change without notice. All rights reserved. This product is packaged with a limited warranty, the acceptance of which is a condition of sale. Warranty valid only when purchased from a NETGEAR authorized reseller. *24/7 basic technical support provided for 90 days from date of purchase when purchased from a NETGEAR authorized reseller. 1 Works with devices supporting Wi-Fi Protected Setup™ (WPS). Data throughput, signal range, and wireless coverage per sq. ft. are not guaranteed and may vary due to differences in operating environments of wireless networks, including without limitation building materials and wireless interference. Specifications are subject to change without notice. The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated. NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA, 1-888-NETGEAR (638-4327), E-mail: [email protected], www.NETGEA R .com D -E X610 0 - 0 AC750 WiFi Range Extender—802.11ac Dual Band Gigabit Data Sheet EX6100 PAGE 4 OF 4 Package Contents • AC750 WiFi Range Extender (EX6100) • Installation guide Physical Specifications • Dimensions: 4.80 x 2.91 x 1.50 in (122 x 74 x 38 mm) • Weight: 0.47 lb (0.213 kg) Warranty • NETGEAR 1-year limited warranty Security • WiFi Protected Access® (WPA/WPA2—PSK) and WEP Standards • IEEE® 802.11 b/g/n 2.4GHz • IEEE 802.11 a/n/ac 5GHz • One (1) 10/100/1000 Mbps Gigabit Ethernet port with auto-sensing technology Support • 24/7 basic technical support free for 90 days Ease of Use • CD-less setup—great for mobile devices • Push ‘N’ Connect using Wi-Fi Protected Setup® (WPS) 1 System Requirements • 2.4 and/or 5GHz 802.11 a/b/g/n/ac WiFi router or gateway • Microsoft® Internet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or Google Chrome 11.0 browsers or higher Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and…

Text truncated - open the document above for the full version.

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Date: 2015/1/16 G E N E R A L D E C L A R A T I O N We, NETGEAR, INC. declare that the device does not support channel 12 ~ 14 in 2.4GHz band and any non- US channels in all the operational mode(s) for the following product. FCC ID: PY314400298 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Date: 2015/1/16 FCC ID: PY314400298 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Federal Communications Commission Authorization and Evaluation Division Date: January 19, 2015 Confidentiality Request FCC ID: PY314400298 Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 P O W E R O F A T T O R N E Y Date: 2015/1/16 FCC ID: PY314400298 To whom it may concern: We, the undersigned, hereby authorize Amanda Wu of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to Contact us. Thank you! Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

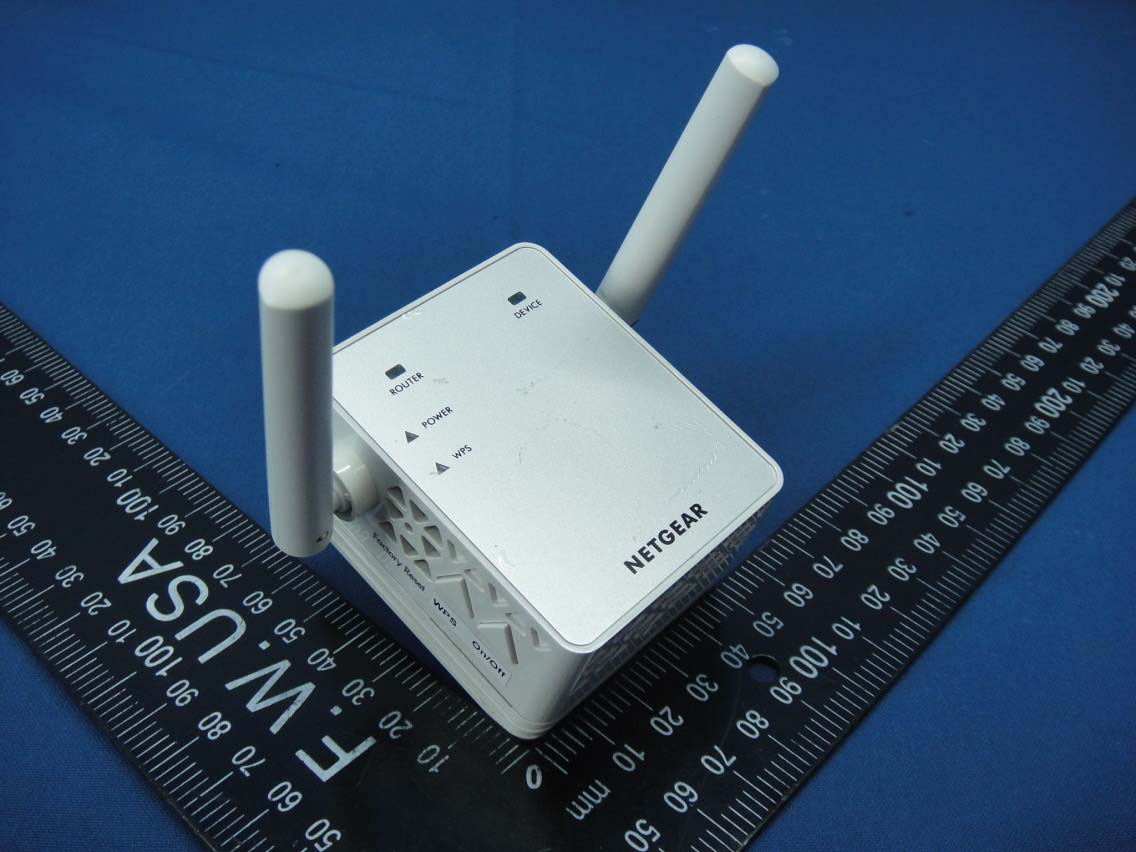

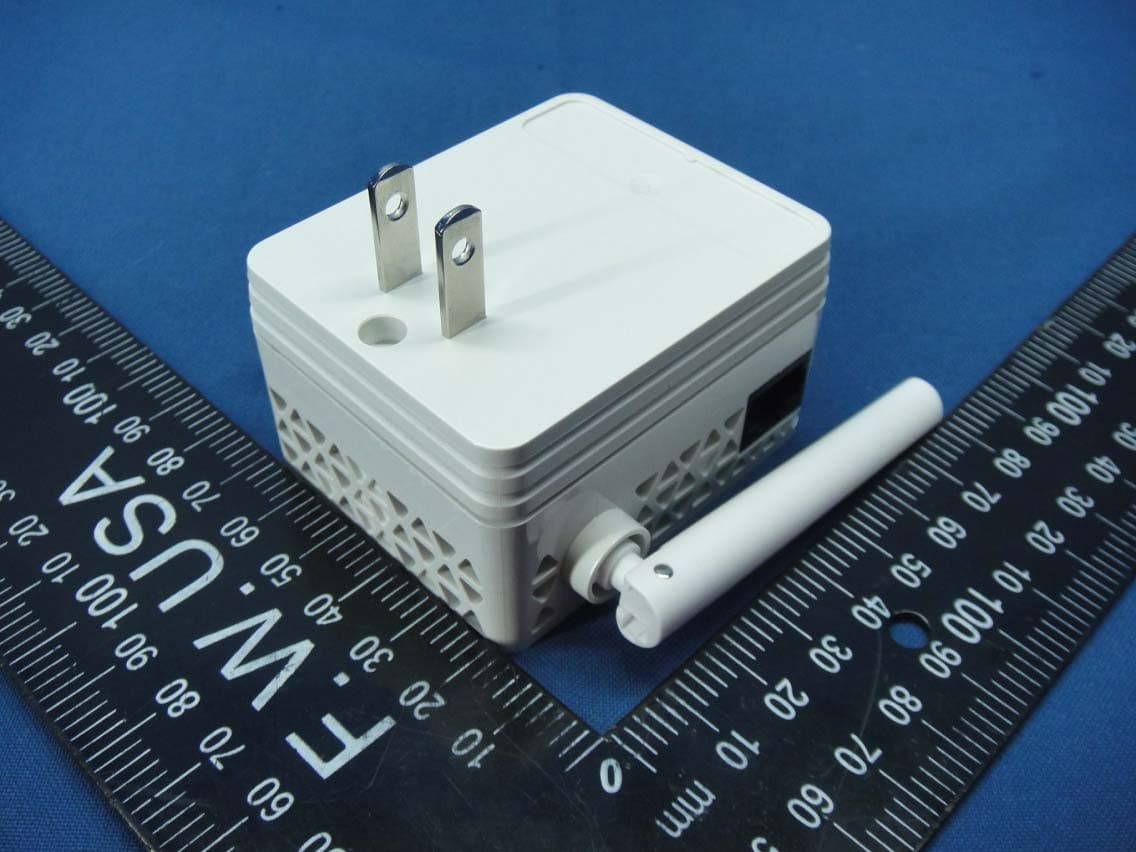

Report No.: 141117E18 Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: PY314400298 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. EUT Back Label SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE Pantone Cool Gray 11C 01AW-13084-011 of 1 AW,EX3700PA,V1,PLBLM HUMPHREY M HUMPHREYINITIAL DOCUMENT CREATION 01 7 18DEC14 NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. SCALE IS 2:1 3. INK COLOR IS SHOWN TO THE RIGHT. 4. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 5. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 6. See NTGR DOC-00112 for SN standard. 7. NTGR SN and MAC address barcode to be encoded AIM USS Code39 and include printed characters below barcodes. 8. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). Made in Taiwan

Report No.: 141117E18 Page 2 Report No.: 141117E18 Page 3 Report No.: 141117E18 Page 4 Report No.: 141117E18 Page 5 Report No.: 141117E18 Page 6 Report No.: 141117E18 Page 7 Report No.: 141117E18 Page 8 Report No.: 141117E18 Page 9

Report No.: SA141117E18 1 of 9 Report Format Version 5.2.1 RF EXPOSURE REPORT REPORT NO.: SA141117E18 MODEL NO.: EX3700 FCC ID: PY314400298 RECEIVED: Nov. 17, 2014 TESTED: Dec. 17, 2014 to Jan. 06, 2015 ISSUED: Jan. 16, 2015 APPLICANT: NETGEAR, Inc. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA141117E18 2 of 9 Report Format Version 5.2.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 7 Report No.: SA141117E18 3 of 9 Report Format Version 5.2.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA141117E18 Original release Jan. 16, 2015 Report No.: SA141117E18 5 of 9 Report Format Version 5.2.1 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA141117E18 6 of 9 Report Format Version 5.2.1 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Ant. No. Brand Model Antenna Gain(dBi) <including cable loss> Frequency range (GHz ~ GHz) Antenna Type Connecter Type Cable Length (mm) Antenna R NETGEAR NA 3.1 2.4~2.4835 Dipole i-pex (MHF)35 3 5.15~5.25 3.2 5.25~5.35 3.2 5.47~5.725 3.3 5.725~5.85 Antenna L NETGEAR NA 3.2 2.4~2.4835 Dipole i-pex (MHF)75 4 5.15~5.25 4 5.25~5.35 3.9 5.47~5.725 3.1 5.725~5.85 Report No.: SA141117E18 7 of 9 Report Format Version 5.2.1 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 ~ 2462 326.715 6.16 20 0.26847 1 Note: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.16dBi 802.11g FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 ~ 2462 616.958 6.16 20 0.50697 1 Note: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.16dBi 802.11n (HT20) FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 ~ 2462 583.627 6.16 20 0.47958 1 Note: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.16dBi 802.11n (HT40) FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2422 ~ 2452 419.89 6.16 20 0.34504 1 Note: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.16dBi Report No.: SA141117E18 8 of 9 Report Format Version 5.2.1 For 15.407 (5GHz_U-NII-1): 802.11a FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 306.426 6.52 20 0.27356 1 Note: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.52dBi 802.11ac (VHT20) FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ …

Text truncated - open the document above for the full version.

Report No.:RF141117E18-2 1 of 28 Report Format Version 5.2.1 Supplemental “Transmit Simultaneously” Test Report REPORT NO.: RF141117E18-2 MODEL NO.: EX3700 FCC ID: PY314400298 RECEIVED: Nov. 17, 2014 TESTED: Nov. 18, 2014 to Jan. 06, 2015 ISSUED: Jan. 16, 2015 APPLICANT: NETGEAR, Inc. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.:RF141117E18-2 2 of 28 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD ......................................................................................................... 3 1. CERTIFICATION .................................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ......................................................................................... 6 3. GENERAL INFORMATION .................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ....................................................................................... 7 3.2 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL ......................................... 9 3.3 DESCRIPTION OF SUPPORT UNITS ................................................................................. 11 3.4 CONFIGURATION OF SYSTEM UNDER TEST .................................................................. 12 4. TEST TYPES AND RESULTS .............................................................................................. 13 4.1 CONDUCTED EMISSION MEASUREMENT ....................................................................... 13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 13 4.1.2 TEST INSTRUMENTS ......................................................................................................... 13 4.1.3 TEST PROCEDURES .......................................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD ................................................................................ 14 4.1.5 TEST SETUP ....................................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS ......................................................................................... 15 4.1.7 TEST RESULTS ................................................................................................................... 16 4.2 RADIATED EMISSION MEASUREMENT ............................................................................ 18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 18 4.2.2 TEST INSTRUMENTS ......................................................................................................... 19 4.2.3 TEST PROCEDURES .......................................................................................................... 21 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................ 21 4.2.5 TEST SETUP ....................................................................................................................... 22 4.2.6 EUT OPERATING CONDITIONS ......................................................................................... 22 4.2.7 TEST RESULTS ................................................................................................................... 23 4.3 CONDUCTED OUT-BAND EMISSION MEASUREMENT ................................................... 25 4.3.1 LIMITS OF CONDUCTED OUT-BAND EMISSION MEASUREMENT ................................ 25 4.3.2 TEST INSTRUMENTS ......................................................................................................... 25 4.3.3 TEST PROCEDURE ............................................................................................................ 25 4.3.4 DEVIATION FROM TEST STANDARD .........................…

Text truncated - open the document above for the full version.

Report No.: RF141117E18 1 of 67 Report Format Version 5.2.1 FCC TEST REPORT (15.247) REPORT NO.: RF141117E18 MODEL NO.: EX3700 FCC ID: PY314400298 RECEIVED: Nov. 17, 2014 TESTED: Nov. 18, 2014 to Jan. 06, 2015 ISSUED: Jan. 16, 2015 APPLICANT: NETGEAR, Inc. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF141117E18 2 of 67 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 17 4. TEST TYPES AND RESULTS ................................................................................ 18 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 18 4.1.2 TEST INSTRUMENTS ........................................................................................... 18 4.1.3 TEST PROCEDURES ............................................................................................ 19 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 19 4.1.5 TEST SETUP ......................................................................................................... 19 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 20 4.1.7 TEST RESULTS ..................................................................................................... 21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 23 4.2.2 TEST INSTRUMENTS ........................................................................................... 24 4.2.3 TEST PROCEDURES ............................................................................................ 26 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 26 4.2.5 TEST SETUP ......................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 27 4.2.7 TEST RESULTS ..................................................................................................... 28 4.3 6DB BANDWIDTH MEASUREMENT ..................................................................... 41 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................. 41 4.3.2 TEST INSTRUMENTS ........................................................................................... 41 4.3.3 TEST PROCEDURE .............................................................................................. 41 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 41 4.3.5 TEST SETUP ...........................................................................…

Text truncated - open the document above for the full version.

Report No.: RF141117E18-1 1 of 65 Report Format Version 5.3.0 FCC TEST REPORT (15.407) REPORT NO.: RF141117E18-1 MODEL NO.: EX3700 FCC ID: PY314400298 RECEIVED: Nov. 17, 2014 TESTED: Nov. 28 to Dec. 17, 2014 ISSUED: Jan. 16, 2015 APPLICANT: NETGEAR, Inc. ADDRESS: 350 East Plumeria Drive San Jose, CA 95134 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to …

Text truncated - open the document above for the full version.
