PY315100303N600 WIFI Cable Modem Router

Quick Start N600 WiFi Dual Band Gigabit Router Model WNDR3700v5 1. Prepare your modem. Unplug your modem’s power. Remove the battery, if present. Package Contents 2. Connect your modem. Plug in your modem. Put the battery back in. Then cable the modem to the router’s yellow Internet port. 4. Connect a computer. Use an Ethernet cable to connect your computer to the Ethernet port on the router. You can also use WiFi to connect. To connect with WiFi, use the WiFi network name and password on the product label. 5. Log in to the router. Launch a web browser. NETGEAR genie displays. If you do not see genie, enter www.routerlogin.net in the address field of the web browser. When prompted, enter admin for the user name and password for the password. Follow the genie steps to connect to the web. 6. Get the genie app. Download the free genie app from www.NETGEAR.com/genie. Easily share media, files, and printers on the network from your smartphone, tablet, or laptop. 3. Power on the router. The Power LED lights solid green. If the Power LED does not light, press the Power On/Off button. Wait for the WiFi LED to light solid green. Modem Internet Power adapter (varies by region) Ethernet cable Ethernet cable Router DSL or cable Power On/Off button Ethernet cable (not included) Router Power adapter 7. Get the user manual. You can get the user manual online at http://downloadcenter.netgear.com or through a link in the router’s user interface. August 2014 NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved. WiFi Network Name and Password The preset WiFi network name (SSID) and password (network key) are unique to your router, like a serial number. Because the router automatically uses WiFi security, you don’t need to set it up. The WiFi settings are on the label on the product label. NETGEAR recommends that you use the preset WiFi settings because you can check the label if you forget them. NETGEAR genie lets you change these settings. If you do so, write down the new WiFi settings and store them in a safe place. Write the WiFi settings here for easy reference: WiFi network name (SSID) Network key (password) Join the WiFi Network To connect your computer or WiFi device (such as a smartphone or gaming device) to your router’s WiFi network, you can use either the manual method or the Wi-Fi Protected Setup (WPS) method. Manual Method 1. Open the software utility that manages your WiFi connections on the computer or WiFi device that you want to connect to your router. This utility scans for all wireless networks in your area. 2. Find and select your router’s WiFi network name (SSID). The SSID is on the product label. 3. Enter the router’s password (or your custom password if you changed it) and click the Connect button. The password is on the product label. 4. Repeat Step 1 through Step 3 to add other computers or WiFi devices. WPS Method If your computer or WiFi device supports WPS, you can use WPS to join the modem router’s WiFi network. For help with the WPS button on your computer or WiFi device, check the instructions or online help that came with that computer or WiFi device. Some older equipment cannot use WPS. Note: WPS does not support WEP security. If you are using WEP security, use the manual method. 1. Press the WPS button on the router. 2. Within two minutes, on your computer or WiFi device, press its WPS button or click its onscreen WPS button. The computer or WiFi device connects to your router’s WiFi network. 3. Repeat this process to add other computers or WiFi devices to the network. Share a USB Device on the WiFi Network ReadySHARE lets you access and share a USB storage device that’s connected to the router USB port from a computer that is connected to your router’s WiFi network. Access a USB Device from a Windows Computer 1. Insert your USB device into the USB port on the router. 2. Select Start > Run. 3. Enter \\readyshare in the dialog box. 4. Click the OK button. The USB device displays. Access a USB Device from a Mac 1. Insert your USB device into the USB port on the router. 2. Select Go > Connect to Server. 3. Enter smb://readyshare as the server address. 4. Click the Connect button. The USB device displays. Share a USB Printer on the WiFi Network The ReadySHARE Printer utility lets you share a USB printer that is connected to the USB port on your router. You can share this USB printer among the Windows and Mac computers on your network. To set up ReadySHARE printer, download the NETGEAR USB Control Center utility from www.netgear.com/readyshare and install it on your computer. Support Thank you for purchasing this NETGEAR product. After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com. NETGEAR recommends that you use only the official NETGEAR support resources. For the current EU Declaration of Conformity, visit http://support.netgear.com/app/answers/detail/a_id/11621/. For regulatory compliance information, visit http://www.netgear.com/about/regulatory/. See the regulatory compliance document before connecting the power supply. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to c…

Text truncated - open the document above for the full version.

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Date: 2015/4/22 G E N E R A L D E C L A R A T I O N We, NETGEAR, INC. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non- US channels in all the operational mode(s) for the following product. FCC ID: PY315100303 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 P O W E R O F A T T O R N E Y Date: 2015/4/22 FCC ID: PY315100303 To whom it may concern: We, the undersigned, hereby authorize Amanda Wu of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to Contact us. Thank you! Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Date: 2015/4/22 FCC ID: PY315100303 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Federal Communications Commission Authorization and Evaluation Division Date: April 22, 2015 Confidentiality Request FCC ID: PY315100303 Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

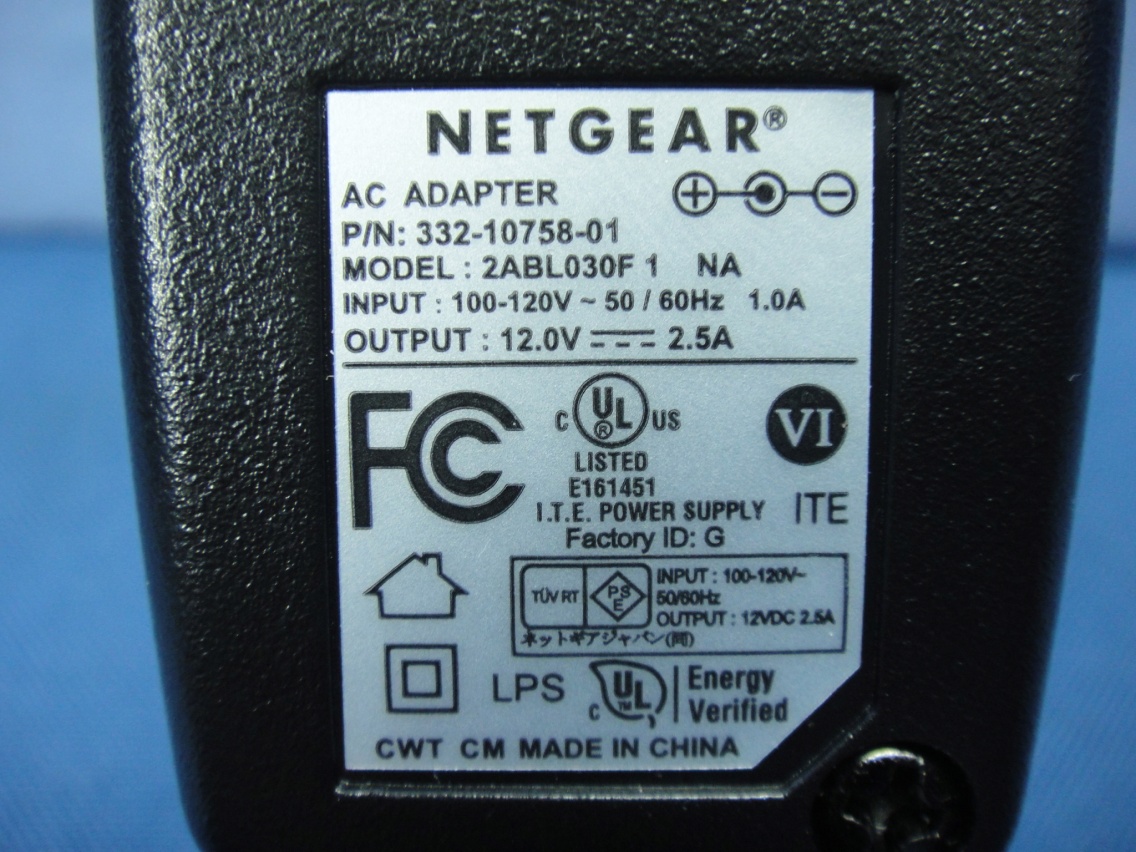

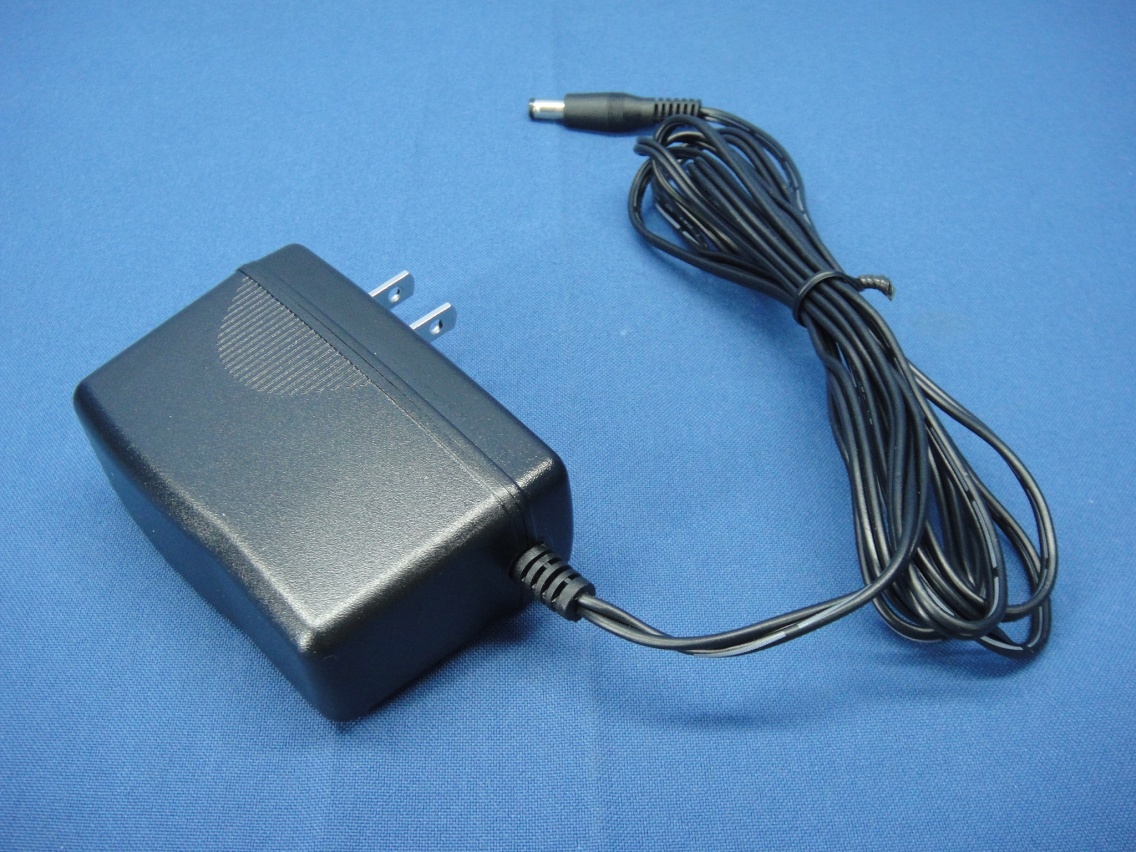

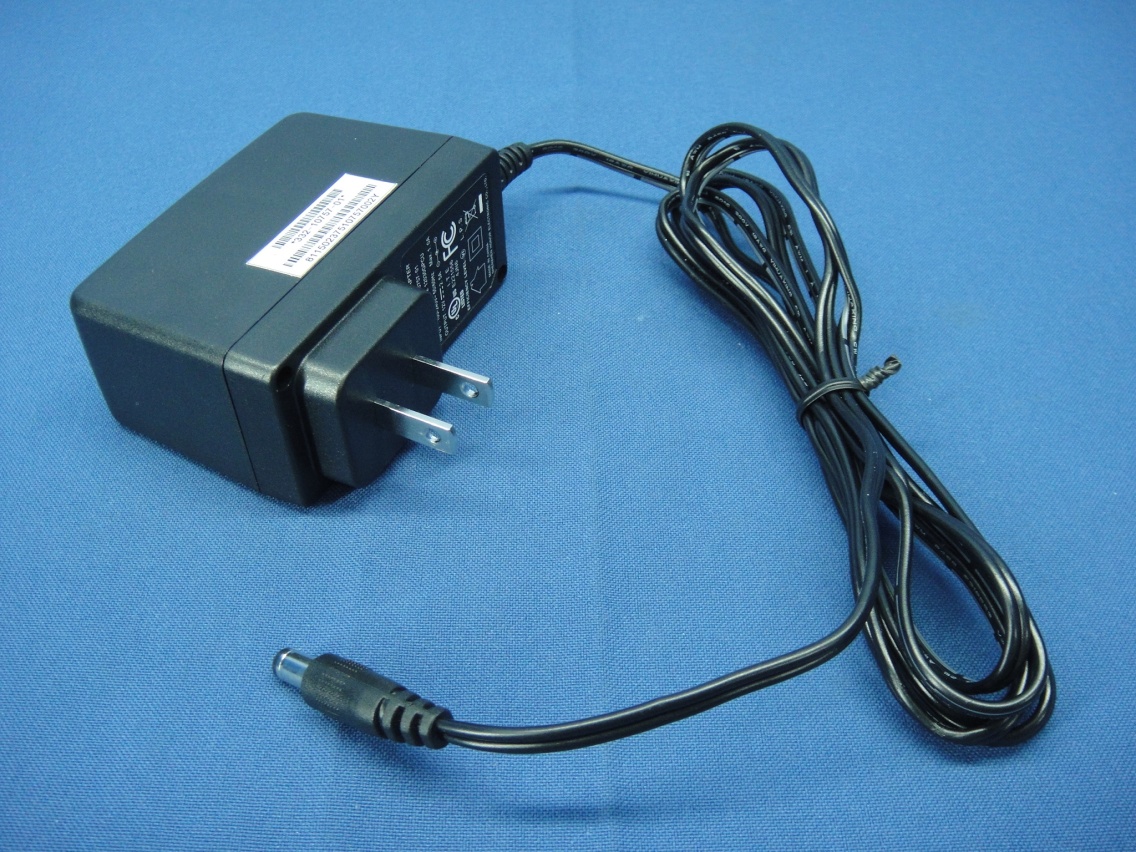

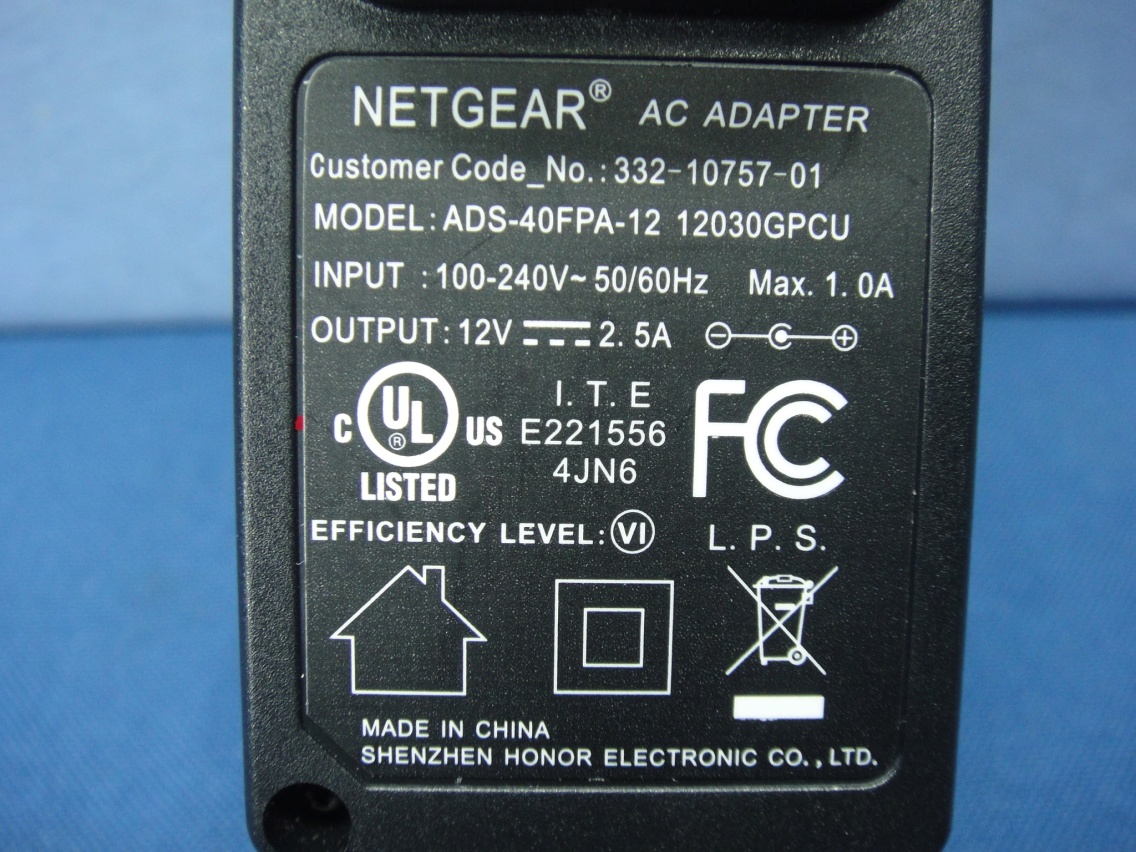

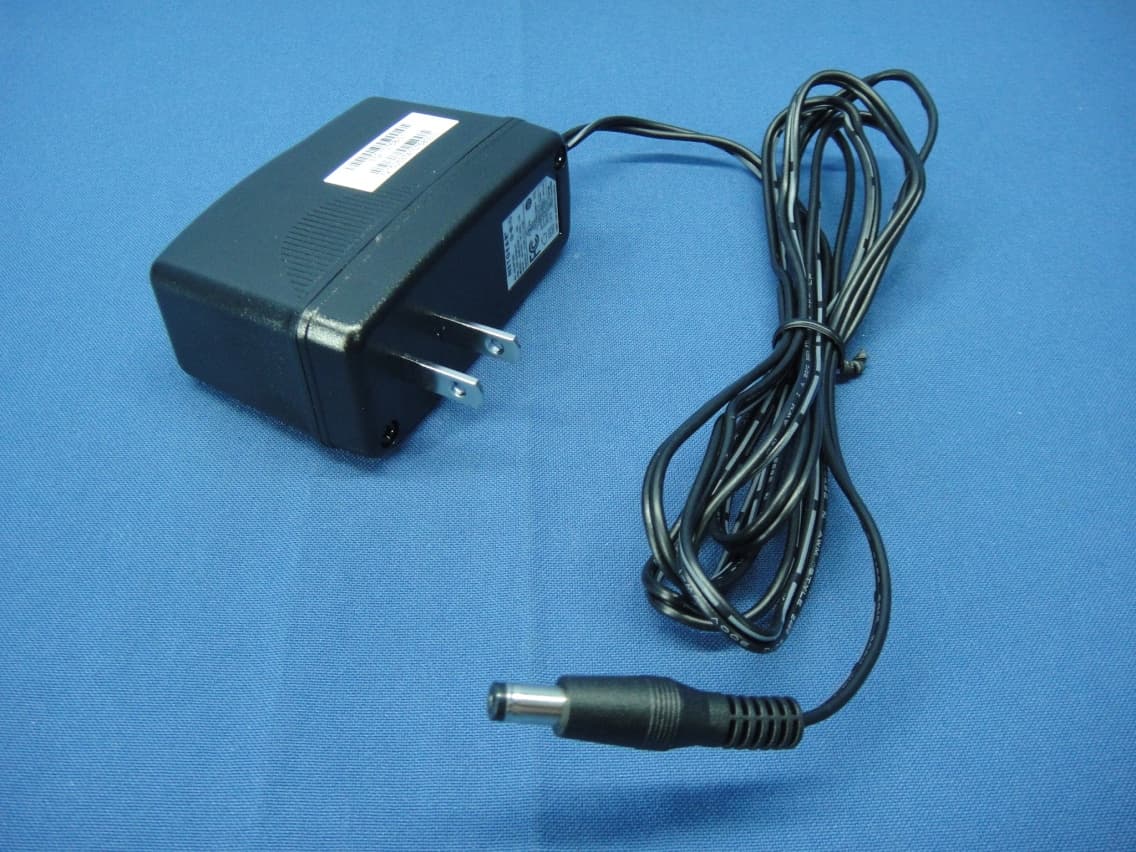

Report No.: 150310E06 Page No. 1 / 20 CONSTRUCTION PHOTOS OF EUT Report No.: 150310E06 Page No. 2 / 20 Report No.: 150310E06 Page No. 16 / 20 Adapter 1: ADS-40FPA-12 12030GPCU Report No.: 150310E06 Page No. 17 / 20 Report No.: 150310E06 Page No. 18 / 20 Adapter 2: 2ABL030F 1 NA Report No.: 150310E06 Page No. 19 / 20 Report No.: 150310E06 Page No. 20 / 20

David Wilson <[email protected]> 2015/07/01 ֑Ղ 05:14 To Eden Ku/TWN/VERITAS@VERITAS cc Aby Chen/TWN/VERITAS@VERITAS, Charles Liao/TWN/VERITAS@VERITAS, "Cham Leung" <[email protected]>, David Kay <[email protected]> bcc Subject RE: FW: FCC 15B, FCC 15C, 15E, MPE Draft Reports of C3700 & C3000 Ref HiEden,Youarecorrect–herearetheupdatedartworks.Bestregards,Dave PY315100303 (Fig. 1) FCC ID: PY315100303 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Report No.: 150310E06Page No. 3 / 20 Report No.: 150310E06Page No. 4 / 20 Report No.: 150310E06Page No. 5 / 20 Report No.: 150310E06Page No. 6 / 20 Report No.: 150310E06Page No. 7 / 20 Report No.: 150310E06Page No. 8 / 20 Report No.: 150310E06Page No. 9 / 20 Report No.: 150310E06Page No. 10 / 20 Report No.: 150310E06Page No. 11 / 20 Report No.: 150310E06Page No. 12 / 20 Report No.: 150310E06Page No. 13 / 20 Report No.: 150310E06Page No. 14 / 20 Report No.: 150310E06Page No. 15 / 20

Report No.: SA150310E06 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150310E06 FCC ID: PY315100303 Test Model: C3700-100NAS Received Date: Mar. 10, 2015 Test Date: Apr. 14 to 15, 2015 Issued Date: June 17, 2015 Applicant: NETGEAR, Inc. Address: 350 East Plumeria Drive San Jose, CA 95134 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA150310E06 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: SA150310E06 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150310E06 Original release. June 17, 2015 Report No.: SA150310E06 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Antenna Gain The antennas provided to the EUT, please refer to the following table: Antenna No. PCB Chain No. Ant. Gain(dBi) <Including cable loss> Frequency range (GHz to GHz) Ant. Type Connecter Type 1 Left 0.3 2.4~2.4835 PIFA i-pex(MHF) 2 2.6 5.15~5.85 3 Right 2.3 2.4~2.4835 PIFA i-pex(MHF) 4 1.8 5.15~5.85 Report No.: SA150310E06 Page No. 6 / 6 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power 1TX Mode: Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 311.172 2.3 20 0.10513 1 5180-5240, 5745-5825 164.816 2.6 20 0.05967 1 2TX Mode: Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 563.682 2.3 20 0.19044 1 5180-5240, 5745-5825 332.024 2.6 20 0.12020 1 CONCLUSION: Both of the 2.4GHz and 5GHz can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.19044 / 1 + 0.12020 / 1 = 0.311, which is less than “1”. --- END ---

Report No.: RF150310E06 Page No. 1 / 66 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150310E06 FCC ID: PY315100303 Test Model: C3700-100NAS Received Date: Mar. 10, 2015 Test Date: Mar. 25 to Apr. 14, 2015 Issued Date: June 17, 2015 Applicant: NETGEAR, Inc. Address: 350 East Plumeria Drive San Jose, CA 95134 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150310E06 Page No. 2 / 66 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 9 3.2.1 Test Mode Applicability and Tested Channel Detail ........................................................................... 10 3.3 Duty Cycle of Test Signal .................................................................................................................. 12 3.4 Description of Support Units ............................................................................................................. 13 3.4.1 Configuration of System under Test .................................................................................................. 13 3.5 General Description of Applied Standards ........................................................................................ 14 4 Test Types and Results ...................................................................................................................... 15 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 15 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 15 4.1.2 Test Instruments ................................................................................................................................ 16 4.1.3 Test Procedures ................................................................................................................................. 17 4.1.4 Deviation from Test Standard ............................................................................................................ 17 4.1.5 Test Set Up ........................................................................................................................................ 18 4.1.6 EUT Operating Conditions ................................................................................................................. 19 4.1.7 Test Results ....................................................................................................................................... 20 4.2 Conducted Emission Measurement .................................................................................................. 39 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 39 4.2.2 Test Instruments ................................................................................................................................ 39 4.2.3 Test Procedures .................................................................…

Text truncated - open the document above for the full version.

Report No.: RF150310E06-1 Page No. 1 / 68 Report Format Version:6.1.1 FCC Test Report Report No.: RF150310E06-1 FCC ID: PY315100303 Test Model: C3700-100NAS Received Date: Mar. 10, 2015 Test Date: Mar. 25 to Apr. 15, 2015 Issued Date: June 17, 2015 Applicant: NETGEAR, Inc. Address: 350 East Plumeria Drive San Jose, CA 95134 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150310E06-1 Page No. 2 / 68 Report Format Version:6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 9 3.2.1 Test Mode Applicability and Tested Channel Detail ........................................................................... 10 3.3 Duty Cycle of Test Signal .................................................................................................................. 12 3.4 Description of Support Units ............................................................................................................. 13 3.4.1 Configuration of System under Test .................................................................................................. 13 3.5 General Description of Applied Standard .......................................................................................... 14 4 Test Types and Results ...................................................................................................................... 15 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 15 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 15 4.1.2 Test Instruments ................................................................................................................................ 16 4.1.3 Test Procedure .................................................................................................................................. 17 4.1.4 Deviation from Test Standard ............................................................................................................ 17 4.1.5 Test Setup .......................................................................................................................................... 18 4.1.6 EUT Operating Condition .................................................................................................................. 18 4.1.7 Test Results ....................................................................................................................................... 19 4.2 Conducted Emission Measurement .................................................................................................. 46 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 46 4.2.2 Test Instruments ................................................................................................................................ 46 4.2.3 Test Procedure ............................................................…

Text truncated - open the document above for the full version.

Report No.: 140717E01A-1 1 of 3 Reference No.: 140805E09 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode 1) Report No.: 140717E01A-1 2 of 3 Reference No.: 140805E09 CONDUCTED EMISSION TEST (Mode 2) Report No.: 140717E01A-1 3 of 3 Reference No.: 140805E09 RADIATED EMISSION TEST
