PY315300321ProSAFE Dual Band Wireless AC Access Point

Installation Guide b. Connect an Ethernet cable from the access point to the PC (point A in the illustration). c. Securely insert the other end of the cable into the access point Ethernet port (point B in the illustration). d. Connect the power adapter to the access point and verify the following:• Power. The Power LED blinks when the access point is first turned on. After a few seconds it should stay on (steady green). If after 30 seconds the Power LED is off or is still blinking, check the connections and check to see if the power outlet is controlled by a wall switch that is turned off. • ACTIVE. The ACTIVE LED blinks when there is network traffic. • LAN. The LAN LED indicates LAN speeds; green for 1000 Mbps, amber for 100Mbps, and no light for 10Mbps. • 2.4G Hz (WLAN). This LED indicates 2.4 G Hz traffic. • 5 G Hz (WLAN). This LED indicates 5 G Hz traffic. 2. Configure LAN and wireless access a. From your PC, configure the access point Ethernet port for LAN access. Connect to the access point by opening your browser and entering http://192.168.0.100 in the address field. b. A login window displays. When prompted, enter admin for the user name and password for the password, both in lower case letters.The access point user interface displays. NETGEAR Cable A B WNDAP360 Ethernet port c. Select Configuration > System > Basic > Genera l from the menu. Fill in the Access Point Name field and select your Country/Region of operation from the drop-down list. d. Select Configuration > IP > IP Settings from the menu and configure the IP settings for your network. e. If you use DHCP, reserve an IP address (based on the access point’s MAC address) on the DHCP server. You can then use that address to log in to the access point. f. Select Configuration > Wireless > Basic > Wireless Settings and select the Turn Radio On setting. g. Select Configuration > Security > Profile Settings and configure security profiles for your network. See the online help or the Reference Manual for full instructions. 3. Test wireless connectivity. Using a PC with a wireless adapter, verify that you can establish a wireless connection to the access point.Now that you have finished the setup, you are ready to deploy the access point in your network. If needed, you can reconfigure the PC you used in step 1 back to its original TCP/IP settings. Deploy the Access Point1. Disconnect the access point and position it where you will deploy it. The best location is elevated such as wall or ceiling mounted, at the center of your wireless coverage area, and within line of sight of all mobile devices. 2. Connect an Ethernet cable from your access point to a LAN port on your router, switch, or hub. 3. Connect the power adapter to the wireless access point and plug the power adapter into a power outlet. The Power and LAN LEDs should go on. Tip: The access point supports Power over Ethernet (PoE). If you have a switch that provides PoE, you do not need to use the power adapter to power the access point. This can be especially convenient when the access point is installed in a high location far from a power outlet. ProSafe® Dual Band Wireless-N Access Point WNDAP360 Package ContentsUnpack the box and verify the contents:• ProSafe® Dual Band Wireless-N Access Point WNDAP360 • Straight through Category 5 Ethernet cable • Power adapter and cord (12V, 1A) • Wall mount kit • Installation Guide • Resource CD, which includes link to the Reference Manual Set Up the Access PointFollow these instructions to set up your wireless access point. Before proceeding with the WNDAP360 installation, familiarize yourself with the contents of theResource CD . See the Reference Manual for instructions on advanced configuration options. Estimated Completion Time : 3 minutes. Tip: Before mounting the access point in a high location, first set up and test the unit to verify wireless network connectivity. 1. Connect the wireless access point to your computer. a. Prepare a PC with an Ethernet adapter. If this PC is already part of your network, record its TCP/IP configuration settings. Configure the PC with a static IP address of 192.168.0.210 and 255.255.255.0 as the subnet mask. WAC730 February 2011 This symbol was placed in accordance with the European Union Directive 2002/96 on the Waste Electrical and Electronic Equipment (the WEEE Directive). If disposed of within the European Union, this product should be treated and recycled in accordance with the laws of your jurisdiction implementing the WEEE Directive. ©2011 by NETGEAR, Inc. All rights reserved. NETGEAR, the NETGEAR logo, and ProSafe® are registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. Verify Wireless ConnectivityUsing a computer with an 802.11b/g/n wireless adapter, verify connectivity by using a browser to connect to the Internet, or check for file and printer access on your network. Note: If you cannot connect, see Troubleshooting Tips in this guide or the Reference Manual . If You Use an External AntennaTo use an external 2.4 GHz antenna:1. Mount the accessory antenna(s). 2. Attach the antenna(s) to the connector(s) on the access point rear panel. 3. Log into the access point and configure it to use the external antenna. The access point cannot use the internal and external 2.4GHz antennas at the same time. Troubleshooting TipsHere are some tips for correcting simple problems you may have.No LEDs are lit on the access point. The wireless access point has no power.• Make sure the power cord is connected to the wireless access point and plugged in to a working power outlet or power strip. • Make sure you are using the correct NETGEAR power adapter supplied with your wireless access point. • If using PoE, ensure that the PoE switch is providing power to the access point. The LINK/ACT LED is not on. There is a hardware co…

Text truncated - open the document above for the full version.

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Date: 2015/8/20 FCC ID: PY315300321 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 Federal Communications Commission Authorization and Evaluation Division Date: August 20, 2015 Confidentiality Request FCC ID: PY315300321 Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 P O W E R O F A T T O R N E Y Date: 2015/8/20 FCC ID: PY315300321 To whom it may concern: We, the undersigned, hereby authorize Amanda Wu of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to Contact us. Thank you! Sincerely yours, ------------------------------------------------------ David Kay/ Regulatory Compliance Manager NETGEAR, INC. TEL: 4088903657 FAX: 4089078097 E-mail: [email protected]

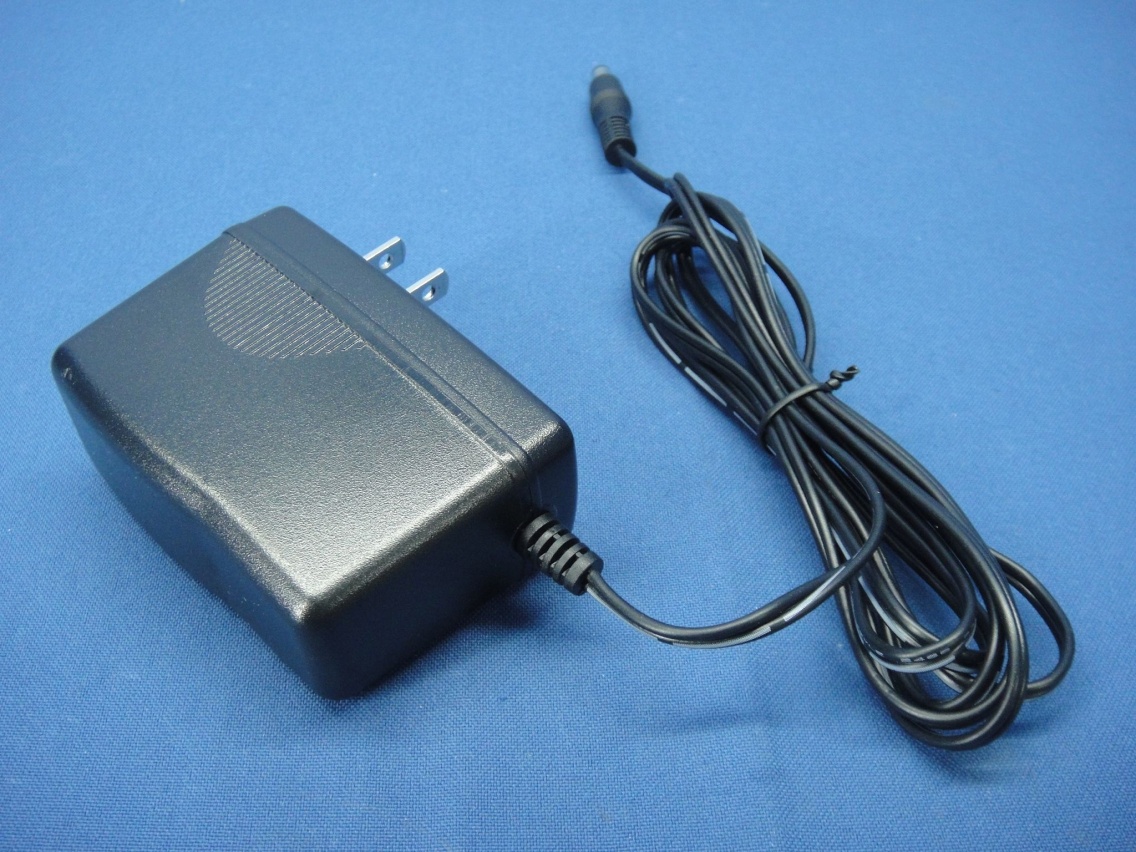

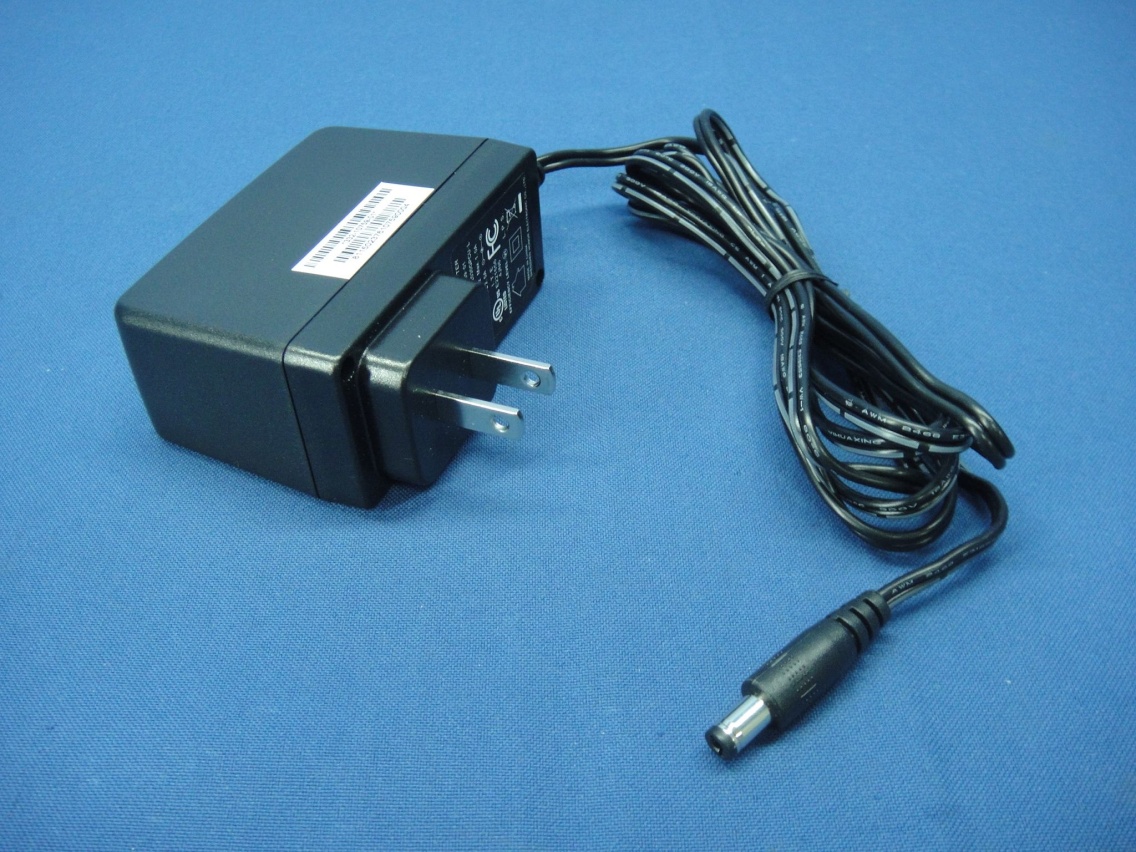

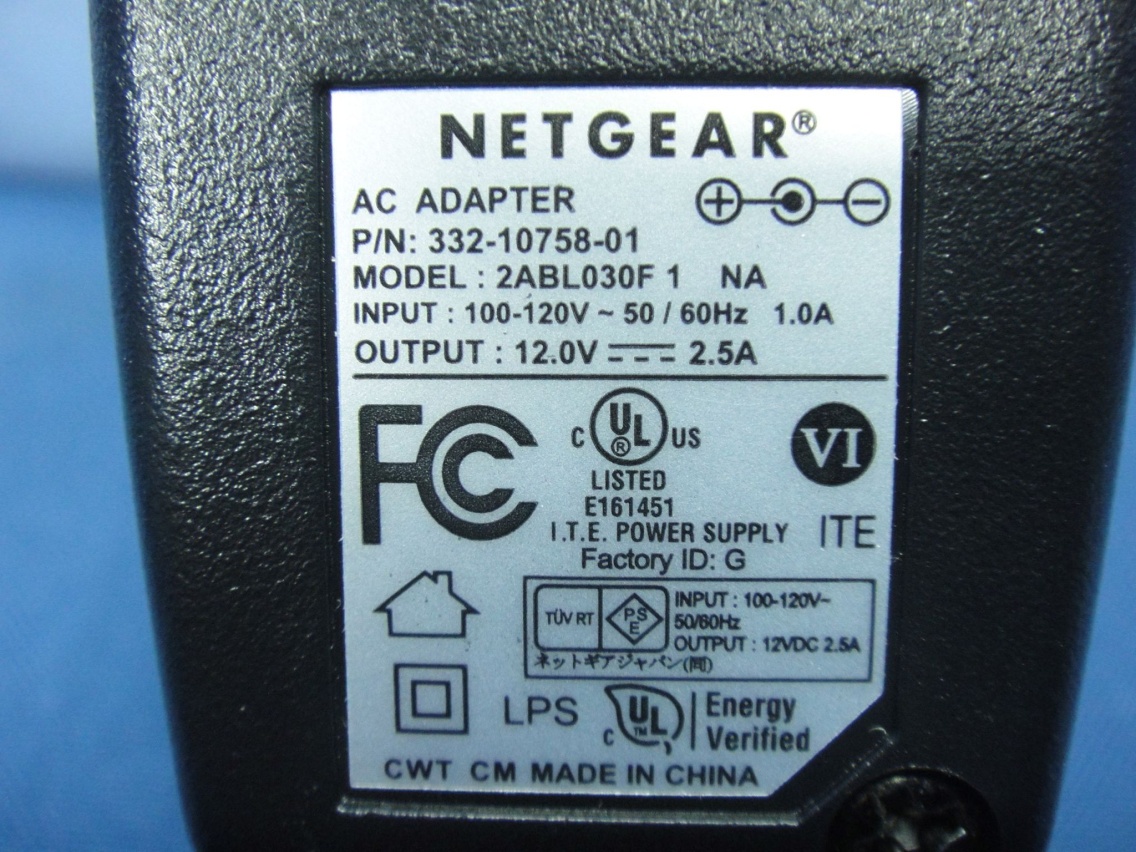

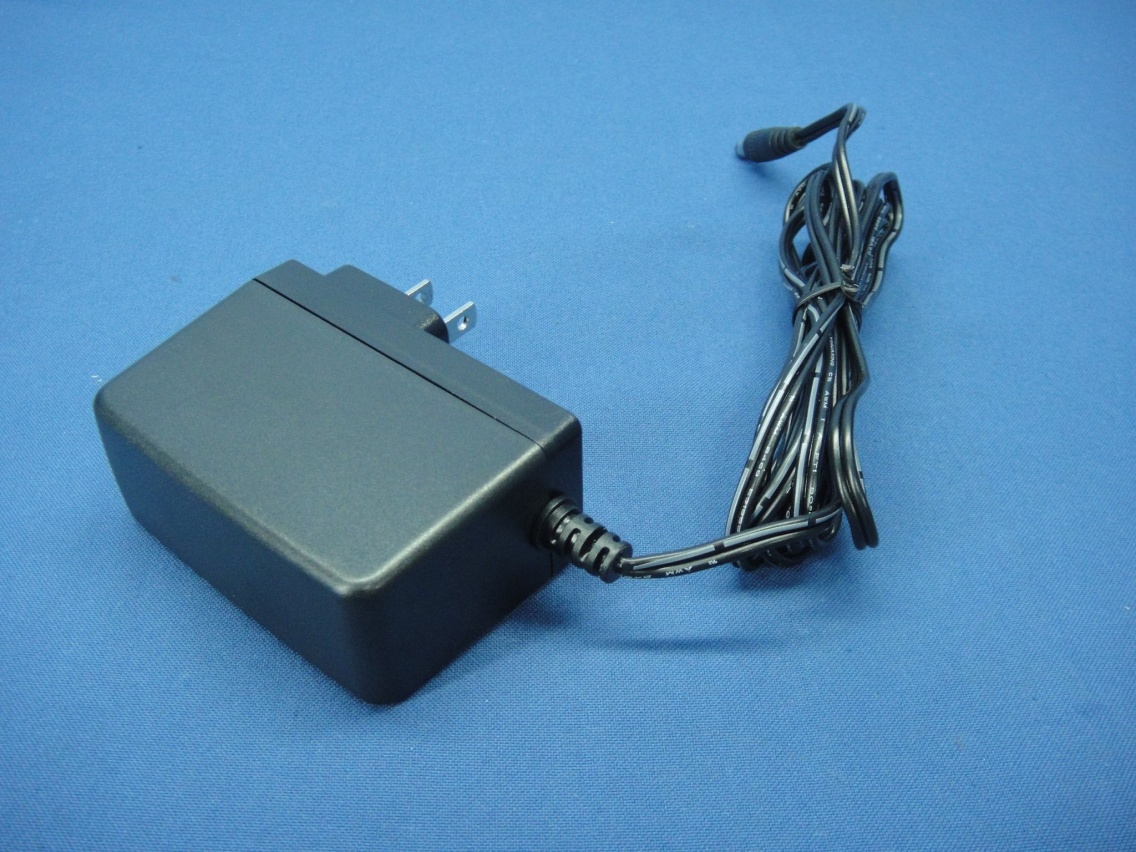

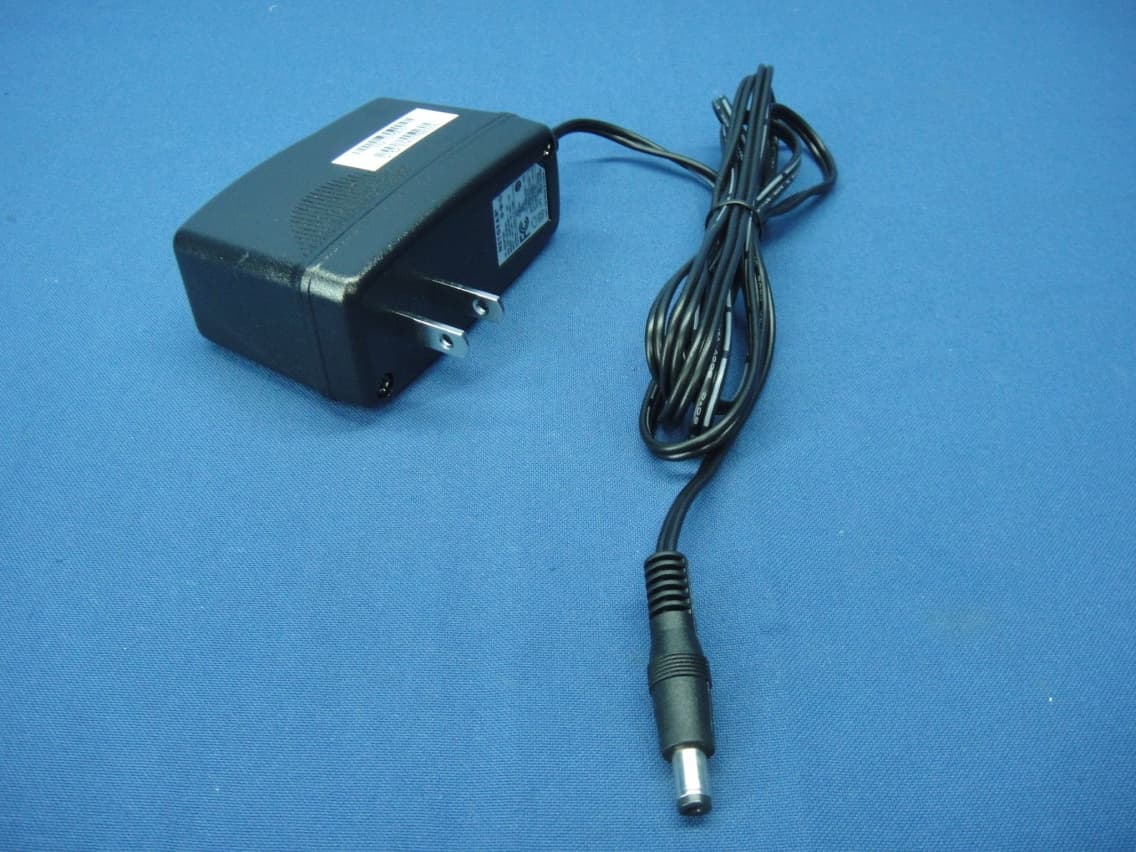

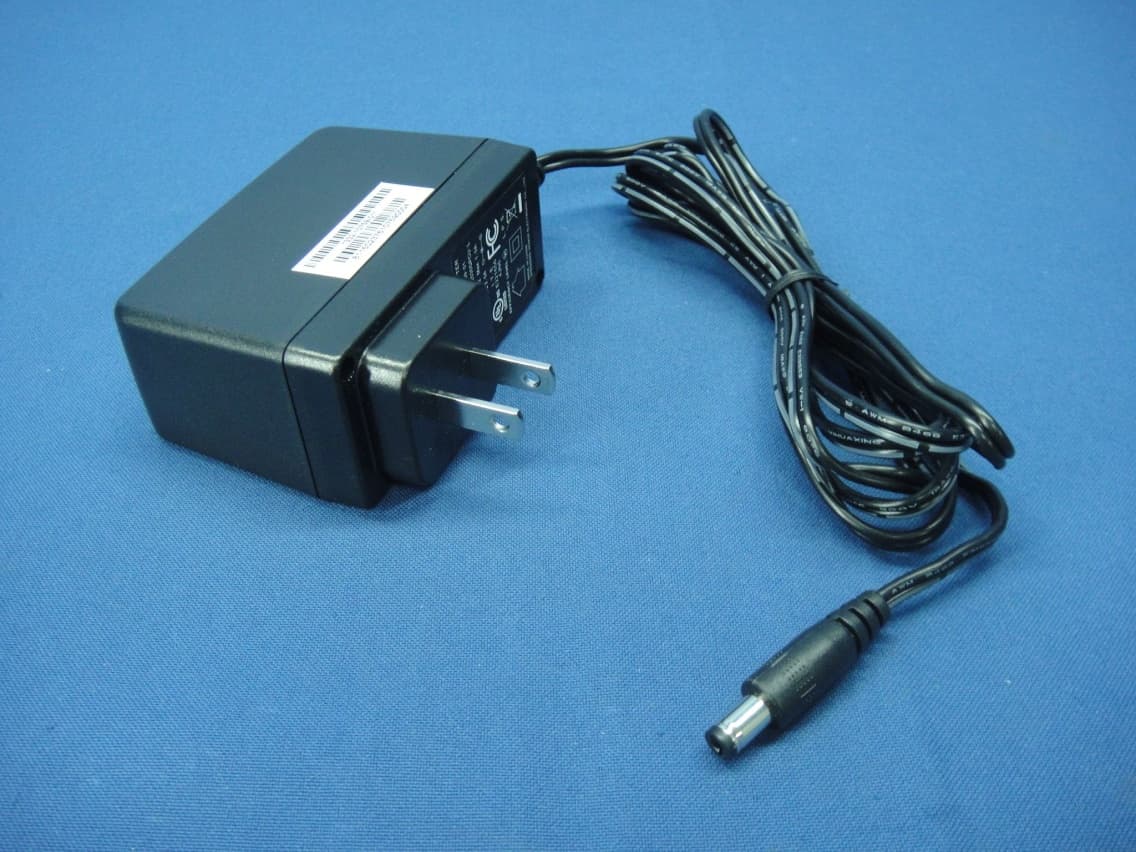

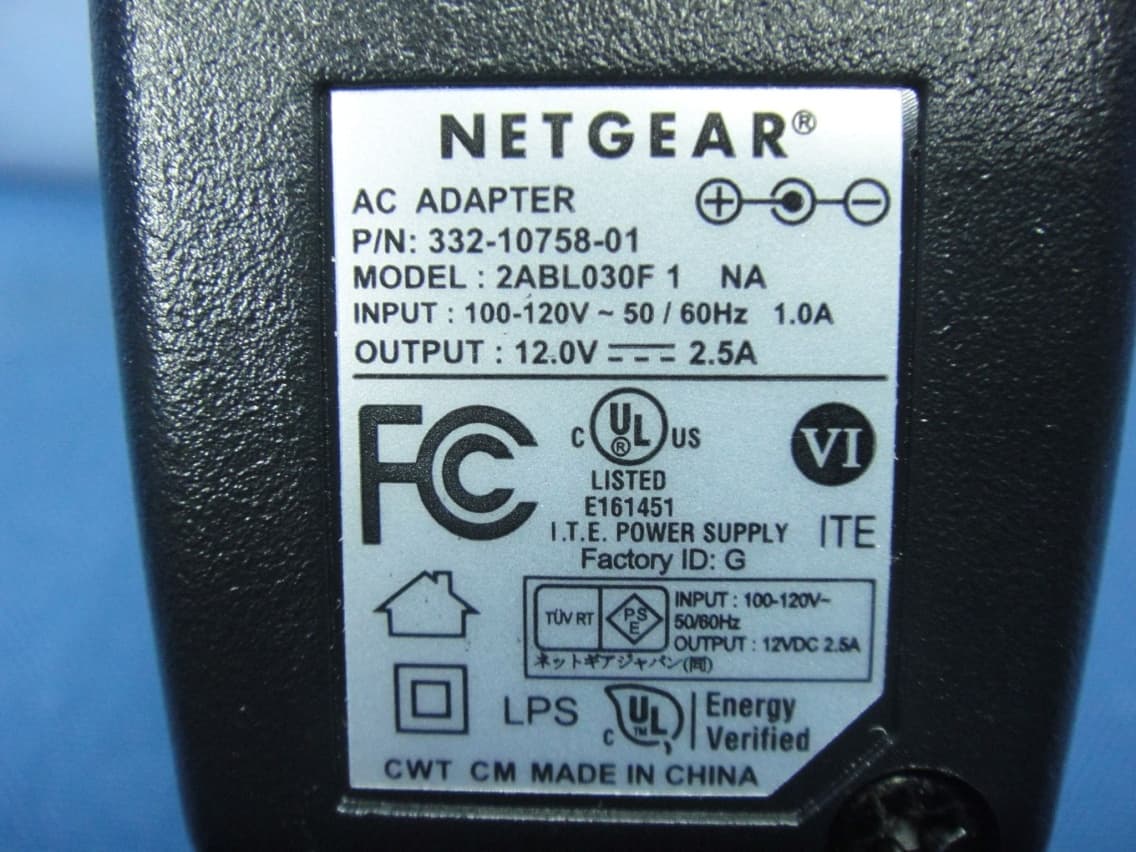

Report No.: 150624E07 Page No. 1 / 21 CONSTRUCTION PHOTOS OF EUT Report No.: 150624E07 Page No. 2 / 21 Report No.: 150624E07 Page No. 18 / 21 Adapter: 2ABL030F 1 Report No.: 150624E07 Page No. 19 / 21 Report No.: 150624E07 Page No. 20 / 21 Adapter: ADS-40FPA-12 Report No.: 150624E07 Page No. 21 / 21

(Fig. 1) FCC ID: PY315300321 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Bottom Label

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REVDESCRIPTION OF REVISIONENG APPDDATE 03AW-13258-021 of 1 AW, WAC730,V1,PLBLM HUMPHREY 21AUG15M HUMPHREYINITIAL DOCUMENT CREATION01 25AUG15M HUMPHREYSPACING ADJUSTMENT02 28AUG15M HUMPHREYTEXT CHANGE03 White Pantone Cool Grey 11C NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. PART OUTLINE IS MAGENTA COLOR AND DOES NOT PRINT. 4. THE MATERIALS AND PROCESS USED TO FABRICATE THIS PART ARE TO BE CONSISTENT WITH THE EU DIRECTIVE 2002/95/EC, RESTRICTION OF HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT (RoHS). THE FINISHED PART TO BE ACCOMPANIED BY A SIGNED CERTIFICATE OF COMPLIANCE TO DIRECTIVE 2002/95/EC.

Report No.: 150624E07 Page No. 3 / 21 Report No.: 150624E07 Page No. 4 / 21 Report No.: 150624E07 Page No. 5 / 21 Report No.: 150624E07 Page No. 6 / 21 Report No.: 150624E07 Page No. 7 / 21 Report No.: 150624E07 Page No. 8 / 21

Report No.: 150624E07 Page No. 9 / 21 Report No.: 150624E07 Page No. 10 / 21 Report No.: 150624E07 Page No. 11 / 21 Report No.: 150624E07 Page No. 12 / 21 Report No.: 150624E07 Page No. 13 / 21 Report No.: 150624E07 Page No. 14 / 21 Report No.: 150624E07 Page No. 15 / 21 Report No.: 150624E07 Page No. 16 / 21 Report No.: 150624E07 Page No. 17 / 21

Report No.: SA150624E07 Page No. 1 / 7 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150624E07 FCC ID: PY315300321 Test Model: WAC730 Received Date: June 24, 2015 Test Date: Aug. 11, 2015 Issued Date: Aug. 20, 2015 Applicant: NETGEAR, Inc. Address: 350 East Plumeria Drive San Jose, CA 95134 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA150624E07 Page No. 2 / 7 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Antenna Gain ......................................................................................................................................... 6 4 Calculation Result Of Maximum Conducted Power .......................................................................... 7 Report No.: SA150624E07 Page No. 3 / 7 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150624E07 Original release. Aug. 20, 2015 Report No.: SA150624E07 Page No. 5 / 7 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 25cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA150624E07 Page No. 6 / 7 Report Format Version: 6.1.1 3 Antenna Gain The antennas provided to the EUT, please refer to the following table: External Antenna PCB Chain No. Brand Model Antenna Gain (dBi) (Excelude cable loss) Cable Loss (dB) Net Gain (dBi) Cable Length (mm) Frequency range (GHz to GHz) Antenna Type Connecter Type Chain (0) (Left) Master Wave Tech. 98364PRSX004 0.8 0.80 180 2.4~2.4835 Dipole R-SMA 1.5 1.50 5.15~5.25 1.6 1.50.15.25~5.35 0.7 1.5-0.85.47~5.725 0.5 1.5-1 5.725~5.85 Chain (1) (Mid) Master Wave Tech. 98364PRSX004 0.8 0.50.3 60 2.4~2.4835 Dipole R-SMA 1.5 0.90.65.15~5.25 1.6 0.90.75.25~5.35 0.7 0.9-0.25.47~5.725 0.5 0.9-0.45.725~5.85 Chain (2) (Right) Master Wave Tech. 98364PRSX004 0.8 0.9-0.1 190 2.4~2.4835 Dipole R-SMA 1.4 1.7-0.35.15~5.25 1.6 1.7-0.15.25~5.35 0.7 1.7-1 5.47~5.725 0.7 1.7-1 5.725~5.85 Internal Antenna PCB Chain No. Brand Model Antenna Gain (dBi) Frequency range (GHz to GHz) Antenna Type Connecter Type Chain (0) NA NA 5 2.4~2.4835 PIFA i-pex(MHF) 6 5.15~5.25 6 5.25~5.35 6 5.47~5.725 6 5.725~5.85 Chain (1) NA NA 5 2.4~2.4835 PIFA i-pex(MHF) 6 5.15~5.25 6 5.25~5.35 6 5.47~5.725 6 5.725~5.85 Chain (2) NA NA 5 2.4~2.4835 PIFA i-pex(MHF) 6 5.15~5.25 6 5.25~5.35 6 5.47~5.725 6 5.725~5.85 Report No.: SA150624E07 Page No. 7 / 7 Report Format Version: 6.1.1 4 Calculation Result Of Maximum Conducted Power Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 484.435 9.77…

Text truncated - open the document above for the full version.

Report No.: RF150624E07 Page No. 1 / 79 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150624E07 FCC ID: PY315300321 Test Model: WAC730 Received Date: June 24, 2015 Test Date: Aug. 06 to 12, 2015 Issued Date: Aug. 20, 2015 Applicant: NETGEAR, Inc. Address: 350 East Plumeria Drive San Jose, CA 95134 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies Report No.: RF150624E07 Page No. 2 / 79 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standards ........................................................................................ 17 4 Test Types and Results ...................................................................................................................... 18 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 18 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 18 4.1.2 Test Instruments ................................................................................................................................ 19 4.1.3 Test Procedures ................................................................................................................................. 20 4.1.4 Deviation from Test Standard ............................................................................................................ 20 4.1.5 Test Setup .......................................................................................................................................... 21 4.1.6 EUT Operating Conditions ................................................................................................................. 21 4.1.7 Test Results (Mode 1) ........................................................................................................................ 22 4.1.8 Test Results (Mode 2) ........................................................................................................................ 35 4.2 Conducted Emission Measurement .................................................................................................. 48 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 48 4.2.2 Test Instr…

Text truncated - open the document above for the full version.

Report No.: RF150624E07-1 Page No. 1 / 85 Report Format Version:6.1.1 FCC Test Report Report No.: RF150624E07-1 FCC ID: PY315300321 Test Model: WAC730 Received Date: June 24, 2015 Test Date: Aug. 06 to 12, 2015 Issued Date: Aug. 20, 2015 Applicant: NETGEAR, Inc. Address: 350 East Plumeria Drive San Jose, CA 95134 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150624E07-1 Page No. 2 / 85 Report Format Version:6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 14 3.4 Description of Support Units ............................................................................................................. 15 3.4.1 Configuration of System under Test .................................................................................................. 16 3.5 General Description of Applied Standard .......................................................................................... 18 4 Test Types and Results ...................................................................................................................... 19 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 19 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 19 4.1.2 Test Instruments ................................................................................................................................ 20 4.1.3 Test Procedure .................................................................................................................................. 21 4.1.4 Deviation from Test Standard ............................................................................................................ 21 4.1.5 Test Setup .......................................................................................................................................... 22 4.1.6 EUT Operating Condition .................................................................................................................. 22 4.1.7 Test Results (Mode 1) ........................................................................................................................ 23 4.1.8 Test Results (Mode 2) ........................................................................................................................ 42 4.2 Conducted Emission Measurement .................................................................................................. 61 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 61 4.2…

Text truncated - open the document above for the full version.

Report No.: 140717E01A-1 1 of 5 Reference No.: 140805E09 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode 1) Report No.: 140717E01A-1 2 of 5 Reference No.: 140805E09 CONDUCTED EMISSION TEST (Mode 3) Report No.: 140717E01A-1 3 of 5 Reference No.: 140805E09 CONDUCTED EMISSION TEST (Mode 4) Report No.: 140717E01A-1 4 of 5 Reference No.: 140805E09 RADIATED EMISSION TEST (Below 1GHz) Report No.: 140717E01A-1 5 of 5 Reference No.: 140805E09 RADIATED EMISSION TEST (Above 1GHz)
