PY3204005115G Orbi Router

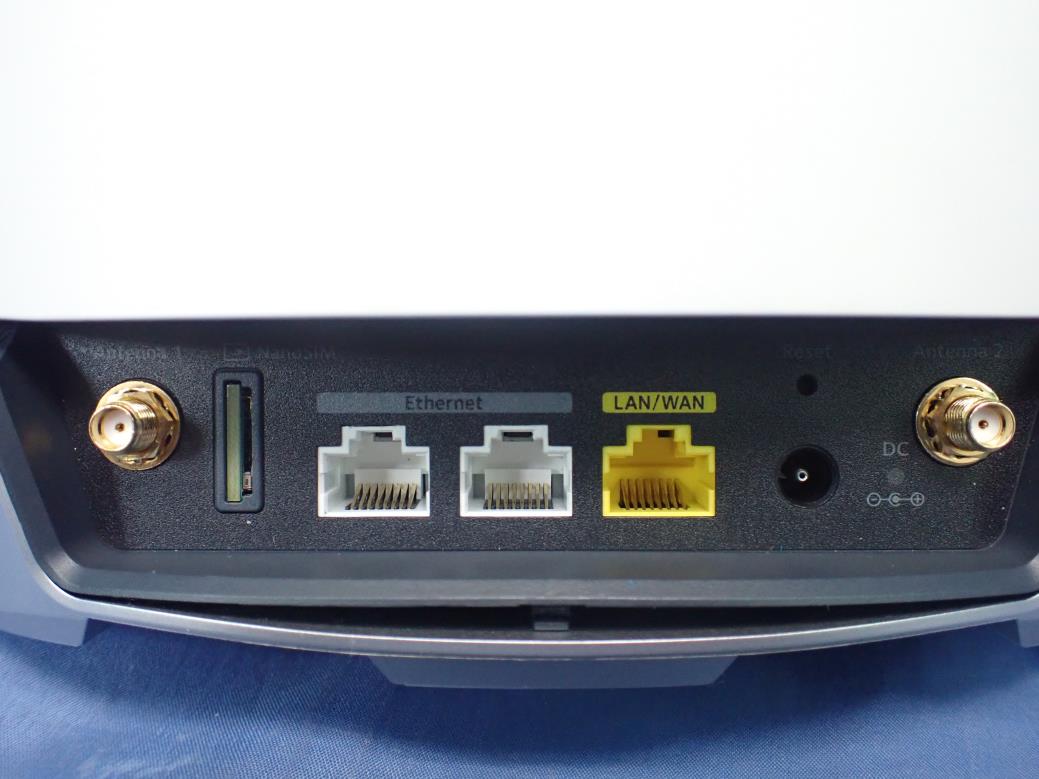

Let’s get started Install the Orbi app on your mobile phone or tablet, and follow the setup instructions. Or, to set up without the app, visit orbilogin.com while connected to your Orbi Router. Tap the Security icon in your Orbi app to verify that NETGEAR Armor™ is activated. Your Orbi comes with Armor cybersecurity. Armor blocks online threats like hackers and phishing attempts on your devices. Check out everything you can do on the Orbi app! Run a speed test, pause the Internet, see all the connected devices, and more. Internet Speed Device Manager Network Map Security WiFi Settings Devices (8) Activated “ORBI66” Traffic Meter Data used: 35 GB Download the Orbi app to set up your Orbi Router 1 Secure your devices with NETGEAR Armor 2 Do more with the app 3 DRAFT Contents Overview 1 Sync button 5 LAN/WAN port 2 SMA LTE antenna connector * 6 Power connector 3 Nano SIM slot 7 Power LED 4 Ethernet ports 8 Reset button *SMA LTE antenna is not included Orbi Router (model NBR750) Ethernet cable P ower adapter (varies by region) 1 3 228456 7 Support and Community Visit netgear.com/support to get your questions answered and access the latest downloads. You can also check out our NETGEAR Community for helpful advice at community. netgear.com. For regulatory compliance information including the EU Declaration of Conformity, visit https://www.netgear.com/ about/regulatory/. See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit https:// www.netgear.com/about/privacy-policy. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at https://www.netgear.com/about/terms- and-conditions. If you do not agree, return the device to your place of purchase within your return period. NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA © NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. Any non‑NETGEAR trademarks are used for reference purposes only. NETGEAR INTERNATIONAL LTD Floor 1, Building 3, University Technology Centre Curraheen Road, Cork, T12EF21, Ireland February 2021 Regulatory and Legal Troubleshooting If you’re having problems with the installation, try one of the following: • Reboot your Orbi Router and try installing with the Orbi app again. • Run the Setup Wizard using the web interface. Visit orbilogin.com while connected to your Orbi Router to access the web interface. • Uninstall and r einstall the Orbi app and try again. For more information, visit https://kb.netgear.com/000061613/. DRAFT

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For operation within 5.15 ~ 5.25GHz GHz frequency range, it is restricted to indoor envi- ronment. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 30cm between the radiator & your body.

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: 408-890-3657/Fax: 408-907-8097 Date: August 3, 2021 We, NETGEAR, Inc. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: PY320400511 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you!

NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel:408-890-3657/Fax:408-907-8097 P O W E R O F A T T O R N E Y Date: 2021/03/30 FCC ID: PY320400511 To whom it may concern: We, the undersigned, hereby authorize Debby Lin of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to Contact us. Thank you! Sincerely yours, ------------------------------------------------------ David Kay / Regulatory Compliance Director Tel: 4088903657 Fax: 4089078097 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 5.0 NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: 408-890-3657/Fax: 408-907-8097 Date: 2021/04/14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PY320400511 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description - Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------------ David Kay / Regulatory Compliance Director Tel: 4088903657 Fax: 4089078097 E-mail: [email protected] SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 5.0 NETGEAR, INC. 350 East Plumeria Drive, San Jose, CA 95134, USA Tel: 408-890-3657/Fax: 408-907-8097 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Subject: Short Term Confidentiality Request for FCC ID: PY320400511 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920. - e.g. User Manual - e.g. Internal Photos - e.g. Test Setup photos - e.g. External photo. - etc. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ------------------------------------------------------ David Kay / Regulatory Compliance Director Tel: 4088903657 Fax: 4089078097 E-mail: [email protected]

Reference No.:BBQZ-WTW-P21020267-1 Page 1/10 CONSTRUCTION PHOTOS OF EUT Reference No.:BBQZ-WTW-P21020267-1 Page 2/10 Reference No.:BBQZ-WTW-P21020267-1 Page 3/10 Reference No.:BBQZ-WTW-P21020267-1 Page 4/10 Reference No.:BBQZ-WTW-P21020267-1 Page 5/10 Reference No.:BBQZ-WTW-P21020267-1 Page 6/10 Reference No.:BBQZ-WTW-P21020267-1 Page 7/10 Adapter: AD2150F10 Reference No.:BBQZ-WTW-P21020267-1 Page 8/10 Reference No.:BBQZ-WTW-P21020267-1 Page 9/10 Adapter: 2ABN042F Reference No.:BBQZ-WTW-P21020267-1 Page 10/10

SHEET: AUTHOR:TITLE: P/N:REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPDDATE 1 of 1 AHAN AW-14771-02 01 AW,PLBL,NBR750NA,V1 22MAR2021R HUCHANGED CONTAINS TO Contains01 7 6 Pantone Cool Gray 11C NOTE: 1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR TOLERANCES. 2. INK COLOR IS SHOWN TO THE RIGHT. 3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. 4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM. 5. See NTGR DOC-00112 for SN standard. 6. SN, MAC address, to be encoded QR (2D) barcode. A. EACH DATA ELEMENT IS TO BE SEPARATED BY A SEMICOLON WITH NO SPACE, AND TO BE PRINTED IN THIS EXACT ORDER. ELEMENT: SN:SERIAL NUMBER;SK:NETGEAR SKU NAME;MAC:MAC ADDRESS; EXAMPLE: 510789235724097;ORBI BASE STATION;8A:00:27:C5:84:B3 The definition and sequence of QR code WIFI:S:SSID;T:WPA2;P:PASSWORD;SN:SERIAL NUMBER;SK:NETGEAR SKU NAME;MAC:MAC ADDRESS; The information of string [WIFI:S:SSID]->(WIFI:S:Orbi_setup)->fix character [T:WPA2;P:]-> (T:WPA2;P:)->fix character [SN:SERIAL NUMBER] ->(SN:)->固定字元/ (SERIAL NUMBER)->依照產品輸入訊息(EX:@62NDYMSC00001@) [SK:NETGEAR SKU NAME] -> (SK:)->固定字元/ NETGEAR SKU NAME->依照工單&生產品名By work order and 7. INSURE COUNTRY OF ORIGIN IS CORRECT. A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND INCLUDE COUNTRY OF ORIGIN ON LABEL. B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT FROM ARTWORK (USE LAYERS). 12.5mm 12.5mm Made in Thailand Made in Taiwan

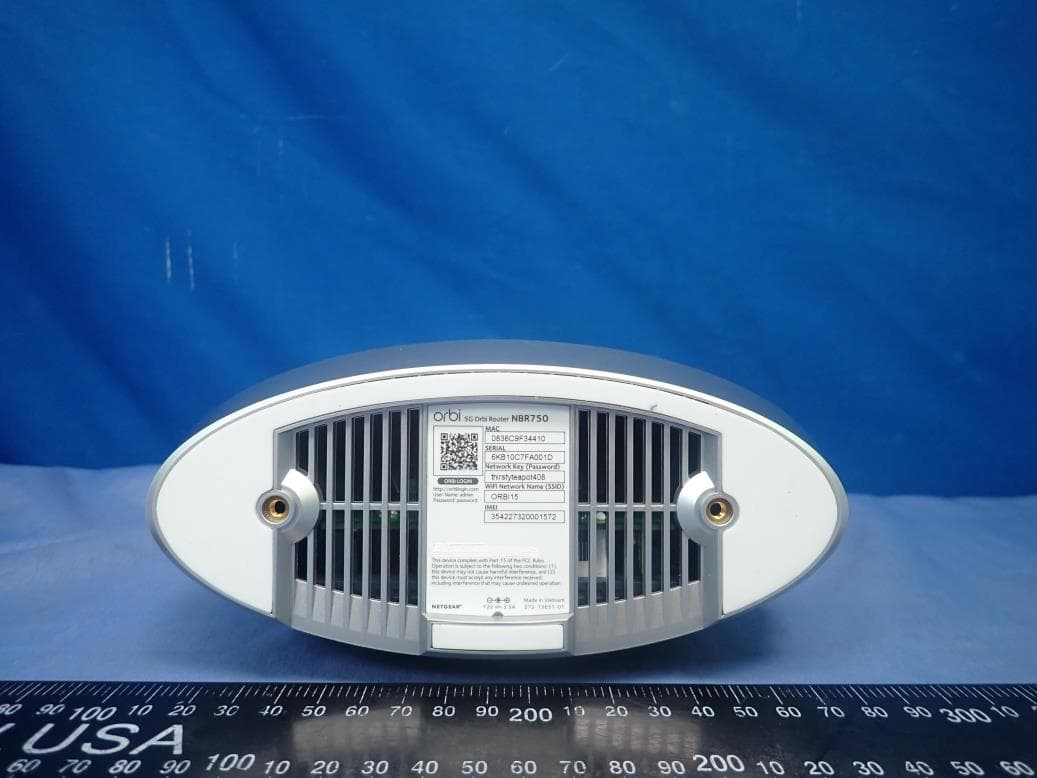

(Fig. 1) FCC ID: PY320400511 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. EUT Bottom Label
