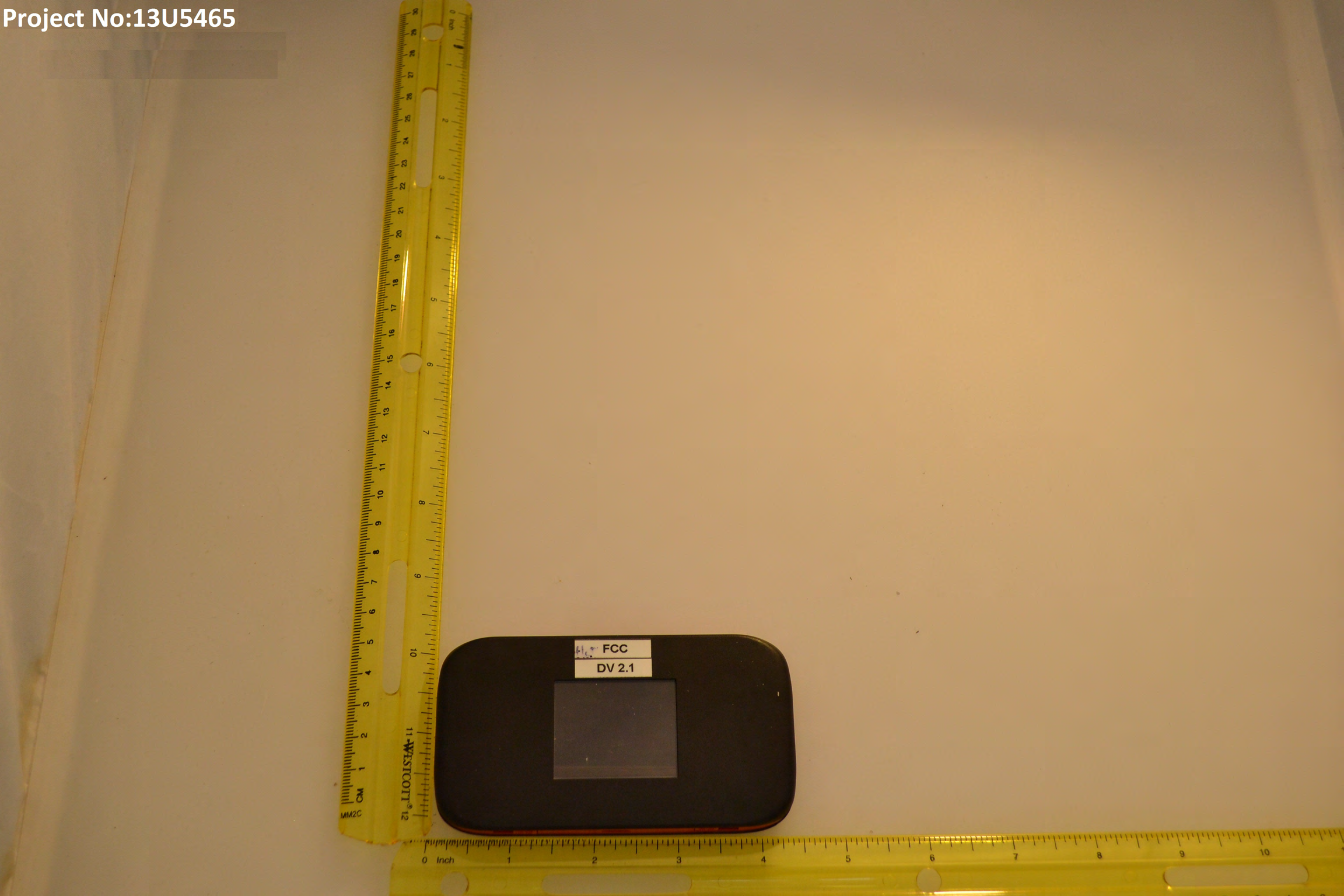

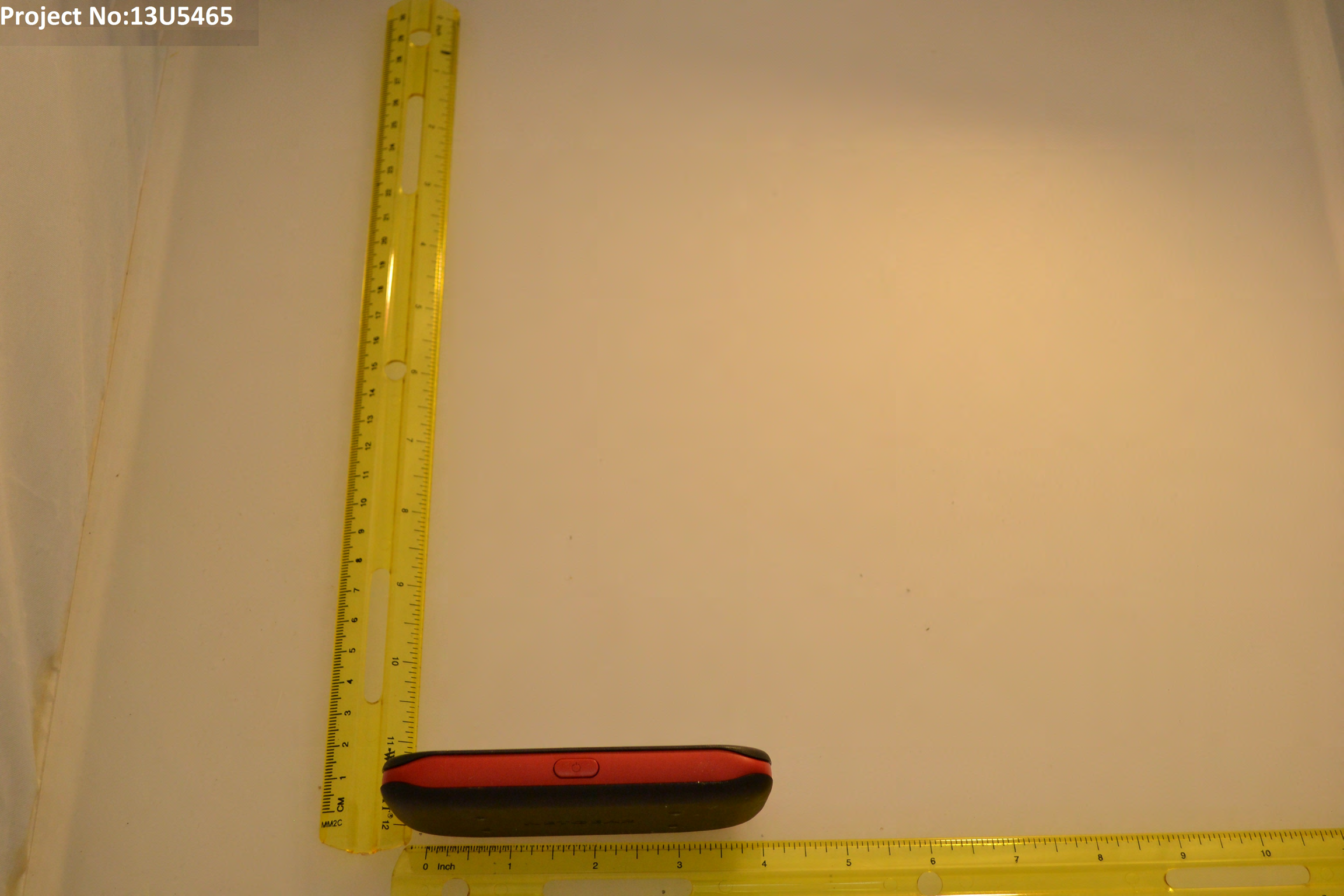

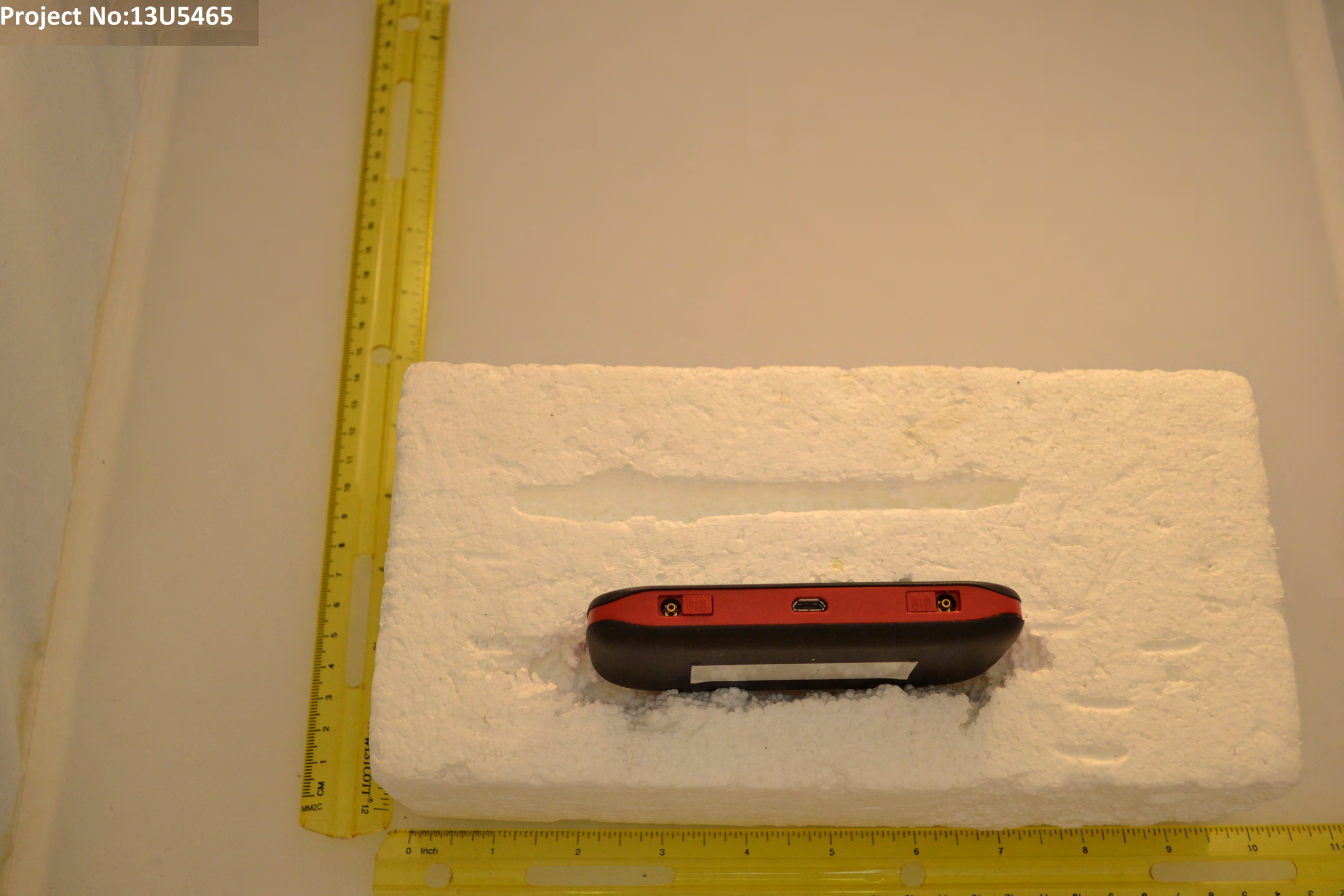

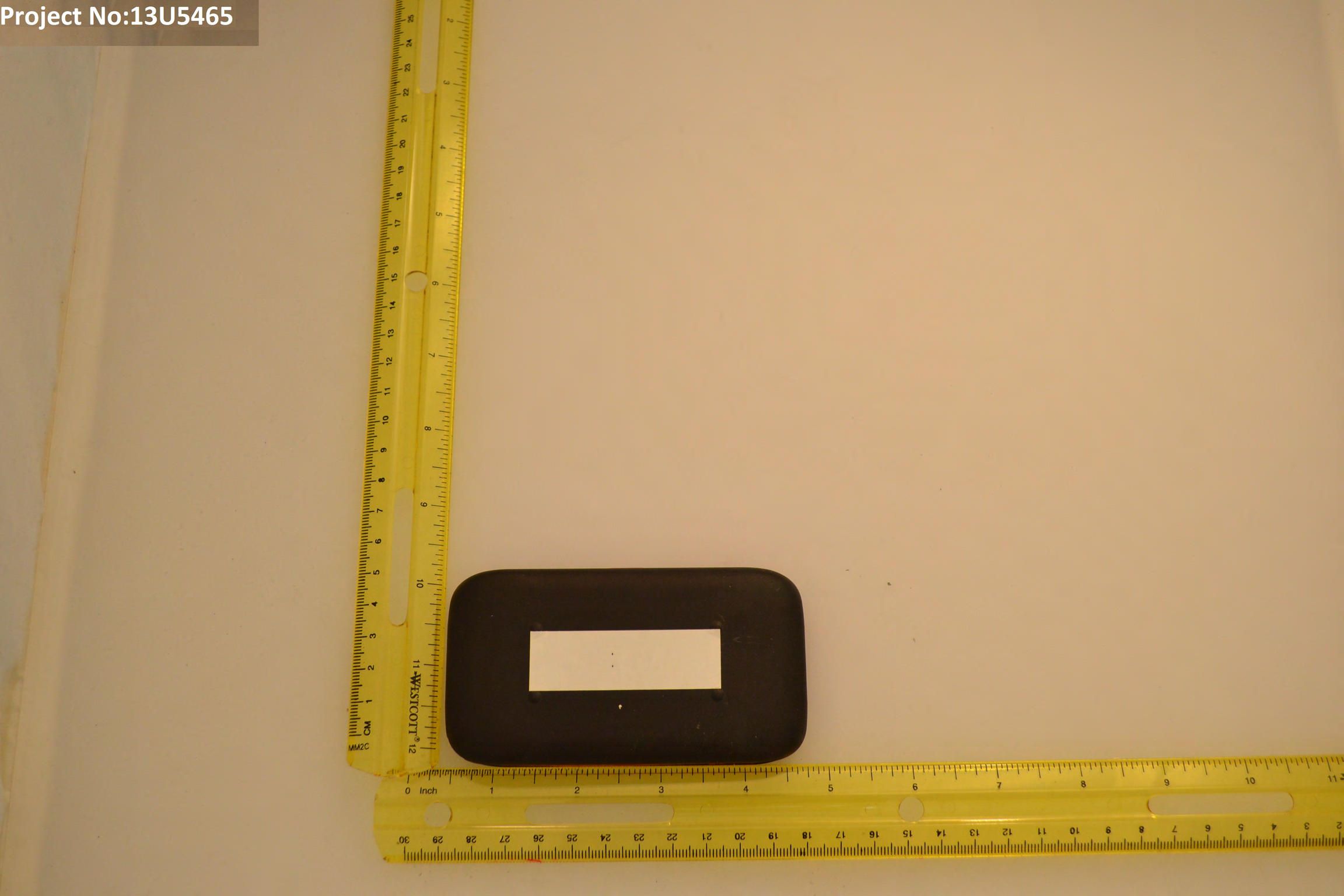

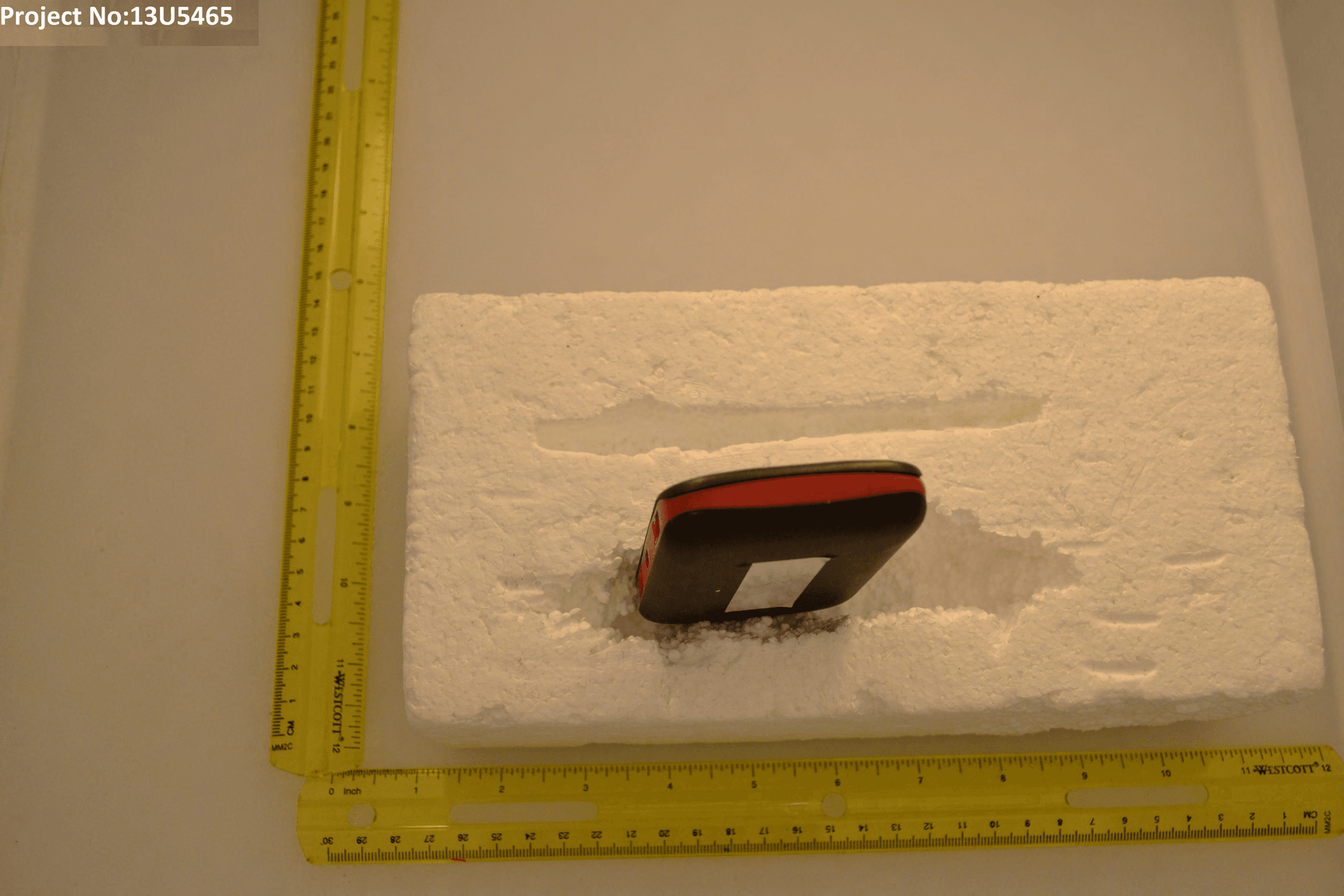

PY3AC778SCDMA + WiFi + LTE Mobile Hotspot

778S Mobile Hotspot AirCard ® User Guide 2400364 Rev 1 Preface Rev 1 Sep.13 3 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the NETGEAR® modem are used in a normal manner with a well-constructed network, the NETGEAR modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. NETGEAR accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the NETGEAR modem, or for failure of the NETGEAR modem to transmit or receive such data. Safety and Hazards Do not operate the NETGEAR modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the NETGEAR modem MUST BE POWERED OFF. The NETGEAR modem can transmit signals that could interfere with this equipment. Do not operate the NETGEAR modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the NETGEAR modem MUST BE POWERED OFF.. When operating, the NETGEAR modem can transmit signals that could interfere with various onboard systems. The driver or operator of any vehicle should not operate the NETGEAR modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of NETGEAR. NETGEAR AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY NETGEAR PRODUCT, EVEN IF NETGEAR AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall NETGEAR and/or its affiliates aggregate liability arising under or in connection with the NETGEAR product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the NETGEAR product. AirCard 778S Mobile Hotspot User Guide 4 2400364 PatentsThis product may contain technology developed by or for NETGEAR Inc. This product includes technology licensed from QUALCOMM ® . Copyright© 2013 NETGEAR, Inc. All rights reserved. TrademarksNETGEAR, the NETGEAR logo, AirCard, and Watcher are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s). Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. Macintosh ® and Mac OS X ® are registered trademarks of Apple Inc., registered in the U.S. and other countries. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Information is subject to change without notice. Rev 1 Sep.13 5 Contents Get Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Know your device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Power button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 LCD screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 LCD screen elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Power sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Set up and connect to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Install the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Connect to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Device configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Security credentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Use Your Mobile Hotspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Add a wireless device to your Wi-Fi network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Add a device manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Add a WPS-enabled device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Messages and Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 View alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

netgear.com O 760.476.8700 F 760.476.8701 2200 Faraday Ave. Suite 150. Carlsbad, CA 92008 Date: September 11, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: PY3AC778S To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specification Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until February 28, 2014 External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Todd Van Cleave Director, Hardware Development Netgear Incorporated

netgear.com O 760.476.8700 F 760.476.8701 2200 Faraday Ave. Suite 150. Carlsbad, CA 92008 Date: September 11, 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; NETGEAR Confidential and Proprietary h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Best Regards Todd Van Cleave Director, Hardware Development Netgear Incorporated

netgear.com O 408.907.8000 F 408.907.8097 350 E. Plumeria Drive San Jose, CA 95134-1911 April 19, 2013 Federal Communications Commission Authorization & Standards Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/ Madam, I hereby authorize Mr. Todd Van Cleave of Netgear to act on my behalf in all manners relating to the application for equipment authorization including signing of all documents relating to these matters. Any and all acts carried out by Mr. Todd Van Cleave of Netgear on my behalf shall have the same effect as acts of my own. Sincerely, John Ramones Sr. Director, Product Design & Regulations

netgear.com O 760.476.8700 F 760.476.8701 2200 Faraday Ave. Suite 150. Carlsbad, CA 92008 Date: September 30, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Re: Label Attestation FCC ID: PY3AC778S To whom it may concern: This is to attest that Netgear will ship the product, model number AC778S without the battery installed. Specifically; 1. The label for this product is located in the battery compartment of the device under conditions specified in KDB 784748 D01 v07. The FCC ID will be readily visible at the time of purchase. The label statement required by 15.19(a) will be placed in the user manual because the device is too small to put it on the label. Best Regards Todd Van Cleave Director, Hardware Development Netgear Incorporated

NETGEAR  Daffy FCC Label Device Back Side Inside Battery compartment

FCC 47 CFR PART 2.1091 MPE Evaluation for CDMA + WIFI + LTE MOBILE HOTSPOT MODEL NUMBER: AC778S FCC ID: PY3AC778S REPORT NUMBER: 13U15465-4 ISSUE DATE: SEPTEMBER 17, 2013 Prepared for NETGEAR INC 2200 FARADAY AVE. CARLSBAD, CA 92008 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13U15465-4 DATE: 09/17/2013 EUT: CDMA+WIFI+LTE MOBILE HOTSPOT FCC ID: PY3AC778S Page 1 of 6 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By --- 9/17/13 Initial Issue P. Kim REPORT NO: 13U15465-4 DATE: 09/17/2013 EUT: CDMA+WIFI+LTE MOBILE HOTSPOT FCC ID: PY3AC778S Page 2 of 6 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. ATTESTATION OF TEST RESULTS COMPANY NAME: NETGEAR INC 2200 FARADAY AVE. CARLSBAD, CA 92008 EUT DESCRIPTION: CDMA+WIFI+LTE MOBILE HOTSPOT MODEL: AC778S SERIAL NUMBER: FS3282004304020E APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 2.1091 PASS UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL Verification Services Inc. By: Prepare By: PHILIP KIM PENG ZHANG WiSE PROGRAM MANAGER WiSE PROJECT LEAD UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 13U15465-4 DATE: 09/17/2013 EUT: CDMA+WIFI+LTE MOBILE HOTSPOT FCC ID: PY3AC778S Page 3 of 6 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. Introduction In this application we also seek approval for the AirCard 771S wireless hotspot to operate as a mobile device using external antennas. The MPE report demonstrates compliance with FCC CFR 47 §2.1091 in usage of external antenna under mobile exposure conditions. 2. RF Exposure Limits and Equations The general population/uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. FCC RULES: According to FCC CFR 47 §1.310, the criteria listed in the Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1307. Table 1: Limits for Maximum Permissible Exposure (MPE) REPORT NO: 13U15465-4 DATE: 09/17/2013 EUT: CDMA+WIFI+LTE MOBILE HOTSPOT FCC ID: PY3AC778S Page 4 of 6 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. EQUATIONS: Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density (mW/cm^2) EIRP = Equivalent Isotropic Radiated Power (mW) D = Separation distance (cm) 3. MPE Assessment The power density calculations for individual transmitters per wireless technology at a separation distance of 20cm are shown in the following table. For frequency dependent limits, the lowest transmitter frequency was used to represent the most stringent limit in this analysis (eg. 824MHz = 0.55mW/cm 2 ). The calculations are based on the highest conducted power to represent the worst-case scenario. Duty Cycle CDMA BC 0 82424.50.289.410.490.55-0.06 CDMA BC 1 185023.50.22910.351-0.65 CDMA BC 10 81624.50.289.410.490.54-0.05 LTE Band 25 1850240.25910.401-0.60 LTE Band 26 814240.259.410.440.54-0.10 LTE Band 41 2496240.2590.60.241-0.76 WLAN 2.4 GHz 240018.60.072.110.021-0.98 FCC MPE Limit (mW/cm^2) Power Density to MPE Limit Ratio Operating Mode TX Freq (MHz) Max Time- Avg Cond Power (dBm) Max Time- Avg Cond Power (W) Max Ant Gain (dBi) Power Density @20 cm (mW/cm^2) The sum of the highest power density to MPE limit ratio of WWAN and WLAN transmitters is as follows: 0.49/0.54 + 0.02/1= 0.93 < 1 3.1 LTE TDD Duty Cycle REPORT NO: 13U15465-4 DATE: 09/17/2013 EUT: CDMA+WIFI+LTE MOBILE HOTSPOT FCC ID: PY3AC778S Page 5 of 6 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. The duty cycle of the testing for LTE TDD Band 41 used the worst-case Configuration 0, which is…

Text truncated - open the document above for the full version.

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2003 and IEEE Std 1528a-2005 SAR EVALUATION REPORT For CDMA + WiFi + LTE Mobile Hotspot Model: AC778S FCC ID: PY3AC778S Report Number: 13U15465-5 Issue Date: 9/23/2013 Prepared for NETGEAR INC. 2200 FARADAY AVENUE, CARLSBAD, CA 92008 Prepared by UL Verification Services 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 13U15465-5 Issue Date: 9/23/2013 FCC ID: PY3AC778S Page 2 of 56 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 09/23/2013 Initial issue -- Report No.: 13U15465-5 Issue Date: 9/23/2013 FCC ID: PY3AC778S Page 3 of 56 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 5 2. Test Methodology ........................................................................................................................... 6 3. Facilities and Accreditation ........................................................................................................... 6 4. Calibration and Uncertainty ........................................................................................................... 7 4.1. Measuring Instrument Calibration .............................................................................................. 7 4.2. Measurement Uncertainty .......................................................................................................... 9 5. Measurement System Description and Setup ............................................................................. 10 6. SAR Measurement Procedure ...................................................................................................... 11 6.1. Normal SAR Measurement Procedure ..................................................................................... 11 6.2. Volume Scan Procedures ........................................................................................................ 13 7. Device Under Test ......................................................................................................................... 14 7.1. General Information ................................................................................................................. 14 7.2. Wireless Technologies ............................................................................................................. 14 7.3. RF Output Power Tune-up Tolerance ...................................................................................... 15 7.4. Simultaneous Transmission Condition ..................................................................................... 15 7.5. General LTE SAR Test and Reporting Considerations ............................................................. 16 7.5.1. TDD LTE Considerations .................................................................................................. 17 8. Exposure Conditions .................................................................................................................... 18 9. RF Output Power Measurement ................................................................................................... 19 9.1. CDMA ...................................................................................................................................... 19 9.2. LTE .......................................................................................................................................... 20 9.3. WiFi (2.4 GHz Band) ................................................................................................................ 31 10. Tissue Dielectric Properties ..................................................................................................... 32 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 33 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 34 11. System Performance Check ..................................................................................................... 36 11.1. System Performance Check Measurement Conditions ......................................................... 36 11.2. Reference SAR Values for System Performance Check....................................................... 36 11.3. System Performance Check Results .................................................................................... 37 12. SAR Test Results ...................................................................................................................... 38 12.1. CDMA BC 0 .......................................................................................................................... 38 Report No.: 13U15465-5 Issue Date: 9/23/2013 FCC ID: PY3AC778S Page 4 of 56 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 12.2. CDMA BC 1 .......................................................................................................................... 38 12.3. CDMA BC 10 ........................................................................................................................ 39 12.4. LTE FDD Band 25 (10 MHz Bandw…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 8/16/2013 20130816_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.527 S/m; ε r = 52.854; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1360; Calibrated: 2/7/2013 - Probe: EX3DV4 - SN3686; ConvF(7.28, 7.28, 7.28); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 57.913 V/m; Power Drift = 0.02 dB Fast SAR: SAR(1 g) = 3.81 W/kg; SAR(10 g) = 1.91 W/kg Maximum value of SAR (interpolated) = 5.09 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.913 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 6.60 W/kg SAR(1 g) = 3.85 W/kg; SAR(10 g) = 2.07 W/kg Maximum value of SAR (measured) = 5.10 W/kg 0 dB = 5.10 W/kg = 7.08 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 8/16/2013 20130816_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.97 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 8/20/2013 20130820_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1.013 S/m; ε r = 53.176; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1360; Calibrated: 2/7/2013 - Probe: EX3DV4 - SN3686; ConvF(9.04, 9.04, 9.04); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 34.688 V/m; Power Drift = -0.19 dB Fast SAR: SAR(1 g) = 0.961 W/kg; SAR(10 g) = 0.643 W/kg Maximum value of SAR (interpolated) = 1.14 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.688 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.939 W/kg; SAR(10 g) = 0.627 W/kg Maximum value of SAR (measured) = 1.14 W/kg 0 dB = 1.14 W/kg = 0.57 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 8/20/2013 20130820_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.13 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 9/13/2013 20130913_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1.008 S/m; ε r = 53.772; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1360; Calibrated: 2/7/2013 - Probe: EX3DV4 - SN3686; ConvF(9.04, 9.04, 9.04); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 33.829 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 0.959 W/kg; SAR(10 g) = 0.644 W/kg Maximum value of SAR (interpolated) = 1.14 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.829 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.951 W/kg; SAR(10 g) = 0.625 W/kg Maximum value of SAR (measured) = 1.15 W/kg 0 dB = 1.15 W/kg = 0.61 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 9/13/2013 20130913_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.14 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 8/21/2013 20130821_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.545 S/m; ε r = 51.895; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1259; Calibrated: 2/7/2013 - Probe: EX3DV4 - SN3929; ConvF(7.28, 7.28, 7.28); Calibrated: 6/24/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B v5.0; Type: QDOVA002AA; Serial: TP:1195 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 60.975 V/m; Power Drift = 0.08 dB Fast SAR: SAR(1 g) = 4.2 W/kg; SAR(10 g) = 2.11 W/kg Maximum value of SAR (interpolated) = 5.63 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.975 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 7.49 W/kg SAR(1 g) = 4.28 W/kg; SAR(10 g) = 2.27 W/kg Maximum value of SAR (measured) = 5.72 W/kg 0 dB = 5.72 W/kg = 7.57 dBW/kg Plot No. 8 Test Laborat…

Text truncated - open the document above for the full version.
